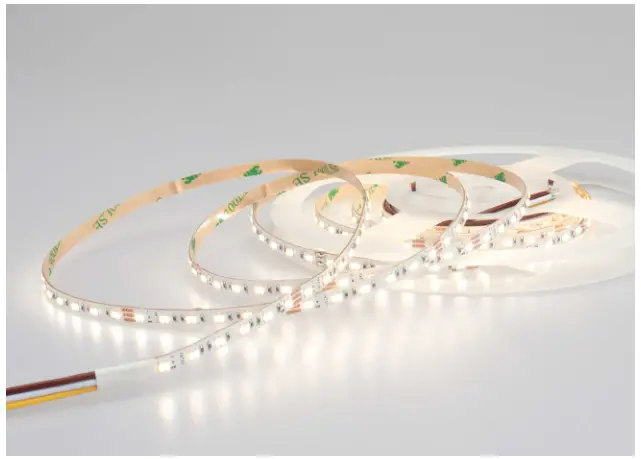

Lightin2010SMD 240LEDs 5mm PCB Tunable White LED Strip
User Guide
Note: LEDYI may change product specifications and installation guidance without prior notice.

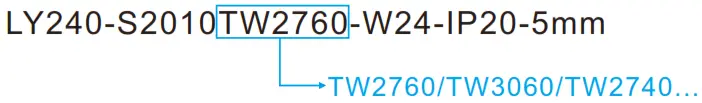

| Part Number: |  |
Description
24V, flexible LED strip (12LED/step =50mm) with 3M adhesive tape on the back for easy installed.888lm/m at 10W/m. 120° beam angle.

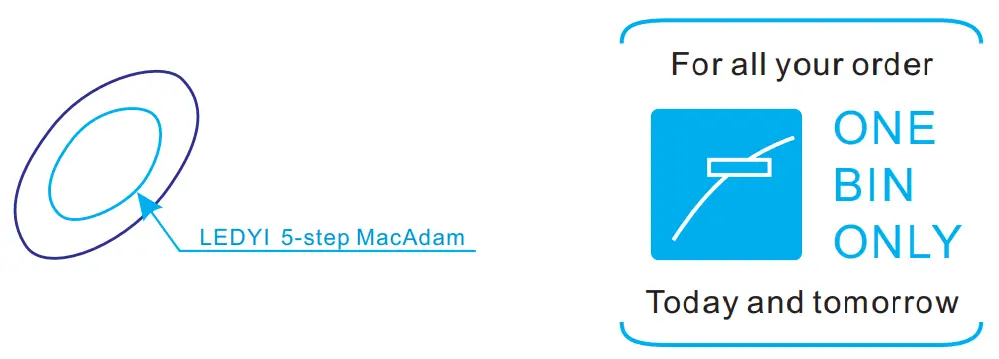

Very good color reproduction with CRI>90. “One Bin Only” within 5 MacAdam guarantees constant color temperature and high light quality at a lifetime of 54,000 hours (L 70).Double-layer FPC(2Oz) for good heat dissipation.
Dimensions & Waterproof
Product Specification
| Dimension | 5000x5x1.4mm |
| Chip Type | 2010SMD |
| Chip Density | 240LEDs/m |
| Step LEDs | 12LEDs |
| Step Length | 50mm |
| Voltage(V) | DC24V |
| Current(A/m) | 0.4A |
| Power(W/m) | 10W |
| Beam Angle | 120° |
| Operation Temperature | -20°C~50°C |
Product Photometrics (Data base on IP20 CRI>90)
| CCT (K) | Lumen (lm/m) | Power (w/m) | Efficacy (lm/w) | CRI | R9 | TM-30-15 | |
| Rf (Fidelity) | Rg (Gamut) | ||||||
| 2700 only | 408 | 5 | 81.6 | 91 | 78.86 | 92.8 | 100.81 |
| 6000 only | 492 | 5 | 98.4 | 92 | 90.95 | 91.96 | 101.89 |
| 2700+6000 both | 888 | 10 | 88.8 | 90 | 85.36 | 90.95 | 103.85 |

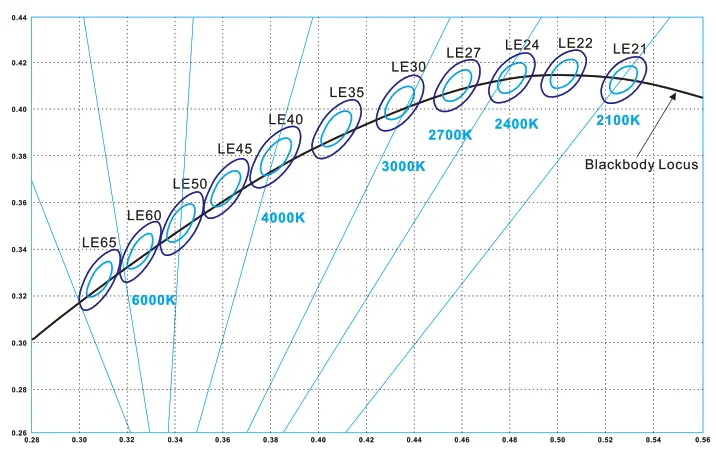

Binding
Graphic Description:
IP20: bare, max. light output and the best color consistency, for indoor use.
IP65/IP65H: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency, Indoor use or semi-outdoor use, for rainy environments.

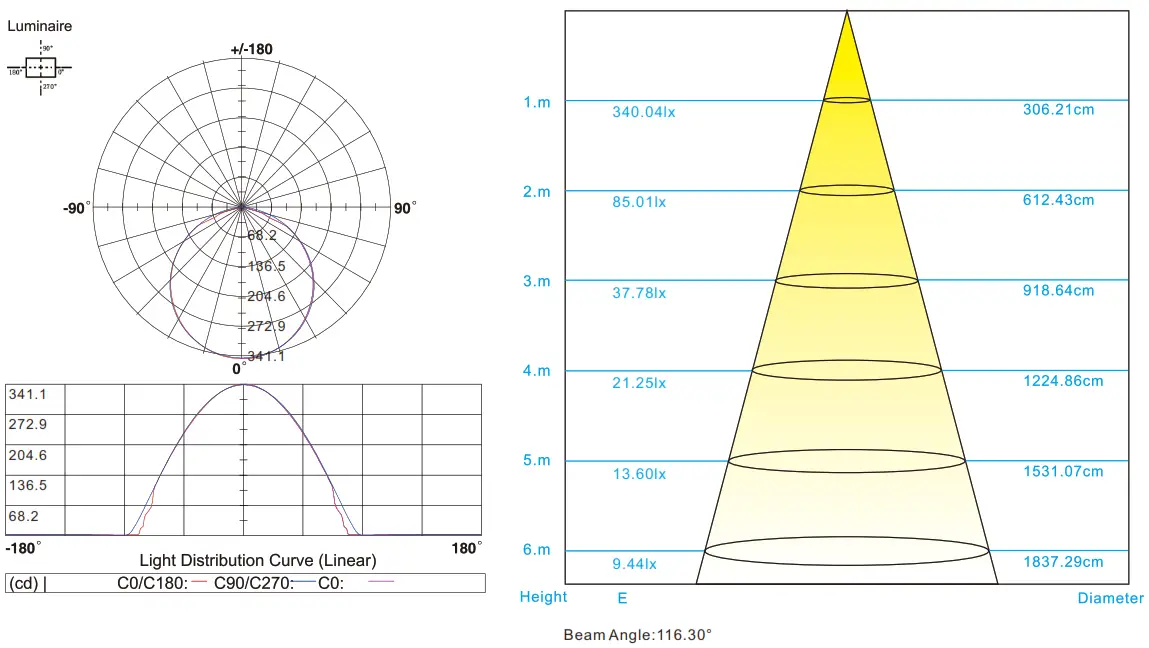

Light Distribution Curve[Data base on 1m IP20, Unit:cd]

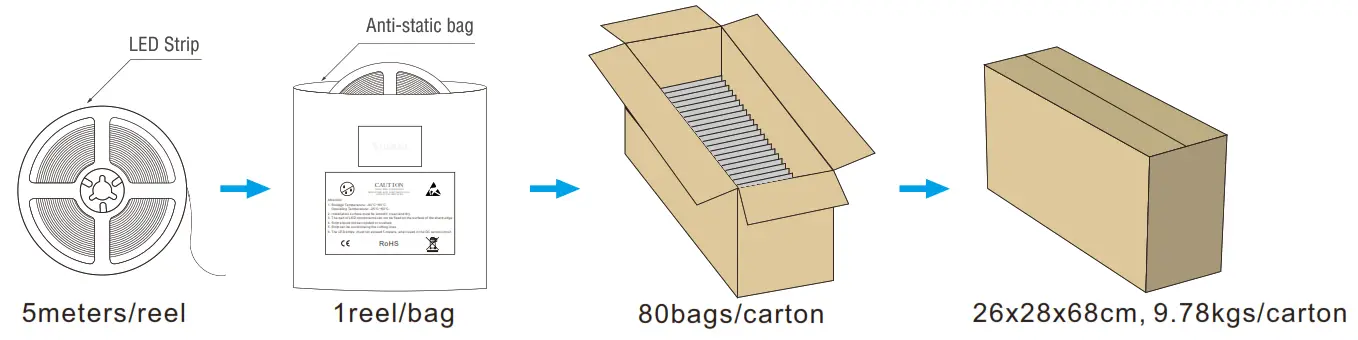

Packing Information(Data base on IP20)
