Lighting 2010SMD 700LEDs 10mm PCB Single Color LED Strip
User Guide
LED STRIP SPECIFICATION

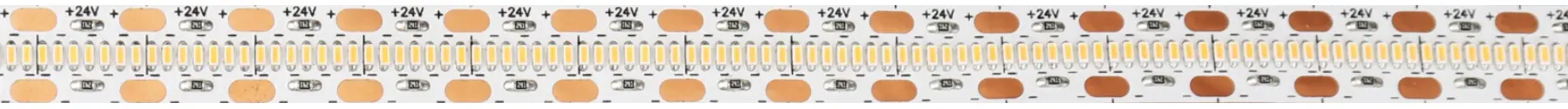

2010SMD 700LEDs 10mm PCB LED STRIP
Note: LEDYI may change product specifications and installation guidance without prior notice.

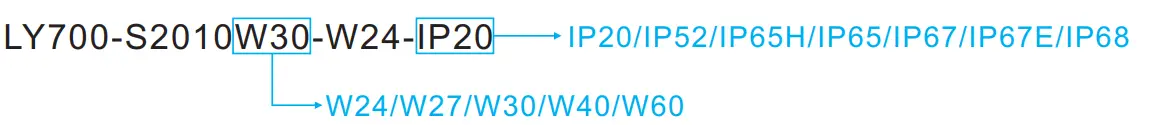

| Part Number: |  |
Description

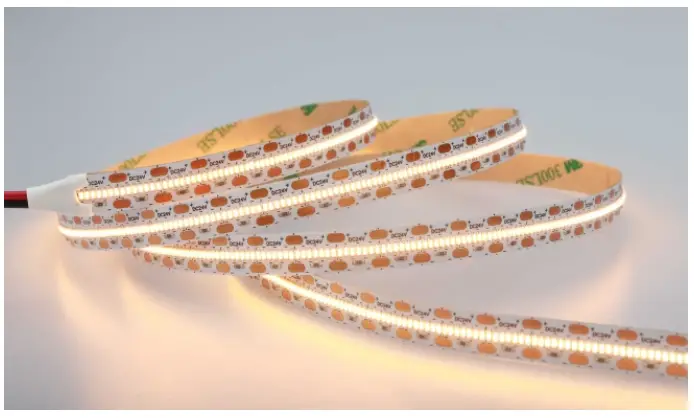

24V, flexible LED strip (7LED/step =10mm) with 3M adhesive tape on the back for easy installed.2310lm/m at 20W/m. 120° beam angle.

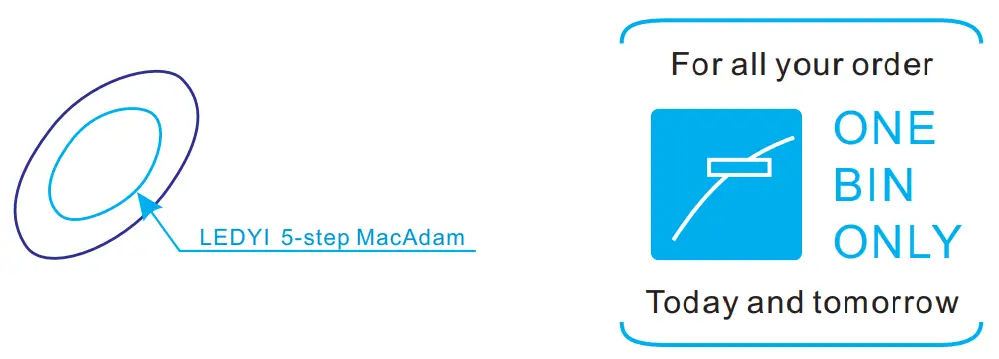

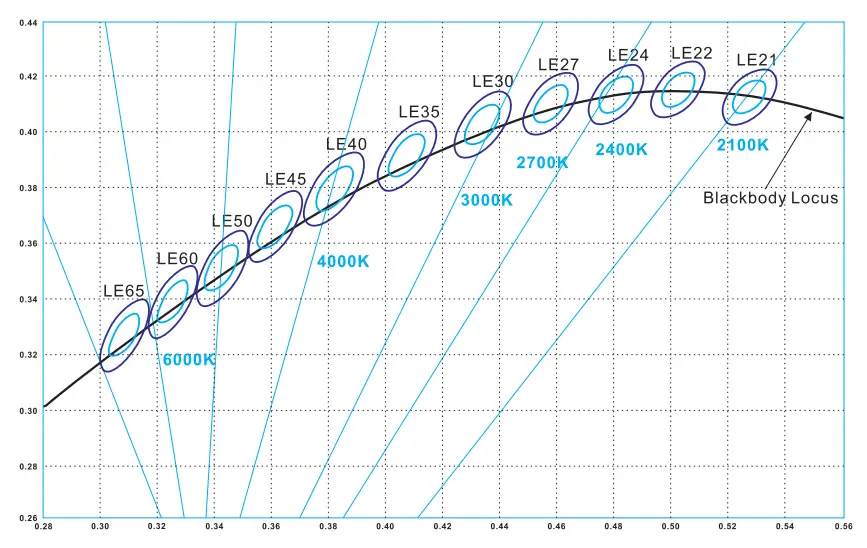

Very good color reproduction with CRI>90. “One Bin Only” within 5 MacAdam guarantees constant color temperature and high light quality at a lifetime of 54,000 hours (L70.Double-layer FPC(2Oz) for good heat dissipation.

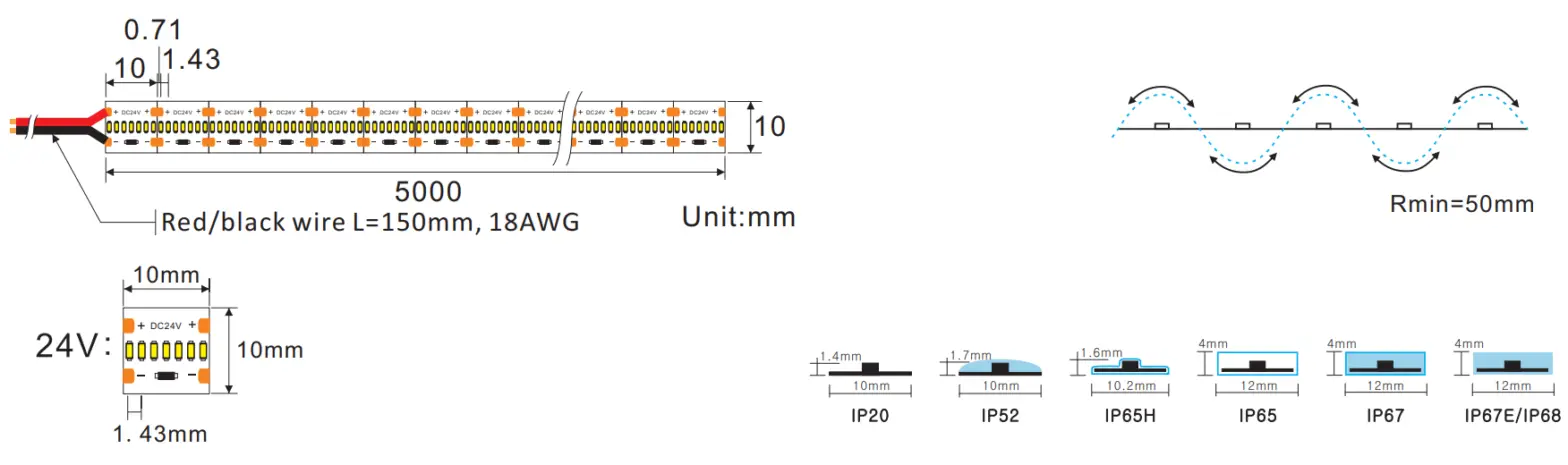

Dimensions & Waterproof
Product Specification
| Dimension | 5000x10x1.4mm |
| Chip Type | 2010SMD |
| Chip Density | 700LEDs/m |
| Step LEDs | 7LEDs |
| Step Length | 10mm |
| Voltage(V) | DC24V |
| Current(A/m) | 0.84A |
| Power(W/m) | 20W |
| Beam Angle | 120° |
| Operation Temperature | -20°C~50°C |
Product Photometrics (Database on IP20 CRI>90)
CCT | Lumen (lm/m) | Efficacy (lm/w) | CRI | R9 | TM-30-15 | |
| Rf (Fidelity) | Rg (Gamut) | |||||
| 2300-2500K | 1680 | 84.00 | 91. | 77. | 91. | 102. |
| 2600-2800K | 1960 | 98.00 | 91. | 79. | 92.80 | 101. |
| 2900-3100K | 2170 | 108.50 | 93. | 85. | 90.80 | 104. |
| 3800-4300K | 2100 | 105.00 | 93. | 86. | 91. | 100.00 |
| 5900-6400K | 2310 | 115.50 | 93. | 91. | 92. | 101.89 |
Binding
Graphic Description:
IP20: bare, max. light output and the best color consistency, for indoor use.
IP52: Silicone coating, ~5% less output and 3rd best color consistency, indoor use, for damp environments.
IP65: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency, Indoor use or semi-outdoor use, for rainy environments.
IP67: Silicone tube + silicon filling, ~7% less output and 4th best color consistency, outdoor use, max length is 10 meters.
IP67E: Solid silicone extrusion, ~7% less output, and 4th best color consistency, outdoor use, max length up to 50 meters.
IP68: PU(Polyurethane),~7% less output and 4th best color consistency, under the water, within 2 meters deep.

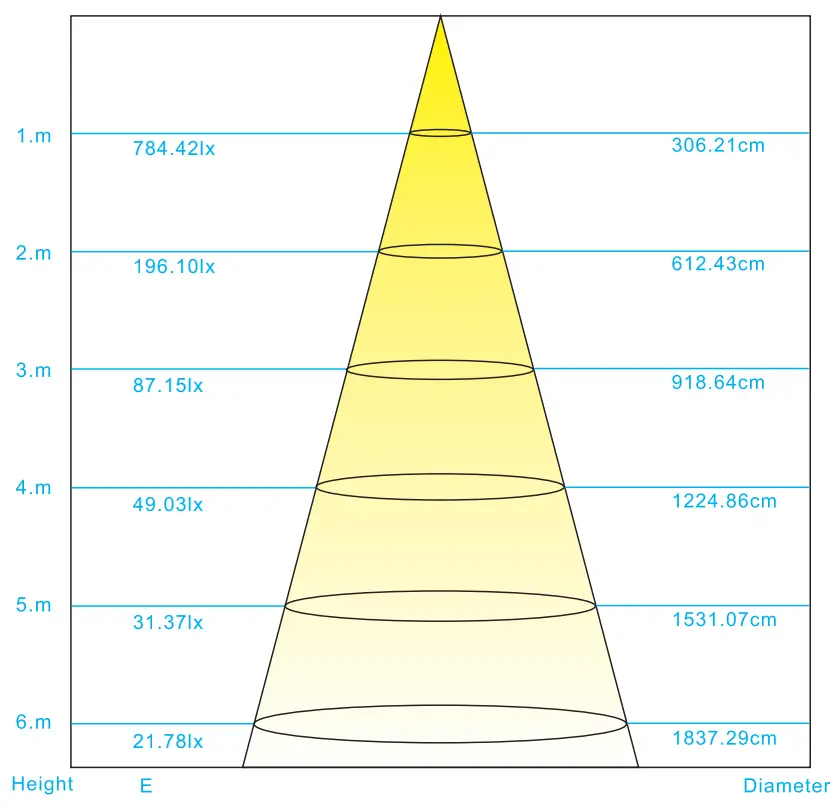

Light Distribution Curve[Data base on 1m IP20 6000K CRI>90, Unit:cd]
Luminaire
 |  |
Beam Angle:116.30°

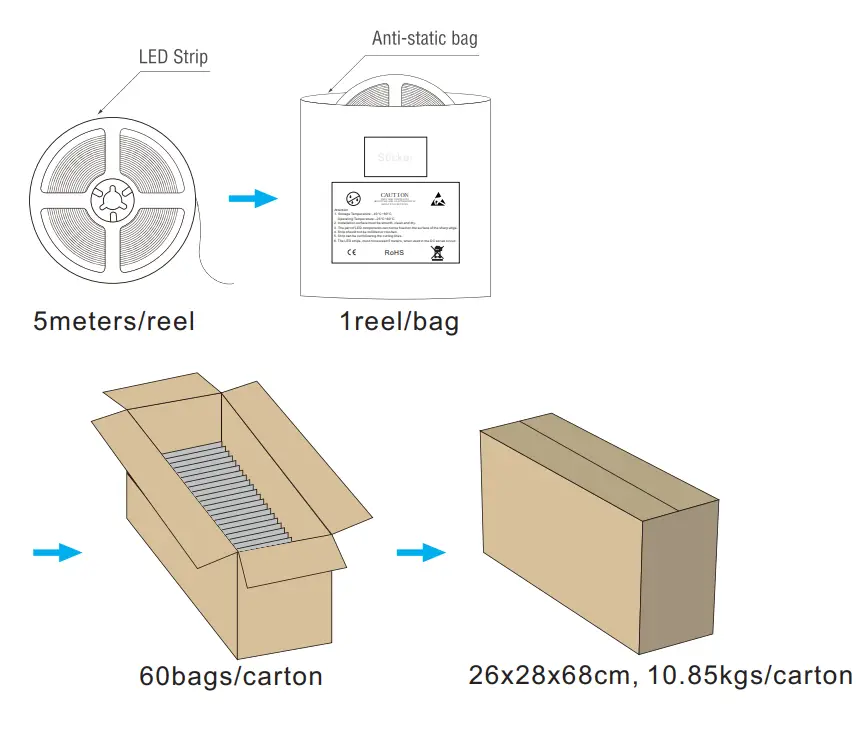

Packing Information(Database on IP20)
