Lighting 2010SMD 240LEDs 3mm PCB LED Strip
User Guide
Note: LEDYI may change product specifications and installation guidance without prior notice.

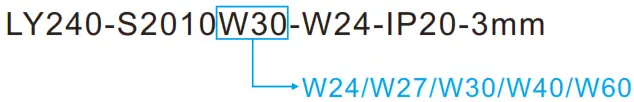

| Part Number: |  |

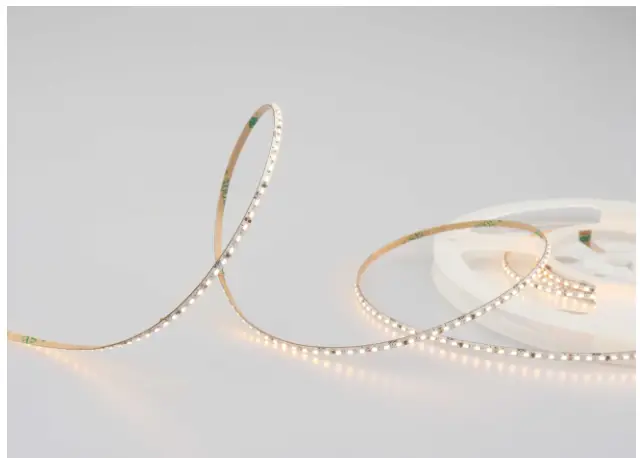

Description
24V, flexible LED strip (6LED/step =25mm) with 3M adhesive tape on the back for easy installed.792lm/m at 8W/m. 120° beam angle.

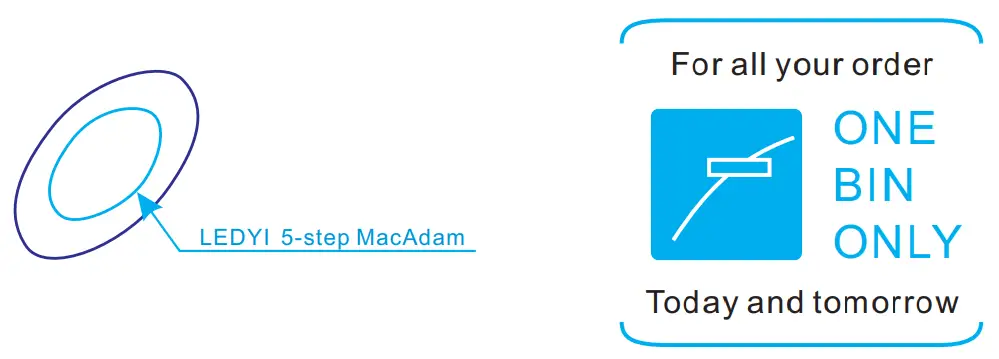

Very good color reproduction with CRI>90. “One Bin Only” within 5 MacAdam guarantees constant color temperature and high light quality at a lifetime of 54,000 hours (L70 ).Double-layer FPC(2Oz) for good heat dissipation.

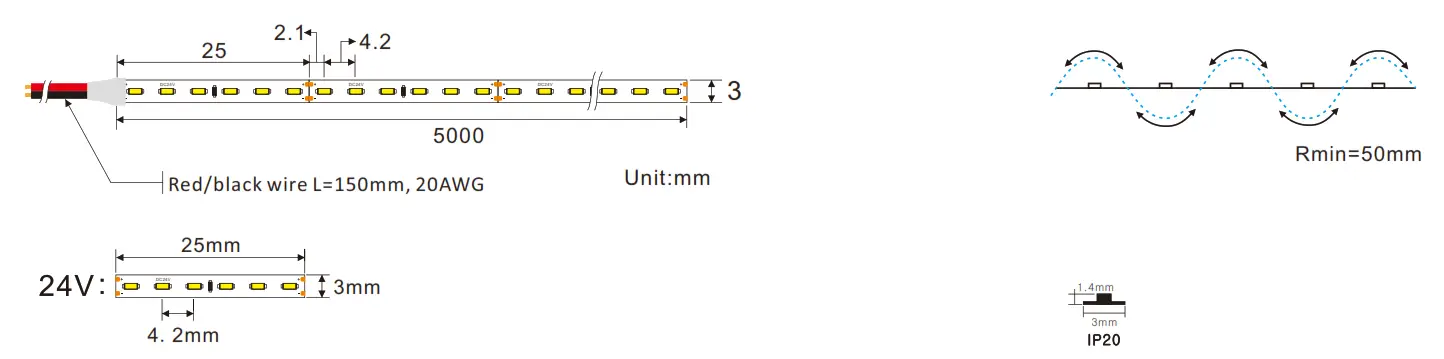

Dimensions & Waterproof
Product Specification
| Dimension | 5000x3x1.4mm |
| Chip Type | 2010SMD |
| Chip Density | 240LEDs/m |
| Step LEDs | 6LEDs |
| Step Length | 25mm |
| Voltage(V) | DC24V |
| Current(A/m) | 0.33A |
| Power(W/m) | 8W |
| Beam Angle | 120° |
| Operation Temperature | -20°C~50°C |
Product Photometrics (Data base on IP20 CRI>90)
| CCT (K) | Lumen (lm/m) | Efficacy (lm/w) | CRI | R9 | TM-30-15 | |
| Rf (Fidelity) | Rg (Gamut) | |||||
| 2300-2500K | 576 | 72.00 | 91.47 | 76.83 | 90.81 | 101.82 |
| 2600-2800K | 672 | 84.00 | 91.33 | 78.86 | 92.80 | 100.81 |
| 2900-3100K | 744 | 93.00 | 92.65 | 84.93 | 90.80 | 103.96 |
| 3800-4300K | 720 | 90.00 | 93.42 | 85.95 | 90.95 | 100.00 |
| 5900-6400K | 792 | 99.00 | 92.52 | 90.95 | 91.96 | 101.89 |

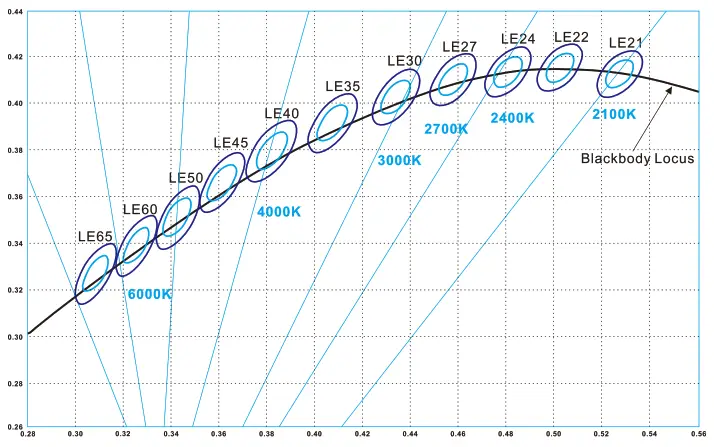

Bining
Graphic Description:
IP20: bare, max. light output and the best color consistency, for indoor use.

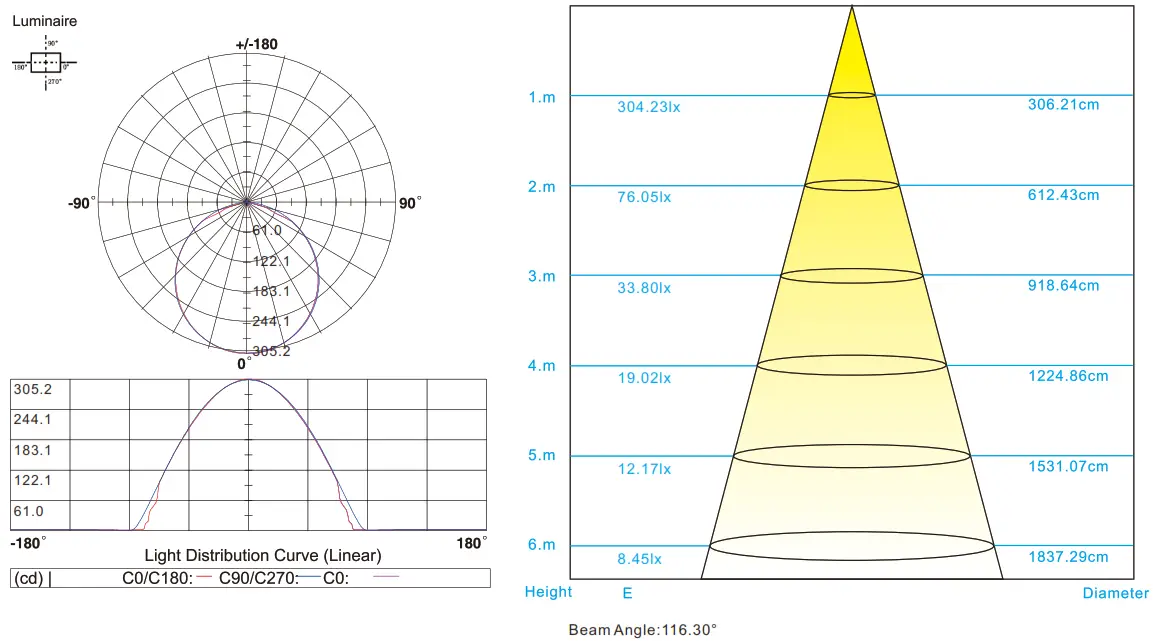

Light Distribution Curve[Data base on 1m IP20 6000K CRI>90, Unit:cd]

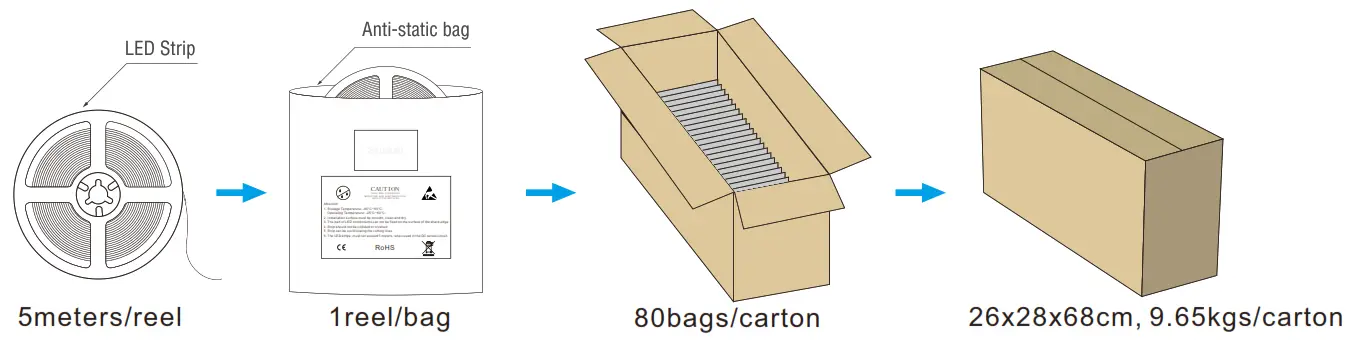

Packing Information(Database on IP20)
Web: www.ledyi.com
Mail: [email protected]
Tel.: +86 0755 2302 5890
Copyright©2022 LEDYI LIGHTING CO., LIMITED
All Rights Reserved
