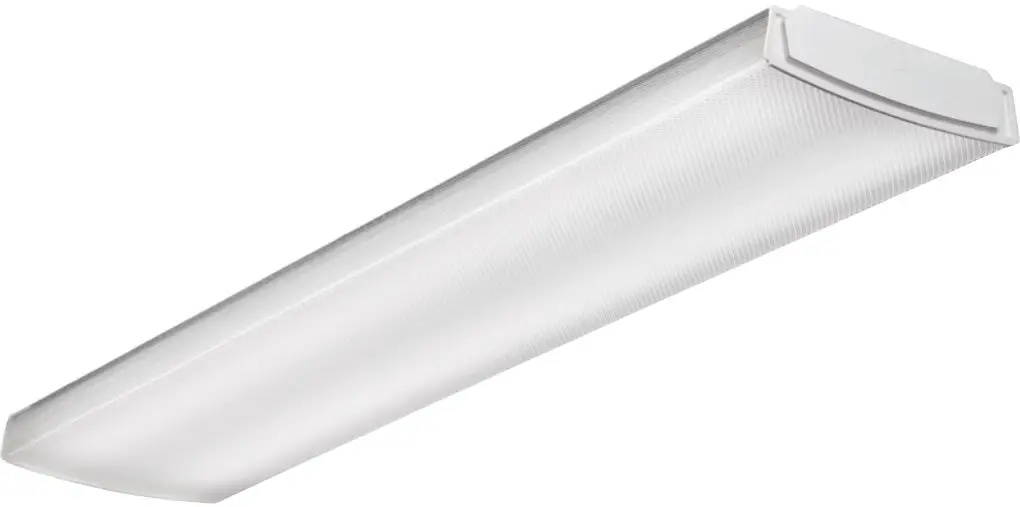

LITHONIA LIGHTING LBL4 Low Profile Curved Basket LED Wraparound Owner’s Manual

FEATURES & SPECIFICATIONS

INTENDED USE — LBL LED wraparound provides a digital lighting platform to deliver general ambient lighting for surface-mount applications. The LED system delivers long life and excellent color to ensure a quality, low-maintenance lighting installation. Ideal for closets, storage rooms, hallways, stairwells and offices.
CONSTRUCTION — Metal parts are die formed from pre-painted code-gauge steel. Prismatic diffuser is 100% acrylic with sonically welded luminous ends. Continuous side flanges on fixture body provide light trap and continuous diffuser support to prevent accidental opening and simplify maintenance.
OPTICS — Curved prismatic diffuser with linear side prisms and highly transmissive overlay minimizes lamp image and provides high-angle brightness control. Luminous end plates soften appearance for improved aesthetics.
ELECTRICAL — Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 50,000 hours (L90/50,000). The LEDs have a CRI of 82. eldoLED driver options deliver choice of dimming range and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI. Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.

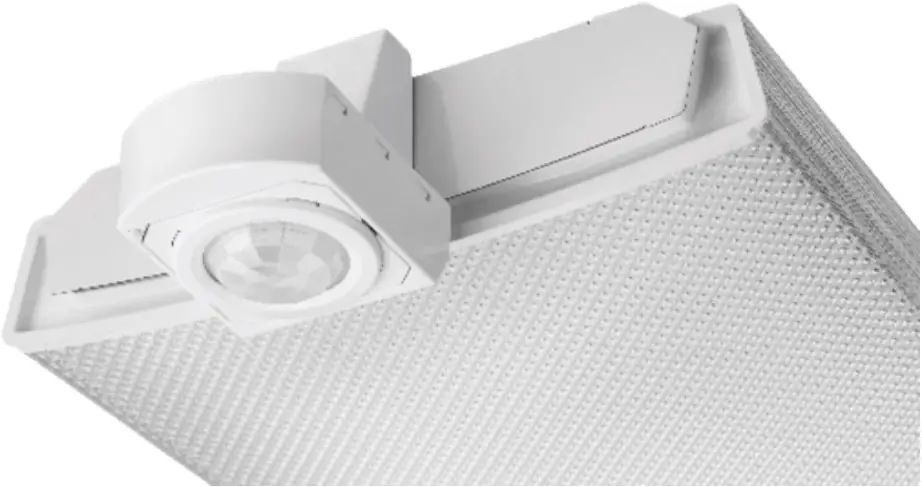

CONTROLS — Pair the LBL with the fixture mount Sensor Switch LSXR sensor for additional energy savings when the space is unoccupied. The LSXRHL sensor dims the fixture down to a low-level setting when there is no occupancy. This option is ideal for stairwells, back rooms, and closets due to the low occupancy level in those spaces. Optional nLight® embedded controls continuously monitor system performance, allow for constant lumen management / compensation function, facilitate simple “plug-and-play” network and controls upgrading via Cat-5 cable. Ballast disconnect provided where required to comply with US and Canadian codes.
LISTINGS — CSA certified to meet U.S. and Canadian standards. Damp listed. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN — Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/customer-support/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

ORDERING INFORMATION

ORDERING INFORMATION

Notes

1. Approximate lumen output.
2. Requires GZT control option.
3. Requires GZT, ZT, or NLIGHT control.
4. Not available with Control or Sensor Options.
5. Not available with SLD option.
6. Not available with 7200LM option.
7. nLight EMG option requires a conection to existing nLight network. Power is provided from a separate N80 or N100 enabled fixture. Requires NLIGHT.
8. Requires MIN1, ZT and PIR options.
9. Dims to approximately 10% light output when unoccupied.
10. Product in stock.
11. Only available with Occupany Control option.
12. Must specify voltage. 120 or 277, with GLR and GMF fusing.
13. When Control Input/ Lumen Management option specified leave Dimming section blank.
14. 347 not available with battery option

Sensor Switch LSXRHL Sensor

Lens type: 10 – Low Mount 360° coverage
Dimming: HL – High/Low Occupancy operation
Min Dim Level: 3V – approximately 10% light output when unoccupied
Time Delay: 5M – 5 minutes

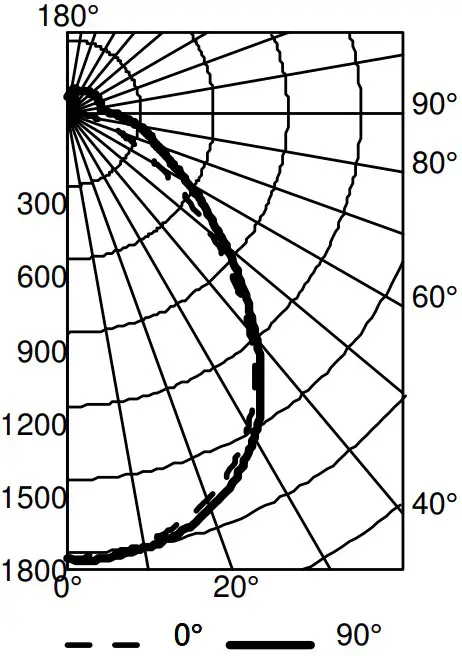

PHOTOMETRICS

MOUNTING DATA

Aircraft Cable
STACG – the standard aircraft cable kit in which only the hanging wire will be included.
STACGF – will include a power feed cable with 3 conductors (HOT, NEUTRAL, GROUND)
STACGFD – same as above with Dimming leads (HOT, NEUTRAL, GROUND, VIOLET, GREY)
STACGE – will include a power feed cable with 4 conductors (HOT1, HOT2, NEUTRAL, GROUND) for fixtures with a battery pack.

Ceiling Type
F1 – for use with most T-bar and screw slot grid ceiling applications. Designed for on-grid and off-grid installations.
F2 – for use with recessed or surface-mount horizontal J-box applications.

How to order:

1. For aircraft cable, choose one STACG, STACGF, STACGFD, or STACGE (required for each suspension point)
2. Choose length 36”, 72” or 144”
3. For ceiling type choose F1 or F2

Ex. STACG36 F1, STACGF72 F2

Stem Suspension
Individual installation — Two single-stem hangers required

Note: 2′ configurations with emergency option cannot be stem mounted.

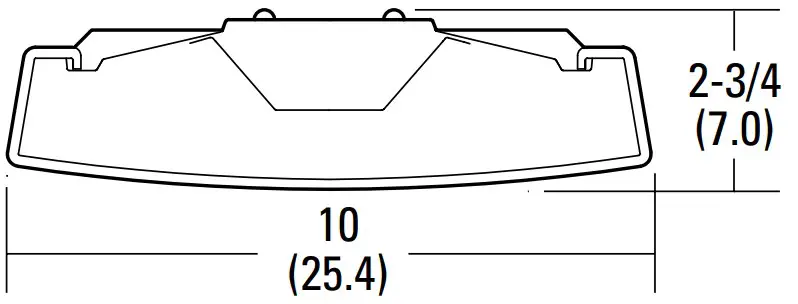

DIMENSIONS

Specifications
Length: 48 (122.0)
Width: 10 (25.4)
Depth: 2-3/4 (7.0)

All dimensions are inches (centimeters) unless otherwise indicated.
