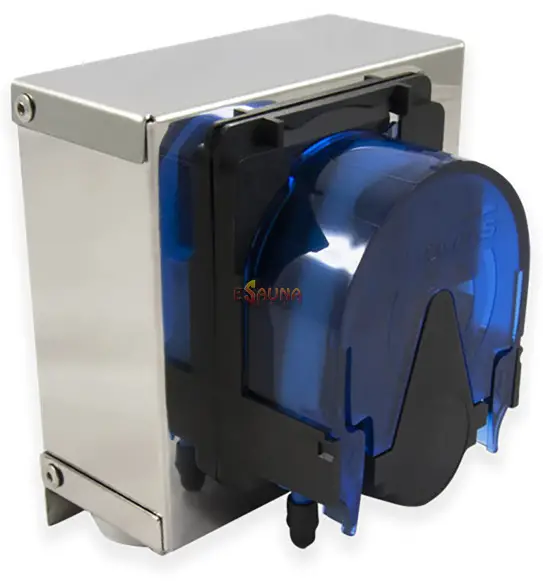

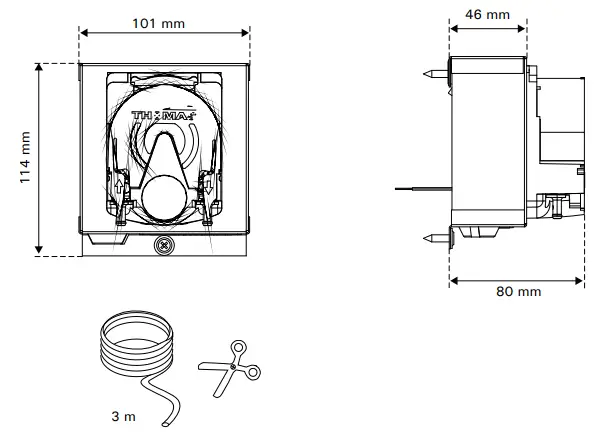

HARVIA ZG-900 Fragrance Pump Steam Generators

Instructions for Use

When turned on, the fragrance pump will feed fra-grance to the steam pipe. You can activate the fragrance pump from the control panel where you can also adjust volume of fragrance.

• Attach the pump’s suction hose to the fragrance container before switching on the steam generator.
• During first use, the fragrance is not fed into the steam room right from the start, as the fragrance must run through the pipeline first. Tip: you can speed up the process by setting the fragrance intensity to maximum at first.
• Make sure that the fragrance container does not dry up during use. The pump must not be left on without fragrance.
• only use fragrances meant for steam generator use. follow the instructions on the packaging.

InstrUCtIons for InstallatIon

1. Steam nozzle
2. Manual discharge valve
3. Pipe adapter 18 mm-G½”
4. Sediment cup
5. Control panel
6. Temperature sensor
   Optional parts and devices:
7. Automatic discharge valve
8. Connection part for fragrance pump
9. Fragrance pump
10. Fragrance

Figure 2. Steam generator system components

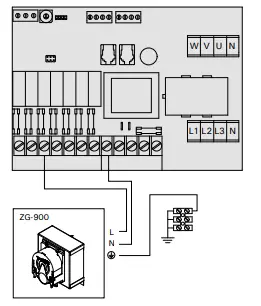

Figure 3. Electrical Connections

The joint between the feeding tube and the steam pipe must be as close to the steam nozzle as pos-sible. By doing this, as little fragrance residue as possible will accumulate in the steam pipe in the course of time (figure 4/4).

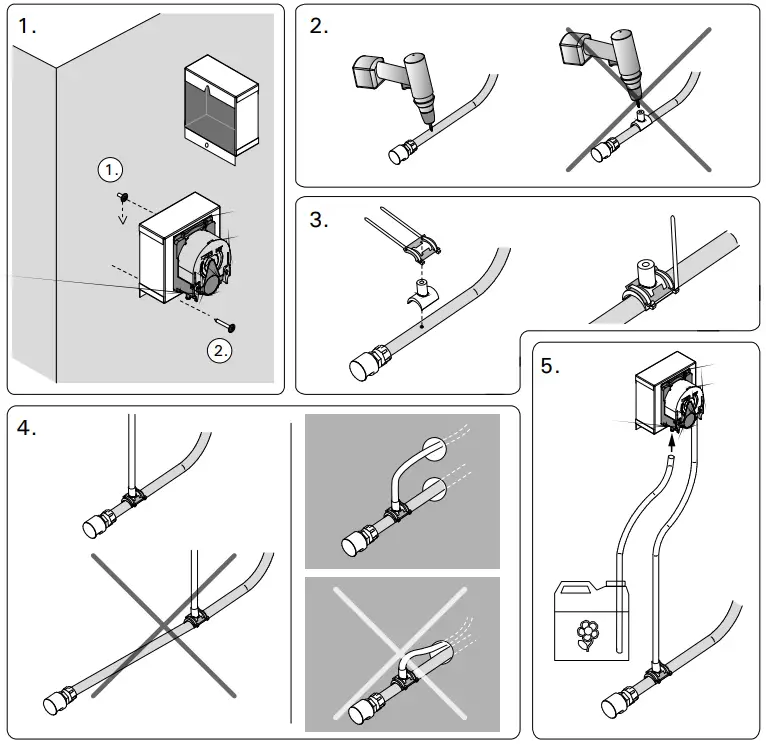

Figure 4.

spare parts

1. Connection part for fragrance pump ZSTM-195
2. Fragrance pump ZVR-779
3. Replacement tube for fragrance pump ZVR-789
4. Tube 3 m ZVR-772
