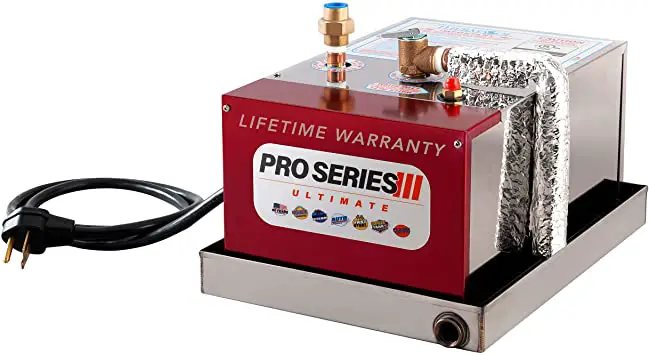

THERMASOL PROIII-140 Series Steam Generator

STANDARD EQUIPMENT

Lifetime at Factory Warranty
(Includes parts and labor)
2 year in-home warranty followed by lifetime warranty
Patented SmartSteam™ on ProSeries™
The most desired feature in steam. Only from ThermaSol.
Two Way Digital CAN-bus Technology Only from ThermaSol
Auto PowerFlush™ pressurized inner tank cleaning system
Superior heating elements – incoloy low watt density
FastStart™
208-240 volt power cord (5 ft.)
50′ CAN-bus cable for the controller
Works with ThermaSol Serenity Light, Sound, Rainhead
Split tank design
Constant steam at a constant rate; no steam lag or burst
Can be plumbed 50 ft. from the shower without purchasing a larger kW unit
Stainless steel construction
Services residential rooms up to 1200 cubic ft. with one steam unit
Stainless steel drain pan
Pre-plumbed safety relief valve
1/2″ union to connect to steam line
Braided stainless steel water connector

INSTALLATION NOTES

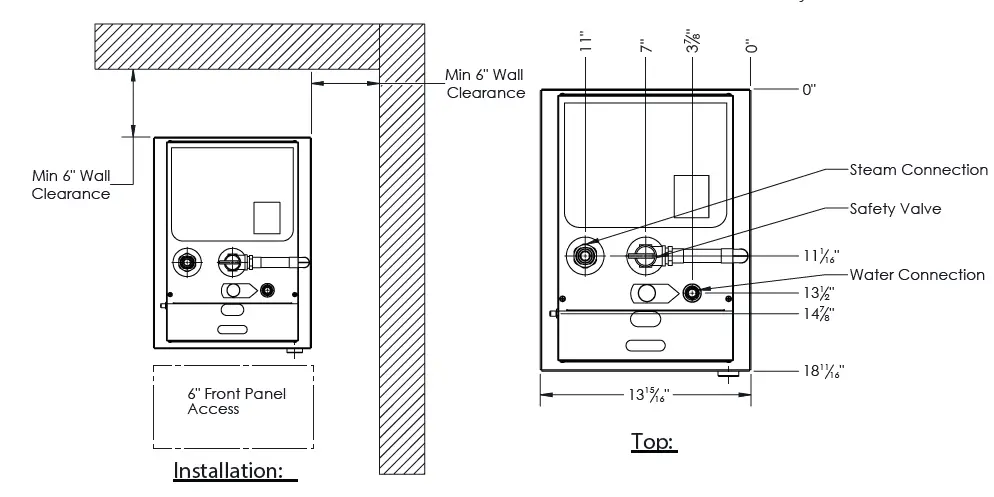

Install this generator according to the supplied installation guide. Follow local plumbing and electrical codes. Unit must be accessible.
Generator is factory sized: L x W x H = Cubic Feet. Choose the appropriate generator. For every additional foot of ceiling height over 8 ft, use the next larger
generator. Always round up when calculating the total cubic feet.
