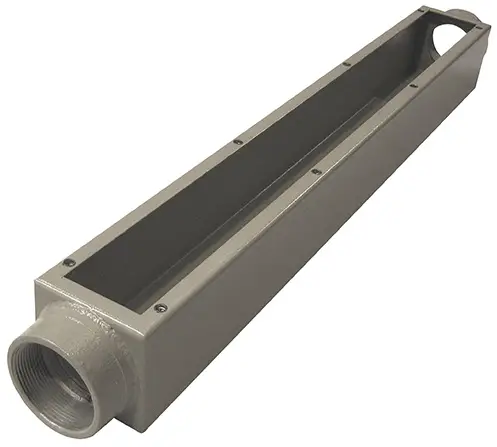

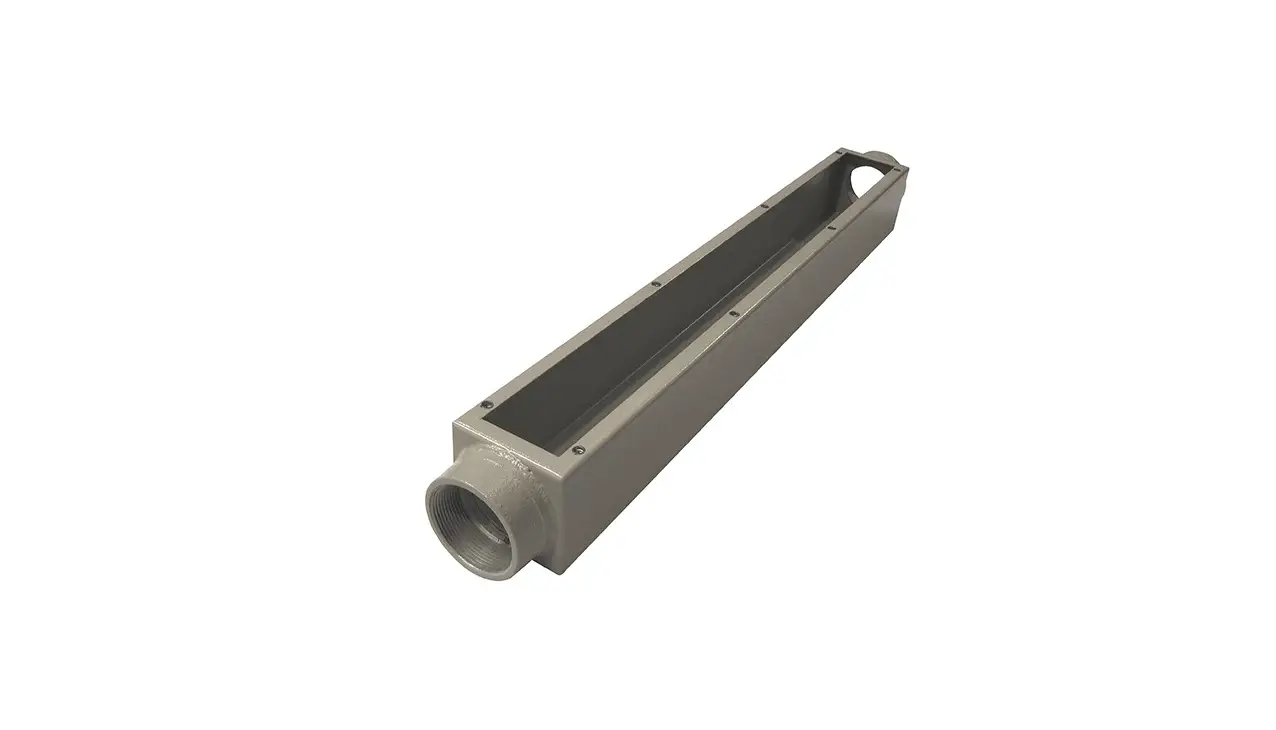

EATON PTB and PTC Pull Boxes User Guide
Options
Description: Suffix
- Custom lengths and sizes: Contact factory
- Powder coating to any RAL color chip: Contact factory
- Supplied cable gland options: Contact factory
Size ranges
- 12” through 48”, hub sizes 1” to 6”
Applications
Pull box enclosures are installed in conduit systems (typically bridges/refineries) to:
- Act as pull and splice boxes
- Protect conductors in threaded rigid conduit
- Interconnect lengths of conduit
- Change conduit direction
- Provide access to conductors for maintenance and future system changes
Features
- More internal cubic capacity for different sized conductors
- Accurately tapped, tapered threads (NPT) for tight, rigid joints and ground continuity
- PTB – 90° pull boxes; PTC – straight pull boxes
Certifications and compliances
- UL Listed to UL standard 514A (see catalog number listings below)
Standard materials
- Bodies – painted steel (RAL 7032 standard; powder coated any RAL color chip available upon request); 316L stainless steel (see standard grade catalog numbers below)
- Hubs – steel; stainless steel
- Cover bolts – 316L stainless steel
Standard finishes
- Polyester powder coated over zinc primer
- Electro-chemical polished stainless steel
Finish options
- Brushed stainless steel
- Polyester powder over painted stainless steel
- Natural finish stainless steel
- Polyester powder over painted carbon steel
- Galvanized carbon steel
- Zinc electroplating
Ordering information
Straight pull boxes
Painted steel
| Cat. # | Hub size | Length |
| PPBPS12100TC | 1” | 12” |
| PPBPS12125TC | 11/4” | 12” |
| PPBPS12150TC | 11/2” | 12” |
| PPBPS12200TC | 2” | 12” |
| PPBPS18125TC | 11/4” | 18” |
| PPBPS18150TC | 11/2” | 18” |
| PPBPS18200TC: A | 2” | 18” |
| PPBPS18250TC | 21/2” | 18” |
| PPBPS24150TC | 11/2” | 24” |
| PPBPS24200TC: A | 2” | 24” |
| PPBPS24250TC | 21/2” | 24” |
| PPBPS24300TC: A | 3” | 24” |
| PPBPS36250TC | 21/2” | 36” |
| PPBPS36300TC: A | 3” | 36” |
| PPBPS36350TC | 31/2” | 36” |
| PPBPS36400TC: A | 4” | 36” |
| PPBPS48300TC | 3” | 48” |
| PPBPS48350TC | 31/2” | 48” |
| PPBPS48400TC | 4” | 48” |
| PPBPS48500TC | 5” | 48” |
| PPBPS48600TC | 6” | 48” |
316L stainless steel
| Cat. # | Hub size | Length |
| PPBS112100TC | 1” | 12” |
| PPBS112125TC | 11/4” | 12” |
| PPBS112150TC | 11/2” | 12” |
| PPBS112200TC | 2” | 12” |
| PPBS118125TC | 11/4” | 18” |
| PPBS118150TC | 11/2” | 18” |
| PPBS118200TC | 2” | 18” |
| PPBS118250TC | 21/2” | 18” |
| PPBS124150TC | 11/2” | 24” |
| PPBS124200TC | 2” | 24” |
| PPBS124250TC | 21/2” | 24” |
| PPBS124300TC | 3” | 24” |
| PPBS136250TC | 21/2” | 36” |
| PPBS136300TC | 3” | 36” |
| PPBS136350TC | 31/2” | 36” |
| PPBS136400TC | 4” | 36” |
| PPBS148300TC | 3” | 48” |
| PPBS148350TC | 31/2” | 48” |
| PPBS148400TC | 4” | 48” |
| PPBS148500TC | 5” | 48” |
| PPBS148600TC | 6” | 48” |
Ordering information (continued)
90° pull boxes
Painted steel
| Cat. # | Hub size | Length |
| PPBPS12100TB: B | 1” | 12” |
| PPBPS12125TB | 11/4” | 12” |
| PPBPS12150TB | 11/2” | 12” |
| PPBPS12200TB | 2” | 12” |
| PPBPS18125TB | 11/4” | 18” |
| PPBPS18150TB: B | 11/2” | 18” |
| PPBPS18200TB: B | 2” | 18” |
| PPBPS18250TB | 21/2” | 18” |
| PPBPS24150TB | 11/2” | 24” |
| PPBPS24200TB | 2” | 24” |
| PPBPS24250TB | 21/2” | 24” |
| PPBPS24300TB: B | 3” | 24” |
| PPBPS36250TB | 21/2” | 36” |
| PPBPS36300TB | 3” | 36” |
| PPBPS36350TB | 31/2” | 36” |
| PPBPS36400TB: B | 4” | 36” |
| PPBPS48300TB | 3” | 48” |
| PPBPS48350TB | 31/2” | 48” |
| PPBPS48400TB | 4” | 48” |
| PPBPS48500TB | 5” | 48” |
| PPBPS48600TB | 6” | 48” |
316L stainless steel
| Cat. # | Hub size | Length |
| PPBS112100TB | 1” | 12” |
| PPBS112125TB | 11/4” | 12” |
| PPBS112150TB | 11/2” | 12” |
| PPBS112200TB | 2” | 12” |
| PPBS118125TB | 11/4” | 18” |
| PPBS118150TB | 11/2” | 18” |
| PPBS118200TB | 2” | 18” |
| PPBS118250TB | 21/2” | 18” |
| PPBS124150TB | 11/2” | 24” |
| PPBS124200TB | 2” | 24” |
| PPBS124250TB | 21/2” | 24” |
| PPBS124300TB | 3” | 24” |
| PPBS136250TB | 21/2” | 36” |
| PPBS136300TB | 3” | 36” |
| PPBS136350TB | 31/2” | 36” |
| PPBS136400TB | 4” | 36” |
| PPBS148300TB | 3” | 48” |
| PPBS148350TB | 31/2” | 48” |
| PPBS148400TB | 4” | 48” |
| PPBS148500TB | 5” | 48” |
| PPBS148600TB | 6” | 48” |

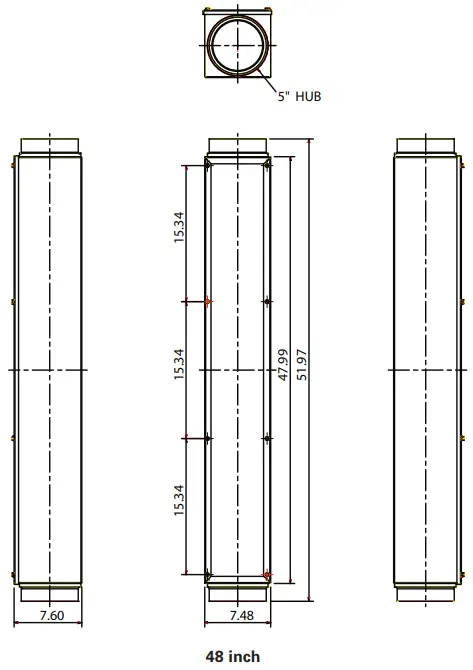

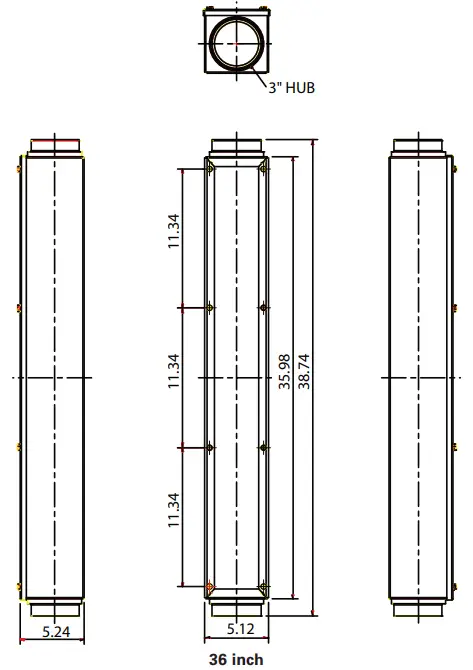

Dimensions
