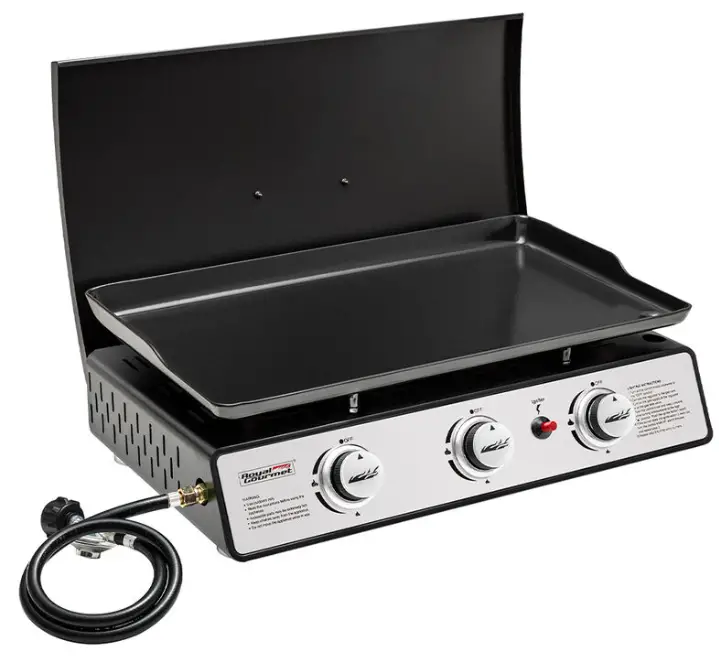

Royal Gourmet PD2301S Portable 3-Burner Gas Griddle with Hard Cover
Assembly

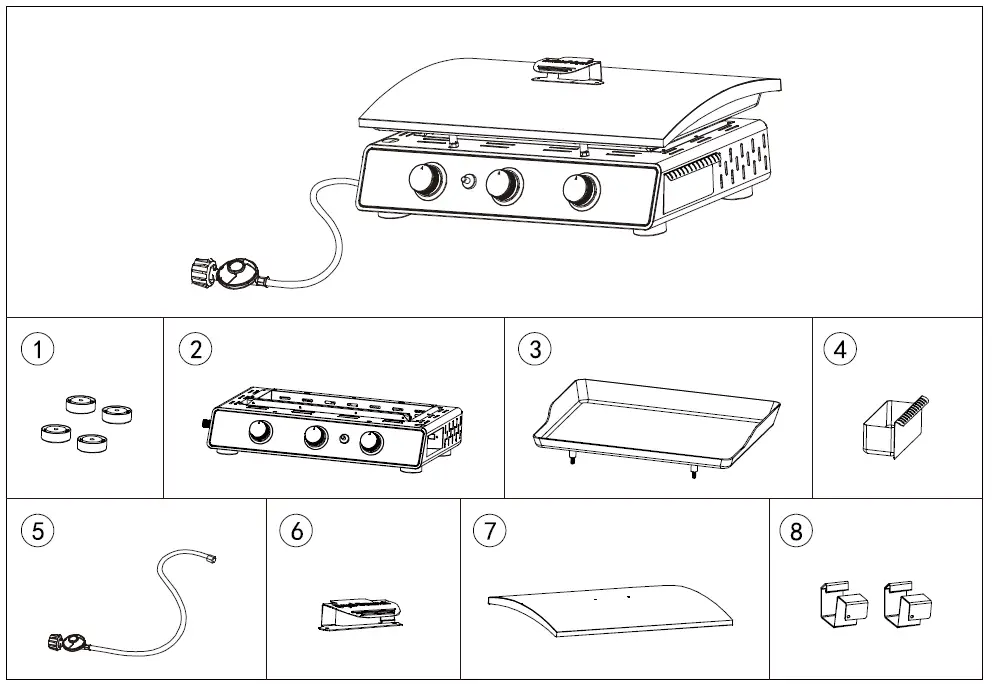

| No. | # | QYT | Description | Image | ||
| 1 | 05-JSL-64 | 4 | Leg base |  | ||

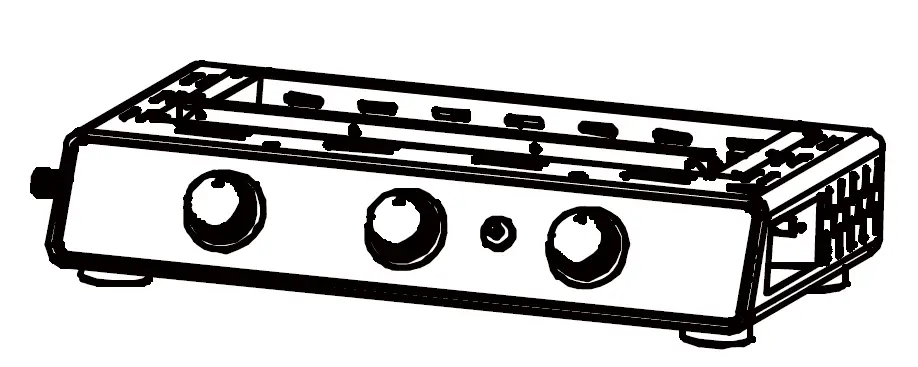

| 2 | 1 | Main body | . | . | ||

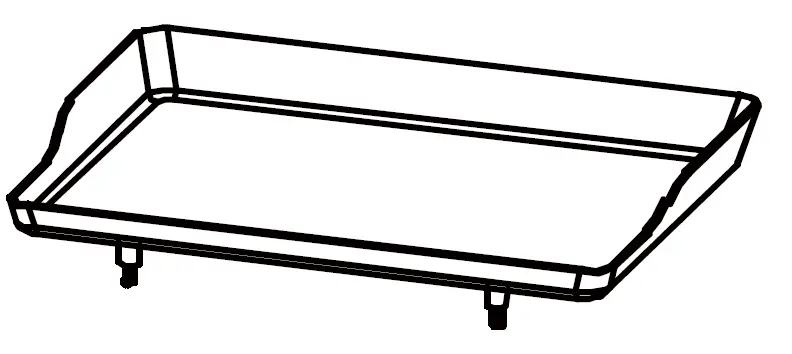

| 3 | GPP303H3B-TS | 1 | Cooking griddle |  | ||

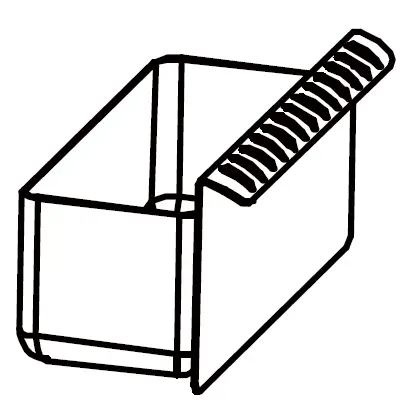

| 4 | 06-YBL-21-PT2 | 1 | Grease cup |  | ||

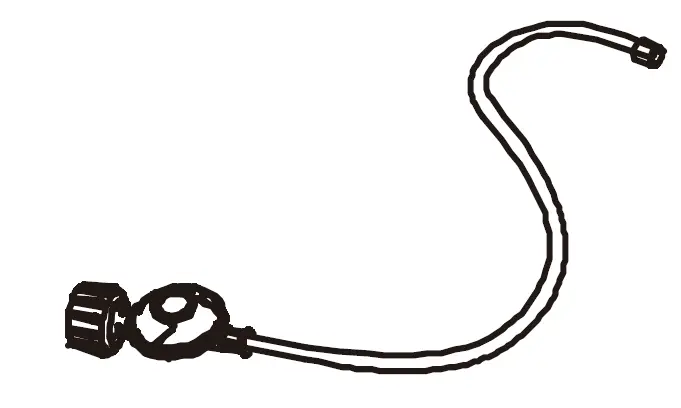

| 5 | 01-JYF-1-0960- US-LT | 1 | Regulator assembly |  | ||

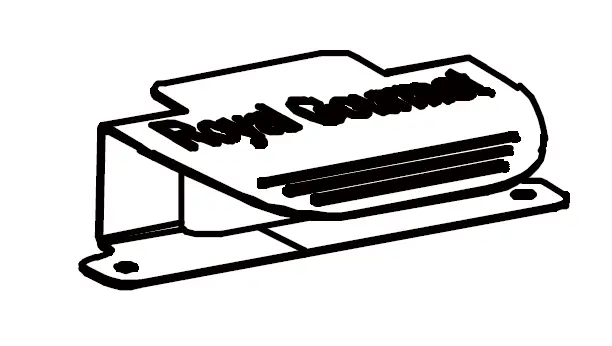

| 6 | GPSGBS01 | 1 | Handle |  | ||

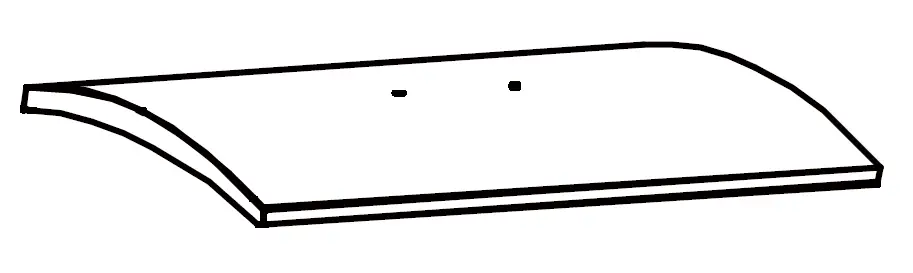

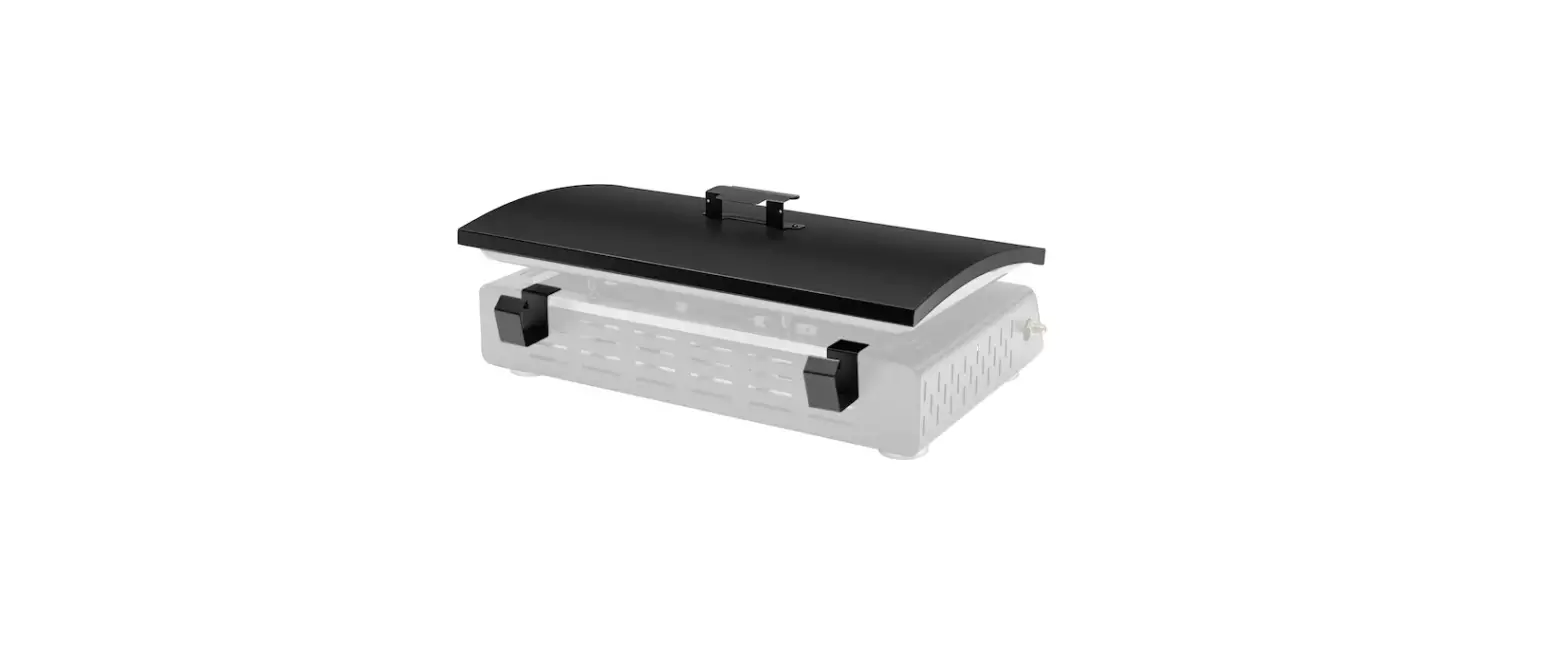

| 7 | GP1SGMB013B | 1 | Hard Cover |  | ||

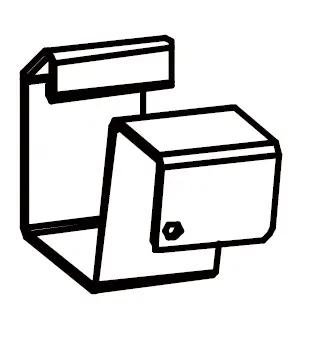

| 8 | GPSGZC01 | 2 | Rear bracket |  | ||
| Key | Description | QTY | Image |

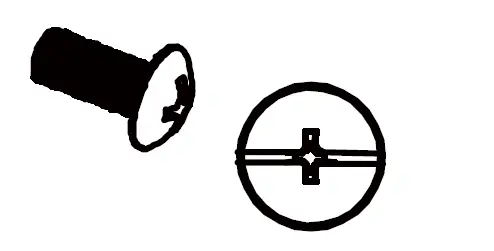

| A | M4x12 | 6 | – |

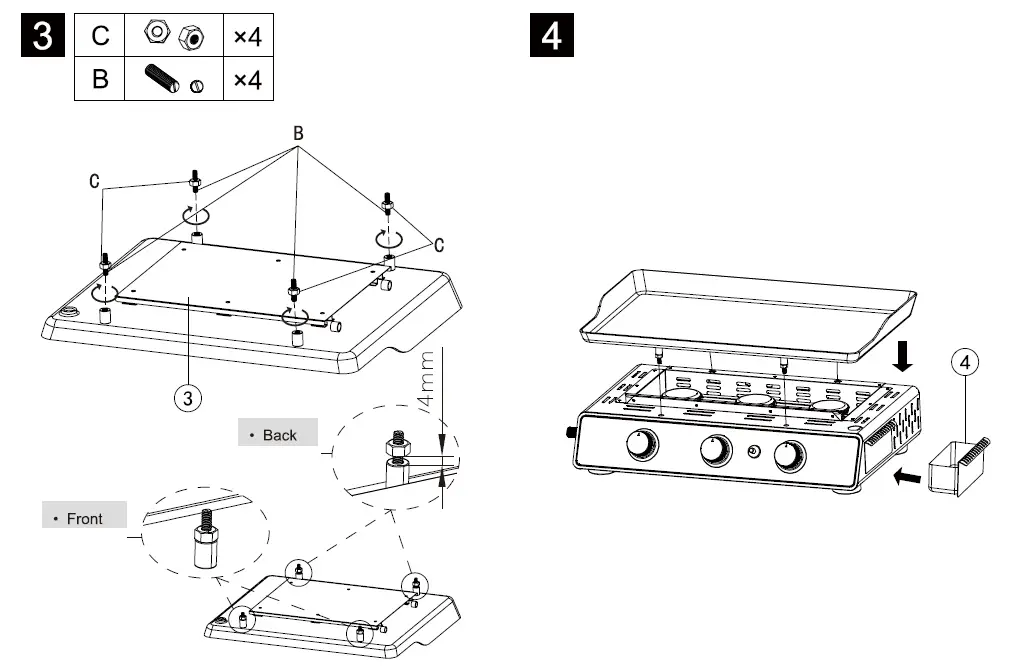

| B | M6x30 | 4 |  |

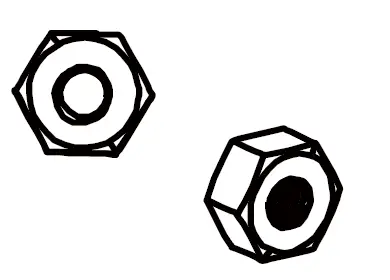

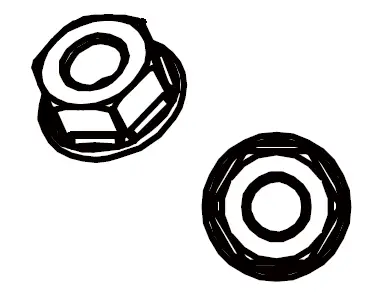

| C | M6 | 4 |  |
| D | M4 | 2 |  |
| TOOLS REQUIRED | |
| Description | Image |

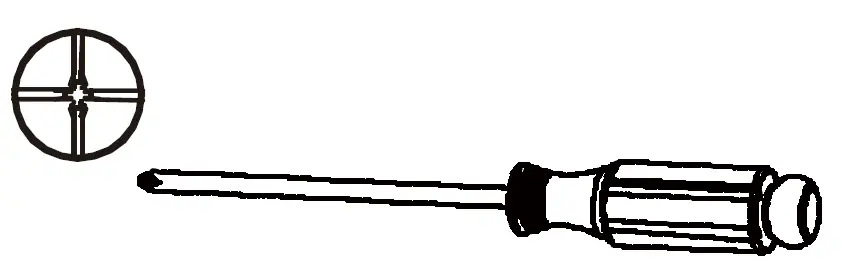

| Phillips screwdriver |  |

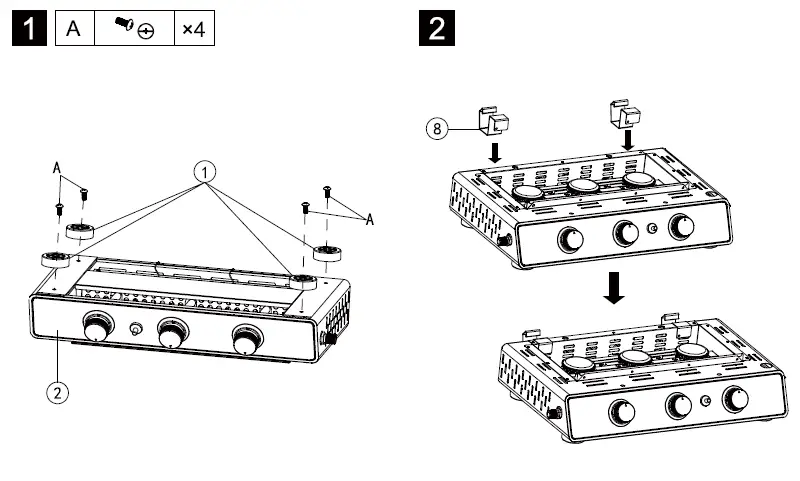

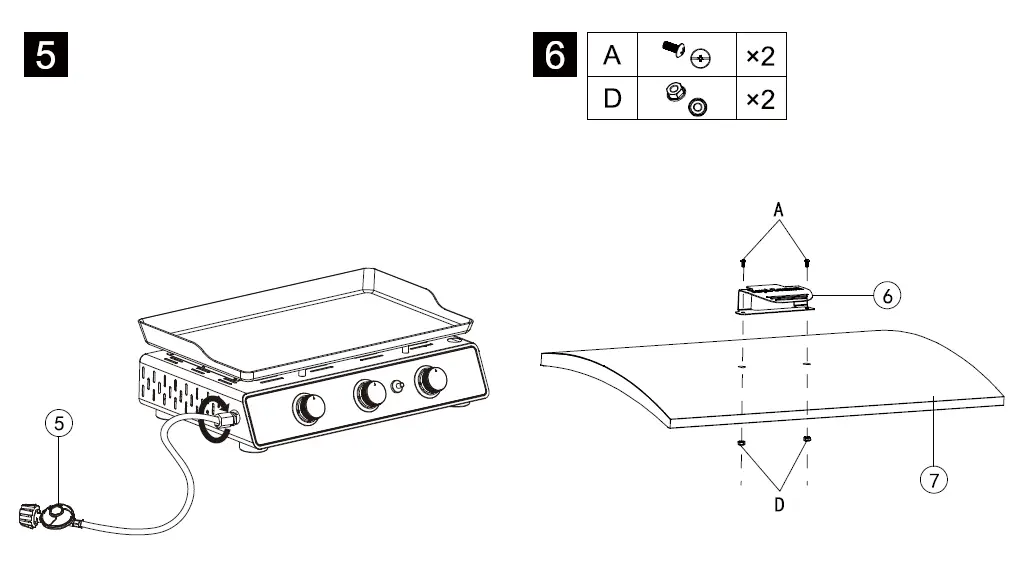

Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver
- Approximate assembly time: 10 minutes
- Note:
- The right and left sides of the griddle are designed as if you are facing the front of the griddle.
- Model shown for illustration purpose only, specific please in kind prevail.

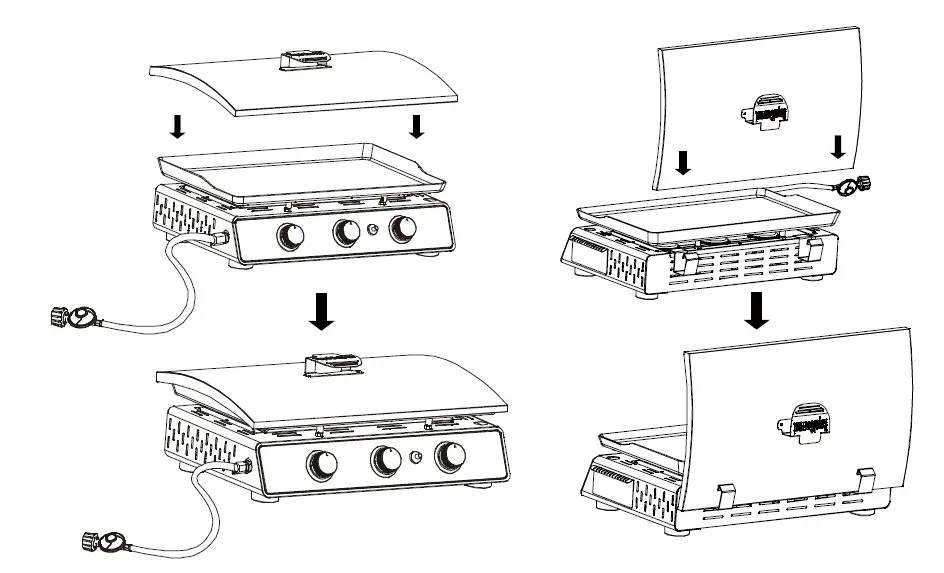

DO not use the hard cover as a griddle lid while cooking
