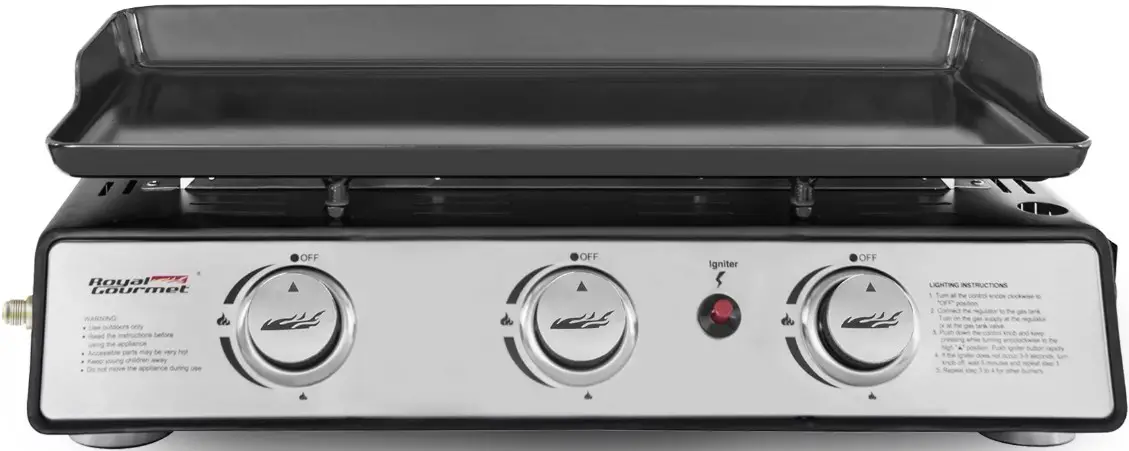

Royal Gourmet PD1300N Portable 3-Burner Gas Griddle Installation Guide
FOR YOUR SAFETY!
Use outdoors only! Do not use it inside a building, garage, or any other enclosed space. Read the instructions before assembling and using the appliance. DO NOT use the griddle unless it is completely assembled, and all the parts are securely fastened. This griddle will become very hot, do not move it during use. Keep away from children and pets.
CONTACT US FIRST!
This griddle has been made to high quality standards. If you have any questions that are not addressed in this Owner’s Manual, or you need parts, please call our customer service hotline or send an email to [email protected] Please keep this Owner’s Manual for future reference.

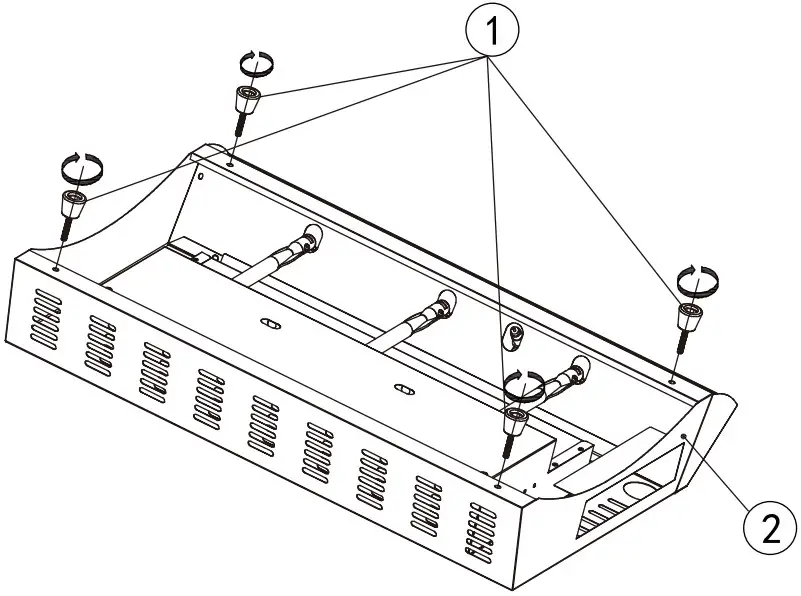

Assembly Instruction
- Please note: These parts are packed in a small box that is put under the firebox.

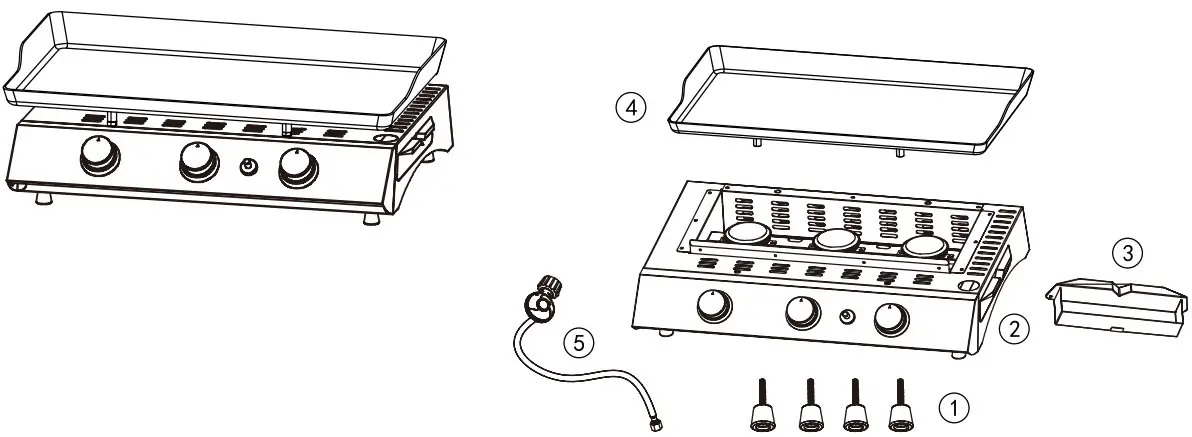

| No. | # | QYT | Description | Image |
| 1 | W-10030015 | 4 | Leg base |  |

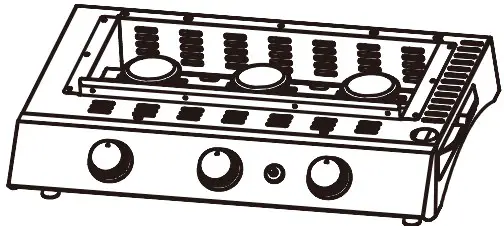

| 2 | 1 | Main body |  | |

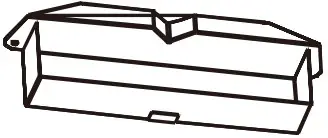

| 3 | W-10030011 | 1 | Grease cup |  |

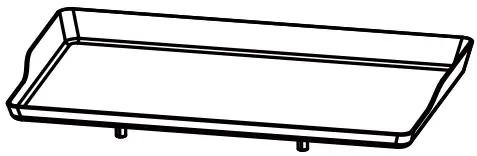

| 4 | GHJP23B-B | 1 | Cooking griddle |  |

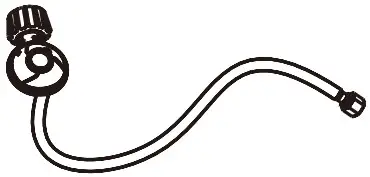

| 5 | W-GD430012 | 1 | Regulator assembly |  |

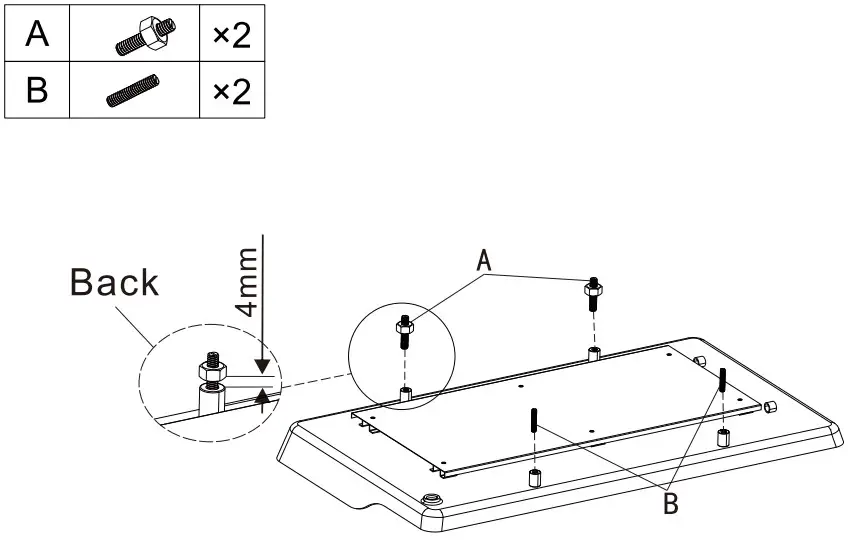

| Key | Description | QTY | Image |
| A | Stud with nut | 2 |  |
| B | Stud | 2 |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Approximate assembly time: 10 minutes

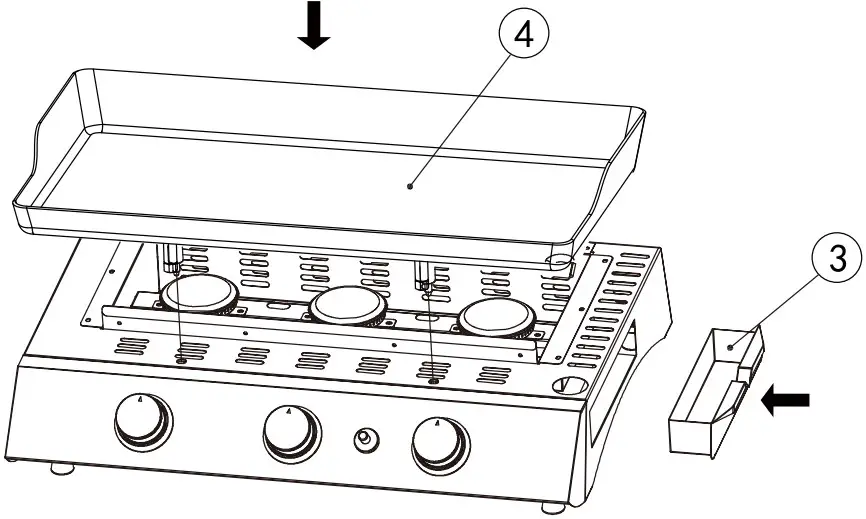

Assembly Instruction
