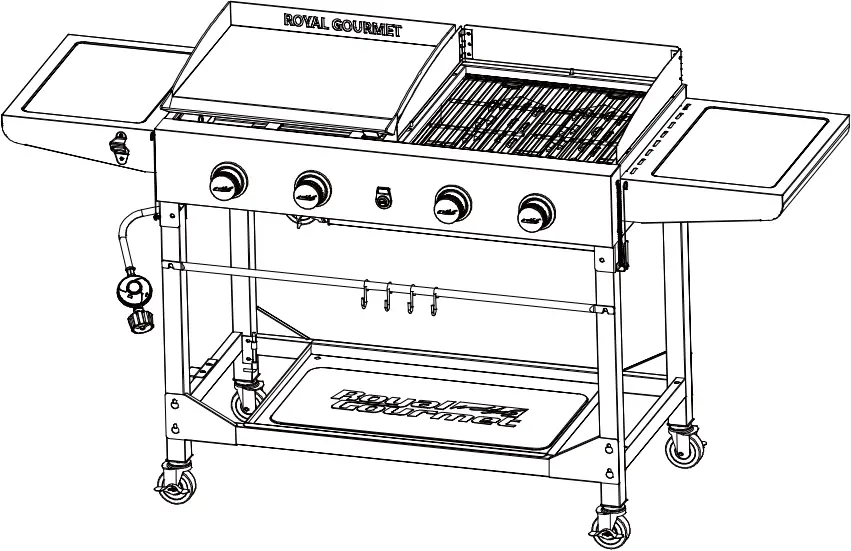

Model
GD402
ASSEMBLY GUIDE
FOR YOUR SAFETY!
Use outdoors only!
Read the instructions before assembling and using the appliance.
CONTACT US FIRST!
If you have any questions that are not addressed, please contact an first.
Customer Service
1-800-618-6798
[email protected]
Learn more at:
| www.royalgourmetcorp.com |  |

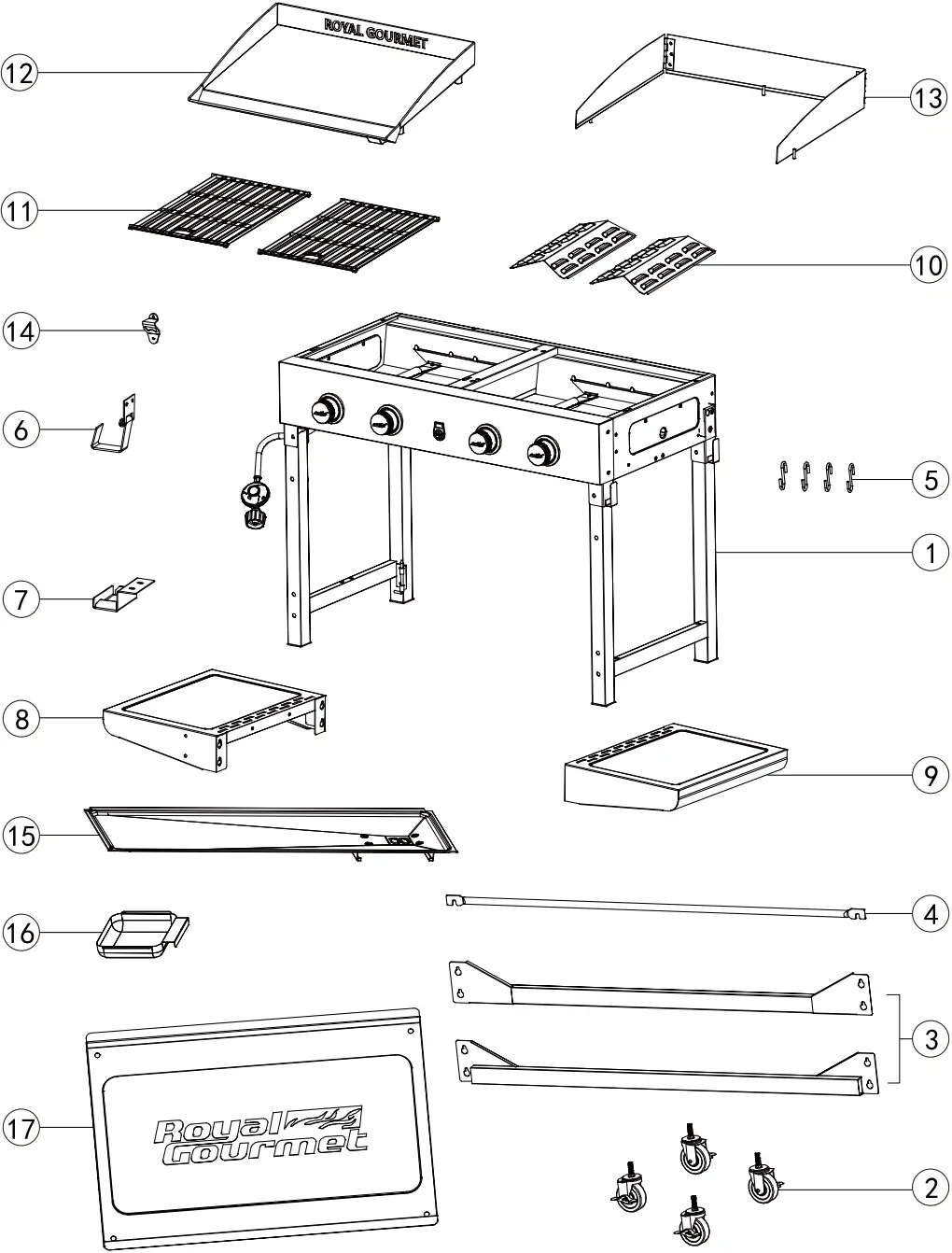

Parts Diagram
Parts List
No. | # | QYT | Description | Image |
1 |  | 1 | Main body with legs |  |
2 | 05-WXL-06 | 4 | Caster |  |
3 | GD20JHL01H | 2 | Leg bracket beam |  |
4 | GD20JMJG01 | 1 | Utensil rail |  |
5 | 07-GGL-01-SI | 4 | “S” hook |  |
6 | 07-QPG-01-BK | 1 | LP cylinder hook |  |
7 | 07-QPG-06-BK | 1 | LP cylinder base |  |

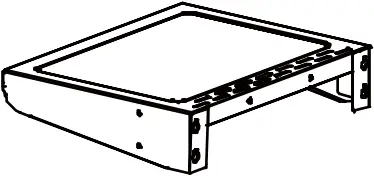

8 | GD20T101H | 1 | Side table (L) |  |
9 | GD20T102H | 1 | Side table (R) |  |

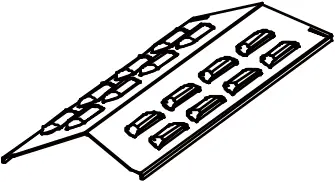

10 | GD20LFHB01 | 2 | Flame tamer |  |

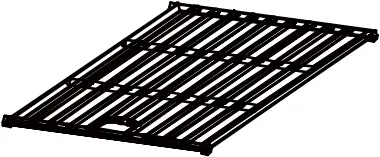

11 | 03-ZTW-E-01-TC4 | 2 | Cooking grate |  |

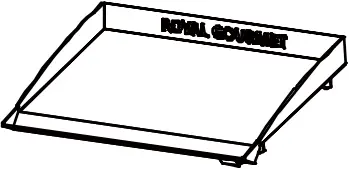

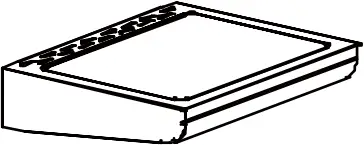

12 | GD20P102H | 1 | Cooking griddle |  |

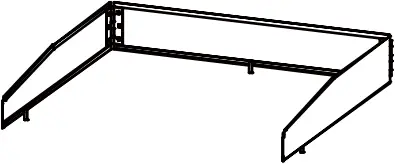

13 | GD20LHDFB01H GD20LDFBR01H GD20LDFBL01H | 1 | Wind deflector |  |
14 | 07-KPQ-01 | 1 | Bottle opener |  |

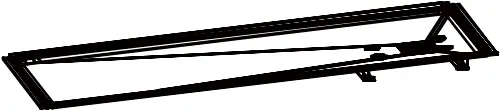

15 | ALJYP016B-DS1 | 1 | Grease tray |  |
16 | TY-YB01 | 1 | Grease cup |  |
17 | GD20JDB01 | 1 | Bottom shelf |  |
Hardware List
Key | Description | QTY | Image |
| A | M6x12 | 14 |  |
B | M5x12 | 12 |  |
| C | M4x8 | 2 |  |
D | M6 | 4 |  |
| E | M6x40 | 4 |  |

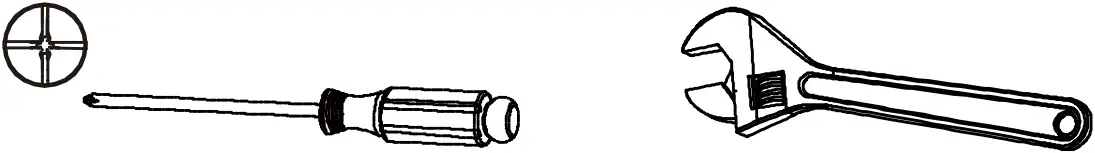

| TOOLS REQUIRED | ||
| Description | Image | |
| Phillips screwdriver | Wrench |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, be not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench
- Approximate assembly time: 30 minutes
- Note: 1. The right and left sides of the grill are designed as if you are facing the front of the grill.
2. Model shown for illustration purpose only, specific please in kind prevail.
Assembly

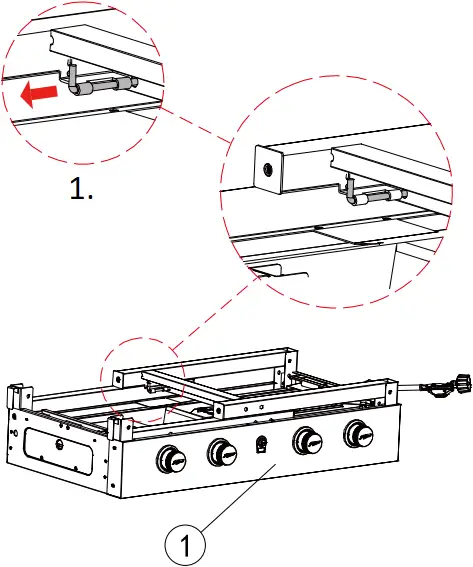

[1]
- • Unlock

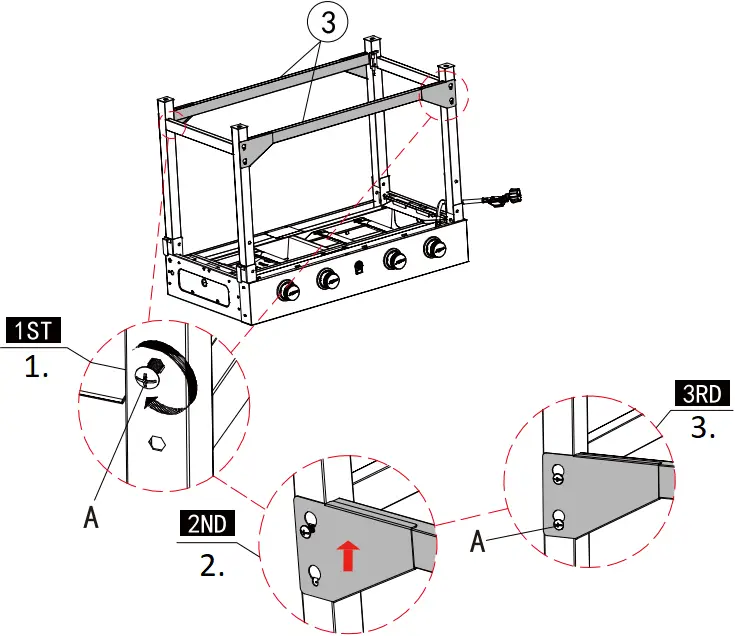

[2]
| A | | x8 |
- • Half screw
- • Hook
- • Tighten

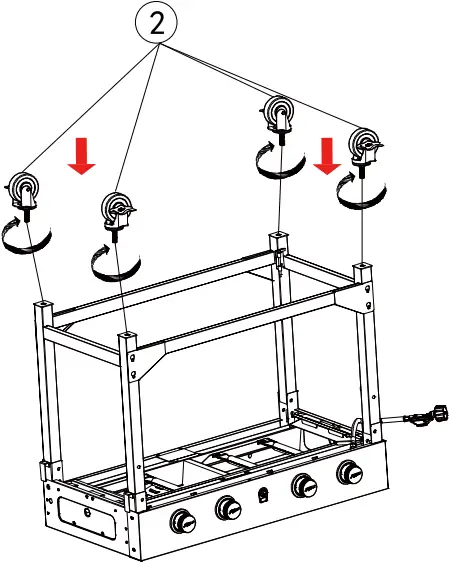

[3]

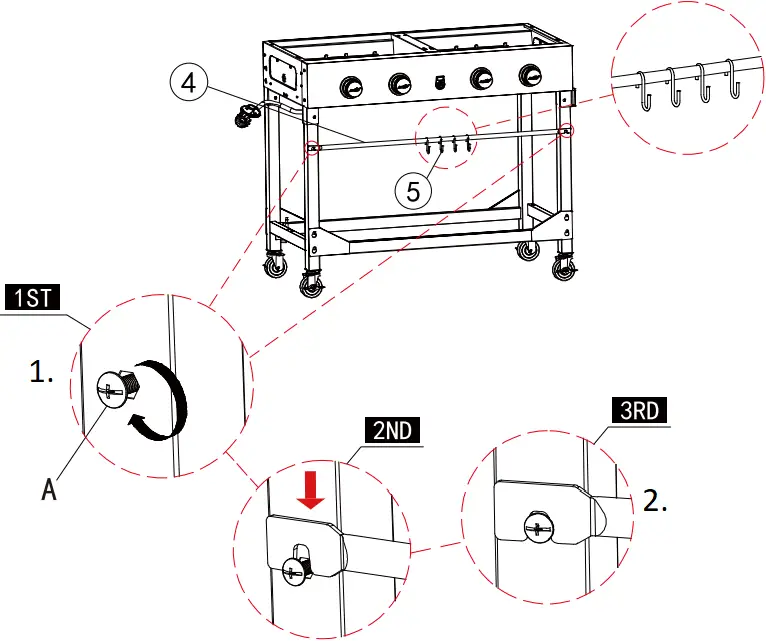

[4]
| A | | x2 |
- • Half screw
- • Tighten

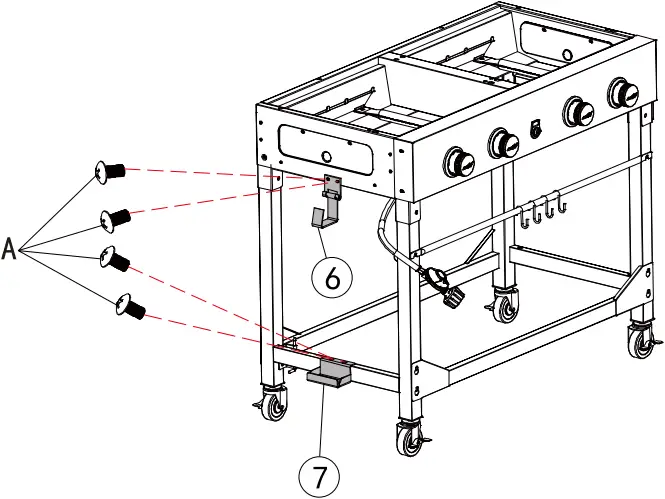

[5]
| A | | x4 |

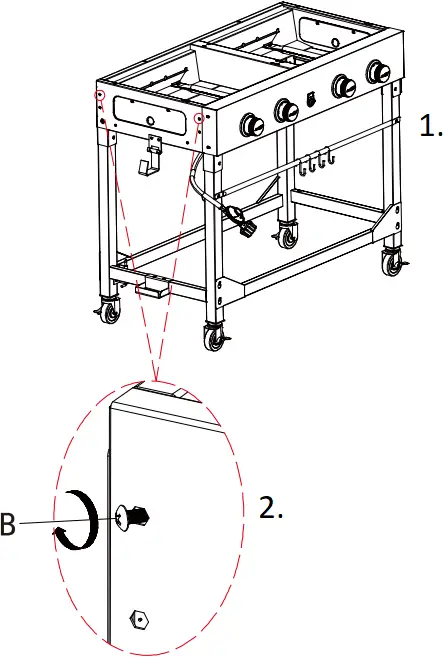

[6]
| B | | x4 |
- • Repeat for the other side.
- • Half screw

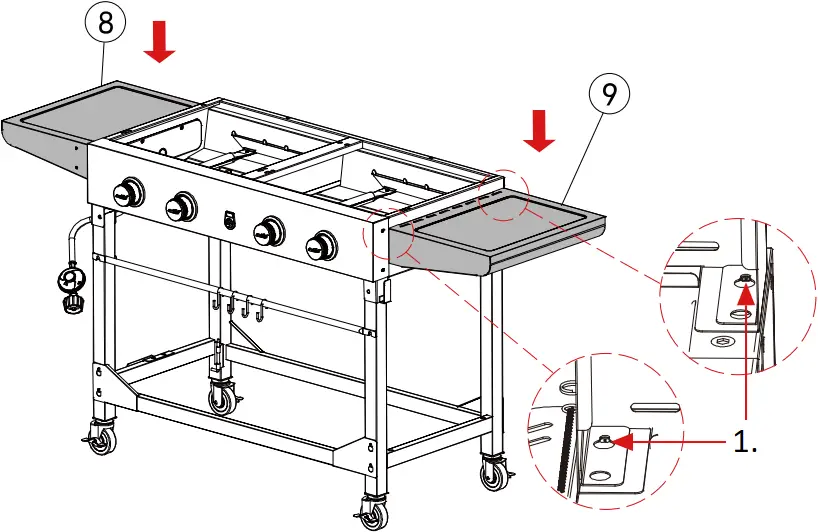

[7]
- Hook side tables onto half-screwed bolts.
- • Tighten

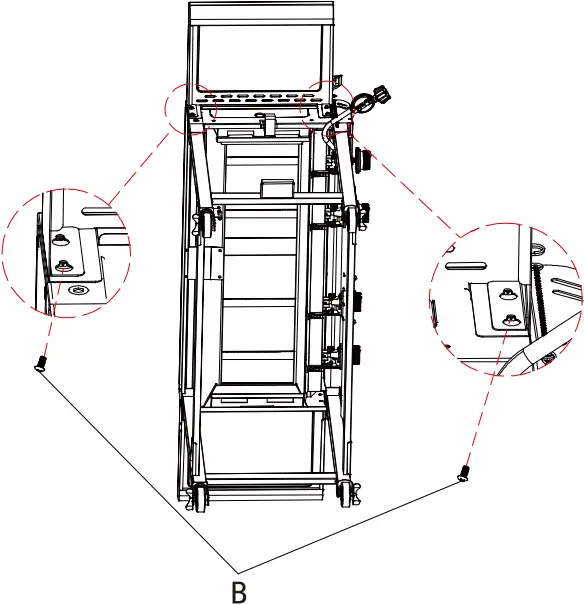

[8]
| B | | x4 |
- Repeat for both side tables.

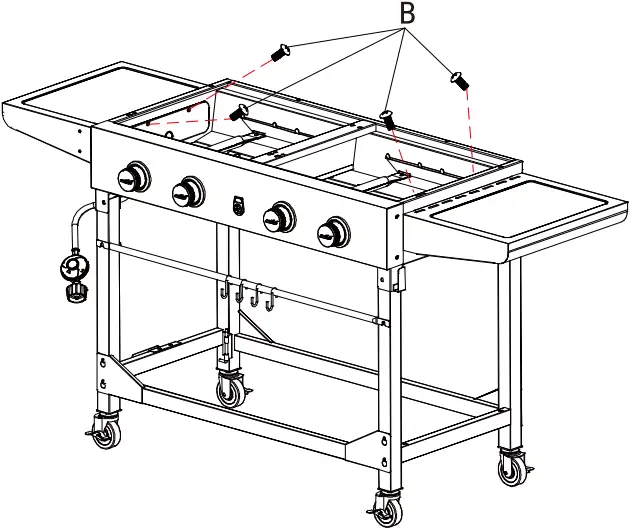

[9]
| B | | x4 |

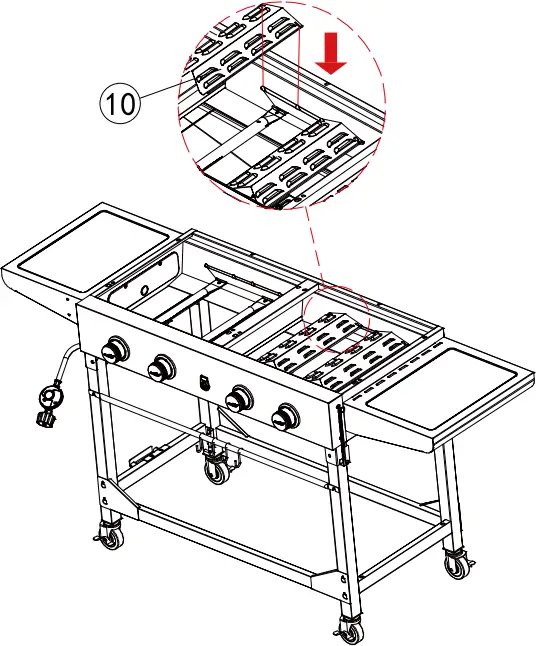

[10]

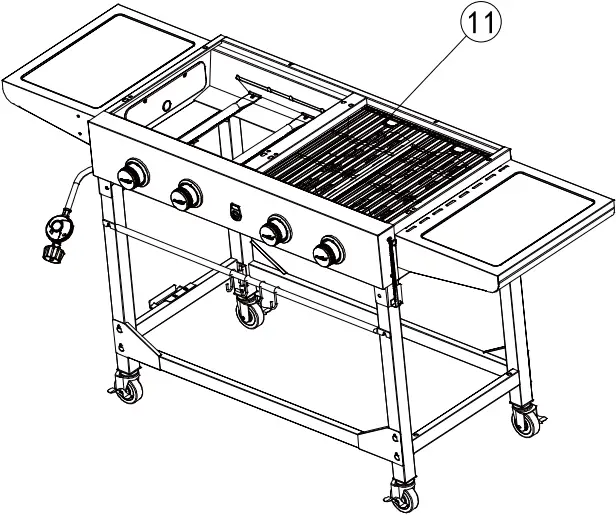

[11]

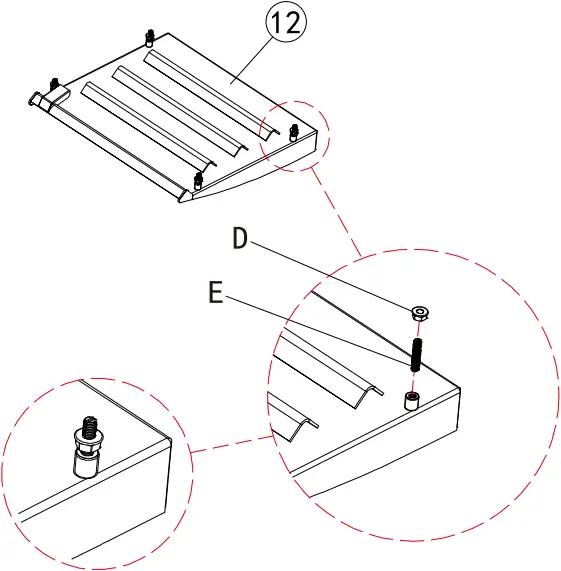

[12]
D | | x4 |
| E | | x4 |
- Adjust nuts to ensure the flatness of griddle.
[13]

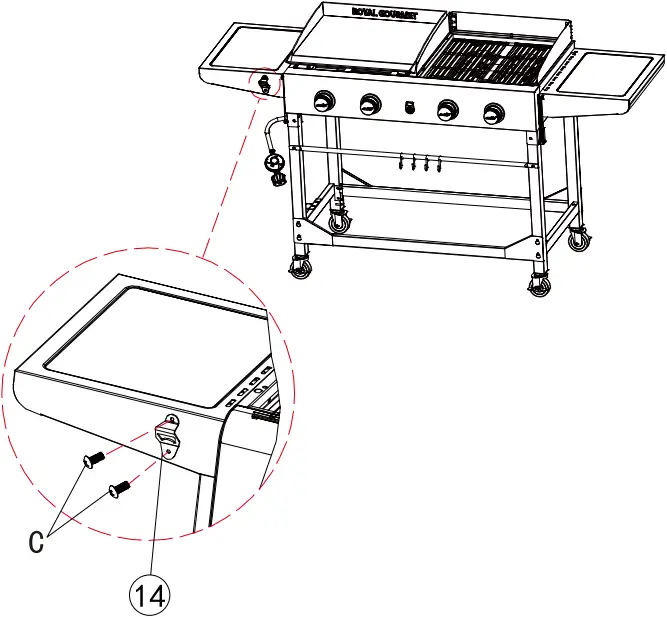

[14]
C | | x2 |

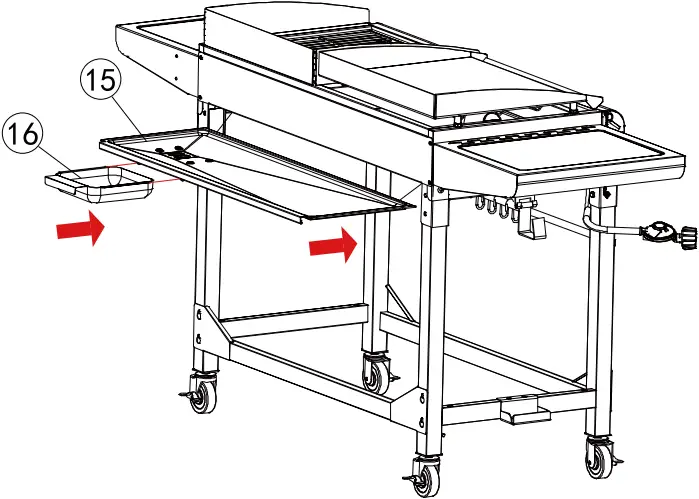

[15]

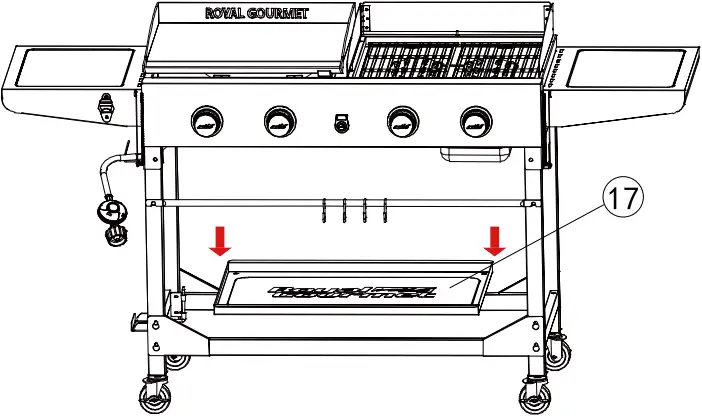

[16]

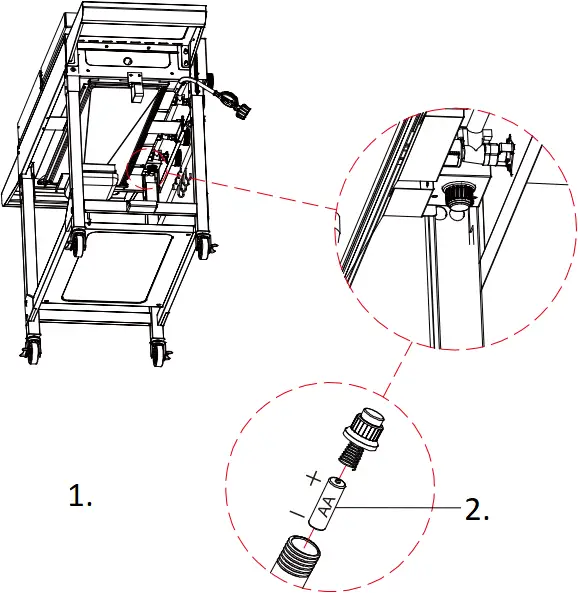

[17]
- • Unscrew cap and install battery.
- • (Not included)

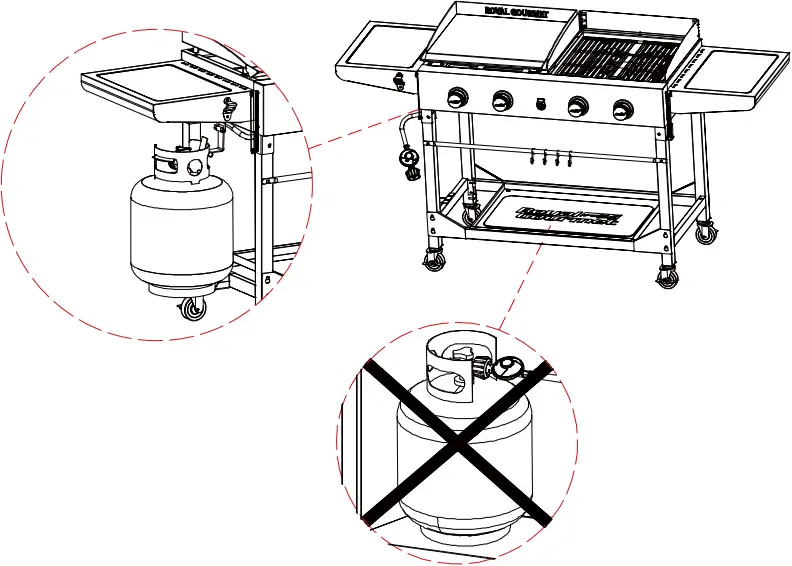

[18]
