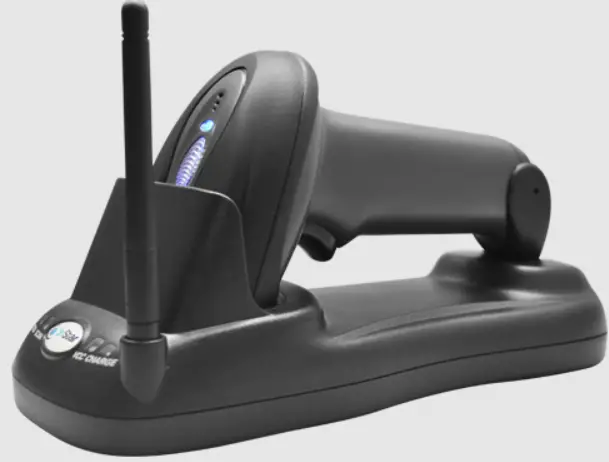

3nStar SC300 Cordless Barcode Scanner
Introduction
This user manual is designed for wireless barcode scanner. For detailed user manual information, please download the complete user manual from our website or obtain it from our distributor.
Copyright
All right reserved by our company, reprint, copy or sales of this manual are forbidden without our company permission.
Responsibility Clause
We are not responsibility for errors, omissions and variation without notice.
Receiver Setting
Setting steps
- scan “start “
- scan function code you need
- scan “end”
Link scanner
Just need to scan the “link scanner” barcode on receiver.
Receiver default
Tips: scan follow “receiver default ” barcode directly.
“*” denotes default setting.
Working mode
Tips: No need to scan “start”, “end”, just scan follow setting barcode directly.
Auto mode
Data won’t be losted when no signal. Data will be transfer to receiver when signal recover.
Immediately mode
Data transfer to receiver immediately after each scan Data will lost immediately when no signal
Inventory mode
All data be transferred to Flash memory after each scan.
Scan follow “out” barcode, all data be transfer to receiver.
Scanner will be in “AUTO” mode automatically when all data transfer well.
Note: Inventory mode and Auto mode only applied to the products with storage function.Interference Selection
Receiver Tips: one beep means KB/USB mode, two beeps means RS232 mode.
Baud rate
Parity Check
Control Flow
Keyboard Language
Terminal
Receiver Beeper Tone
Power Setting
Scanner power Setting
Receiver power setting
Note: scanner and receiver must be in same power.Data transfer warning tone
OFF: scanner will no “beep” after transfer successfully
ON: scanner have one “beep” after data transfer successfully
Scanner Setting
Scanner and Receiver default setting
Tips: scan follow 6 steps one by one.
Scanner beep tone
Tips: “Start “to Choose the “Beeper Tones” to “End”
Reading mode
Tips: “Start “➔Choose the “Scan Mode”➔ “End”
