ELEGRP Sensor Occupancy And Vacancy User Manual

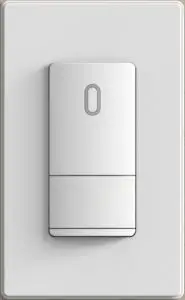

Product Overview

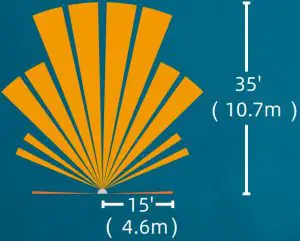

Top View

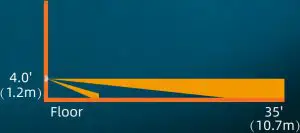

Side View

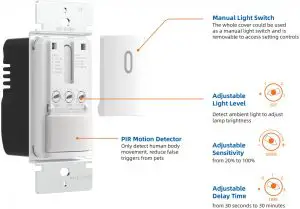

Features and Benefits
- Low Noise and High Sensitivity.
- Automatic ON or Manual ON is optional.
- Automatic Off.
- 180° coverage of up to 900 sq. ft.
- Adjustable sensitivity from 20% to 100%.
- Adjustable time delay from 15 seconds to 30 minutes.
- Pet immunity (reduce false triggers).
- Detect ambient light to adjust light’s brightness.
Incandescent Lamp
600W, 120-277V
CFL Lamp
300W, 120-277V
Dimmable LED Lamp
300W, 120-277V

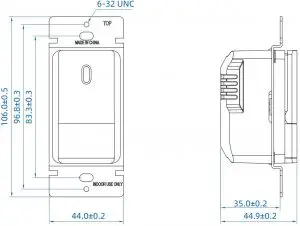

Dimensional
- Height: 106 ± 0.5 mm
- Width: 44.0 ± 0.2 mm
- Depth: 44.9 ± 0.2 mm
Model
- SP17OS
- SP17VS
Types of Sensors

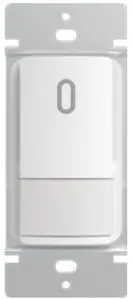

PIR Wall switch Occupancy Sensor
Photo | P/N | Rating | Description | Load Capacity | Option |
| SP17OS | 120~277VAC 60HZ | Pyroelectric Infrared Sensor 1/2 HP | Incandescent 600W LED/CFL 300W | Single Pole |

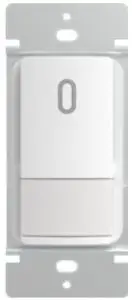

PIR Wall switch Vacancy Sensor
Photo | P/N | Rating | Description | Load Capacity | Option |
| SP17VS | 120~277VAC 60HZ | Pyroelectric Infrared Sensor 1/2 HP | Incandescent 600W LED/CFL 300W | Single Pole |
Contact
SUZHOU ELE. MFG CO., LTD.
No.158, Chuangyuan Road, SIP, Suzhou, Jiangsu, China 215125
Telephone: +86 0512-82116666
