23 080.2

Wall luminaire for indoor use

Instructions for use

Contents hide

1 Application

2 Product description

3 Safety

4 Installation

5 Documents / Resources

5.1 References

6 Related Posts

Application

Wall luminaire · indoor luminaire made of handblown opal glass, with metal housing.
The light aperture can be adjusted infinitely by rotating the the shield around its longitudinal axis. Light aperture 170°; adjustable 300°.

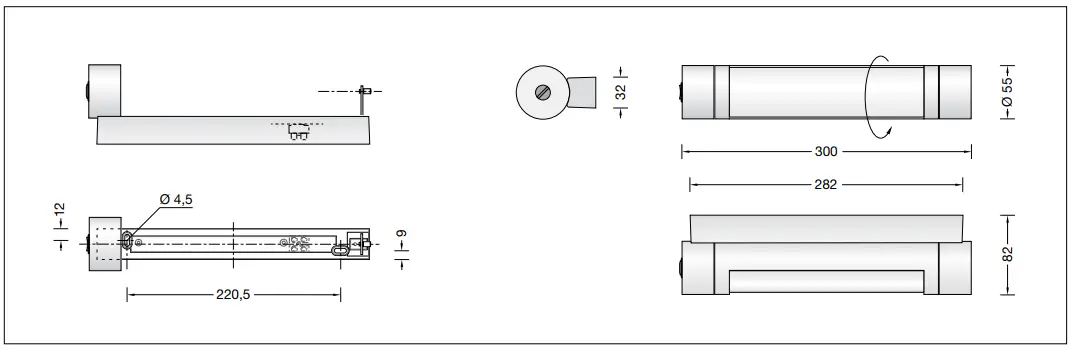

Product description

Die-cast aluminium and aluminium housing, finish Stainless steel
Hand-blown opal glass
2 elongated fixing holes
Width 4.5 mm · 220 mm spacing
Connection terminal 2.5@
Earth conductor connection
LED power supply unit 220-240 V x 0/50-60 Hz
DC 170-280 V
Safety class I
– Safety mark
– Conformity mark
Weight: 0.8 kg
This product contains light sources of energy efficiency class(es) D

Safety

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer. Komponenten sind nach DIN EN 61547 gegen
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components. You can find them on our website at www.bega.com.
Lamp

Module connected wattage	4.8 W
Luminaire connected wattage	6.2 W
Rated temperature	ta = 25 °C
Ambient temperature	ta max = 55 °C

23 080.2 K3

Module designation	LED-0345/930
Colour temperature	3000 K
Colour rendering index	CRI > 90
Module luminous flux	775 lm
Luminaire luminous flux	461 lm
Luminaire luminous efficiency	74,4 lm / W

Please note:
If the luminaire is to be mounted onto a metallic, electroconductive surface, it is mandatory to make sure that the mounting surface is connected conductive to the earth conductor of the luminaire!

Installation

LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping. To open the luminaire: Loosen lateral knob and remove cap. Take out glass component and loosen the isolating plug (LED-lines). Pull silicone sleeves over the wires, make earth connection and electrical connection to the terminal. Mount luminaire housing with suitable fixing material onto the mounting surface. Take the glass component and reconnect the isolating plug (LED-lines). It is imperative to lead the lines back through the cable routeing to avoid demaging of lines by the rotating mechanism. Place glass into luminaire housing, close luminaire with the cap and screw in knob into the cap.
Relamping · Maintenance
Disconnect from main supply. Loosen lateral knob and remove cap. Take out glass component and loosen the isolating plug (LED-lines). Remove the teflon ring at the opening side of the light shade. Clean glass and luminaire regularly with solvent-free cleansers from dirt. Disassemble LED module. Assemble LED replacement module. Insert glass component into the light shade and remount the teflon ring. Take the glass component and reconnect the isolating plug (LED-lines). It is imperative to lead the lines through the cable routeing to avoid demaging of lines by the rotating mechanism. Place glass into luminaire housing, close luminaire with the cap and screw in knob into the cap. A broken glass must be replaced.
Spares
