Instruction Manual
Guide to Using this Manual
Warning Symbols
Meanings of warning signs on the flat hose with cassette:
 | Observe safety notices and take the necessary precautions. |
 | Read, understand and keep the User Manual. |
 | Wear safety glasses. |
Applicable Documents
The local safety regulations apply.
► In addition to this User Manual, read, understand and keep the following documents:
– Instruction manual of STIHL pressure washer is being used
User Information
Main Parts
A
1) Hose reel
2) Choke knob
3) Mark
4) Clutch
Safety information
The flat hose with cassette is used as a water supply hose for STIHL pressure washers and can also be used as a normal garden hose. Only suitable for use with STIHL RE ser‐
ies pressure washers.
The pressure specification (pmax) and temperature specification (tmax) of the pressure washer must not be higher than the pressure specification and temperature specification on the accessories.
Assembling

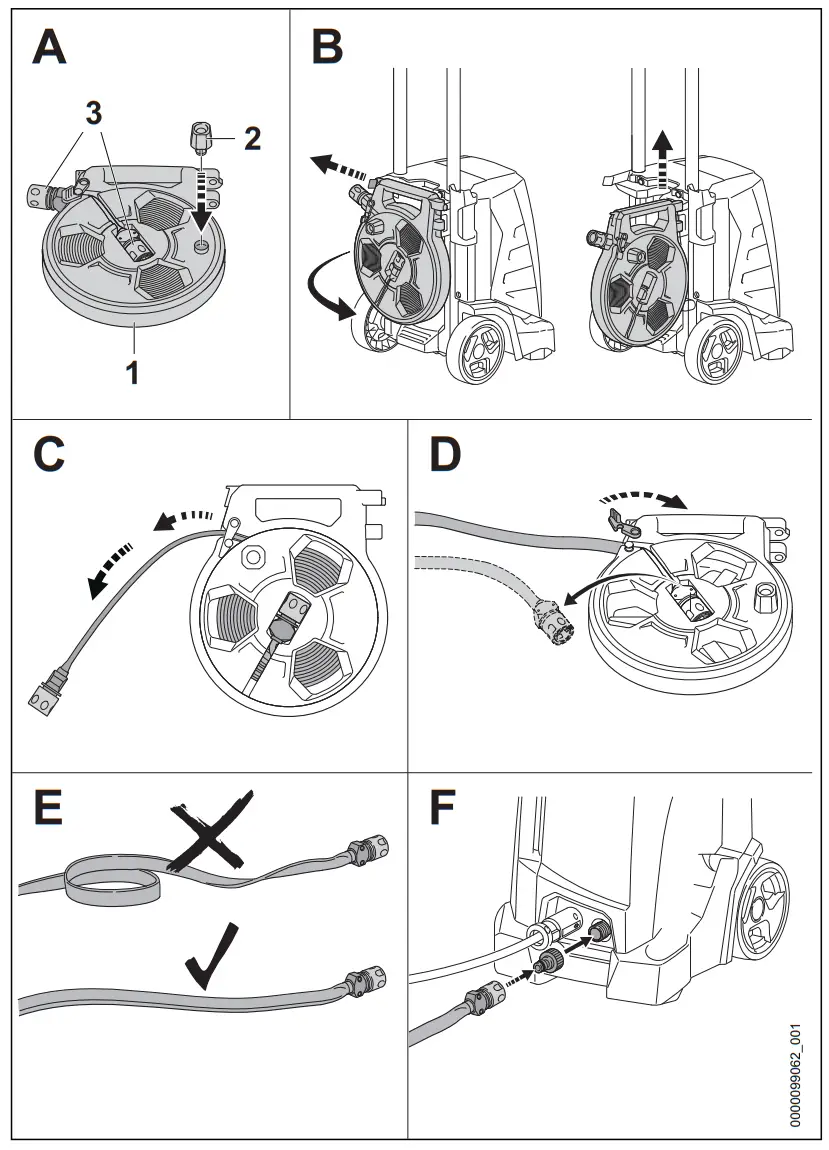

► Dismantle flat hose with cassette from pressure washer B.
► Remove the flat hose from the cassette C.
► Remove the coupling from the cassette D.
► Lay flat hose so that it is not damaged, kinked, crushed or chafed E.
► Attaching the flat hose F.
After finishing work
► Remove the flat hose G.
► Insert the flat hose into the cassette H.
► Roll up the flat hose I.
Cleaning
► Clean flat hose with a cassette with a damp cloth.
0457-367-0049-B. VA0.D21.
