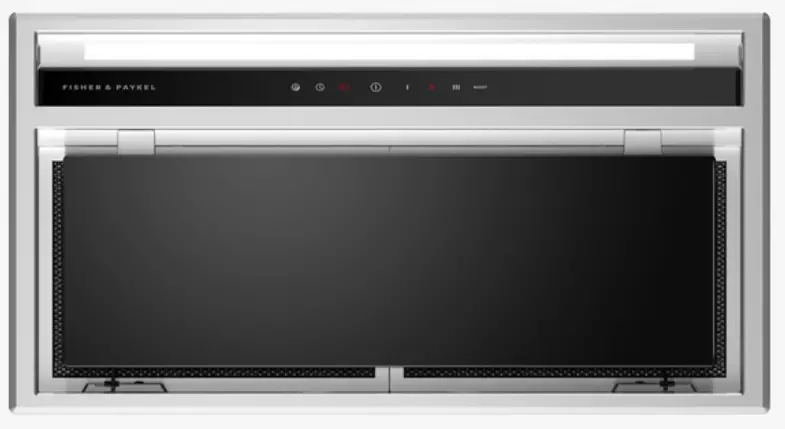

HP60IDCHEX3 60cm Integrated Insert
Rangehood with External Motor
User Guide
Series 7 | Integrated
Stainless Steel and Glass
Seamlessly fits in cabinetry above your cooktop, with an external motor for near-silent yet powerful extraction in the kitchen.
The external motor delivers near-silent operation in the kitchen With three fan speeds plus a boost function, select the perfect extraction rate for your cooking Powerful 1200m3/h maximum airflow Dimmable LED strip lighting illuminates the cooking surface beautifully
DIMENSIONS
| Height | 315mm |
| Width | 530mm |
| Depth | 280mm |
FEATURES & BENEFITS
Near silent extraction
The powerful external motor is installed outside the home to deliver near-silent extraction of cooking odors and steam from the kitchen.
Seamless integration
<>
<<Missing Feature Title>>
This range hood features three fan speeds plus a boost function, providing powerful extraction to quickly remove odors and steam. As odors can linger in the kitchen well after cooking is finished, the timer keeps the rangehood running before automatically turning off.
Full surface lighting
Low-energy, dimmable LED lights provide superb illumination over the entire cooking surface.
Easy to use
This Fisher & Paykel rangehood features a sleek and easy-to-use touch-control panel.
Easy cleaning
<>
Considered efficiency
<>
SPECIFICATIONS
| Accessories | |
| Aluminum filter | 792942 |
| External motor kit | 50170 HB 1200E* (included) |
| Extra ducting length | 792961 |
| Light bulb | requires service to replace |
| Fan ratings | |
| Maximum air movement | 1200m³/hr |
| Maximum pressured air | 820m³/hr |
| Speed 1 sound rating | 40dBA |
| Installation and cleaning | |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Stainless steel filter cover | • |
| Performance | |
| Extraction type | Perimeter |
| Fan speeds | 4 |
| Number of filters | 2 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 240V |
| Product dimensions | |
| Depth | 280mm |
| Height | 315mm |
| Width | 530mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Timer function | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 50166 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
