Yitek Itmf22v075fhd Monitor User Manual

Yitek ITMF22V075FHD Monitor

Safety Precautions

WARNING:Safety Instructions

Do not place the monitor in rain,humid environment or open the monitor case to avoid any shock, electrical hazards,and/or mechanical hazards.

Operation

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.
• Keep the monitor out of water source.
• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.
• Do not block the ventilation holes.
• Do not knock or drop the monitor during operation or transportation.

Maintenance Guidelines

CAUTION
Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

Caring For Your Monitor

• To clean your screen, slightly dampen a soft, clean cloth with water, If possible, use a special screen-cleaning tissue or solution. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a slightly dampened, warm cloth to clean the frame. Avoid using detergent of any kind as some detergents might leave a milky film on the plastics.
• Unplug the monitor if you are not going to use it for an extended period of time.
• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment. If your monitor gets wet, wipe it with dry cloth as soon as possible.

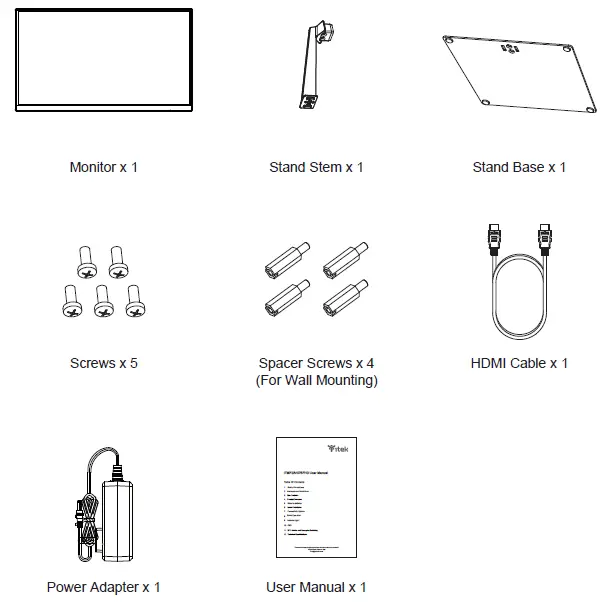

Box Contents

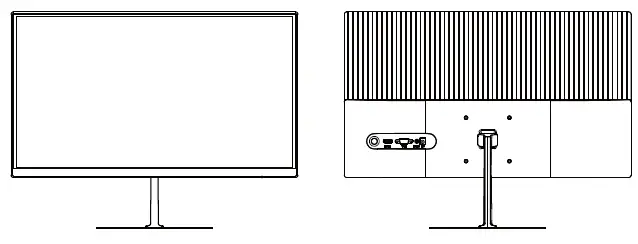

Product Overview

Monitor Buttons

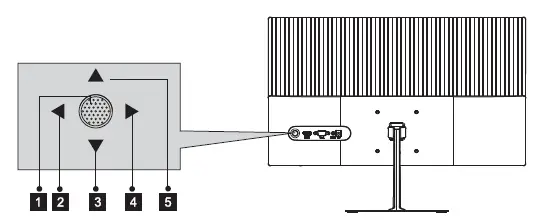

1. Rocker switch button: Press to turn on or turn off the monitor.
2. Left rocker button: Push the rocker left to exit OSD menu.
3. Down rocker button: Push the rocker down to move down in menus.
4. Right rocker button: Push the rocker right to enter sub-menus/ quickly enter the main menu.
5. Up rocker button: Push the rocker up to move up in menus.

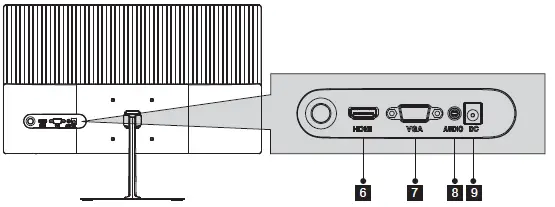

Monitor Ports6 HDMI Connectors: Insert one end of the HDMI cable into the computer’s HDMI output and connect the other end to the monitor’s HDMI port.

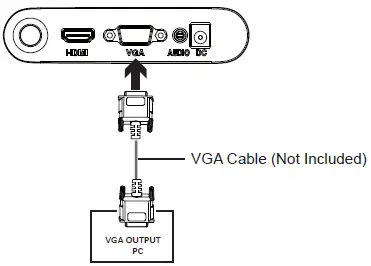

7 VGA Connectors: Insert one end of the VGA cable into the VGA output device and connect the other end to the monitor’s VGA port.
8 Audio Output: Insert one end of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor.
9 Power Connector: Insert the power Cable to supply power to the monitor.

Stand lnstallation

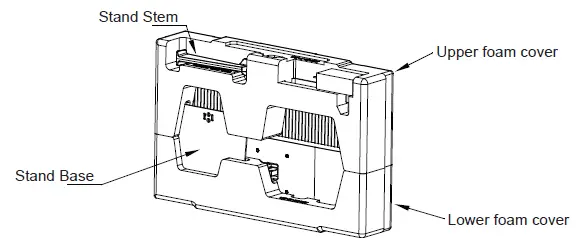

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.

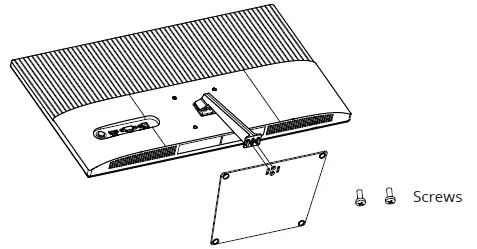

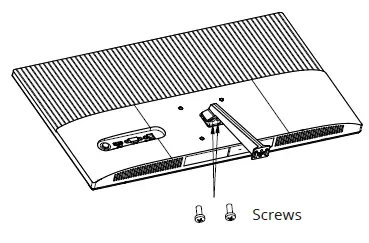

2. Take out the stand, install it on the rotary shaft of the monitor and tighten them with 2 screws.
3. Take out the base, align it with the bottom of the stand and tighten them with 2 screws.
4. Grasp the bracket with your hands to stand up the machine.

During the process of erecting the machine, do not directly pinch the screen with your hands to prevent the screen from breaking.

Mount Installation

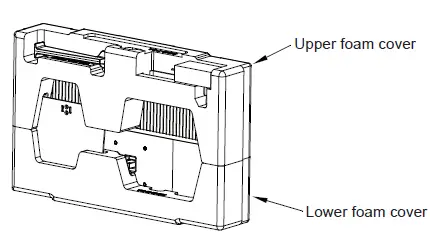

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.

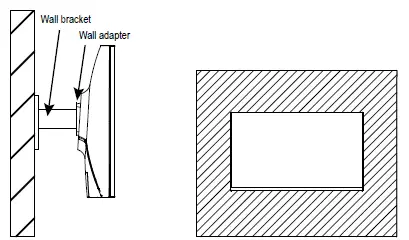

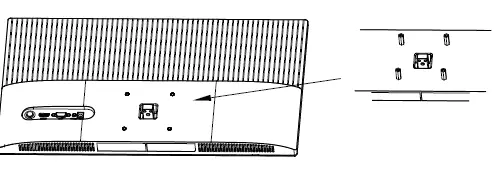

2. Take out all accessories from foams and take out the upper foam. Take out four studs for hexagon irons from the accessory bag to and lock them on the rear casing.(Do not take the screen out from the foam to avoid damage to the screen)
3. Do not pinch the screen directly with your hands during the process of hanging the product to prevent the screen from breaking.

Connectivity Options

Connecting the Power Cable

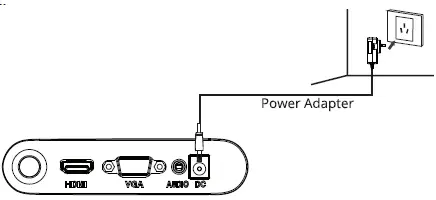

Connect the included power adapter to the power connector, and then plug the other end into an wall outlet.7.2 – Connecting Your Earphones

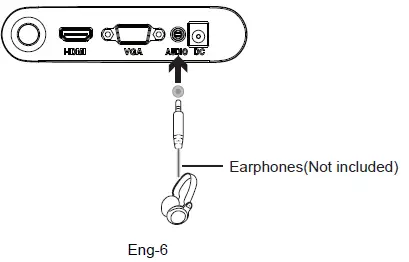

Plug in your earphones to receive audio signals from your monitor. If your earphones are connected to the monitor and audio devices are connected to your computer at the same time, the audio devices will not produce sound. Earphones and other audio devices not included.

Connecting Your Earphones
Plug in your earphones to receive audio signals from your monitor. If your earphones are connected to the monitor and audio devices are connected to your computer at the same time, the audio devices will not produce sound. Earphones and other audio devices not included.

HDMI Connectivity
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.

Basic Operation

1. Insert one end of the HDMI cable into your PC’s graphics card. A VGA cable may also be used.
2. Connect the other end of the cable to the corresponding connector on your monitor.
3. Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn on the monitor.

Adaptive-Sync
This feature is off by default. To activate, you must have hardware with Adaptive-Sync capa-bility, a DP or HDMI cable, and the latest graphic drivers. After connecting your computer and monitor with a DP or HDMI cable, you may receive a prompt to enable the feature on your computer. If you do not, you may need to enable the function in your graphics card menu. See your graphics card manufacturer’s documentation for instructions.

Indicator Light

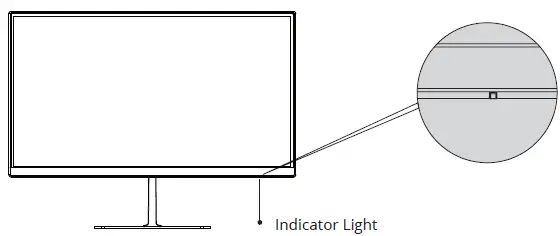

Steady blue light indicates the power is on and the monitor runs normally. Red light indicates no video source and no horizontal or vertical signal detected or low voltage. Please make sure that your computer is turned on and all video cables are fully plugged in and/or connected.

OSD

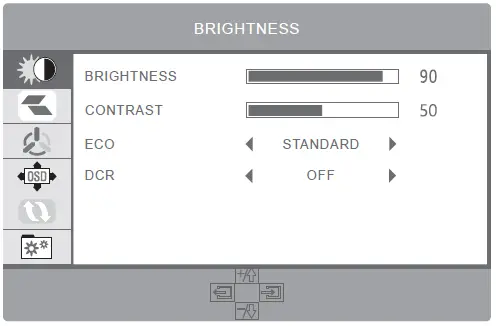

The On-Screen Display(OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button.

When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc.

1. Push the rocker buttons () to activate the browser screen.

1. Game Crosshair
2. Confirm and enter the main menu
3. Power switch
4. Exit
5. Contextual Model

Push the rocker button right to enter the OSD screen

3. Push the rocker buttons or to scroll through the functions.

• Select the desired function, and push the rocker buttons to enter the sub-menu.
• Push the rocker buttons or to scroll through sub-menus, and push the rocker buttons key to select and confirm the desired function.
• Push the rocker buttons or to select one option, and push the rocker buttons to confirm settings and exit from the current menu.

4. Push the rocker buttons to exit from the menu screen

OSD Menu Functions

Technical Specifications

Imported and distribuited for ITEK Europe
Bestit Srl, via dei Fabbri, 40050, Funo di Argelato, Bologna, Italy
Web: www.itekevo.com
Mail: [email protected]
