Smart 0-10V Dimmer
Installation Instructions
Product Code: D1-10VIBH
APP Installation
Visit www.kasta.com.au or your app store to download the free KASTA app.
iOS: requires iOS 9.0 or later.
Android: requires Android 4.4 or later.
Devices must support Bluetooth 4.0
Important Safety Informatioin
- This product must be installed by a licensed electrician in accordance with all the require ments of AS/NZS 3000 (current edition) and other relevant Standards and Regulations.
- Electricity MUST be disconnected prior to installation. Failure to do so may result in serious injury and or loss of life.
- Indoor use only. Not suitable for damp or explosive environments
- Complies to Australian Standards
AS/NZS 60669.2.1:2013 with AS/NZS 60669.1:2013 (IEC 60669-2-1 Ed. 4.1 MOD with IEC 60669-1 Ed.3.2 MOD). - No user serviceable parts inside.
FEATURES
- Smart functions via phone/tablet with the app such as schedules, timers, scenes and groups.
- Dimmable (via KASTA app, KASTA remotes, KASTA SLO2AB-BH or Push button momentary switch only).
- To prevent a reduction in Bluetooth signal strength, install with line of sight between devices if possible.
- 0-10V output signal suitable for 0-10V LED driver.
- Controls the output according to the Bluetooth® signal received from the daylight sensor.
FUNCTION SETUP
(using smart remote switch or momentary switch)
| ON/OFF SWITCH | SHORT PRESS |
| Turns lights on or off. | |
| DIM UP/DOWN | ONE LONG PRESS |
| When lights are on, long press button to dim up or down. Release button to stop. | |
| FULL BRIGHTNESS | 2 CLICKS |
| Sets lights to full brightness. | |
| ADD DELAY TO OFF | 3 CLICKS* |
| Lights automatically turns off after set time. | |
| 6 CLICKS PAIRING MODE | 6 CLICKS* |
| Enter pairing mode for multi-way dimming. | |
| RESTORE TO FACTORY SETTINGS | 9 CLICKS |
| Reset password to the default setting. *If successful, light will pulse the number of times that the switch was clicked, indicating function. | |
TECHNICAL SPECIFICATIONS
Supply: 220-240V~50/60Hz
Operating Frequency: 2.4Ghz
Output Current (Max.): 40mA
Operating Temp: -20ºc to 50ºc
Dimming Method: 1-10V
IP Rating: IP65
Maximum Number of Drivers: 30
Dimensions: 125x51x44mm

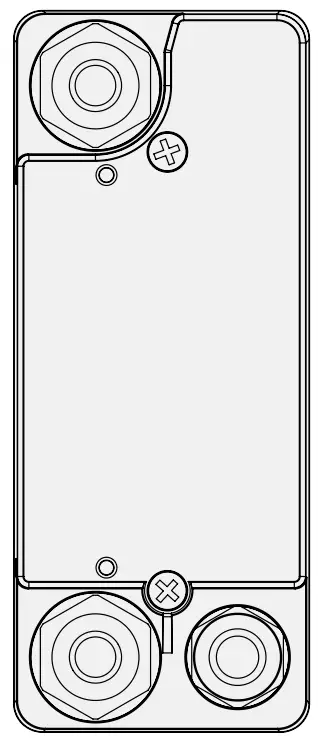

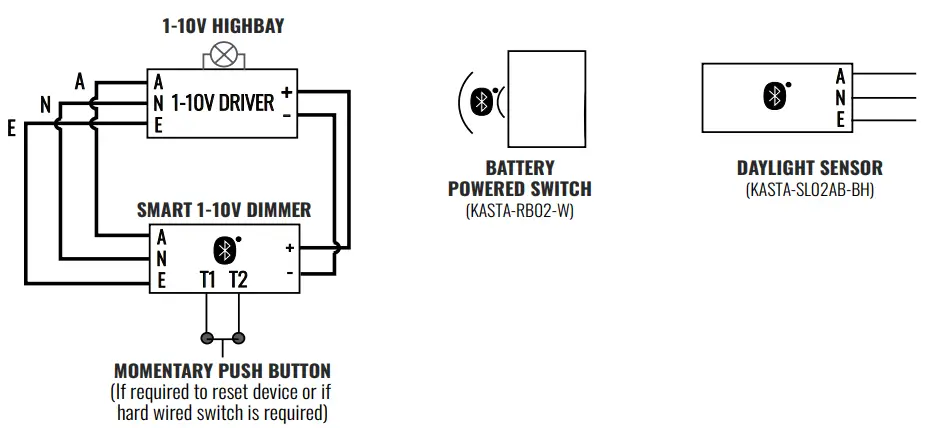

CONNECTION DIAGRAM
ver 1.4
kasta.com.au
(02) 9168 5900
