Cougar Mx440-g Rgb Mid Tower Gaming User Manual

COUGAR MX440-G RGB Mid Tower Gaming

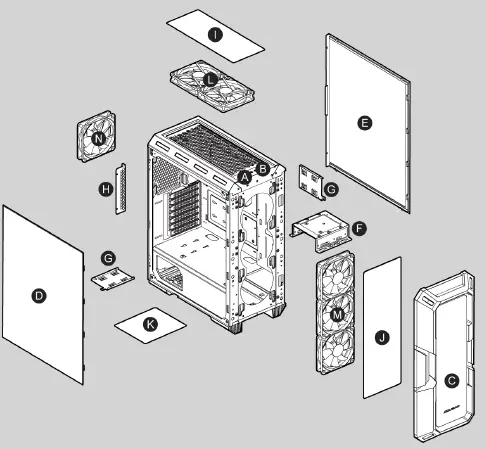

Assembly Drawing

• A Power button / RGB button
• B USB 3.0 / USB 2.0 / HD audio ports
• C Front panel
• D Tempered glass side panel
• E Right side panel
• F 3.5″ HDD cage (compatible for 2.5″ HDD/SSD)
• G 2.5″ HDD/SSD trays
• H Slot covers
• I Air filter for top panel
• J Air filter for front panel
• K Air filter for bottom panel
• L 2 x 120mm fans for top panel (optional)
• M 3 x 120mm / 2 x 140mm fans for front panel (3 x 120mm RGB Fans pre-installed)
• N 120mm / 140mm fan for rear panel (1 x 120mm RGB Fan pre-installed)

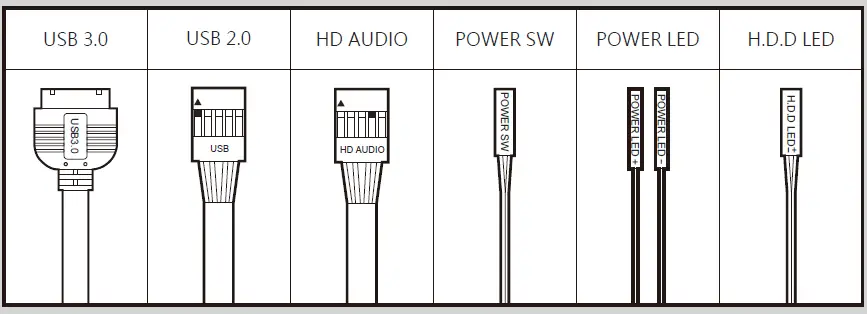

Installing the Front I/O Connectors

MX440-G RGB Pluss design has continued COUGARs iconic sturdy and solid style. With included four RGB fans, the tempered glass front panel showcases stunning lighting view. Besides, it has wide and powerful interior spaces, which allows you to have hardware expandability, high cooling performance, and abundant storage space.

Strength and Sturdy
MX440-G RGB Pluss front panel features bold lines and rugged structures. It is the chassis that brings the new concept of strength and sturdy to the gaming world. Moreover, the tempered glass front panel allows internal lighting to create mesmerizing effects.

Incredible RGB Lighting
MX440-G RGB Plus comes with 4 RGB fans. You are freely to control several amazing lighting effects that we have preset for you with the dedicated RGB button.

Massive Tempered Glass Left Panel
With the full-length PSU cover hides cables and a massive tempered glass left panel presents a clean and tidy build, you can easily build a pro-level system.

Wider but More Compact and Powerful
MX440-G RGB Pluss 215mm width allows much larger interior space with better cooling performance and cable management. However, its compact exterior dimension takes up less desktop space. MX440-G RGB Plus can surely fit a full-sized ATX Motherboard, 320mm-length Graphic card, four 2.5″ SSDs, and two 3.5″ HDDs, which allow you to achieve the extreme operation and abundant storage space.

Sufficient for Multiple USB Devices
The top panel is equipped with two USB 3.0 ports and one USB 2.0 ports, let you easily connect multiple peripheral devices and accessory charging. Not only optimize your processing experiences, but also keep all USB devices without limitations.

Strong Cooling Performance
MX440-G RGB Pluss interior space supports up to 170mm height CPU air cooler, a 360mm water cooling radiator, and high-end cooling components. It helps you to protect critical components from overheating.

FEATURES

• Included four RGB fans at the front panel with variant RGB lighting modes
• Massive tempered glass left panel · Support for up to six fans and a 360mm radiator
• Support for up to 320mm long graphics cards · Support for two 3.5″ HDDs and four 2.5″ SSDs

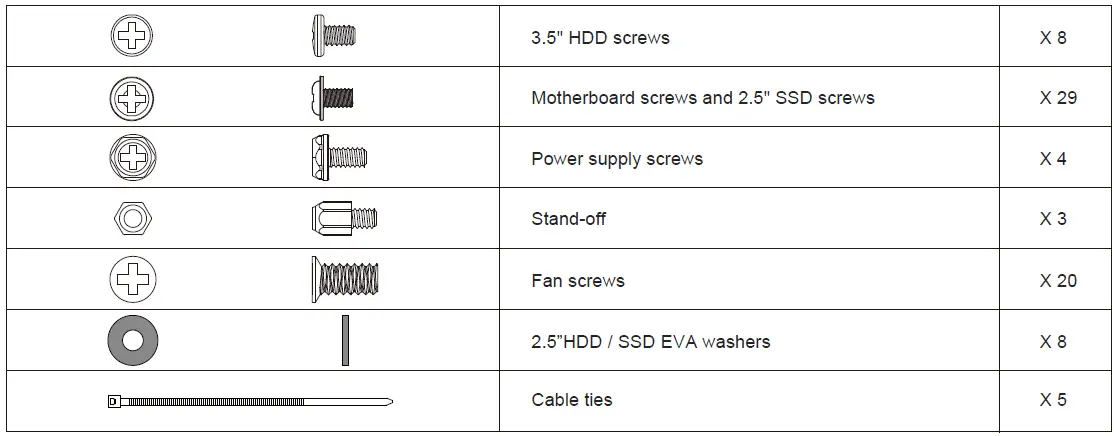

ACCESSORY KIT

GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MX440-G RGB PLUS
Warranty : 1 Year This warranty gives you specific legal rights.

• You may also have other rights granted under local law.
• These rights may vary. Only for electrical components.

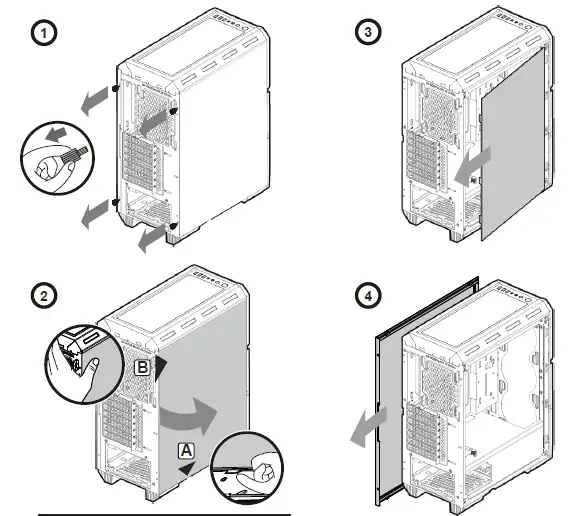

Removing side panels

• A. Please lift up the tempered glass panel from the bottom left notch.
• B. When lifting up the tempered glass panel, please hold it carefully with your other hand.

Installing the 2.5″ SSDs

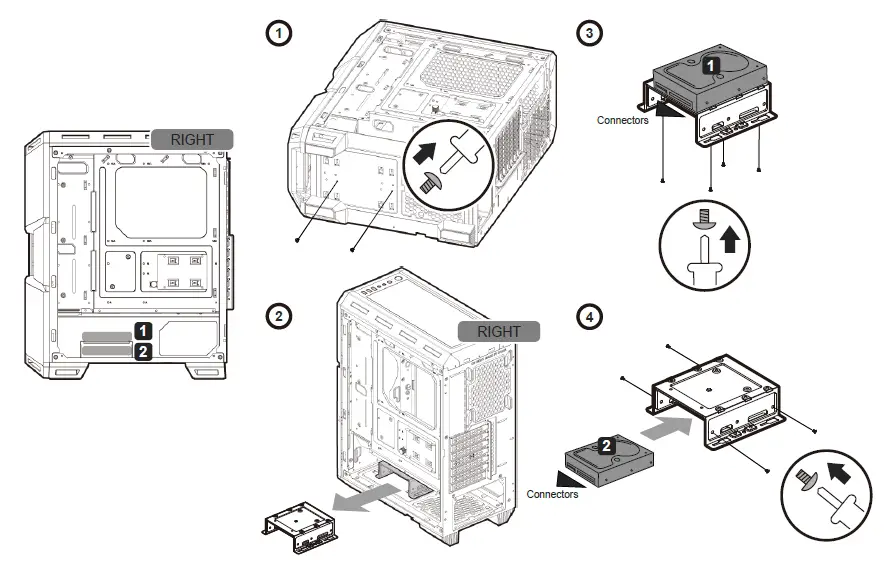

Installing the 3.5″ HDDs

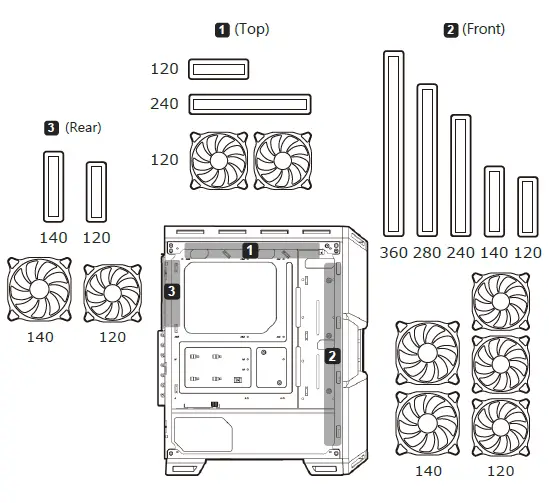

Installing water cooling radiators & cooling fans

Installing PCI-E cards

• Support for graphics card up to 320mm-long

COUGAR USA Technical Service
Tel: (833) 256-3778
Mail: [email protected]
https://cougargaming.com/support/contact/upload/

Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail:[email protected]

For more information, please visit
www.cougargaming.com
Compucase Enterprise Co.,Ltd.
All rights reserved.
Made in China
