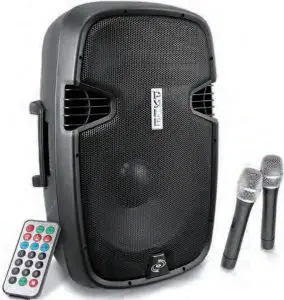

PYLE PPHP129WMU Portable Hi-Power Wireless BTPA Loudspeaker System User Manual
What’s in the Box
- PA Speaker
- (2) Wireless Handheld Microphones
- Remote Control
- Detachable Mic Holders
- Detachable Rolling Wheels
- Power/Charging Cable
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER [OR BACK]
THIS PRODUCT MUST BE EARTHED
NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
OPERATION
- Prior to switching ON, turn volume down to minimum.
- Connect the audio source to the appropriate input socket.
- Connect to the mains supply.
- Switch ON the audio source followed by the active speaker.
- Set the volume with the applicable control.
- Adjust the bass + treble.
- When using the speaker using the built-in battery, if you find the MP3 screen flickering which indicates the battery voltage is low, turn OFF the speaker box and charge battery.
- If you don’t use the unit frequently, please do remember to charge the unit every three months to keep the battery in good condition.
Note: Please turn OFF the product when fully charged. - Wireless BT password: 0000
User’s General Instructions
- Do not overload the box to avoid damage to the speakers.
- Do not place to an open fire (candles etc) on top or next to the box- FIRE HAZARD
- Only connect to an earthed mains outlet of 110Vac/60Hz.
- For indoor use only. If the box will be used outdoors, you need to make sure that no humidity can enter the box.
- When not in use, unplug the unit from the mains.
- Unplug the unit from the mains prior to checking or replacing the fuse.
- Make sure that the box is placed on a stable, strong surface.
- The boxes can be hung. Use only strong and approved mounting material.
During the mounting, make sure that nobody is standing below the mounting area.
- Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.
- Only use suitable means of transportation if you want to move the box. USE EXTRA CAUTION HANDLING THE BACK PANEL.
- Always unplug the unit during a thunderstorm or when it is not in use.
- If the unit has not been used for a long period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
- Never try to repair the unit yourself.
It does not contain any user serviceable parts. - Run the mains lead in such a way that nobody can fall over it and nothing can be put in it
- Set the unit to the lowest volume prior to switching it on.
- Keep the unit out of the reach of children.

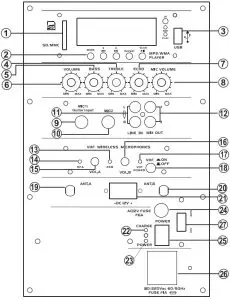

Controls and Connections
- SD/MMC card input
- MP3 control
MODE: USB/SD/FM/BT converter
: Previous songs
: PRE/NEXT under FM model : Next songs
REPEAT: Repeat all/Random/Repeat one
: Play/Pause
SCAN: Auto search under FM radio
REC: Recording - USB input (mp3/wma)
- Treble control
- Bass control
- Output level control
- Echo control
- Mic input level control
- Guitar input/6.35mic 1 input
- 6.35mm mic 2 input
- RCA Phono (R+L) Iine input
- 6.35mm line output
- Wireless microphone B channel Indicator
- Wireless microphone A channel indicator
- A channel volume control
- 8 channel volume control
- Wireless power indicator
- Wireless mic power switch
- Wireless microphone A channel receiving antenna
- Wireless microphone B channel receiving antenna
- DC power interface
- Charging indicator
- Power indicator
- Fuse socket
- Main power switch
- Fused IEC main inlet
- 110/220V switch
: PRE/NEXT under FM model
: Play/Pause
Remote Control
- MODE: USB/SD/BT/FM CONVERTER
- : when USB/SD: Previous Song,
Press and hold for fast rewind
when FM: Swich to backward - VOL+: Increase volume
- VOL-: Decresse volume
- : when USB/SD: next Song,
Press and hold for fast forward
when FM: swich to next channel
: Stop. Switch the MP3 player off.- /SCAN: Play/Pause
When FM: Auto search - EQ: NORMAL, ROCK, POP, CLASS, JAZZ.
- REP: Short press: Random/Single/Order
- 0-9: Choosing music by numbers
- MUTE: Mute the sound of the MP3 player
- REC: Record
: Stop. Switch the MP3 player off.Features
- Versatile PA Loud Speaker Sound System
- Wireless BT Music Streaming Ability
- Active 2-Way Full Range Stereo Sound
- Heavy Duty, Rugged & Reliable
- Built-in Rechargeable Battery
- FM Radio with Automatic Station Recognition
- USB Flash & SD Memory Card Readers
- Includes (2) Wireless Microphones
- (2) 1/4” Microphone / Guitar Inputs
- Independent Adjustable Mic/Guitar Volume Controls
- RCA (L/R) Line Input Connector Jacks
- Ability to Connect External Devices
- RCA (L/R) Line Output Connector Jacks
- Ability to Connect to Additional Speaker Systems
- Rear Panel Button & Rotary Knob Control Center
- Volume, Bass and Treble Adjustment
- Wired Microphone Compatible
- 12 Volt Inlet for Car / RV Use
- Digital LCD Display
- ID3 Tag Song Readout Info
- Battery LED Indicator Lights
- Engineered Fortified Molded Cabinet
- Convenient Rolling Wheels and Extendable Carry Handle
- 35mm Speaker Stand Mount
Wireless BT Streaming
- Simple & Hassle-Free Pairing
- Works with All of Today’s Latest Wireless BT Devices (Smartphones, Tablets, Laptops, Computers, etc.)
- Wireless BT Version: 3.0
- Wireless BT Range: 30’+ ft.
Technical Specs
- Power Output: 1000 Watt MAX (500 Watt RMS)
- Battery Life: Up to 4 Hours (Charge Time: ~8 Hours)
- Subwoofer Frequency: 80-18Khz (-10dB)
- Subwoofer: 12” -inch
- Tweeter: 1.34” -inch
- Impedance: 4 Ohm
- 1/4″ TS/unbalanced With RCA Inputs/Outputs Jacks
- Sensitivity: 95dB (+/-2dB)
- S/N Ratio: ≥50dB
- T.H.D.: 10% 20watts
- Frequency Response: 80-18Khz (-10dB)
- Power Supply : 110220V, Switchable
- Maximum USB/SD Card Support: 16GB
- Digital Audio File Support: .mp3, .wma
- Dimensions (L x W x H): 13.4” x 12.2” x 22.6” -inches
