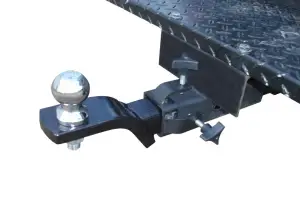

Tractor Supply Hs1001 Hitch Stabilizer Instruction Manual

HITCH STABILIZERMODEL: HS1001

READ ALL INSTRUCTIONS BEFORE USING THE HITCH STABILIZER
NOTE: Failure to read instructions before use could result in injury or death.

Instructions for Installation and Use:

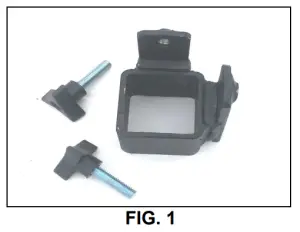

CONTENTS: SEE FIG. 1

1. STABILIZER BODY
2. 3/8” KNOB SCREWS

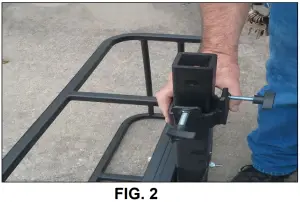

STEP 1– SEE FIG. 2
INSTALL TWO 3/8” KNOB SCREWS INTO THE STABILIZER BODY.

STEP 2 – SEE FIG. 3
 SLIDE STABILIZER OVER MALE RECEIVER BAR.
**NOTE**MAKE SURE  STABILIZER IS ORIENTED WITH ONE OF THE SECURING TABS IN THE DOWN (TOWARD GROUND) POSITION.

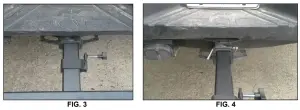

STEP 3– SEE FIG. 3 & 4
SLIDE ATTACHMENT INTO VEHICLES FEMALE RECEIVER AND SECURE USING THE HITCH AND KEEPER PIN. (NOT INCLUDED)

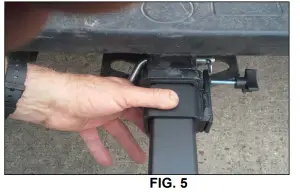

STEP 4 – SEE FIG. 5
SLIDE STABILIZER FORWARD ON MALE RECEIVER BAR UNTIL IT IS TOUCHING THE VEHICLES FEMALE RECEIVER.

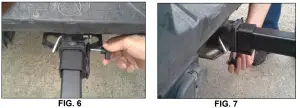

STEP 5 – SEE FIG. 6 & 7
TIGHTEN THE TWO 3/8” KNOB SCREWS SECURELY. THIS WILL HELP STABILIZE ATTACHMENT.
