SONIC PRESENCE SP15C New Binaural Microphone
GETTING STARTED
- Remove SP15C Spatial Microphone from the static protective package.
- Hang the hook marked “L” over your left ear and the red “R” hook over your right ear.
- Adjust the fit so the spheres rest comfortably in front of ear and not inside your ear (Fig. 1).
- Use Cable Slider to fasten cables below your chin.
- When using a cellular-enabled device, switch it to airplane mode.

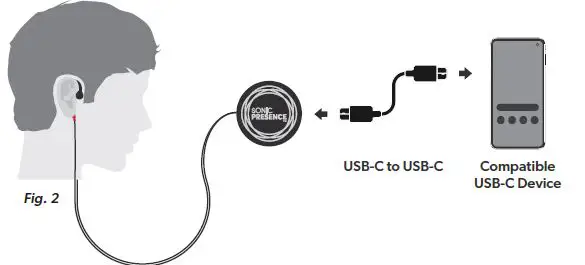

- Plug the USB-C cable into your SP15C until it seats with a click (Fig.2). Plug the other end into a compatible USB-C device. (see section Compatible Devices).
- Open an application with stereo sound and begin recording (see section Apps). NOTE: Always plug-in first and launch app second.
COMPATIBLE DEVICES
- Android® Devices
- iPad Pro (USB-C)
- Apple® macOS
- Windows® PCs
PRO-TIP
You can connect your SP15C to older devices that have a USB-A port, including Windows PCs and macOS computers, by using a USB-C Male to USB-A Male cable (sold separately).
APPS
Visit sonicpresence.com/apps for the most current list of recommended apps plus links to download.
iPadOS Audio
- Voice Memos ShurePlus Motiv Audio
- Voice Recorder Pro 7
- Apogee MetaRecorder iPadOS
- Audio + Video ShurePlus Motiv
- Video Apple
- Camera App FiLMiC Pro
ProMovie Recorder
- Android Audio
- Field Recorder Pro
- USB Audio Recorder ShurePlus Motiv Audio Rec Forge Pro II
- Android Audio + Video Open Camera
- ShurePlus Motiv Video FiLMiC Pro
- Cinema 4K
DISCLAIMER
App compatibility may vary across different Android devices due to hardware variation.
TECH SPECS
| Model SP15C |
| Powering USB 2.0 |
| Connector Type-C Plug |
| Sensor Matching +/- 1dB |
| Resolution 16/24 bit |
| Sample Rate 44.1 / 48 / 88.2 / 96kHz |
| Frequency Response 20 to 35,000Hz |
| Polar Pattern Stereo/HRTF |
| Sensitivity (Open Cicuit at 1kHz) -35dB (18mV) / Pascal |
| Maximum SPL (1kHz at 1% THD) 130 dB |
| Self Noise (A-weighted Typical) < 20dB |
| Dynamic Range (at 1kHz) 110dB |
| Weight Sensors 21g (0.7oz) |
| Operating Temperature -18°C (0°F) to 57°C (135°F) |
| Model SP15C |
| Powering USB 2.0 |
| Connector Type-C Plug |
| Sensor Matching +/- 1dB |
| Resolution 16/24 bit |
| Sample Rate 44.1 / 48 / 88.2 / 96kHz |
| Frequency Response 20 to 35,000Hz |
| Polar Pattern Stereo/HRTF |
| Sensitivity (Open Cicuit at 1kHz) -35dB (18mV) / Pascal |
| Maximum SPL (1kHz at 1% THD) 130 dB |
| Self Noise (A-weighted Typical) < 20dB |
| Dynamic Range (at 1kHz) 110dB |
| Weight Sensors 21g (0.7oz) |
| Operating Temperature -18°C (0°F) to 57°C (135°F) |
LEGAL DISCLAIMER
Recordings you make with SonicPresence® are strictly for your own personal use. You may not sell the recordings or make use of them for any commercial purpose unless you first obtain the legal permission of the performers and the copyright owners. Doing so without their permission is a violation of the law.
WARRANTY
Visit sonicpresence.com/warranty to read terms. Upon purchase warranty is automatically activated. LEGAL DISCLAIMER
