Joby Wave Air Microphones User Guide

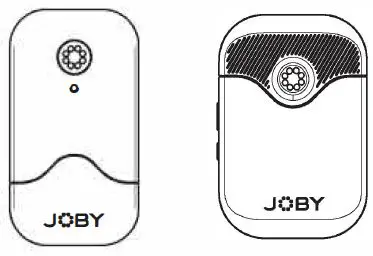

JOBY Wave Air Microphones

WavoAIR

Microphone

Compact Wireless Microphone with double transmitter Micro sans fll compact avec double transmetteur

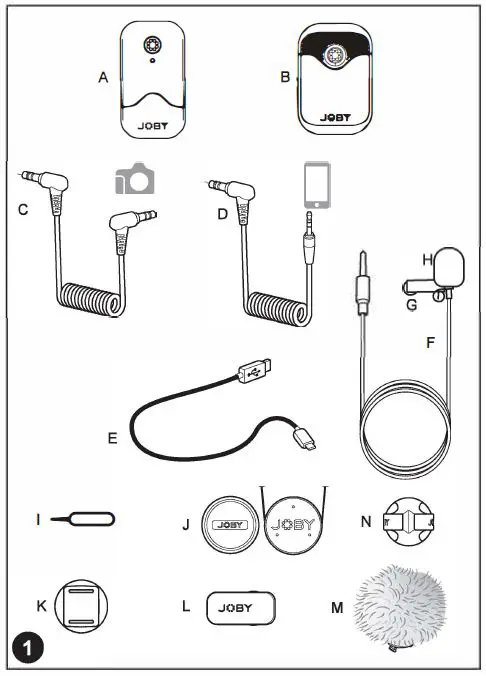

WHAT’S IN THE BOX

A. 1 x Receiver
B. 2x Transmitters with Built-In Microphone
C. 1 x 1′ (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output
D. 1 x 1′ (30.5 cm) Gold-Plated 3.5mm TRS to TRRS Output
E. 3x 1′ (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables
F. 2x Omnidirectional Lavalier Microphones
G. 2x Alligator-Style Lavalier Microphone Clips
H. 2x Foam Lavalier Windscreens
I. 1 x Pairing Pin
J. 1x Magnetic support (pendant and magnet)
K. 1 x Cold shoe support
L. 2x Clip-on support
M. 2x Windjammer for TX
N. GorillaPod leg clip

PRODUCT STRUCTURE

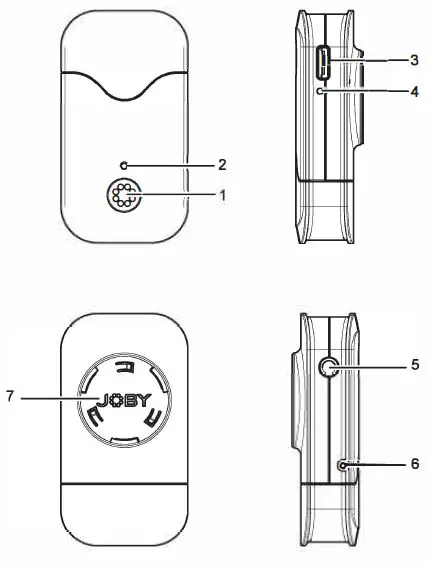

WAVO AIR RECEIVER (RX)

1. Power Button Long press to tum on or off the receiver.
2. Power and Pairing Indicator
   • Power Functions:
     Solid Red light = 90 min estimated remaining time Flashing Red light = The device needs to be recharged
   • Pairing Functions:
     Flashing Blue light (every 1 second)= Unpaired Quick Flashing Blue light (twice per second) = waiting for pairing Solid Blue light = Paired Successfully The manual pairing needs to be done only for the first use Further on/off cycles will trigger automatic pairing\
3.  USB Type-C Charging Port Solid Green light = Battery is charging lights turn off= Battery fully charged
4.  Charge Indicator
   • Solid Green light = Battery is charging lights turn off= Battery fully charged
5. 5 line Out
   Connect the receiver to a camera or a smartphone
6.  Pairing Pin-Hole
   wavo AIR mounting system
