Fantini 5302r485b Built In Shower Mixer Instructions

5302R485B Built In Shower
Mixer InstructionsDOCCIA INCASSO
DEVIATORI 2/3 VIE
instructions

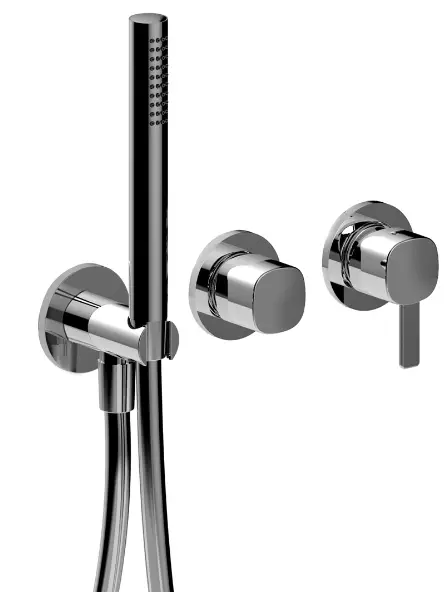

5302R485B Built In Shower Mixer

PRE- INSTALLATION

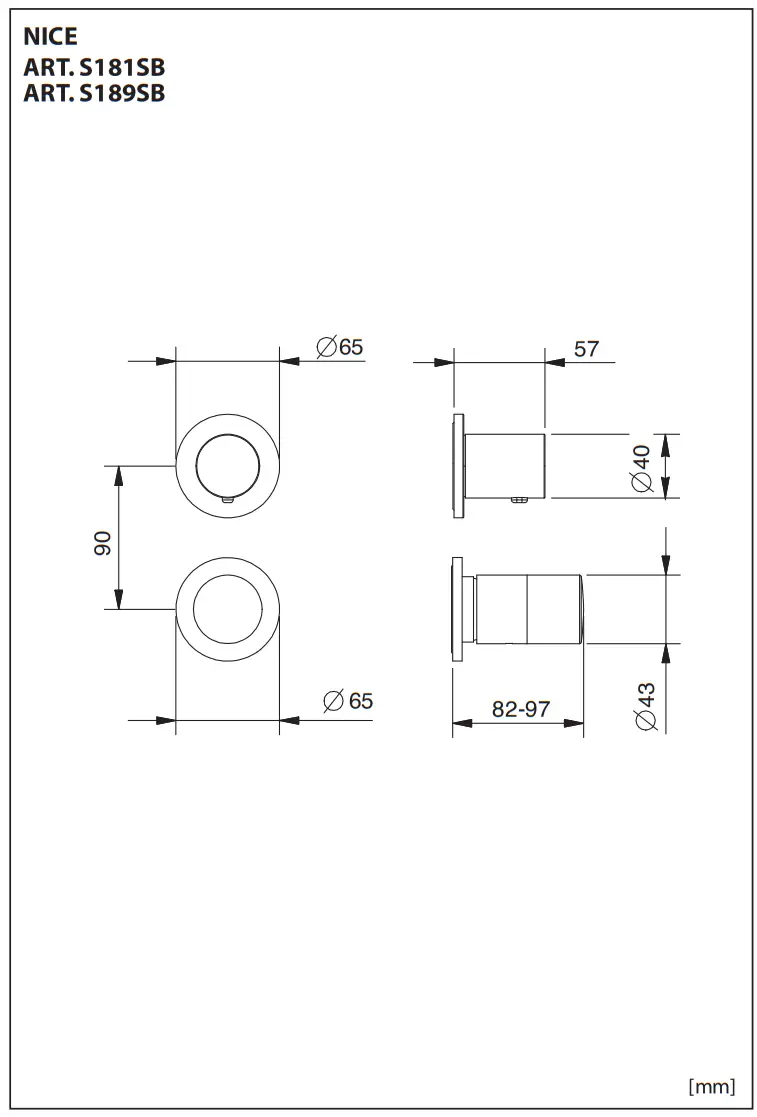

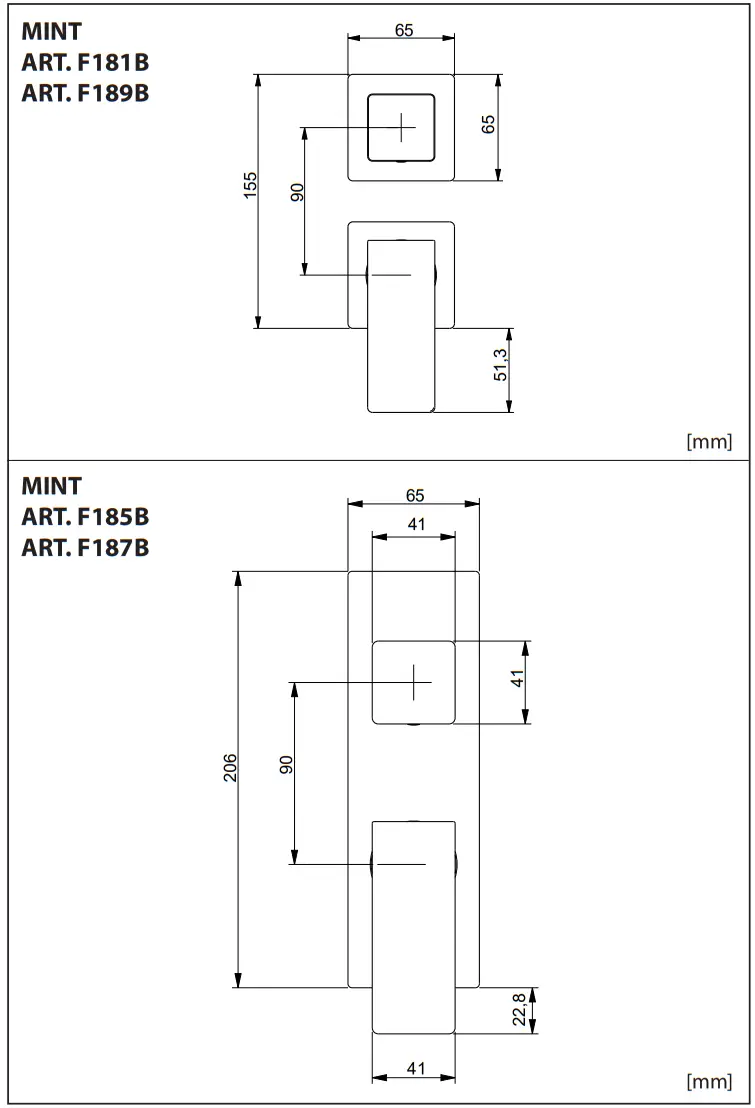

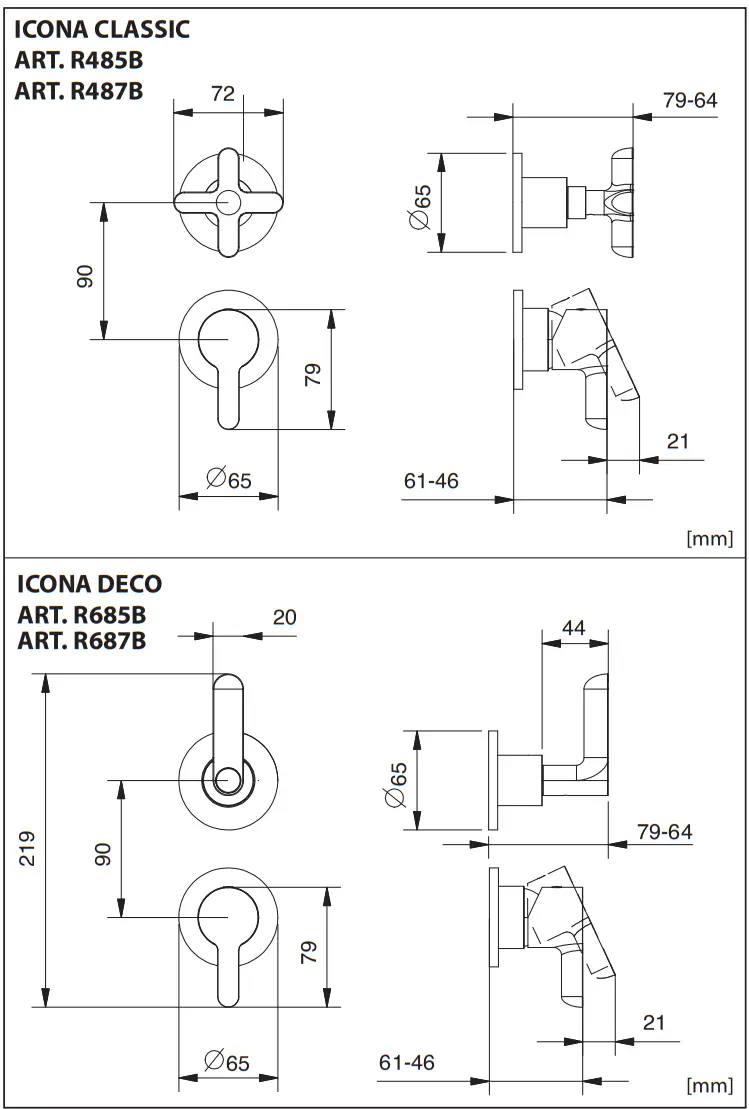

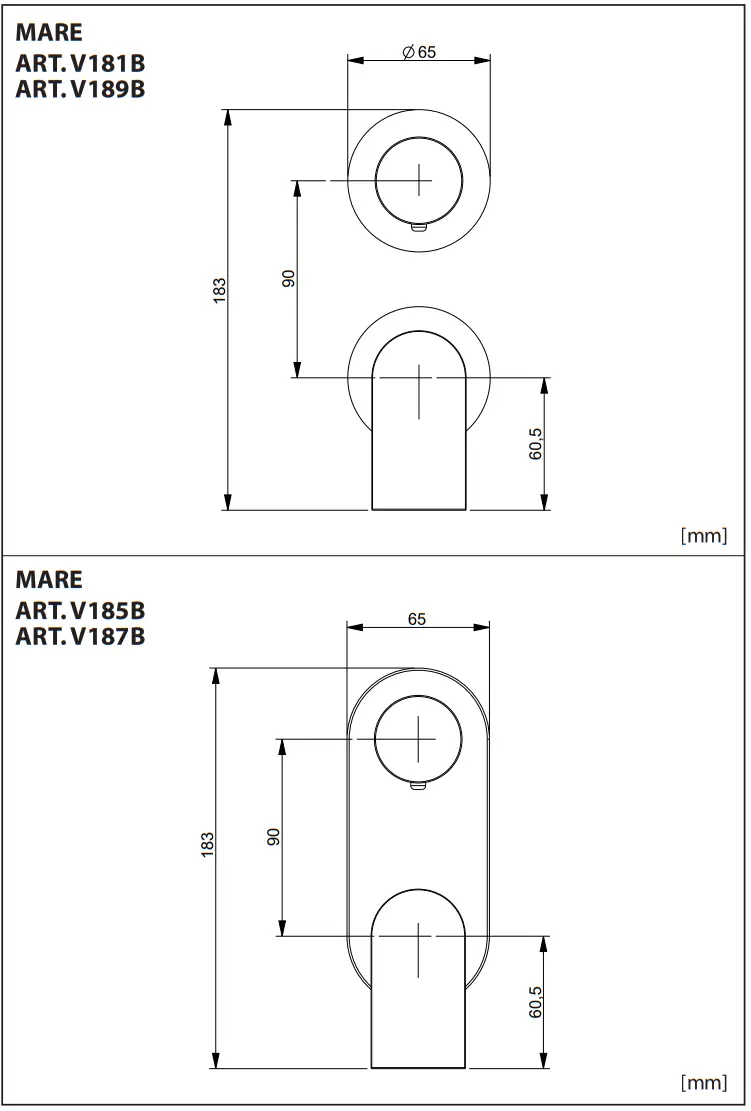

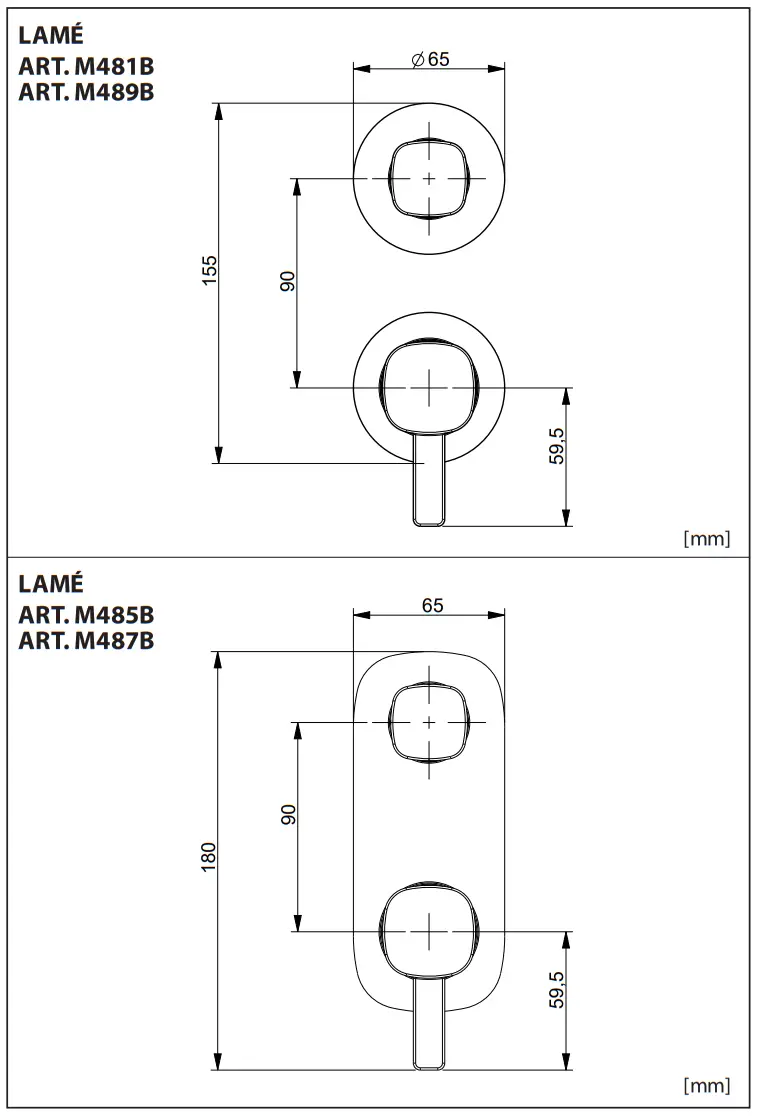

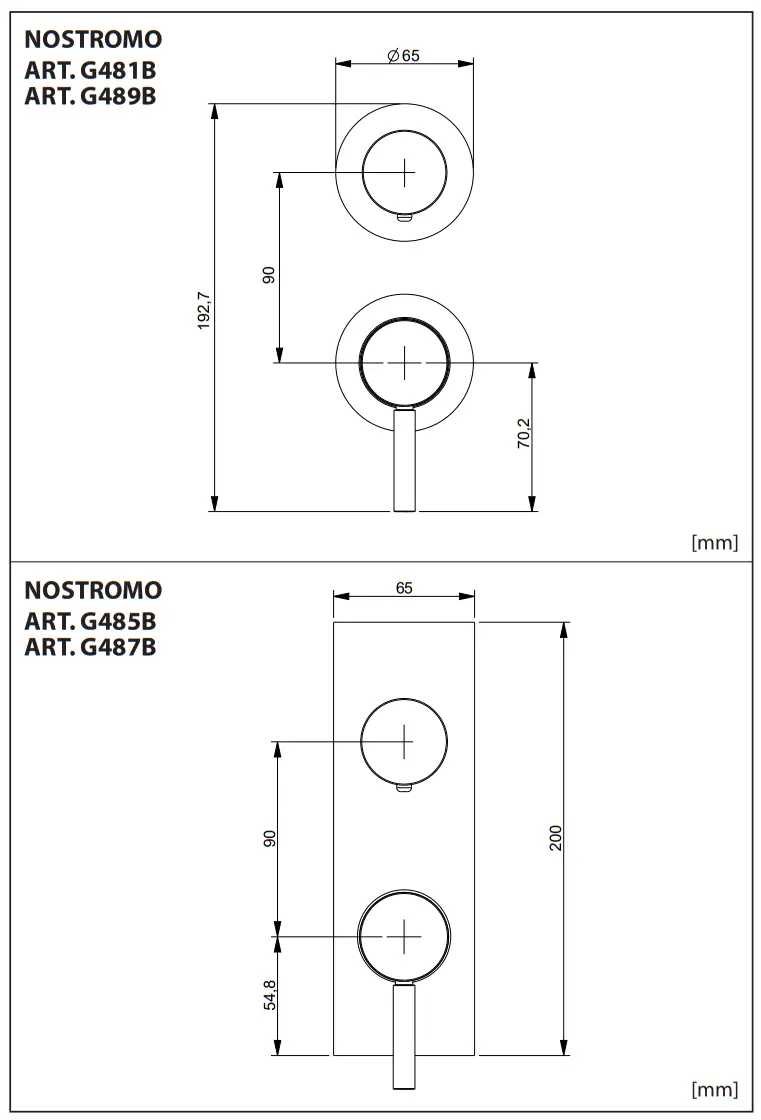

TECHNICAL DETAILS

If water pressure is above 5 bar, it is advisable to install a flow restrictor upstream of the water supply to avoid vibrations and regulate temperature.
These mixers can be used with high-pressure hot water accumulators or with instant water heaters.

NECESSARY TOOL

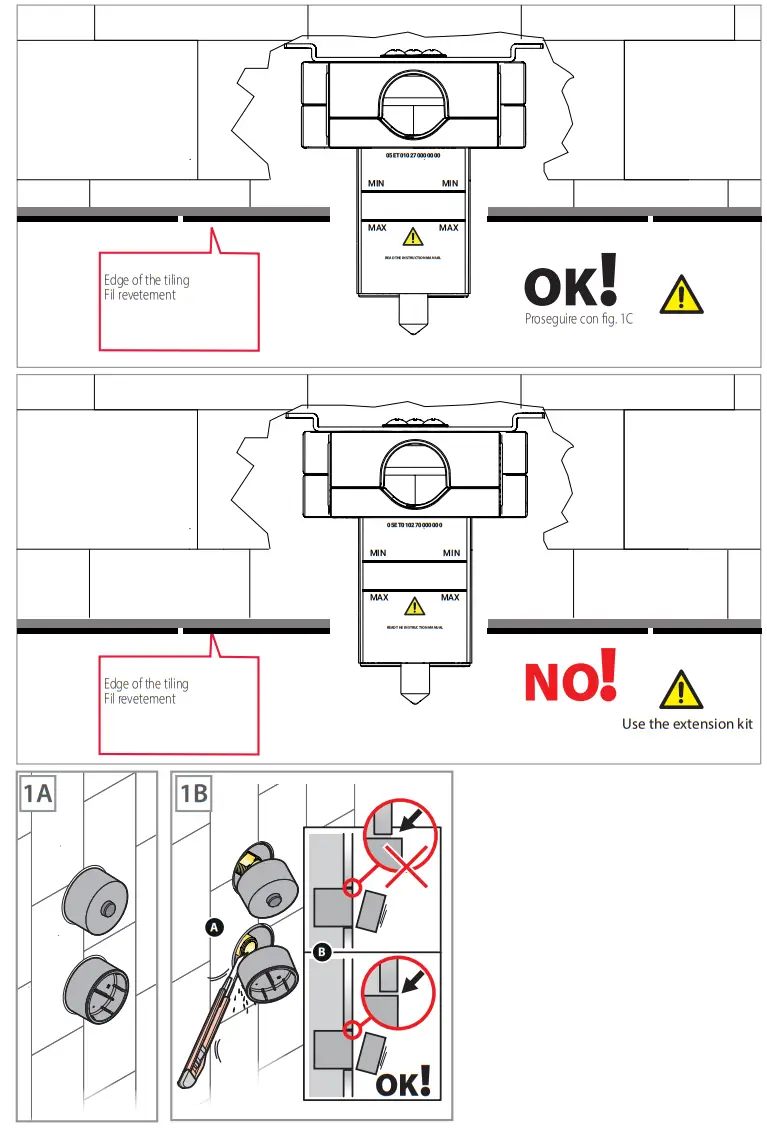

For installations within the Min and Max limits indicated by the label applied to the product, see from page 14.

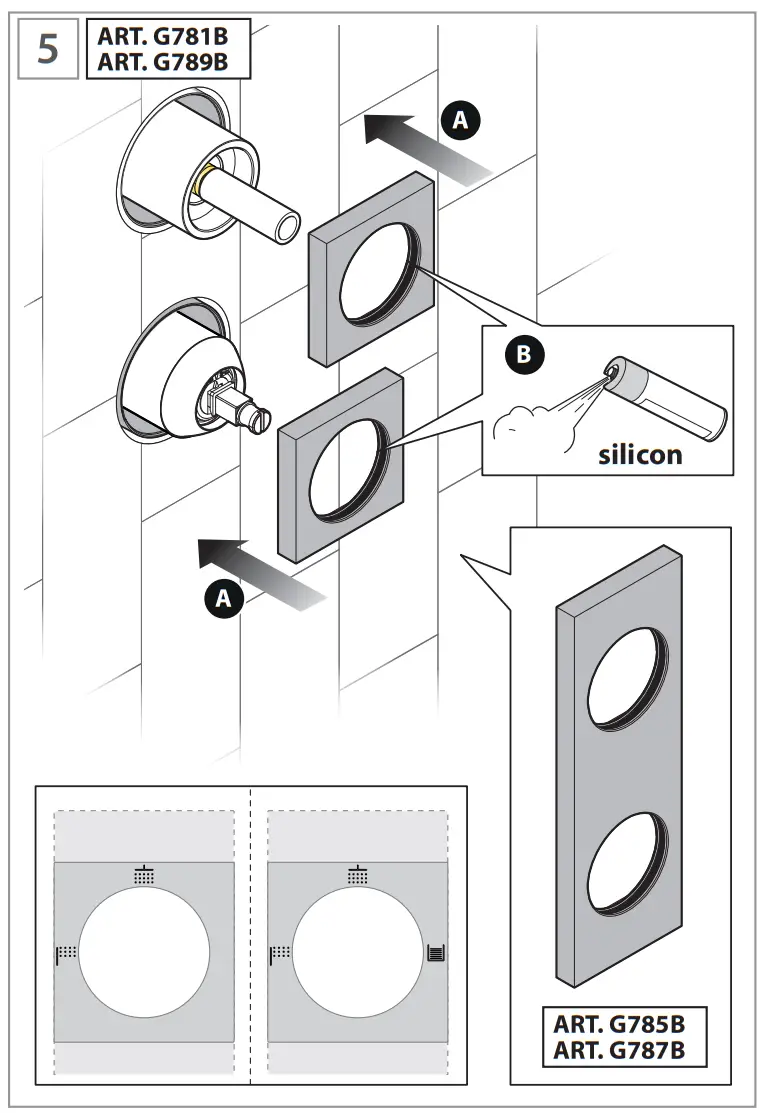

In the case of installations beyond the Max limit indicated by the label applied on the product where the kit is needed extension, see from page 12. The extension kit cannot be used for items in the MILANO series: G781B; G789B; G785B; G787B.

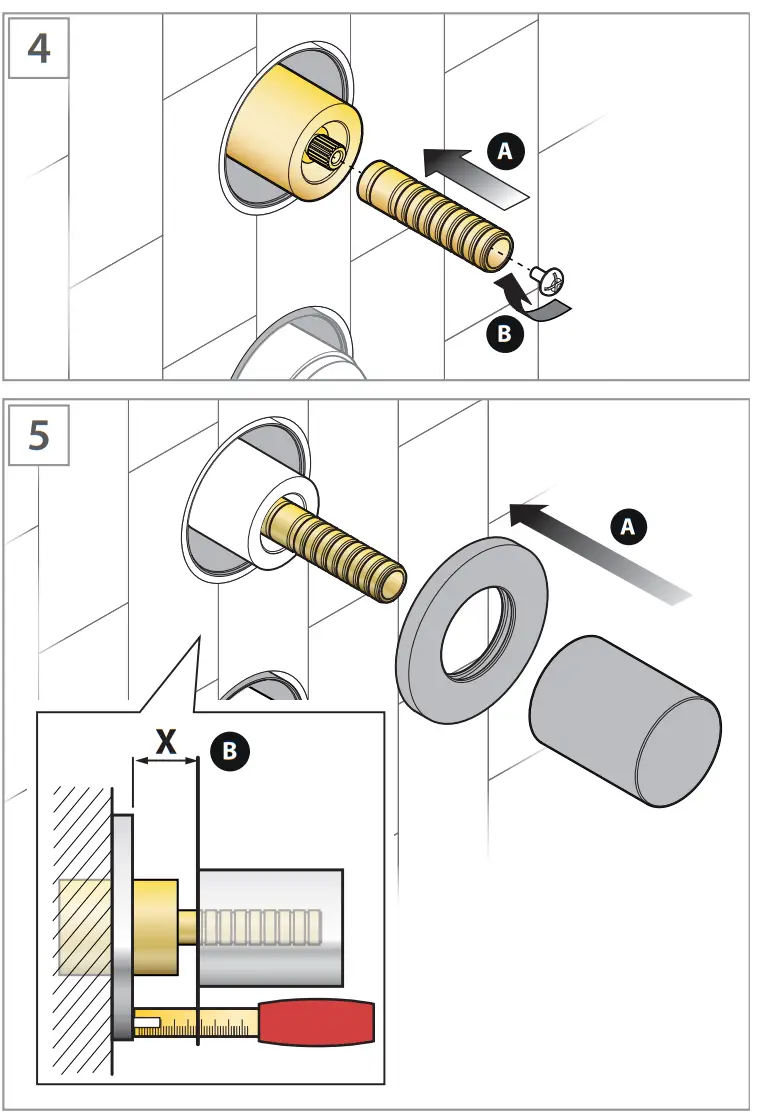

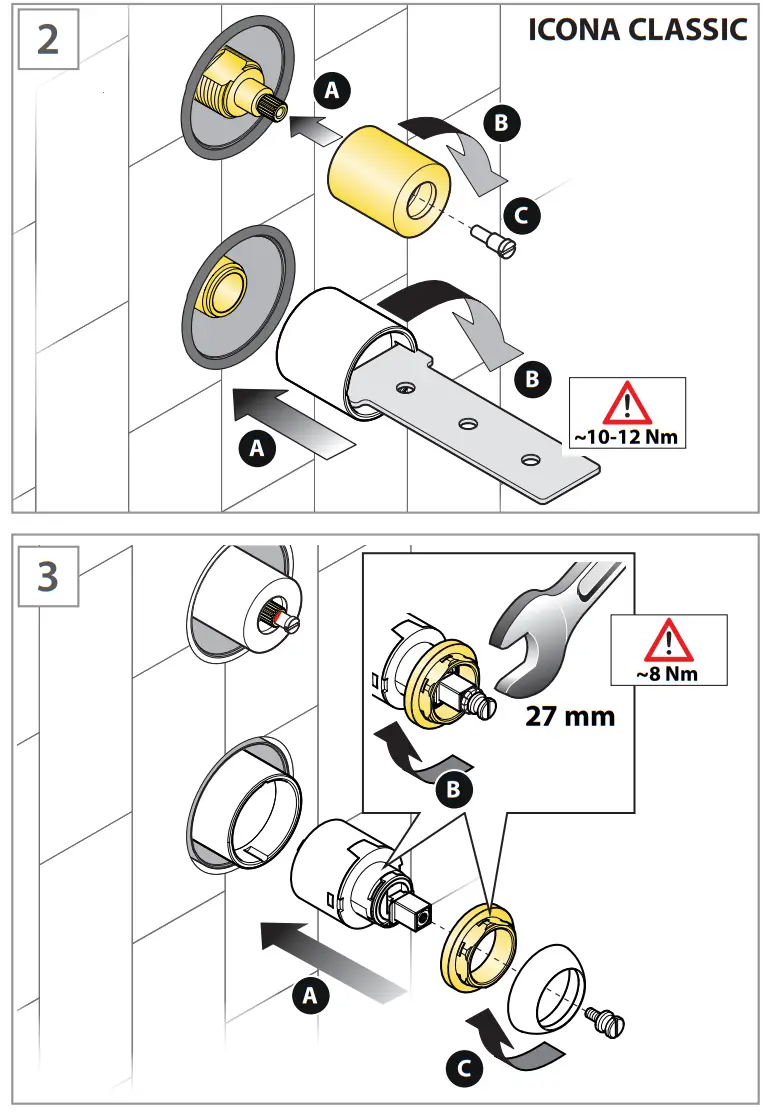

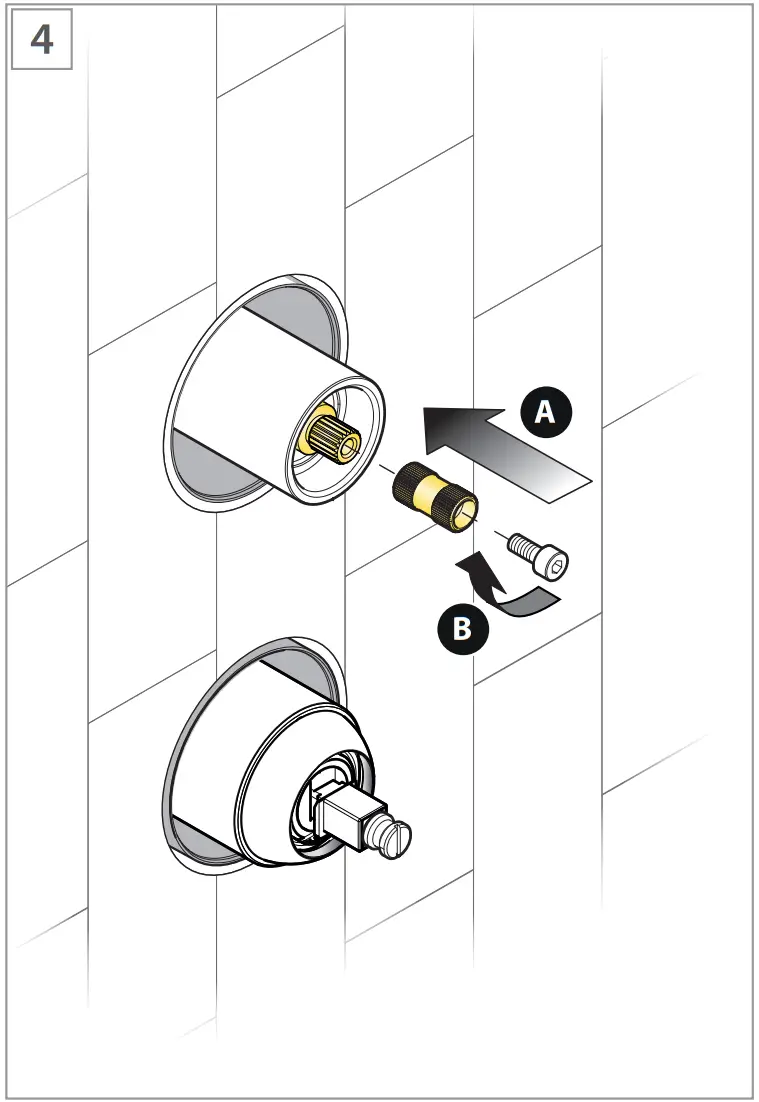

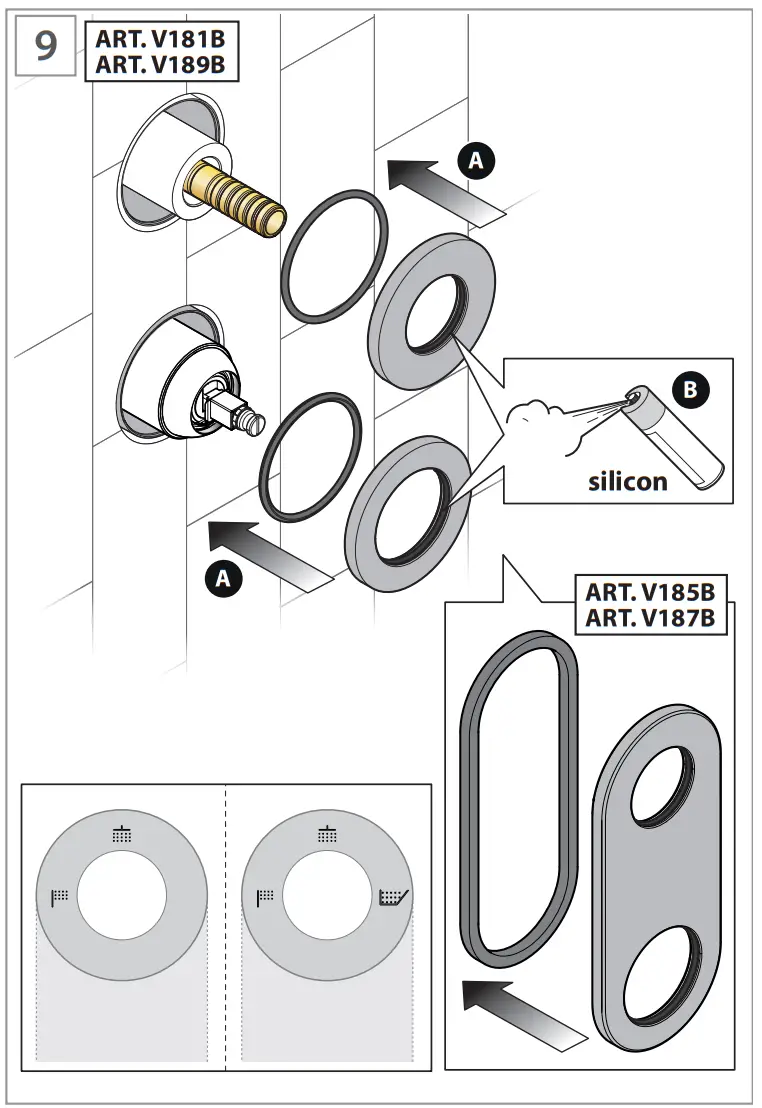

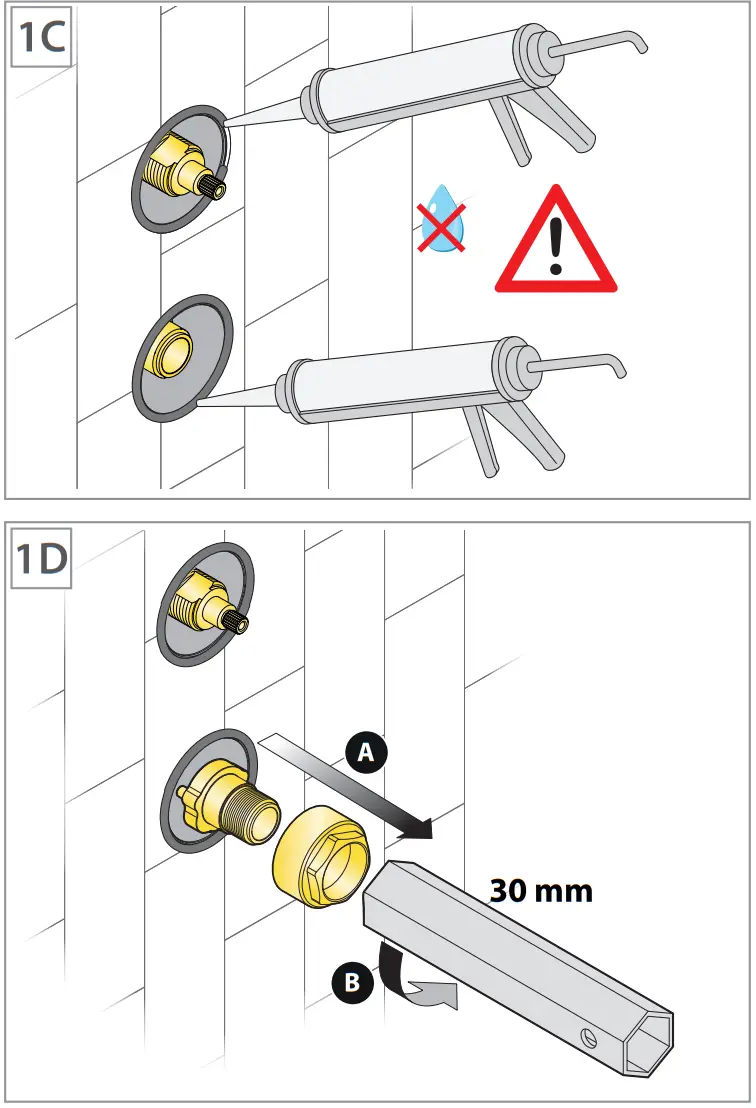

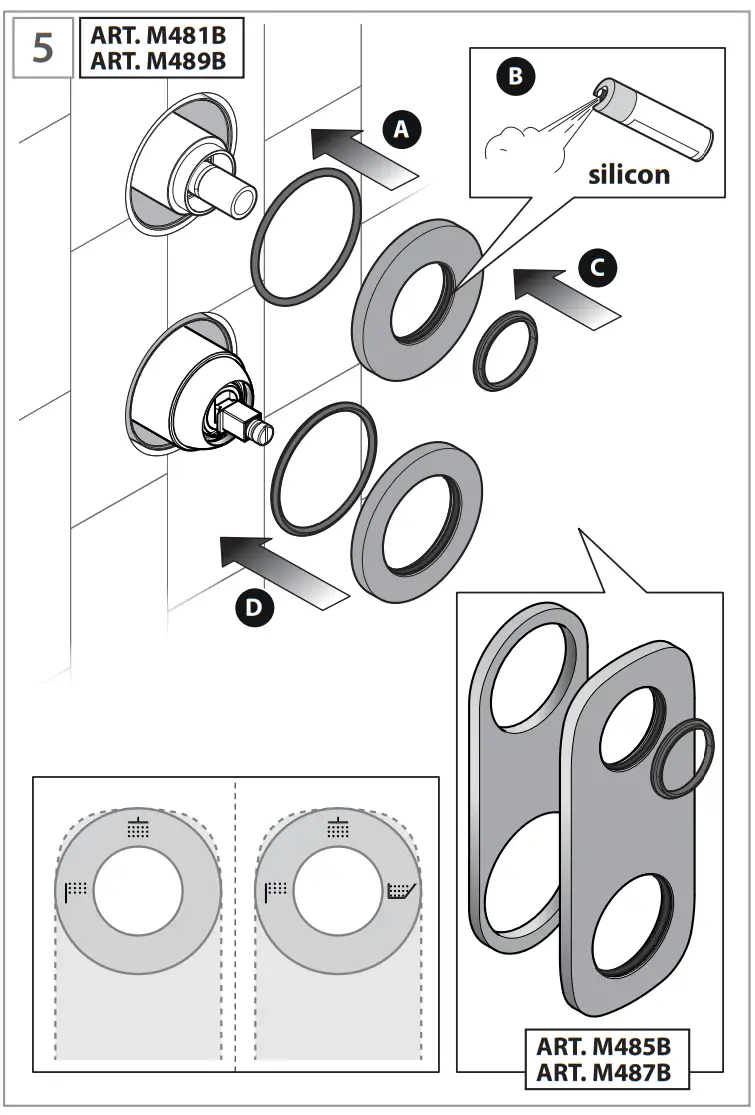

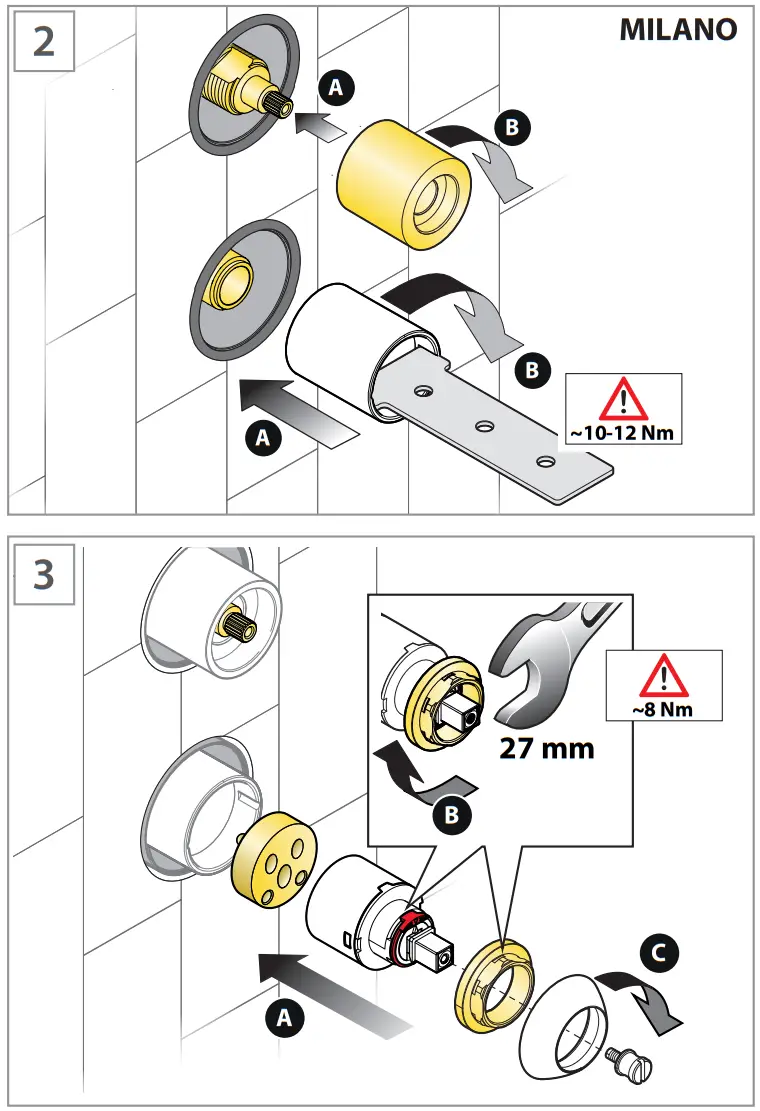

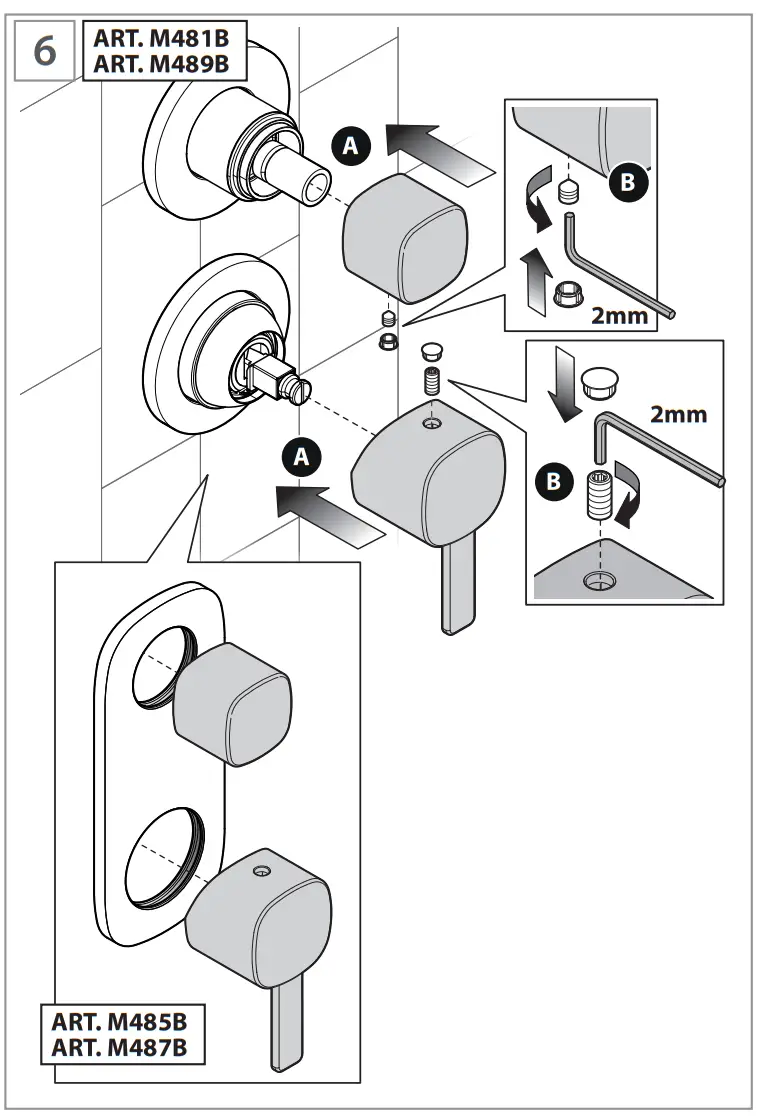

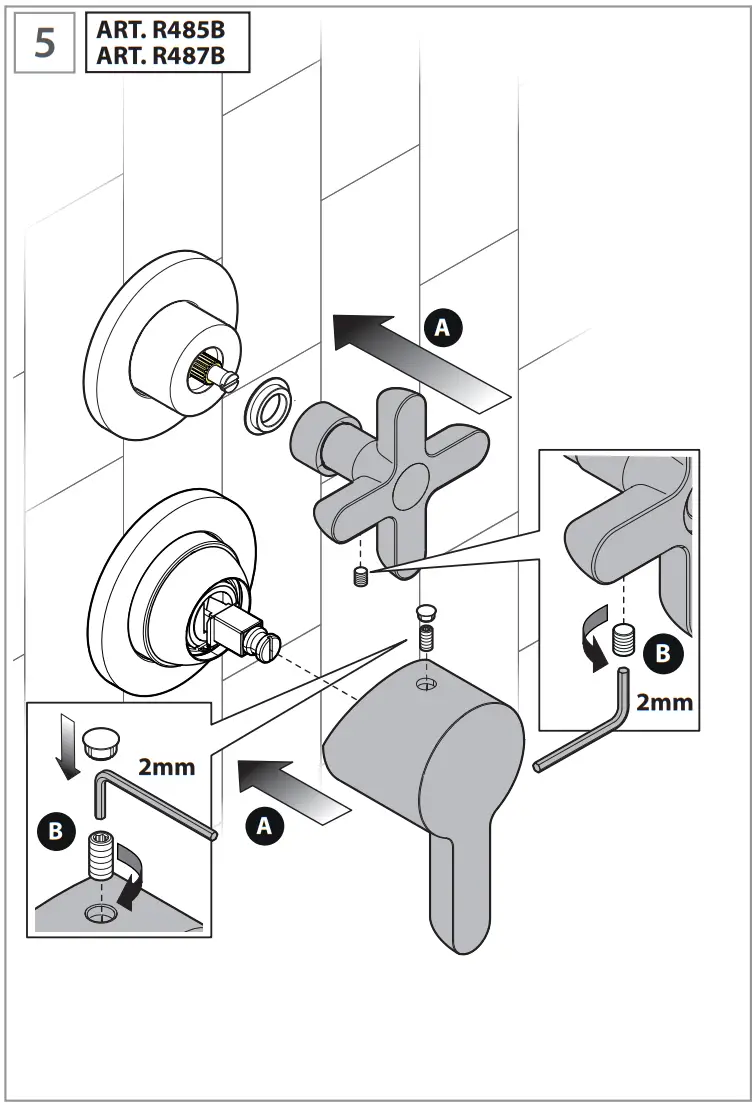

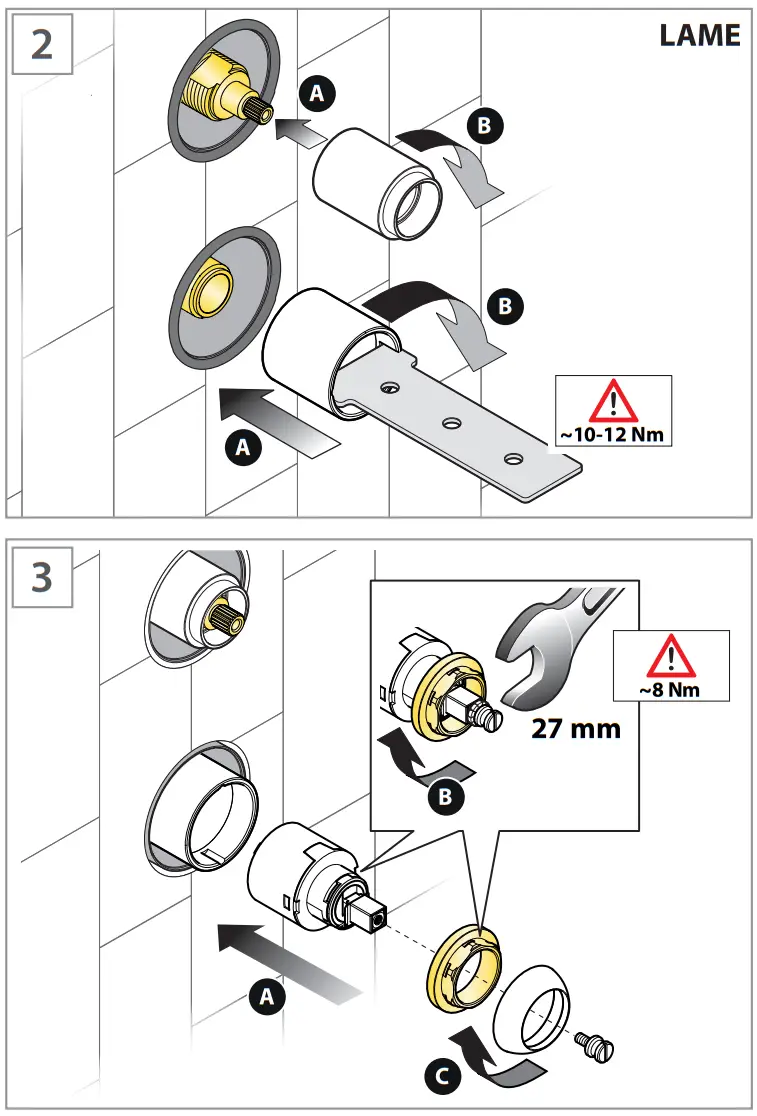

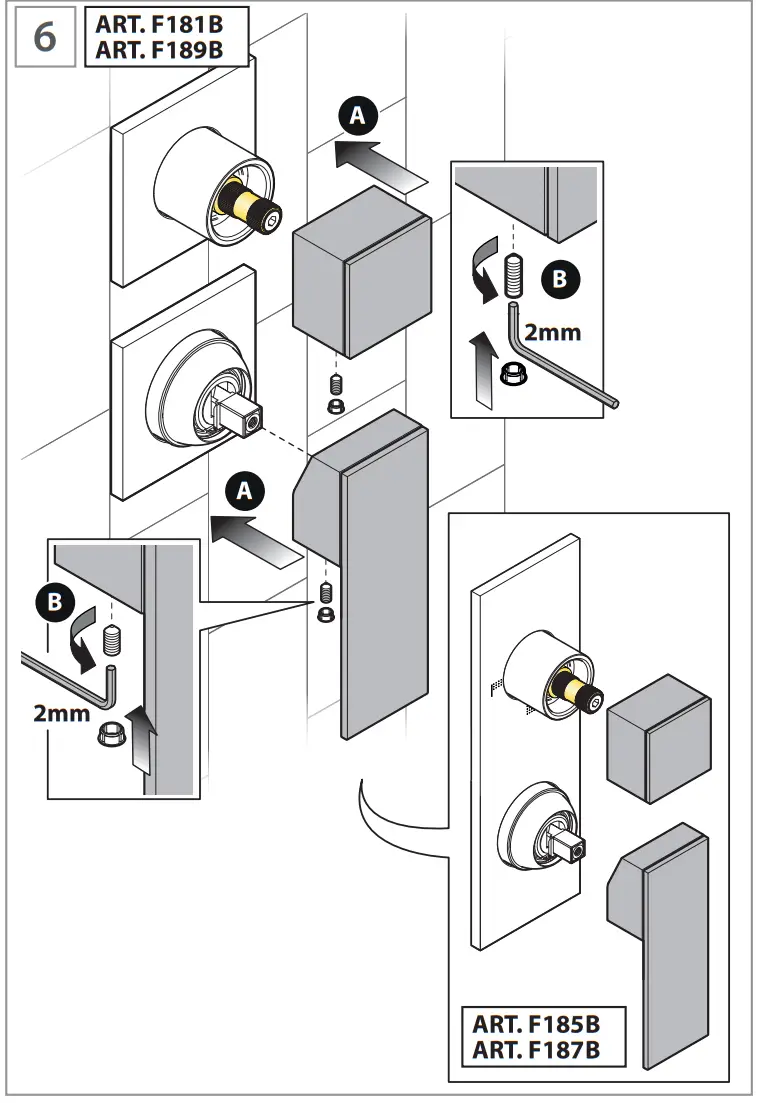

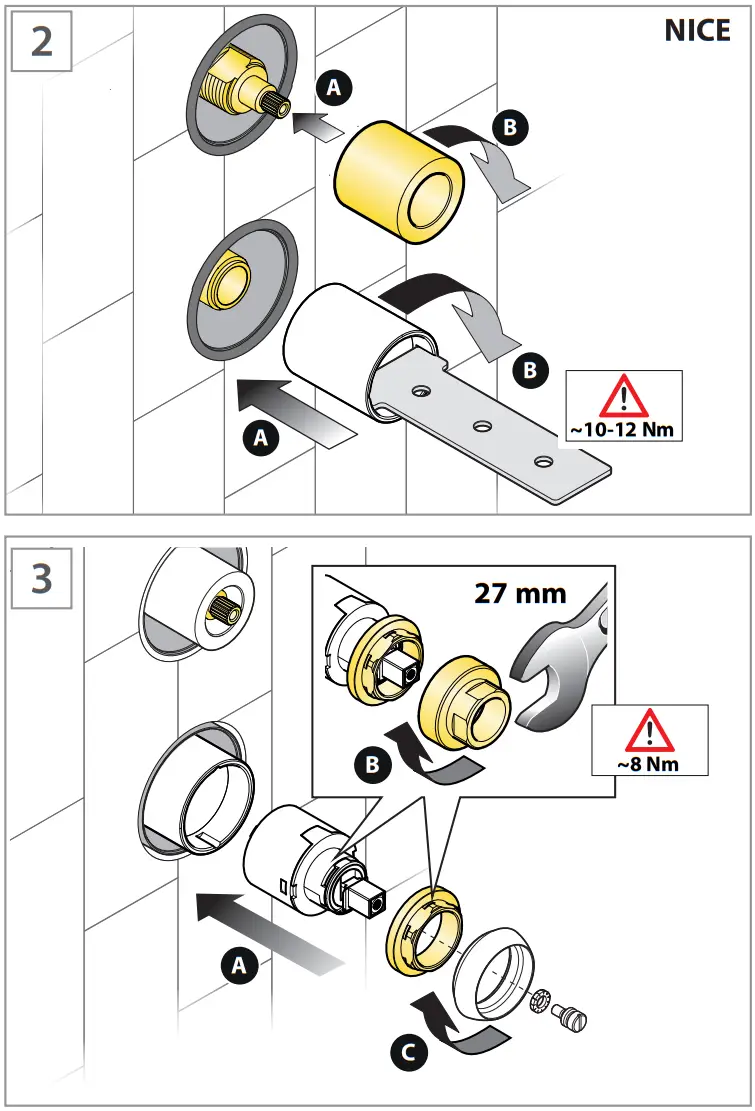

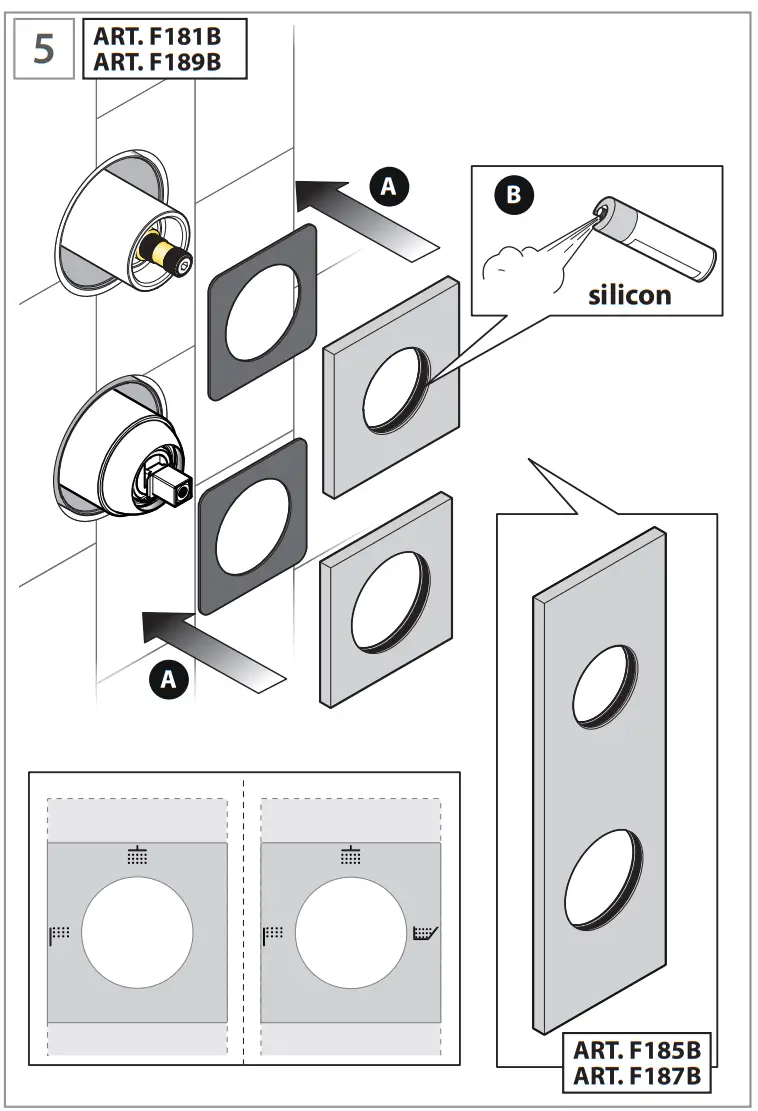

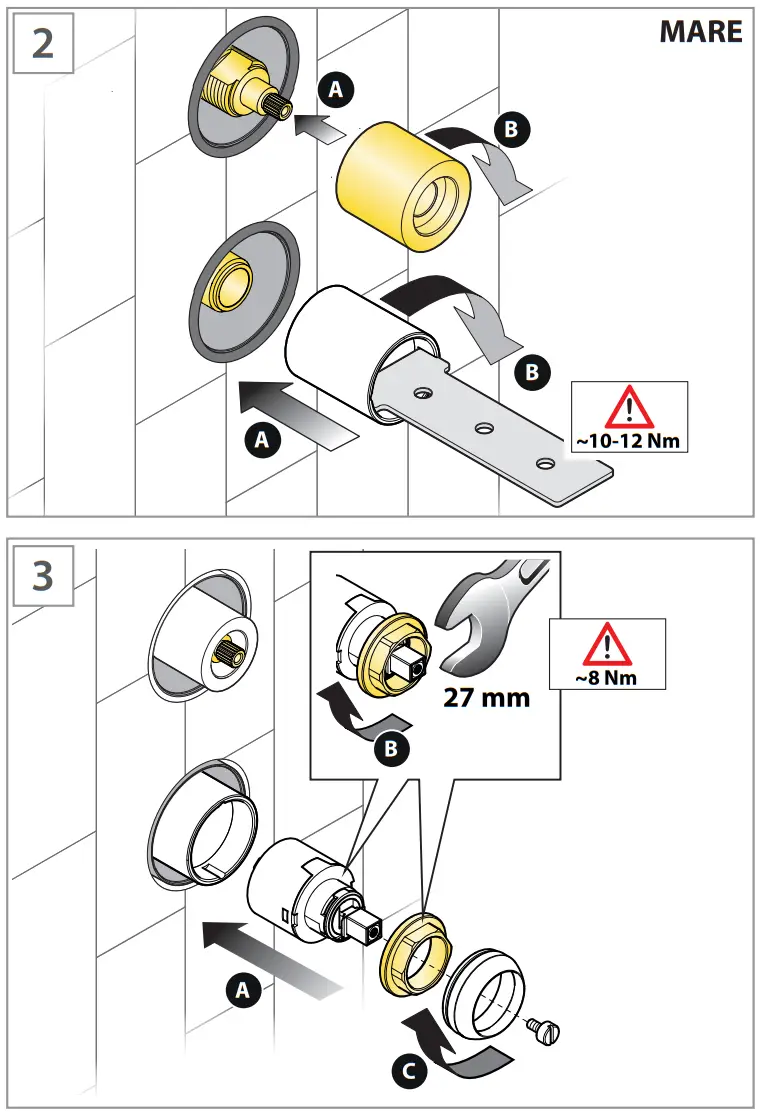

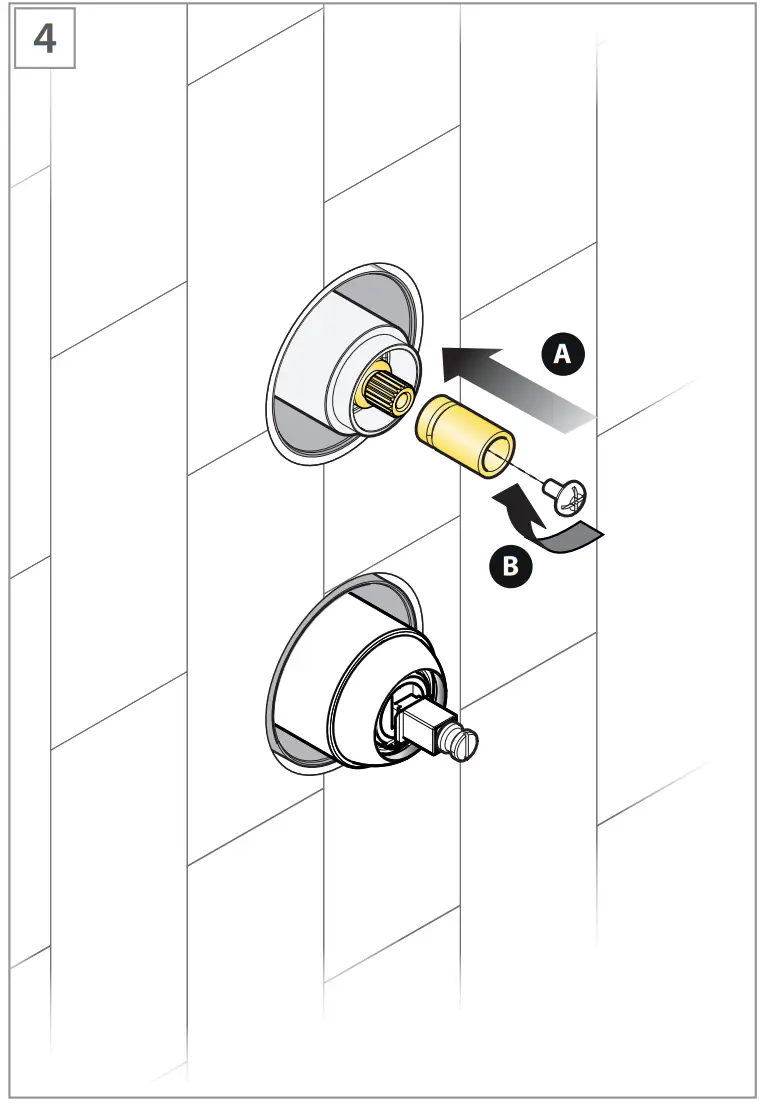

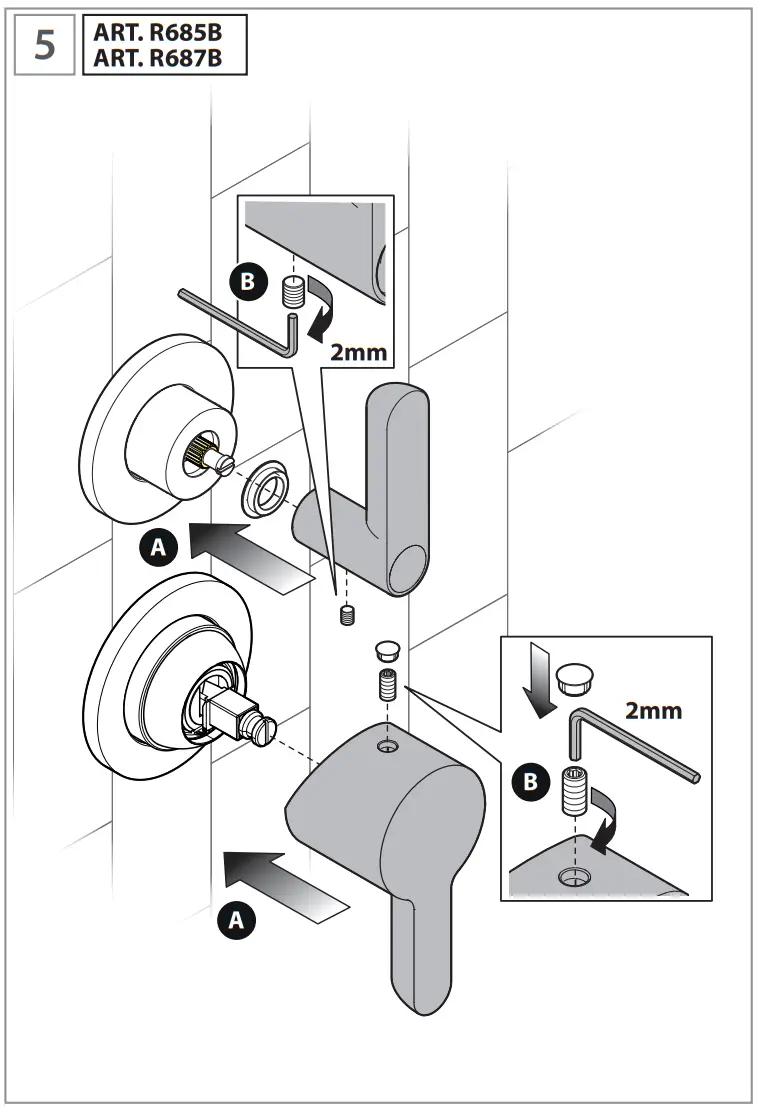

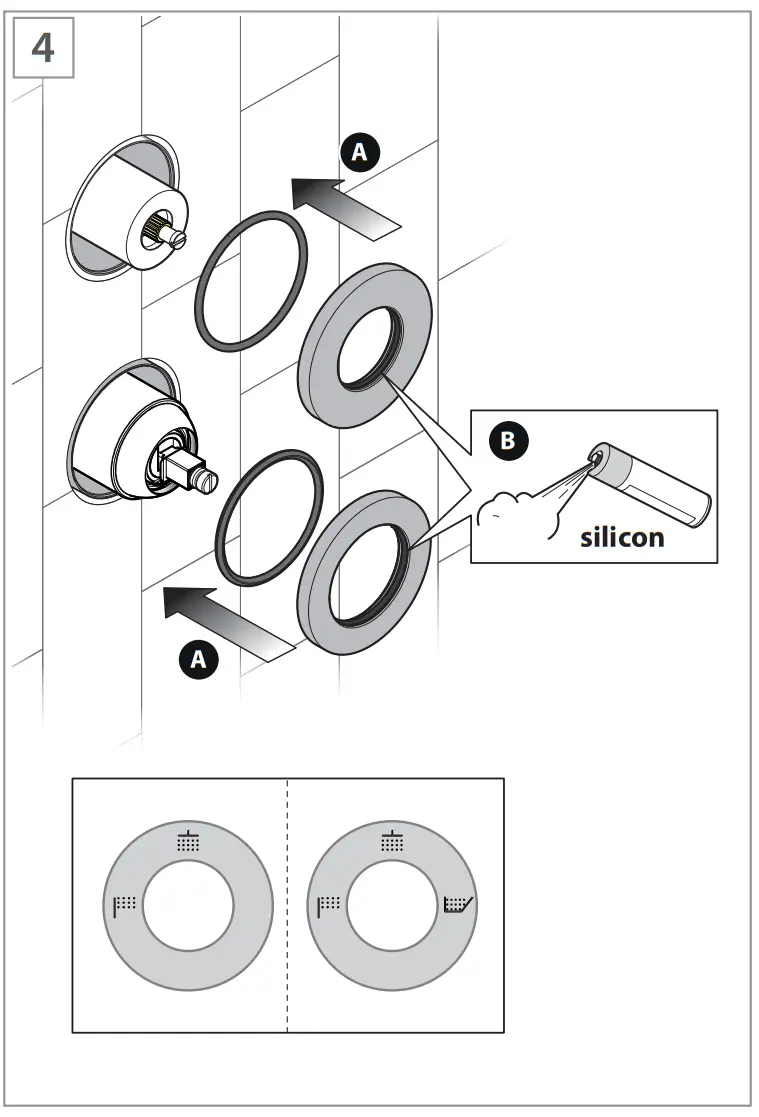

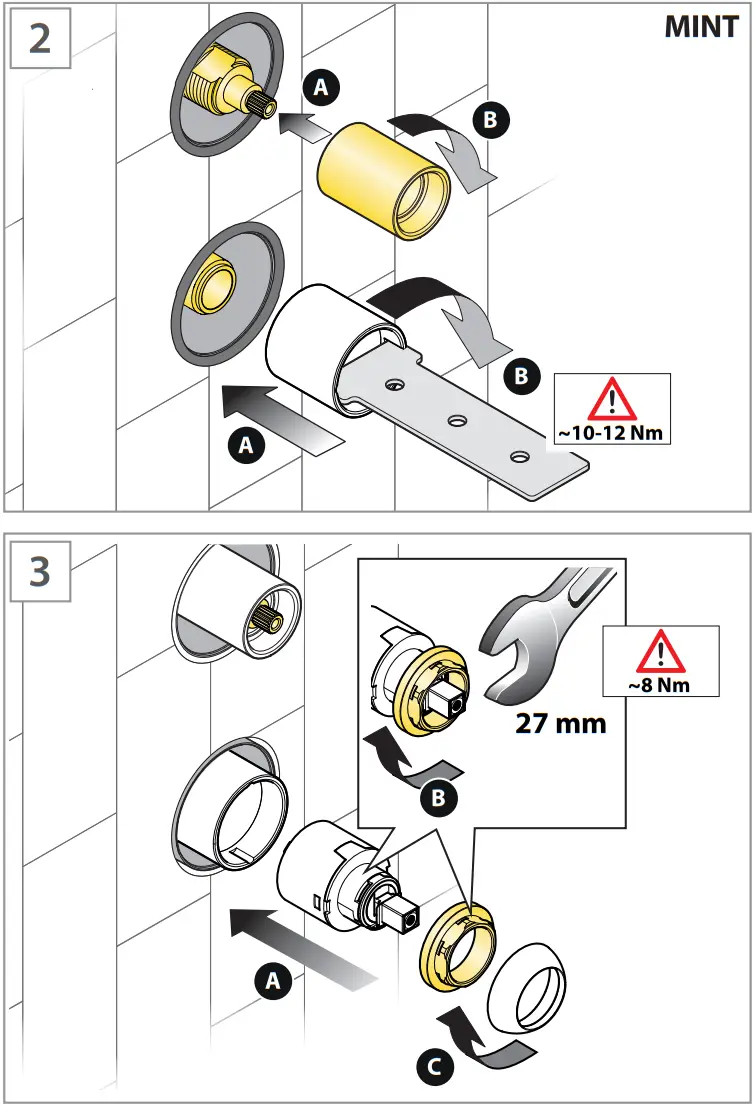

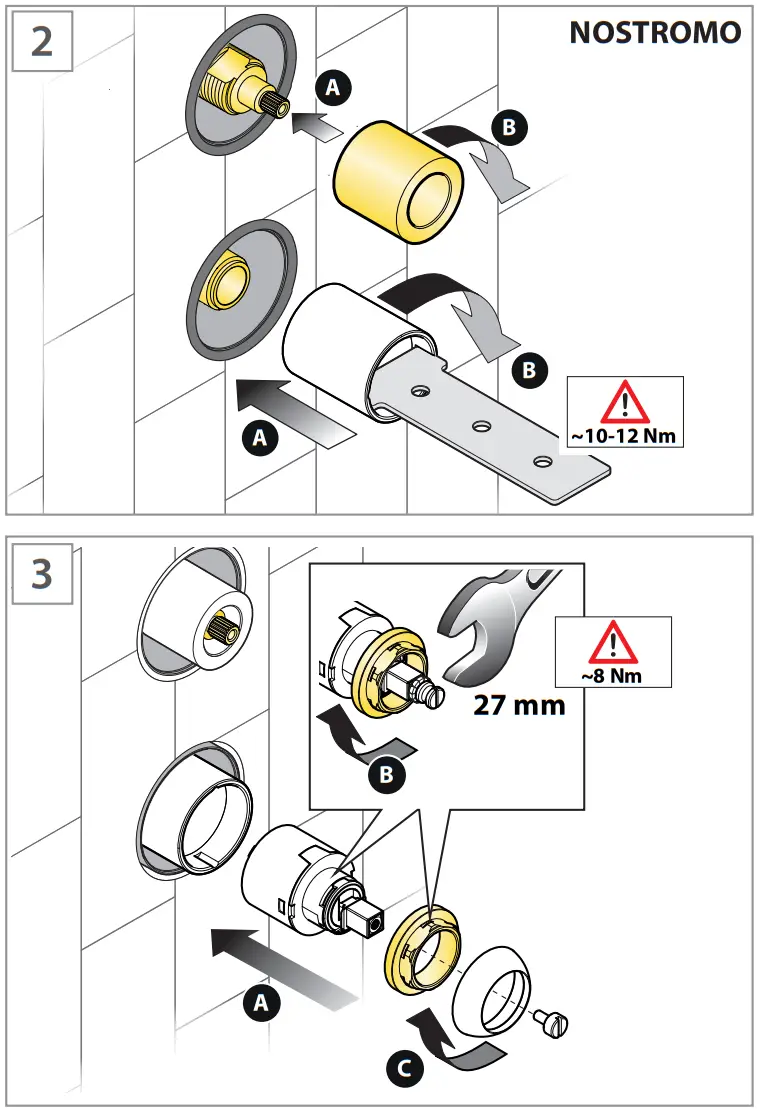

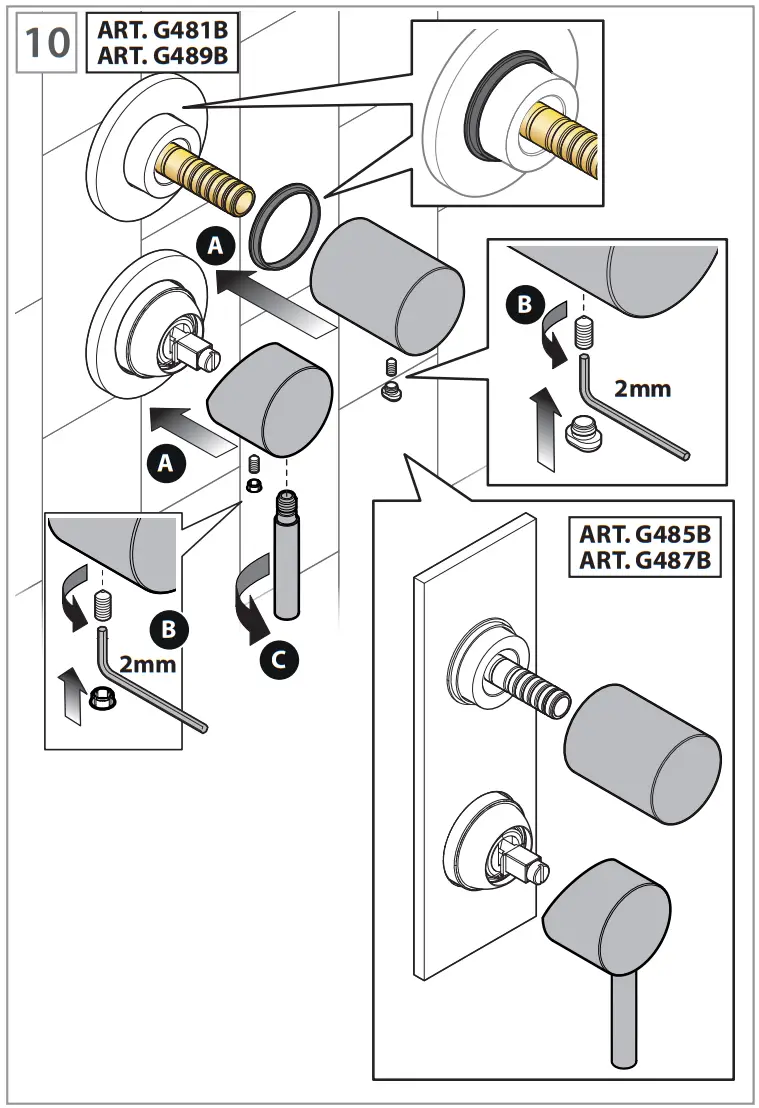

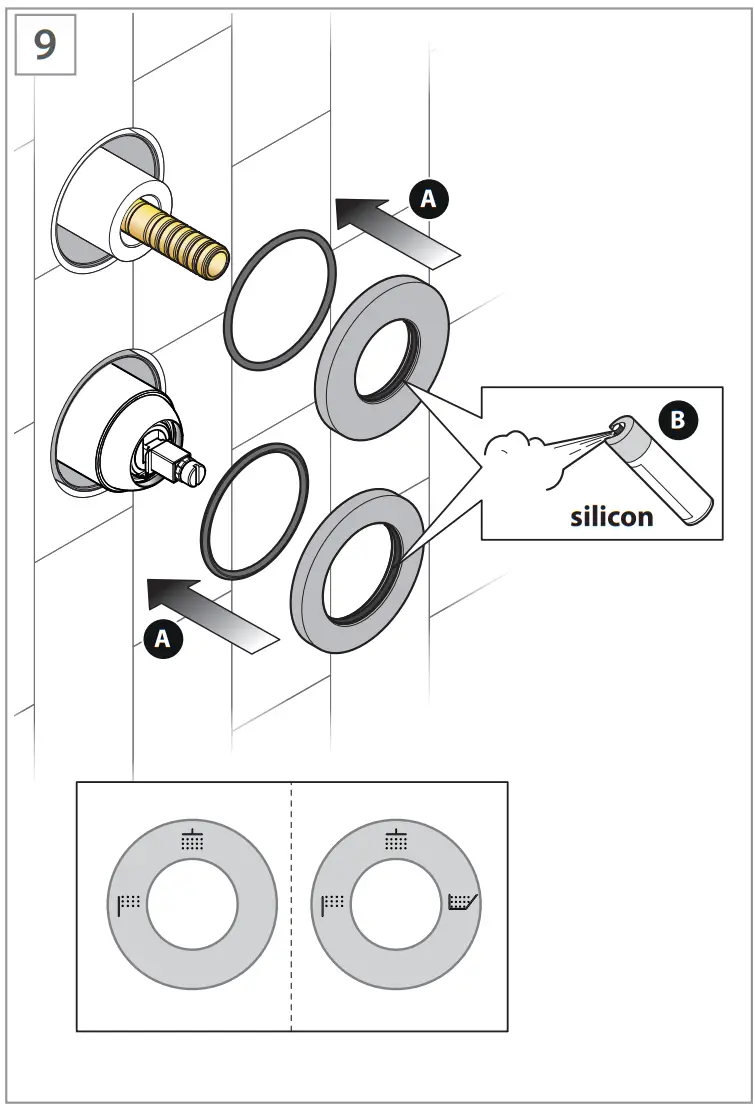

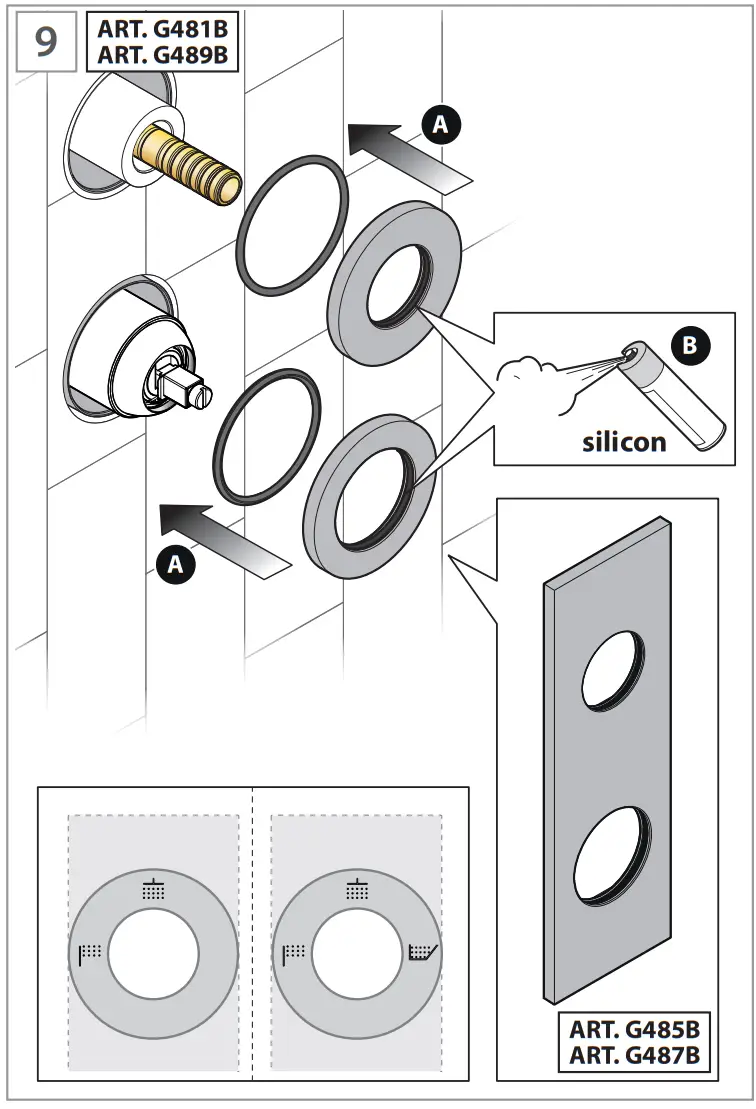

INSTALLATION

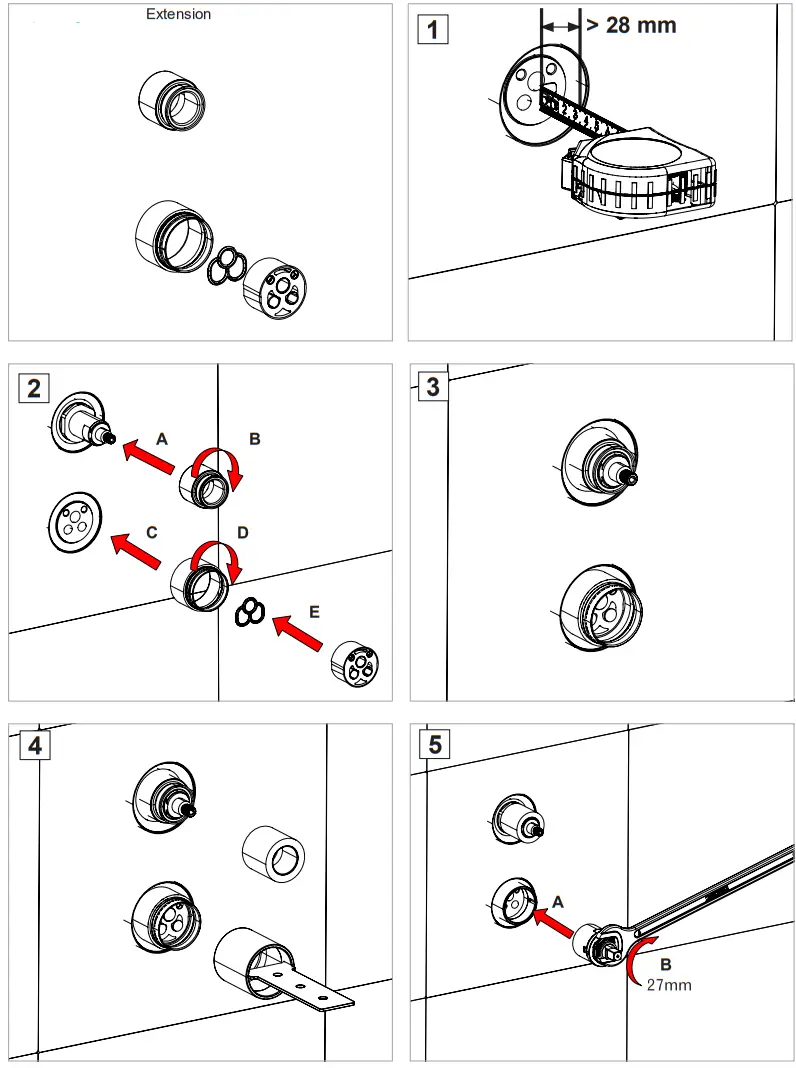

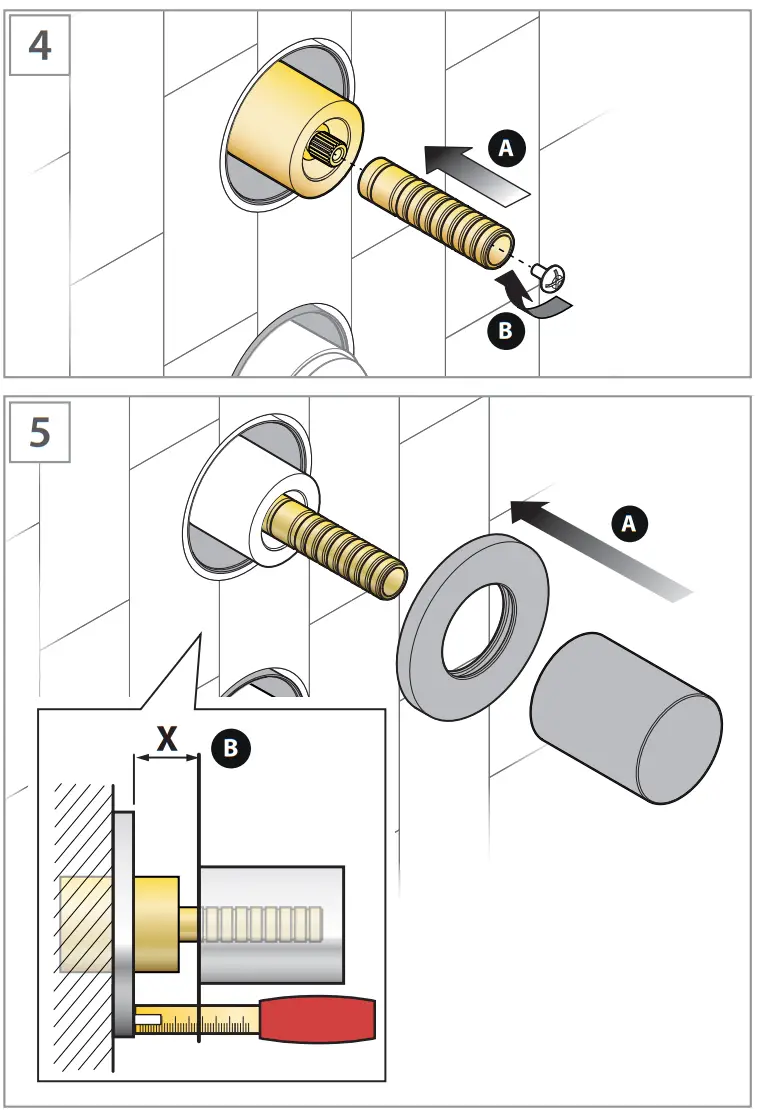

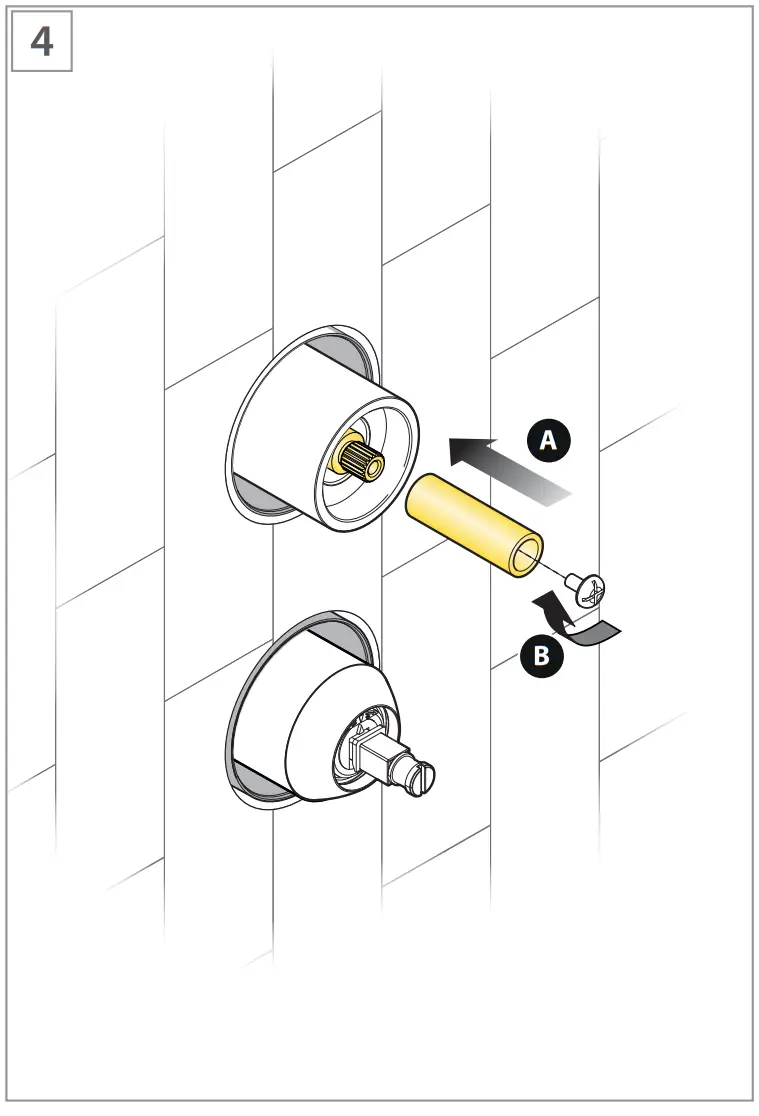

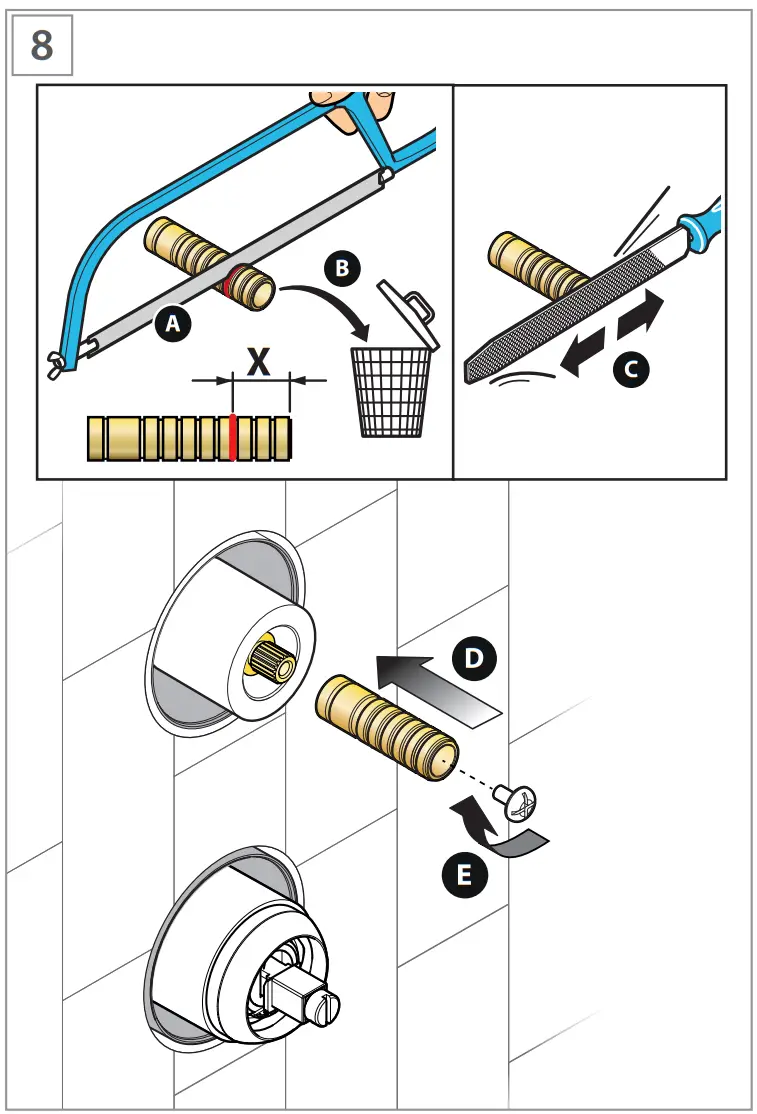

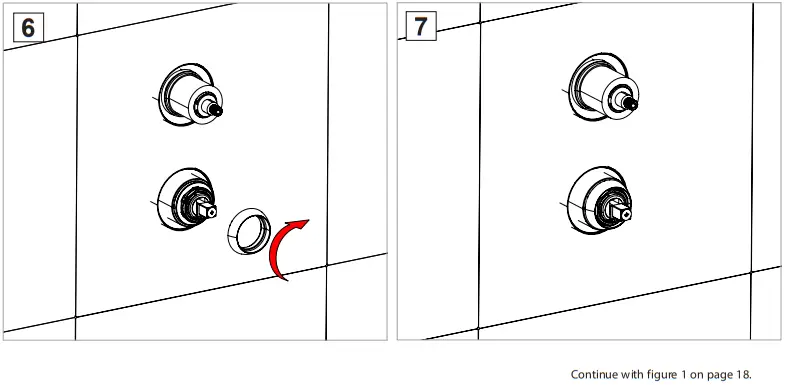

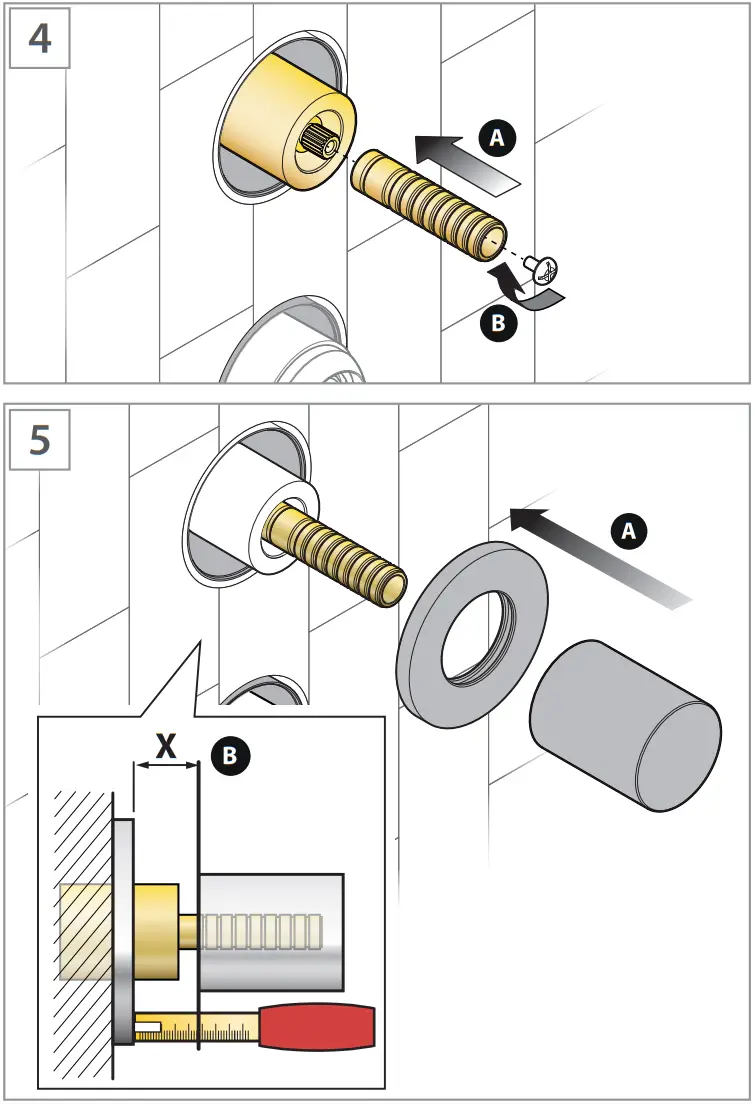

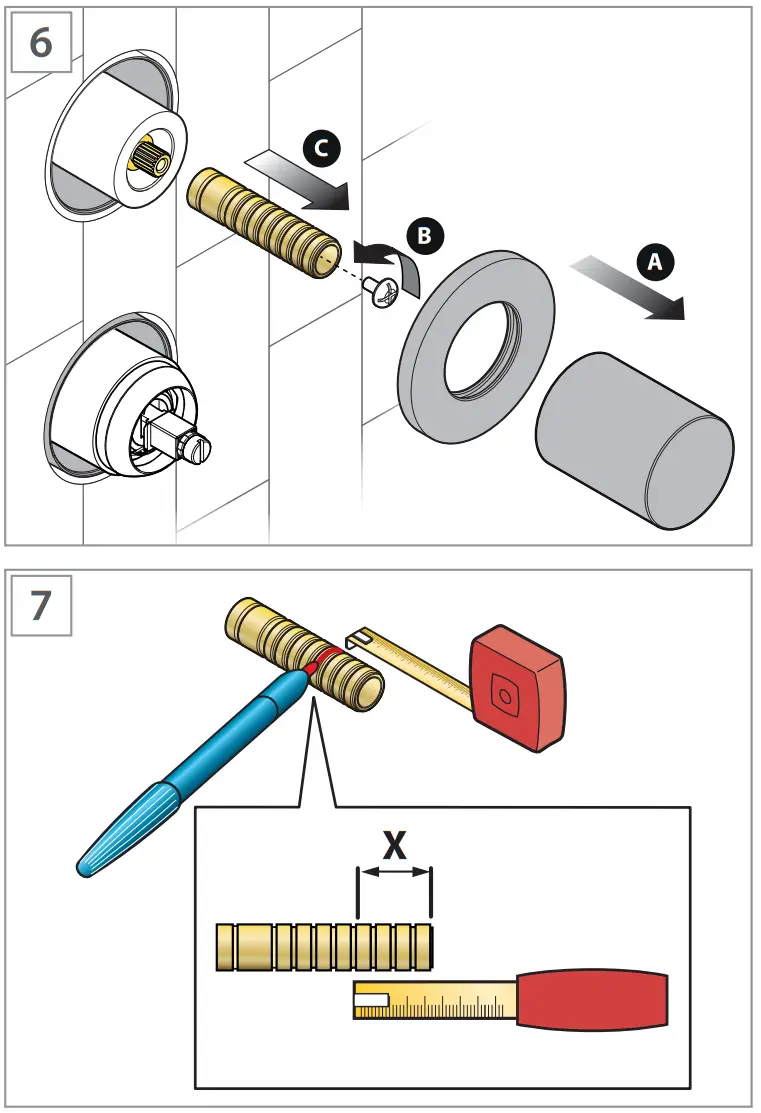

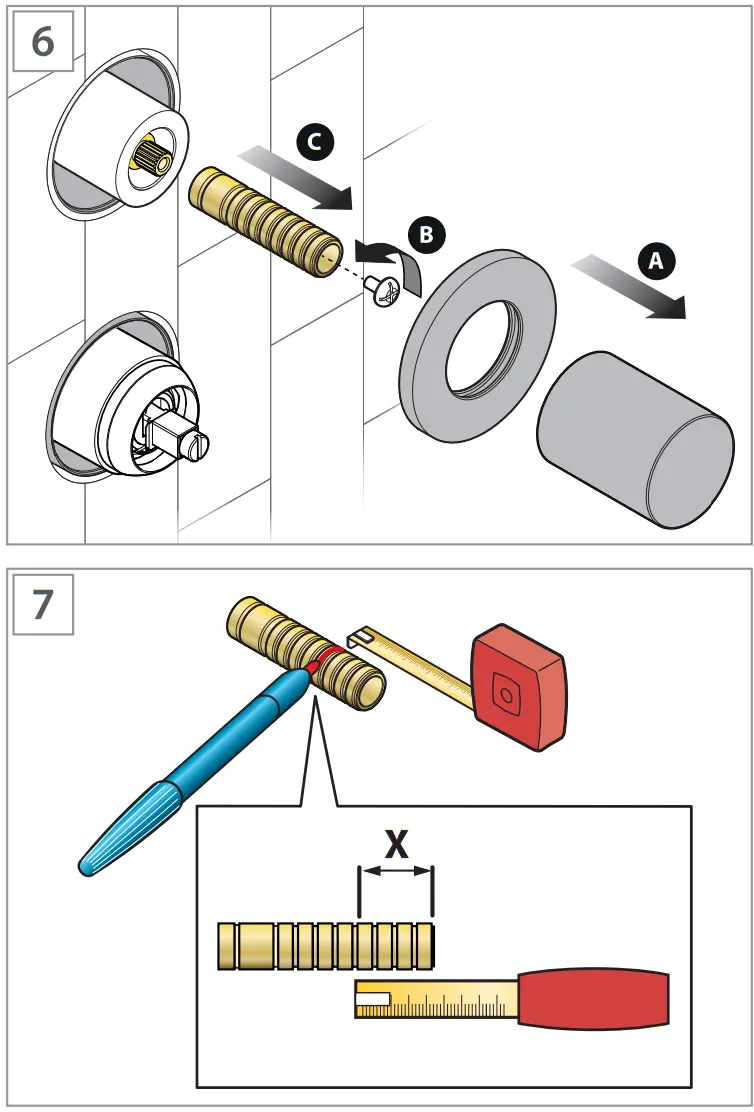

ASSEMBLAGGIO PRODOTTO CON KIT DI PROLUNGAMENTO – MOUNTING EXTENSION INSTALLATION

CLEANING

Clean the surfaces using a soft cloth soaked in liquid soap diluted in water, then rinse and dry thoroughly. Never use detergents containing abrasive substances or containing  muriatic acid, vinegar, ammonia, acetone, bleach, domestic acids, disinfectants in general or abrasive sponges. CAUTION! The use of products other than those recommended may damage the surfaces irreparably, in which case the manufacturer will not be held liable. If the flow rate decreases, clean or replace the aerator between the hand shower and the flexible hose.

USE

On first use or following prolonged periods of inactivity, do not use the first half-litre of drinking water dispensed. Shut off the plumbing system in the event of a long absence. Check the water-tightness regularly.

Fratelli FaCntini SpA
via Buonarroti, 4
Pella (NO) Italia
T +39 0322 918411 r.a.
F +39 0322 969530
[email protected]
www.fantini.it
