VC1GUN TeSys Vario Enclosed
Emergency Switch Disconnector
Instruction Manual

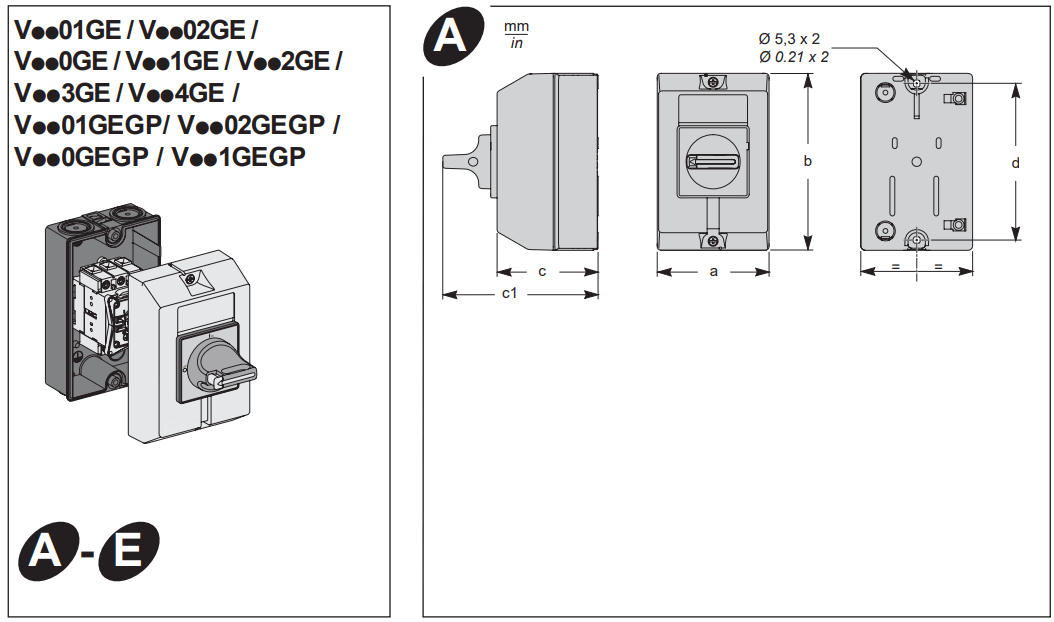

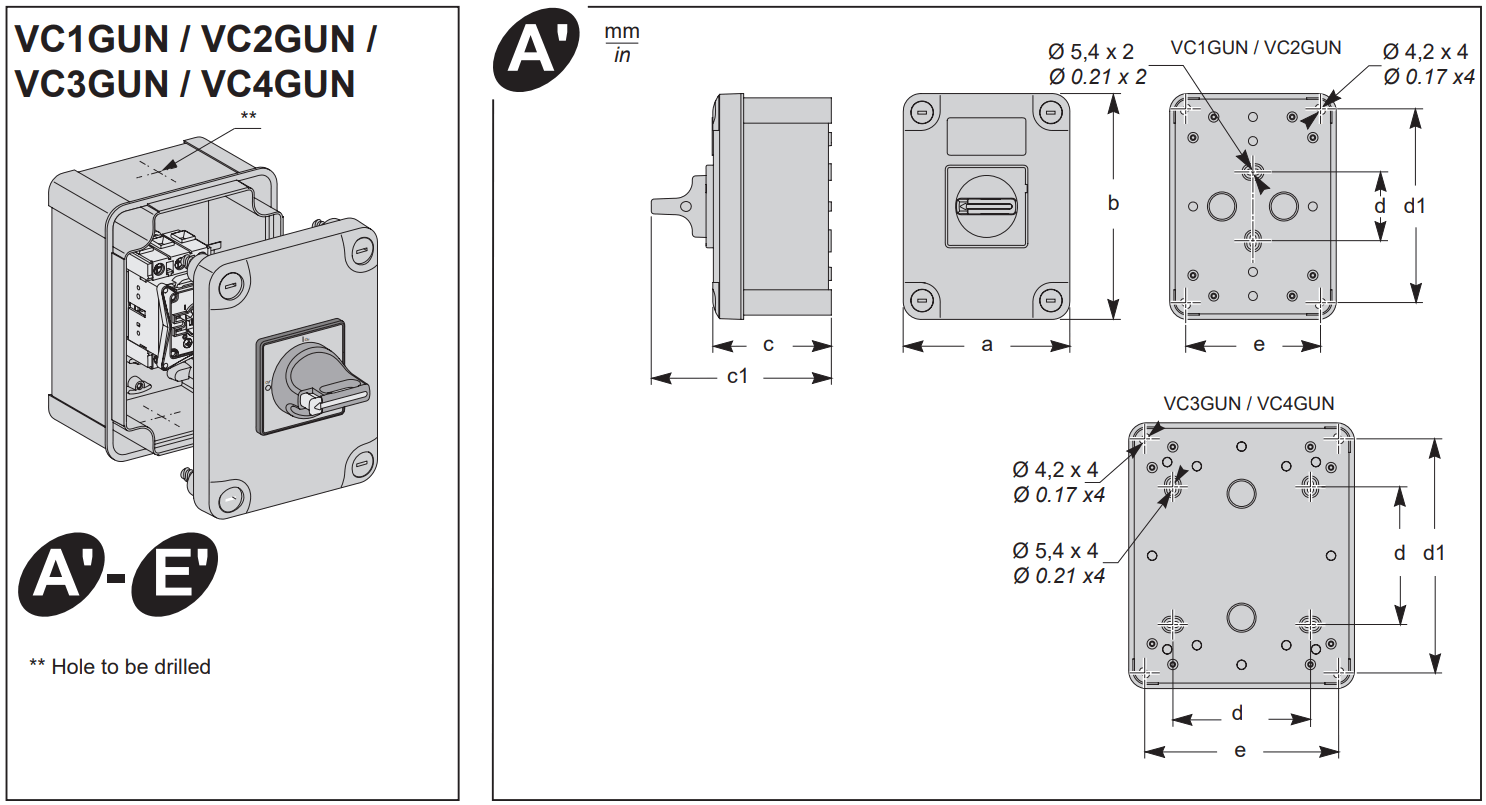

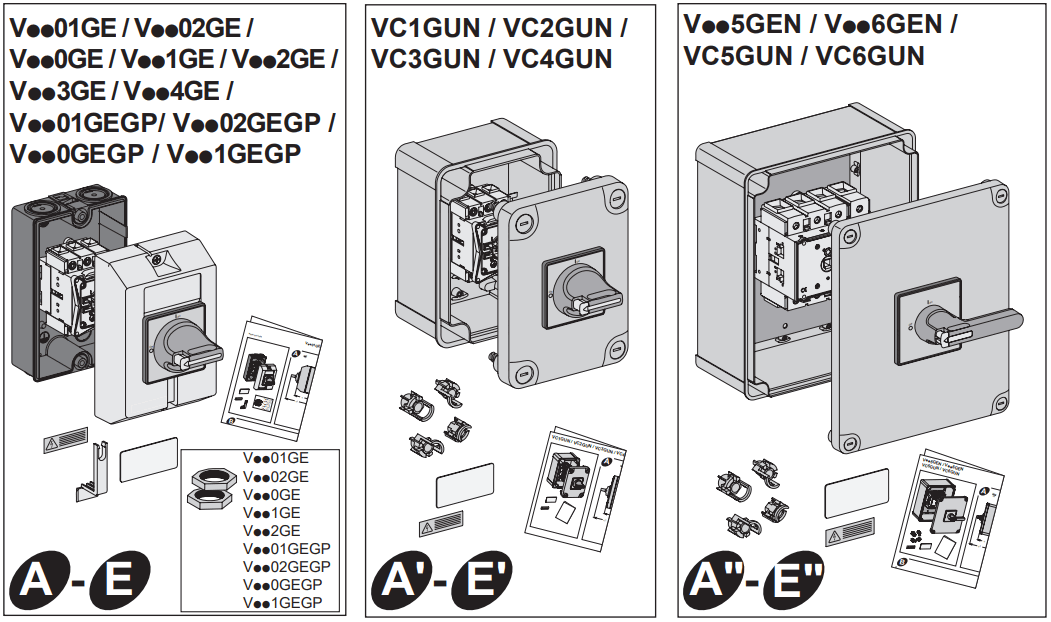

VC1GUN TeSys Vario Enclosed Emergency Switch Disconnector

DANGER
HAZARD OF ELECTRIC SHOCK, 0EXPLOSION, OR ARC FLASH

• Disconnect all power before servicing equipment.
• Close securely the enclosure before reapplying power.
  Failure to follow these instructions will result in death or serious injury.

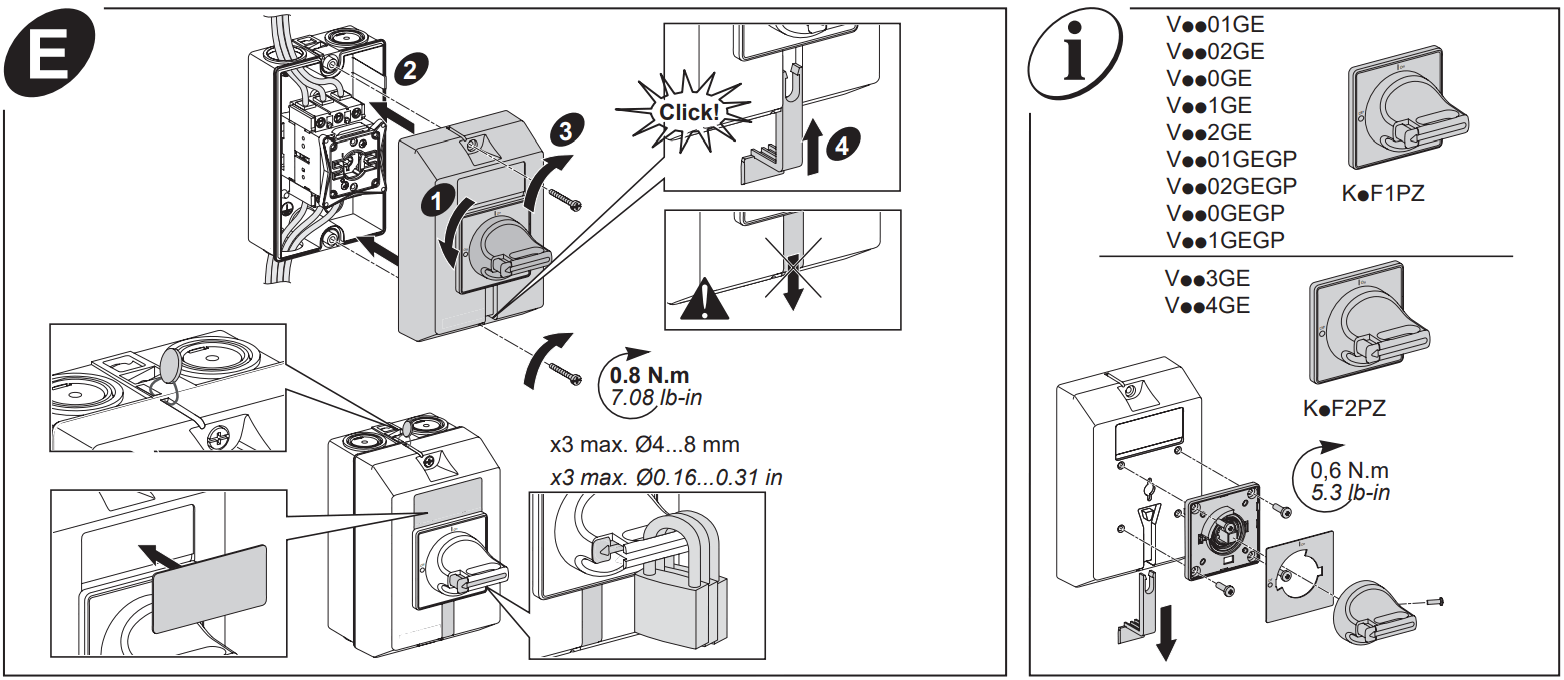

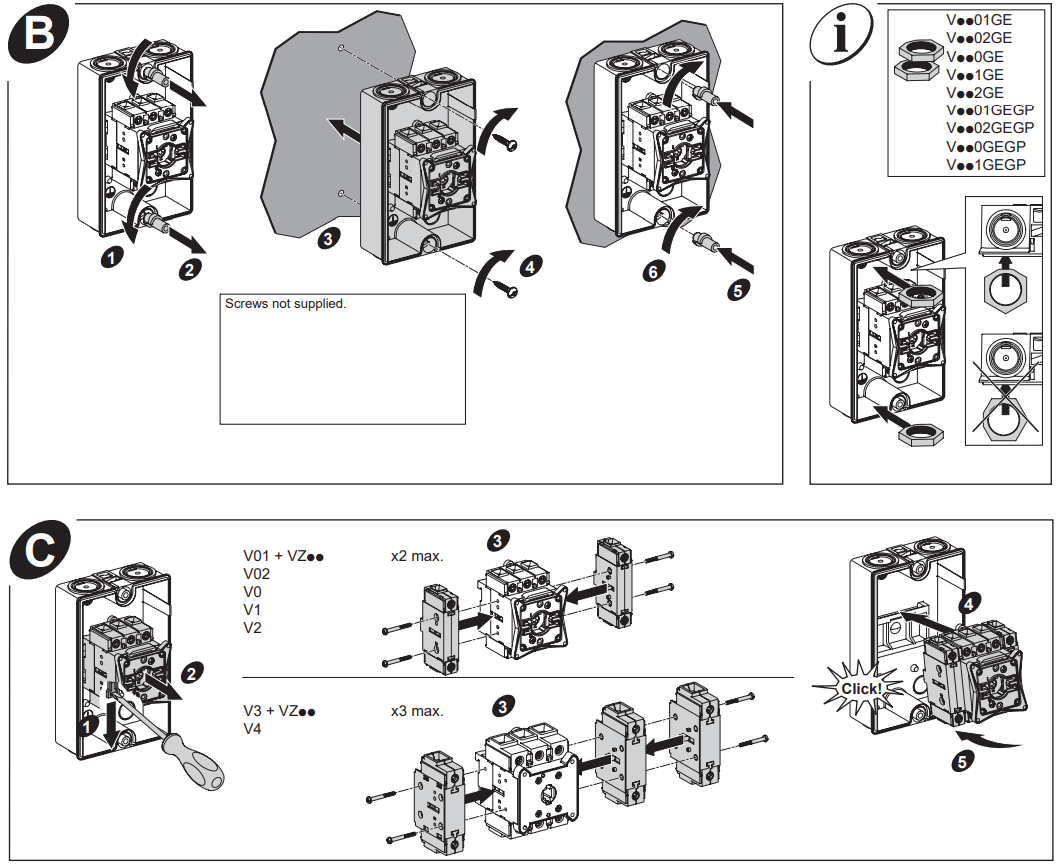

The product’s manufacture date is coded as
PP-YY-WW, where:

• PP: plant code
• YY: year of manufacture
• WW: week of manufacture
  Eg: 2F1429 means the product manufactured at plant 2F on week 29 2014.

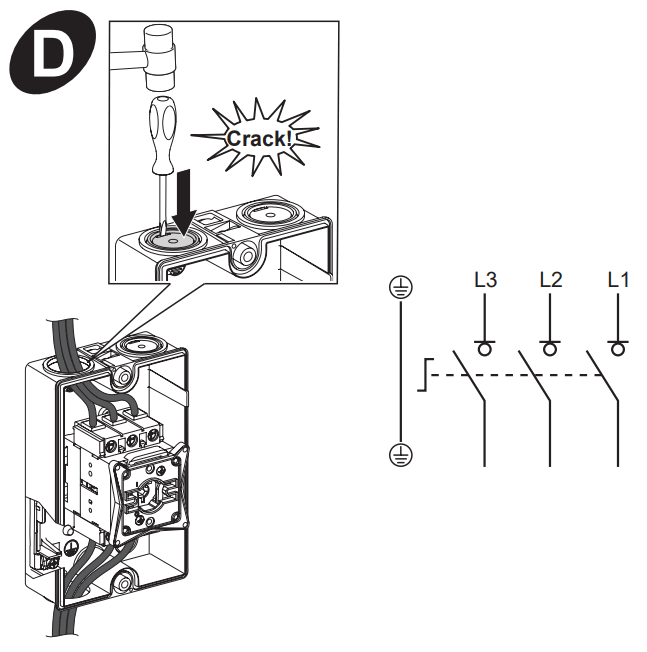

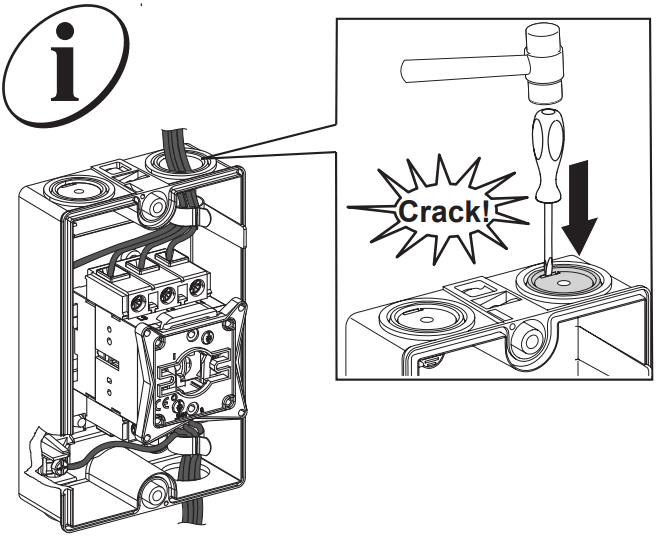

				UL	UL
				Wire gauge	Torque
	mm²	mm²	N.m	AWG	lb-in
V01 / V02 / V0 / V1 / V2 VZ01 / VZ02 / VZ0 VZ1 / VZ2 / VZ11 / VZ14	1×2,5…6 2×2,5…4	1×2,5…10 2×2,5…4	2,1	14…8	20
V3 / V4 / VZ3 / VZ4 VZ12 / VZ15	1×4…16 2×4…10	1×4…25 2×4…10	4	10*	35
				8	40
				2…4	50
VZ7 / VZ20	1×4 2×1…2,5	1×4 2×1…2,5	0.7	14…12	7

* Use flexible wire only

* Recommended wire
≤ 4 mm² (12 AWG) for VpppGEGP / Fil recommend
≤ 4 mm² (12 AWG) pour VpppGEGP

* Use flexible wire only

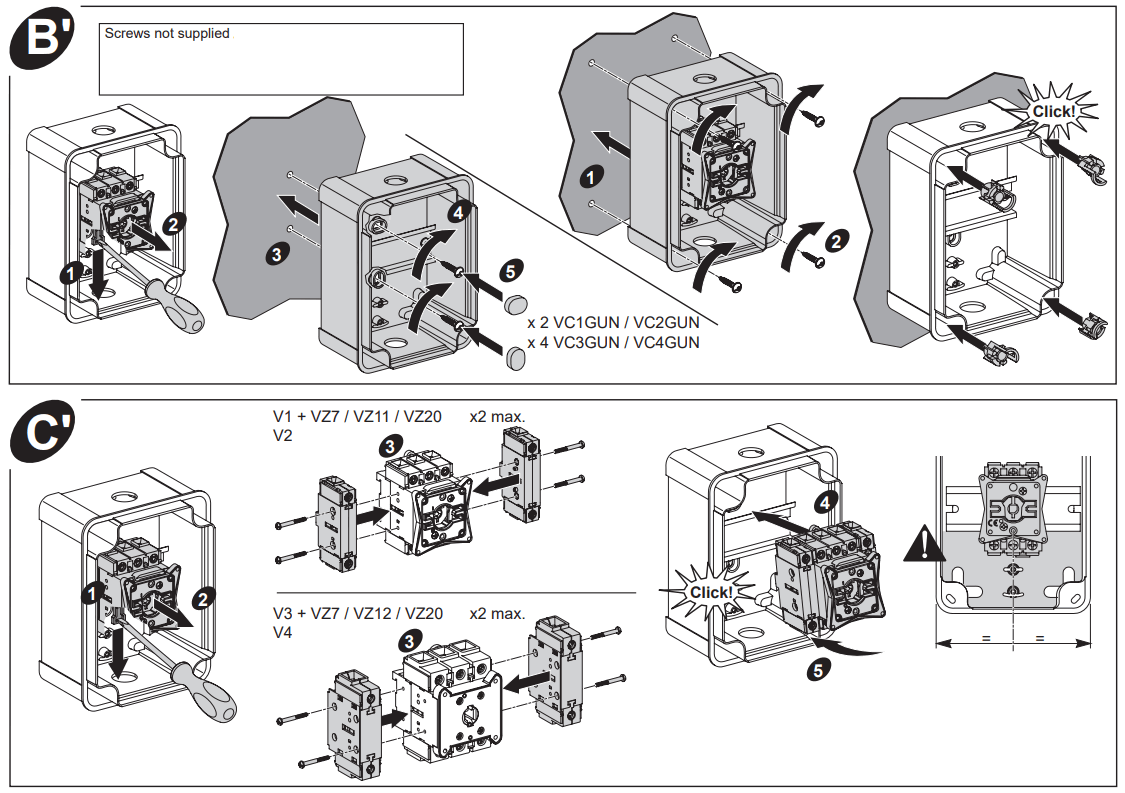

				UL	UL
				Wire gauge	Torque
	mm²	mm²	N.m	AWG	lb-in
V1 / V2 VZ11	1×2,5…6 2×2.5…4	1×2,5…10 2×2,5…4	2,1	14…8	20
V3 / V4 VZ12	1×4…16 2×4…10	1×4…25 2×4…10	4	10*	35
				8	40
				2…4	50
VZ7 / VZ20	1×4 2×1…2,5	1×4 2×1…2,5	0.7	14…12	7
AB1VVN1035U	2,5…10	6…16	4	16…6	35
AB1VVN3535U	10…35	10…50	5,6	10…2	50

SHORT- CIRCUIT PROTECTION
Suitable for use on a circuit capable of delivering not more than 5000 rms symmetrical amperes, 600 Volts maximum.
Main Circuit- Short-circuit protective device rating must comply with applicable electrical codes.
Do not exceed rating (1) for the applicable protective devices :
I – Class RK1 (CSA HRC1-R) time delay fuse
II – Class J (CSA HRC1-J) or Class T (CS A HRC1-T) fuse
Control and Auxiliary Circuits – Electrical codes may require additional overcurrent protection.

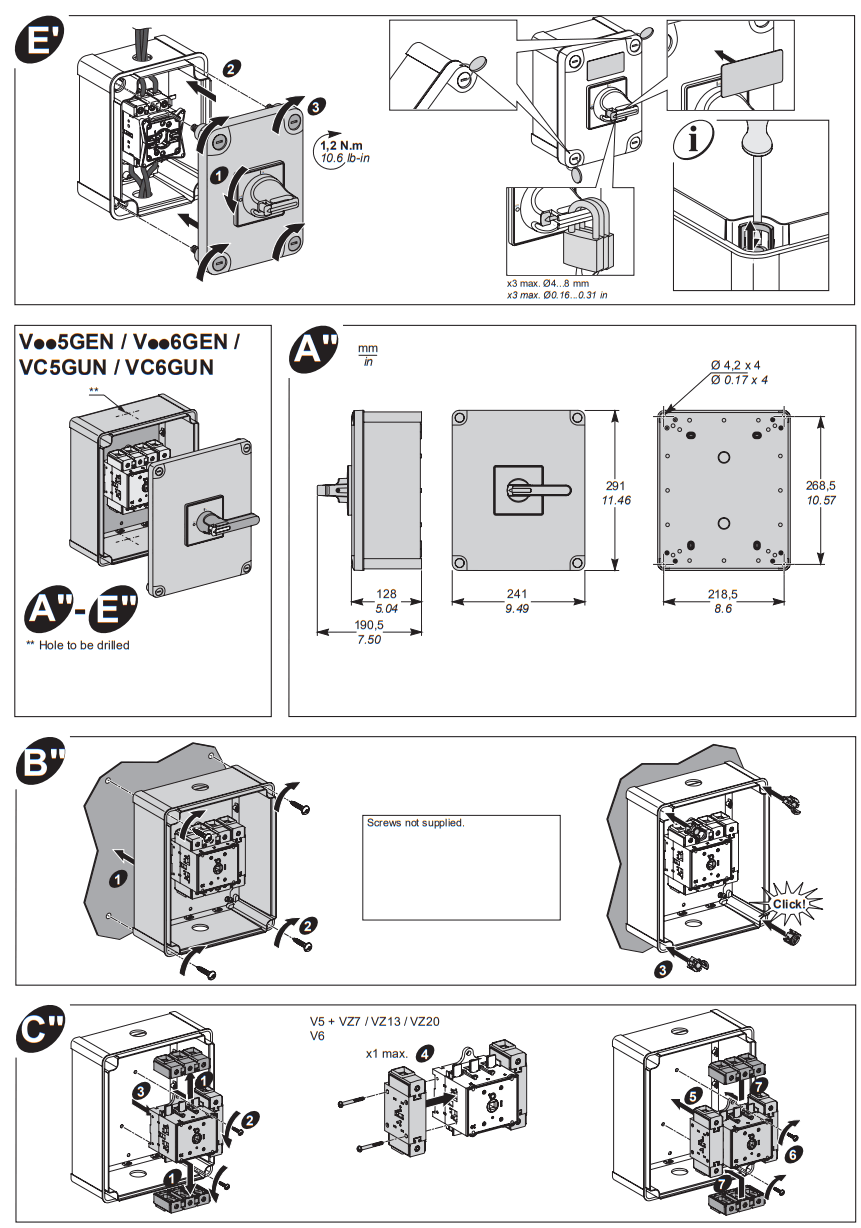

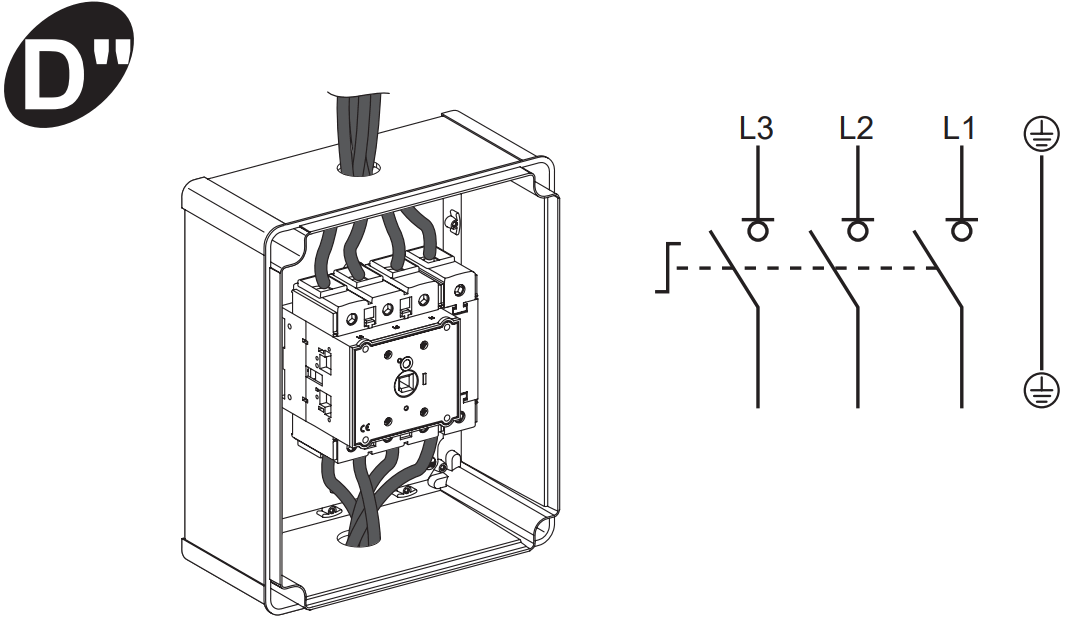

				UL	UL
				Wire gauge	Torque
	mm²	mm²	N.m	AWG	lb-in
V5 / V6 VZ13 / VZ16	1×10…70 2×10…35,	1×10…95 2×10…35,	22,6	8…2	200
VZ7 / VZ20	1×4 2×1…2,5	1×4 2×1…2,5	0.7	14…12	7

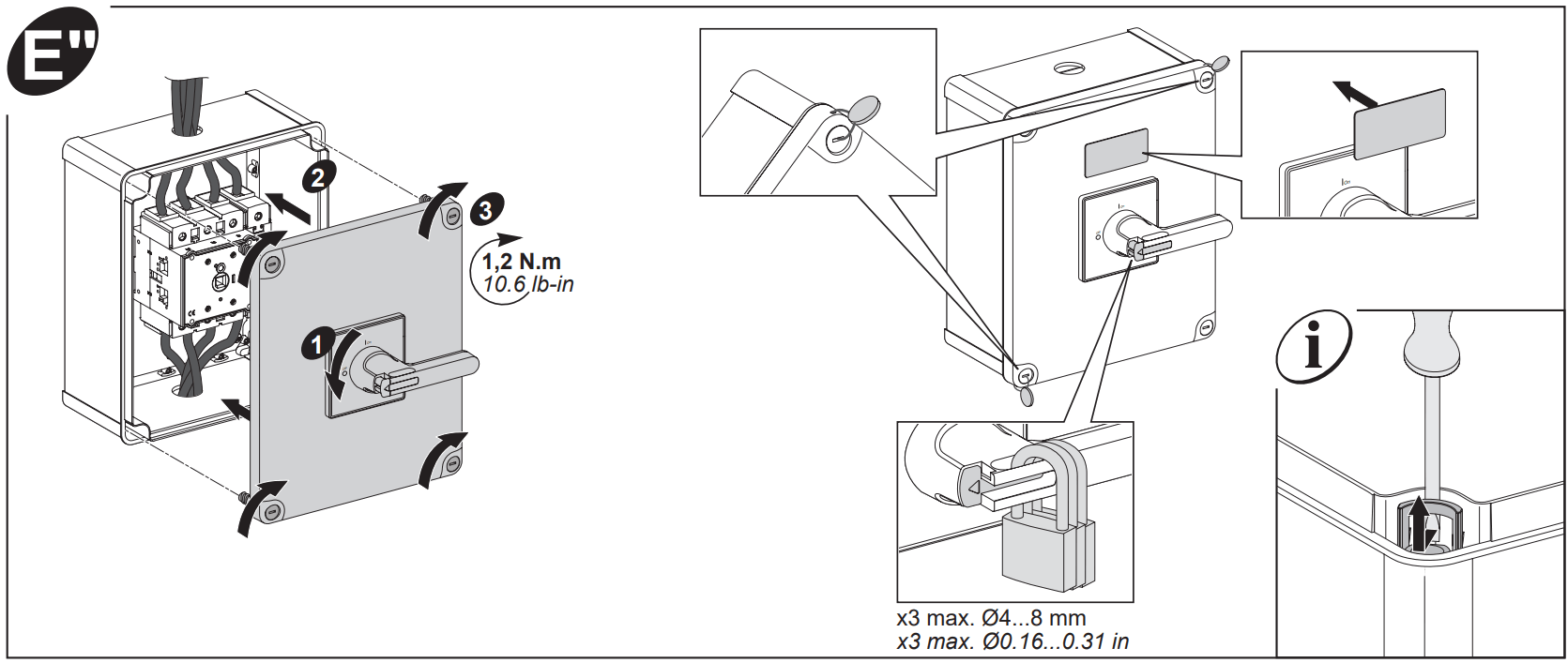

SHORT- CIRCUIT PROTECTION
Suitable for use on a circuit capable of delivering not more than 10000 rms symmetrical amperes, 600 Volts maximum.
Main Circuit- Short-circuit protective device rating must comply with applicable electrical codes.
Do not exceed rating (1) for the applicable protective devices :
I – Class RK1 (CSA HRC1-R) time delay fuse II – Class J (CSA HRC1-J) or Class T (CSA HRC1-T) fuse
Control and Auxiliary Circuits – Electrical codes may require additional overcurrent protection.
