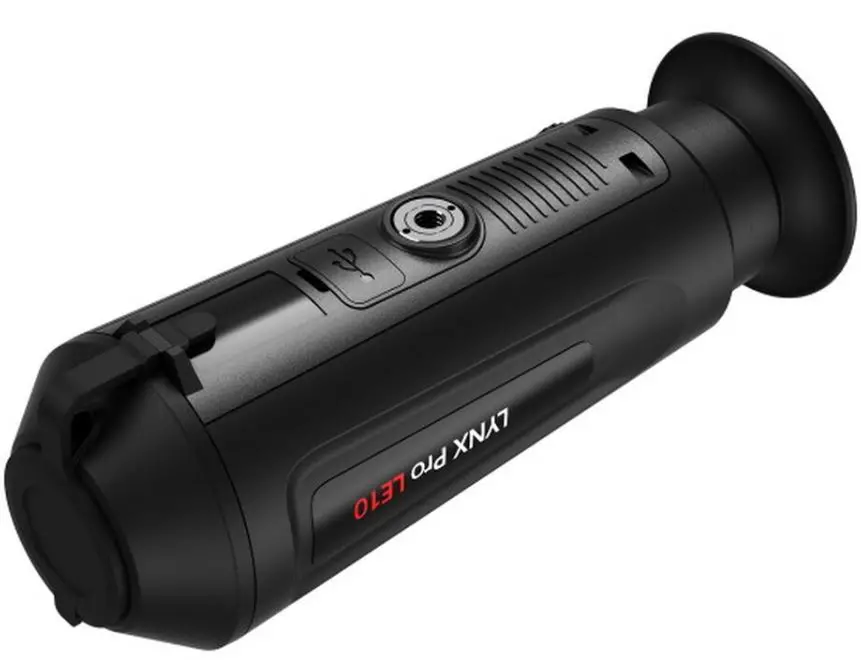

HIKMICRO LYNX Pro LE10 Handheld Thermal Monocular Camera
HIKMICRO LYNX Pro LE10 handheld thermal monocular camera is equipped with a 256 × 192 infrared detector and a 720 × 540 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.
Key Feature
- 256 × 192 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR, NETD less than 35 mK (@ 25 °C), F# = 1.0
- 720 × 540 resolution 0.2-inch LCOS display
- Built-in rechargeable lithium battery
- Up to 8 hours of continuous running
- Hot Spot
- Type-C Interface
Specification
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@ 25 °C),F# = 1.0 |
| Lens (Focal Length) | 9.7 mm |
| Field of View | 18.00° × 13.55° (H × V)° |
| Aperture | F1.0 |
| Magnification | 1 to 8 |
| Digital Zoom | 1 ×, 2 ×, 4 ×, 8 × |
| Image Display | |
| Frame Frequency | 25 Hz |
| Display | 0.2 inch, LCOS, 720× 540 |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Smart Function | |
| Wi-Fi Hot Spot | Yes |
| Detection Range | 458 m |
| Standby Mode | Yes |
| System | |
| Built-in Memory | 8 GB |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Built-in Memory Capacity | 220,000 pictures |
| Power Supply | |
| Battery Type | Lithium battery |
| Battery Operating Time | 8 hours continuous running with Wi-Fi hot spot function off (@ 25 °C) 6 hours continuous running with Wi-Fi hot spot function on (@ 25 °C) |
| Battery Capacity Display | Yes |
| General | |
| Work Temperature/Humidity | – 20 °C to 55 °C (- 4 °F to 131 °F) |
| Power | 5 VDC/2 A, 1.5 W, Type-C Interface |
| Protection Level | IP67 |
| Dimension | 158.3 mm × 61 mm × 57 mm (6.23″ × 2.40″ × 2.24″) |
| Weight | 260 g (0.57 lb) |
Available Model
HM-TS02-10XG/W-LE10

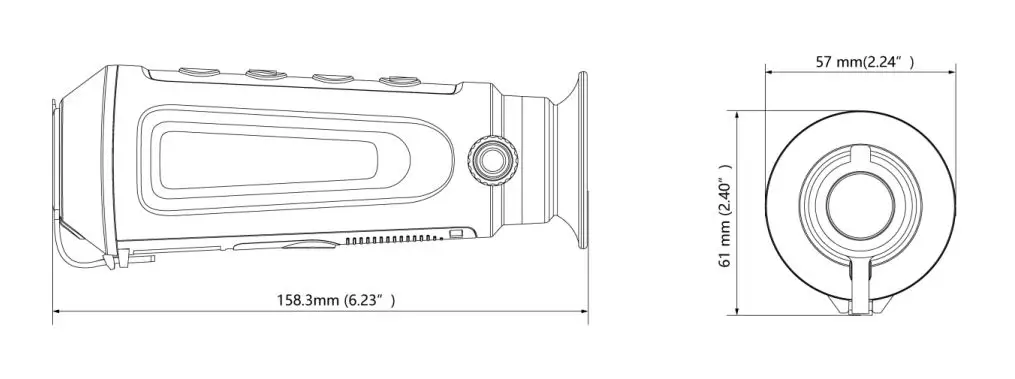

Dimension
Accessory
COMPLIANCE NOTICE:
The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom, and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, or re-export the thermal series products between different countries.
