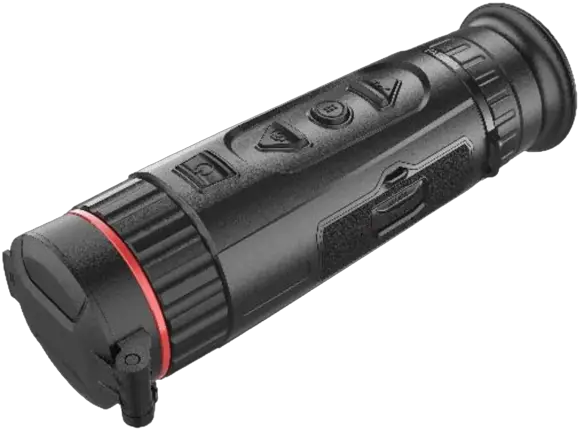

HIKMICRO Falcon FH35 Thermal Monocular Camera Owner’s Manual
Key Features
- 384 x 288 resolution with 12pm sensor
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- Replaceable and rechargeable Li-ion battery
- Up to 7 hours continuous operation
- Leading thermal image processing technology: Image Pro
- 1024 x 768 resolution 0.39-inch OLED display
Specification
| THERMAL NODULE | |
| IMAGE SEIISOR: | VOx Uncoiled Focal Plane Arrays |
| RESOLUTION | 384.288 |
| FRAME RATE | 50 Hz |
| PIXEL INTERVAL | 12pm |
| RESPONSE WAVEBAND | 8pm to 14 pm |
| NETD | Less than 20 mK425°C). FH = 1.0 |
| FOCAL LENGTH | 35mm |
| APERTURE | F1.0 |
| MIN. FOCUSING DISTANCE | 3.5 m |
| DIGITAL ZOOM | lx. 2=. 4= 8 |
| OPTICAL MAGNIFICATION | 3.03 |
| FIELD OF VIEW IH = VI, DEEREES/M @100 M | 7.53* 5.65’/13.2m= 9.9 m |
| DETECTION RANGE | 1800m |
| IMAGE DISPLAY | |
| MONITOR | 0.39 inch. OLEO, 1024 =768 |
| PALETTES | Black Hot, White Hot, Red Hot, Fusion |
| FFC !FLAT FIELD CORRECTION] MODE | Auto, Manual External Correction |
| SYSTEM | |
| STORAGE | Built-in memory module (64 GB) |
| RECORD VIDEO | Yes |
| CAPTURE SNAPSHOT | Yes |
| STANDBY MODE | Yes |
| HOTSPOT | Yes |
| HOT TRACK | Yes |
| POWER SUPPLY | |
| POWER | 5V, 1.5W |
| BATTERY TYPE | Replaceable and Rechargeable Li-ion Battery |
| BATTERY OPERATING TIME | 7 hours continuous running with CVBS and hotspot function on 1@251C1 |
| GENERAL | |
| WORK TEMPERATURE/HUMIDITY | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
| PROTECTION LEVEL | IP67 |
| DIMENSION | 190.3 mm x 58.3 mm x 65.2 mm (7.49″ x 2.29″ x 2.57″) |
| WEIGHT | 505 g (1.11 (b) |
Available Model
HM-TS43-35XG/W-FH35

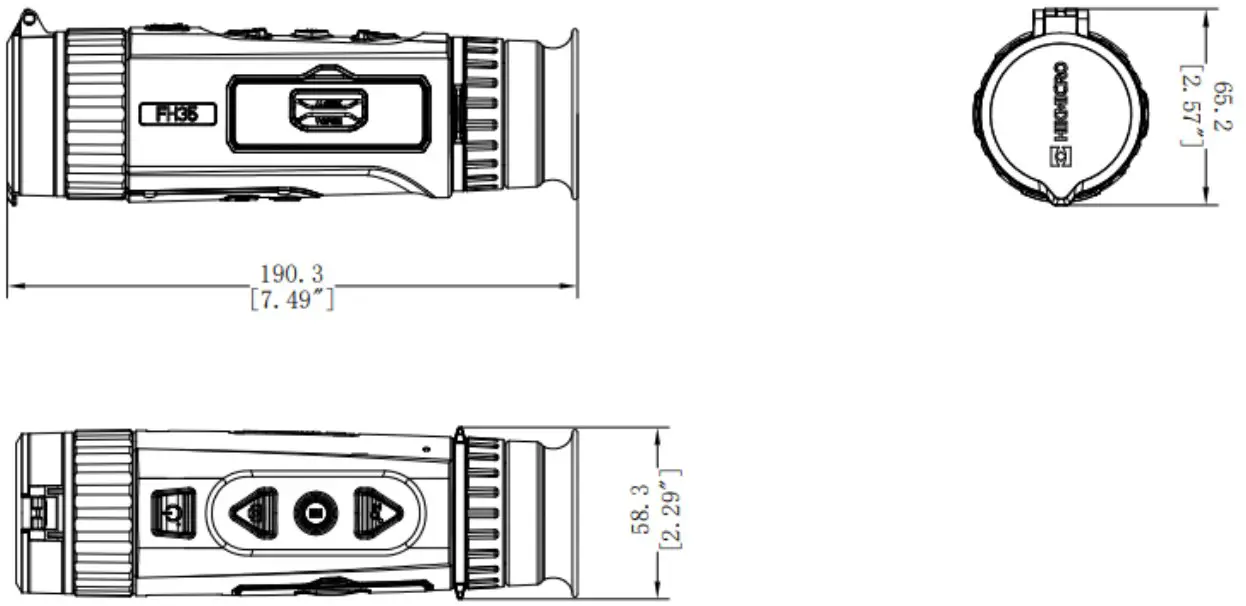

Dimension
Accessories

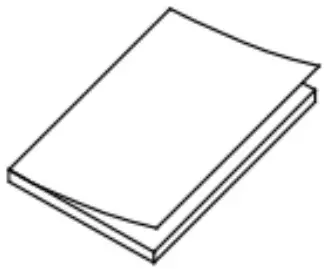

- Quick Start Guide (x1)
- Non-dust Cloth (x1)

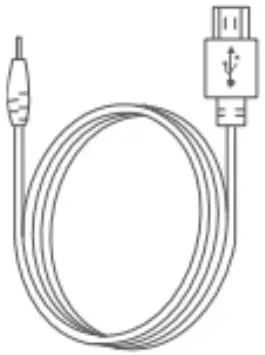

- USB Cable (x1)

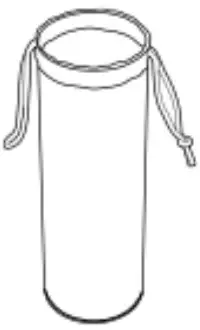

- Protective Bag (x1)

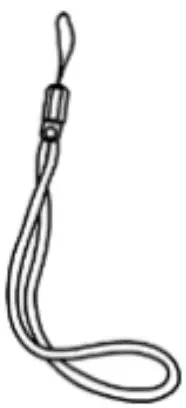

- Wrist Strap (x1)

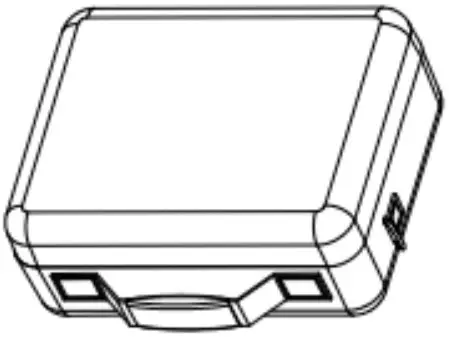

- Carrying case (xl)

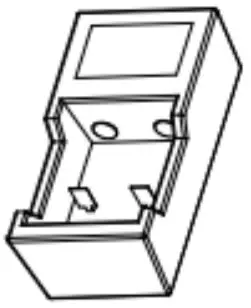

- Charger (x 1 )
- Cell (x21
- Neck Straps (xl)
COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products between different countries.
