Supermicro 6u Mbe-628e-422 Microblade Enclosure User Guide

6U MBE-628E-422 MicroBlade Enclosure
User Guide

6U MBE-628E-422 MicroBlade Enclosure

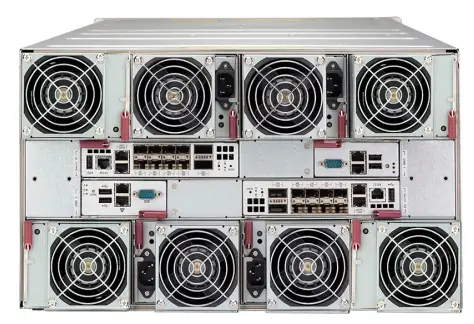

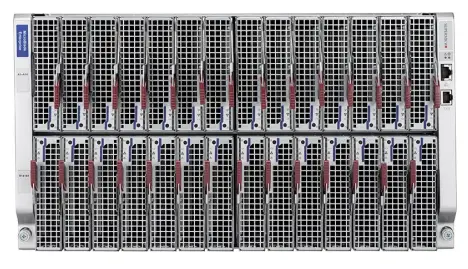

MBE-628E-422

	Server Blade	• Up to 28 hot-swap server blades
	Node Support	• Intel® E3 and E5 based server blades
	LED	• Power LED, Fault LED
	GbE Switch / Pass-Through Module	• Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM• Switch modules are not included in the enclo
	Management Module	• Up to 2 hot-swap Chassis Management Modules (CMM) pr functionalities • Management module not included in the enclo
	Power Supplies	• 4 PWS-2K21A-BR hot-swap high-e!icienc
	Cooling Design	• 8 cooling fans
	Dimensions (HxWxD)	• 10.43″ x 17.67″ x 34.45″ (265mm x 449mm x 875mm)
	Downloads	• Manual [ Download ]

MBE-628E-622

	Server Blade	• Up to 28 hot-swap server blades
	Node Support	• Intel® E3 and E5 based server blades
	LED	• Power LED, Fault LED
	GbE Switch / Pass-Through Module	• Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM• Switch modules are not included in the enclo
	Management Module	• Up to 2 hot-swap Chassis Management Modules (CMM) pr functionalities • Management module not included in the included
	Power Supplies	• 6 PWS-2K21A-BR hot-swap high-e!icienc
	Cooling Design	• 8 cooling fans
	Dimensions (HxWxD)	• 10.43″ x 17.67″ x 34.45″ (265mm x 449mm x 875mm)
	Downloads	• Manual [ Download ]

MBE-628E-822

	Server Blade	• Up to 28 hot-swap server blades
	Node Support	• Intel® E3 and E5 based server blades
	LED	• Power LED, Fault LED
	GbE Switch / Pass-Through Module	• Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM Switch modules are not included in the enclo
	Management Module	• Up to 2 hot-swap Chassis Management Modules (CMM) pr functionalities • Management module not included in the included
	Power Supplies	8 PWS-2K21A-BR hot-swap high-e!icien
	Cooling Design	• 8 cooling fans
	Dimensions (HxWxD)	• 10.43″ x 17.67″ x 34.45″ (265mm x 449mm x 875mm)
	Downloads	• Manual [ Download ]

MBE-628E-420D

	Server Blade	• Up to 28 hot-swap server blades
	Node Support	• Intel® E3 and E5 based server blades
	LED	• Power LED, Fault LED
	GbE Switch / Pass-Through Module	• Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM Switch modules are not included in the enclo
	Management Module	• Up to 2 hot-swap Chassis Management Modules (CMM) pr functionalities • Management module not included in the included
	Power Supplies	• 4 PWS-2K02D-BR hot-swap high-e!icienc • DC Power cables (CBL-PWEX-0980-1)
	Cooling Design	• 8 cooling fans
	Dimensions (HxWxD)	• 10.43″ x 17.67″ x 36.10″ (265mm x 449mm x 917mm)
	Downloads	• Manual [ Download ]

MBE-628E-820D

	Server Blade	• Up to 28 hot-swap server blades
	Node Support	• Intel® E3 and E5 based server blades
	LED	• Power LED, Fault LED
	GbE Switch / Pass-Through Module	• Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM Switch modules are not included in the enclo
	Management Module	• Up to 2 hot-swap Chassis Management Modules (CMM) pr functionalities • Management module not included in the included
	Power Supplies	• 8 PWS-2K02D-BR hot-swap high-e!icienc • DC Power cables (CBL-PWEX-0980-1)
	Cooling Design	• 8 cooling fans
	Dimensions (HxWxD)	• 10.43″ x 17.67″ x 36.10″ (265mm x 449mm x 917mm)
	Downloads	• Manual [ Download ]
