Signal Processing
Volume Control
ATT-506PEU Wall-Mounted PA Volume Controls with 24V Emergency Priority Relay
- Attenuation in 10 steps, position 0 is OFF
- For 100 V line technique
- White plastic front panel and knob
- Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
- Flush mounting into standard 60 mm wall sockets (ATT-5100PEU into 65 mm wall socket)
- Plug-in screw terminal
| Model | Order No . | Frequency range | Power rating | Priority facility | Dimensions | Mounting depth | Weight | Surface-mounted housing |
| ATT-506PEU | 173890 | 50-18,000 Hz | 6 W | yes | 80 x 80 x 67 mm | 45 mm | 212 g | – |
| ATT-512PEU | 173900 | 50-18,000 Hz | 12 W | yes | 80 x 80 x 67 mm | 45 mm | 222 g | – |
| ATT-524PEU | 173910 | 50-18,000 Hz | 24 W | yes | 80 x 80 x 66 mm | 45 mm | 231 g | – |
| ATT-5100PEU | 173940 | 50-18,000 Hz | 100 W | yes | 80 x 80 x 70 mm | 50 mm | 342 g | – |

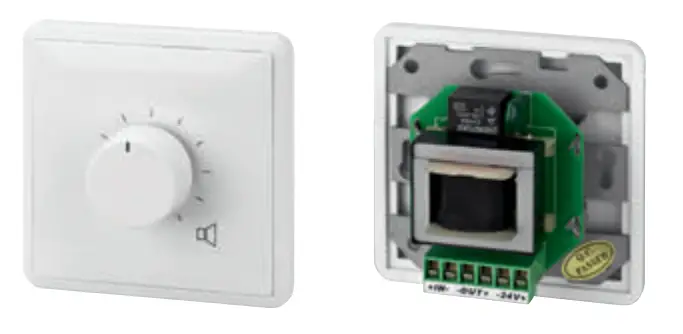

Wall-Mounted PA Volume Controls with 24 V
Emergency Priority Relay
- Attenuation in 10 steps, position 0 is OFF
- For 100 V line technique
- Snow-white plastic front panel and knob
- Flush mounting into standard 65 mm wall sockets (except ATT-3100PEU)
- Surface mounting with matching housing ATT-300, available at option
- Plug-in screw terminal
| Model | Order No . | Frequency range | Power rating | Priority facility | Dimensions | Mounting depth | Weight | Surface-mounted housing |
| ATT-306PEU | 173690 | 50-18,000 Hz | 6 W | yes | 80 x 80 x 67 mm | 45 mm | 97 g | ATT-300 |
| ATT-312PEU | 171380 | 50-18,000 Hz | 12 W | yes | 80 x 80 x 67 mm | 45 mm | 168 g | ATT-300 |
| ATT-324PEU | 171390 | 50-18,000 Hz | 24 W | yes | 80 x 80 x 67 mm | 45 mm | 175 g | ATT-300 |
| ATT-336PEU | 171400 | 50-18,000 Hz | 36 W | yes | 80 x 80 x 67 mm | 45 mm | 234 g | ATT-300 |
| ATT-350PEU | 171410 | 50-18,000 Hz | 50 W | yes | 80 x 80 x 67 mm | 45 mm | 233 g | ATT-300 |
| ATT-3100PEU | 172630 | 50-18,000 Hz | 100 W | yes | 80 x 80 x 67 mm | 45 mm | 335 g | ATT-300 |

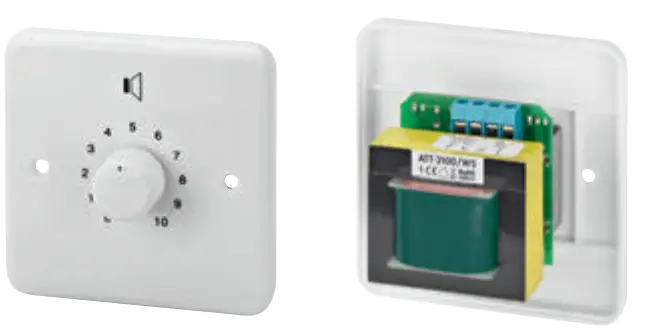

Wall-Mounted PA Volume Controls
- Attenuation in 10 steps, position 0 is OFF
- Audio transformer for 100 V line technique
- White plastic front panel and knob
- Flush mounting, surface mounting with matching housing ATT-200, available at option
| Model | Order No . | Frequency range | Power rating | Priority facility | Dimensions | Mounting depth | Weight | Surface-mounted housing |
| ATT-212/WS | 173670 | 50-18,000 Hz | 12 W | no | 85 x 85 x 66 mm | 42 mm | 156 g | ATT-200 |
| ATT-224/WS | 173680 | 50-18,000 Hz | 24 W | no | 85 x 85 x 66 mm | 38 mm | 154 g | ATT-200 |
| ATT-235/WS | 170580 | 50-18,000 Hz | 35 W | no | 85 x 85 x 71 mm | 42 mm | 212 g | ATT-200 |
| ATT-250/WS | 170590 | 50-18,000 Hz | 50 W | no | 85 x 85 x 71 mm | 42 mm | 211 g | ATT-200 |
| ATT-2100/WS | 172610 | 50-18,000 Hz | 100 W | no | 85 x 85 x 71 mm | 42 mm | 260 g | ATT-200 |
