Milesight EM400-MUD Multifunctional Ultrasonic Distance Sensor
Product Information
The EM400-MUD Multifunctional Ultrasonic Distance Sensor is a device designed for measuring distance accurately. It features an NFC power on/off function and comes with mounting kits for easy installation. The device is in compliance with CE, FCC, and RoHS requirements.
Features
- Accurate distance measurement using ultrasonic technology
- NFC power on/off function
- Compliant with CE, FCC, and RoHS requirements
- Compact design for easy installation
Safety Precautions
Please follow the instructions carefully to prevent any damage or loss. Do not disassemble or remodel the device in any way. Change the default password to ensure security. Do not use the device as a reference sensor. Do not expose the device to naked flames, extreme temperatures, or shocks.
Declaration of Conformity
The EM400-MUD is in compliance with essential requirements and other relevant provisions of CE, FCC, and RoHS.
Product Usage Instructions
Installation
To install the EM400-MUD:
- Check the packing list to ensure all items are present and undamaged.
- Choose a suitable location to mount the device.
- Use the mounting kits provided to secure the device in place.
Device Payload
Basic Information
The basic information about the device includes:
- Type: EM400-MUD
- Password: default is 123456, change for security
- Dimensions: see the hardware overview section of the user manual
Sensor Data
The device measures distance accurately using ultrasonic technology. The sensor data includes:
- Distance measurement in meters
Downlink Commands
The device can receive downlink commands for operation. Please refer to the user manual for a list of available commands.
Safety Instruction
Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide.
- The device must not be disassembled or remodeled in any way.
- In order to protect the security of the device, please change the device password when first configuring it. The default password is 123456.
- The device is not intended to be used as a reference sensor, and Milesight won’t should responsible for any damage which may result from inaccurate readings.
- Do not place the device close to objects with naked flames.
- Do not place the device in where the temperature is below/above the operating range.
- Make sure both batteries are newest when install, or battery life will be reduced.
- The device must never be subjected to shocks or impacts.
Declaration of Conformity
EM400-MUD is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS.
Copyright © 2011-2023 Milesight. All rights reserved.
All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd.
For assistance, please contact
Milesight technical support:
Email: [email protected]
Support Portal: support.milesight-iot.com Tel: 86-592-5085280
Fax: 86-592-5023065
Address: Building C09, Software Park III, Xiamen 361024, China
Product Introduction
Overview

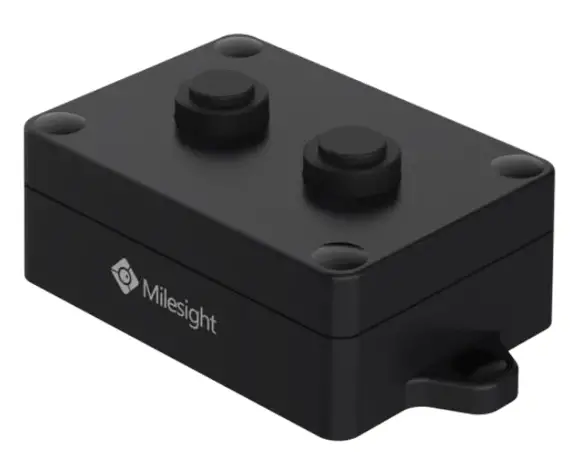

EM400-MUD is a multifunctional ultrasonic distance sensor with small blind spot. Besides a wide measuring rage, EM400-MUD is equipped with three pre-set modes including standard mode, trash bin mode, and parking lot mode for different applications. Featuring low power consumption LoRaWAN® technology, EM400-MUD can work for over 10 years with its two built-in 9000 mAh batteries.
Besides, EM400-MUD is equipped with a 3-axis accelerometer and temperature sensor to detect the tilt status of devices. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud, users know the container status and fill-in level in real-time via browser and mobile App remotely.
Features
- 3-450 cm wide detection range with small blind zone
- Equipped with three pre-set modes for different applications
- Equipped with NTC thermistor for the detection and alarm of trash burning
- Built-in 3-axis accelerometer sensor to monitor device tilt status
- Damp-proof coating inside and IP67 waterproof enclosure for outdoor applications
- Built-in two 9000 mAh replaceable batteries and work for 10 years without replacement
- Ultra-wide-distance wireless transmission up to line of sight of 15km
- Equipped with NFC for one touch configuration, support card emulation mode
- Function well with standard LoRaWAN® gateways and network servers
- Compatible with Milesight IoT Cloud
Hardware Introduction

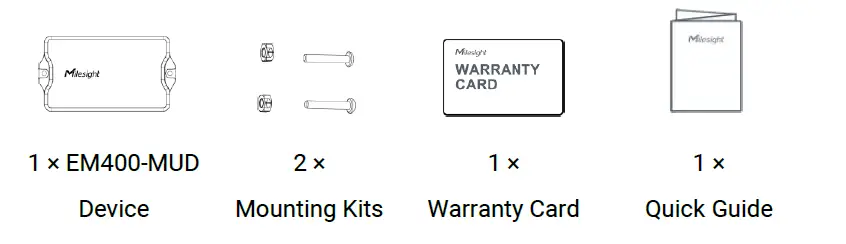

Packing List
If any of the above items is missing or damaged, please contact your sales representative.
Hardware Overview

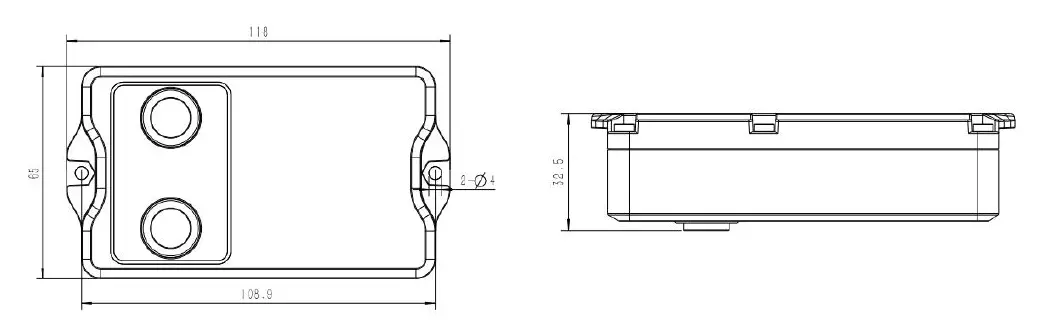

Dimensions (mm)
Power Button
EM400-MUD can be switched on/off via NFC. Besides, users can use power button to switch on/off and reset the device manually.
| Function | Action | LED Indication |
| Switch On | Press and hold the button for more than 3 seconds. | Off → On |
| Switch Off | Press and hold the button for more than 3 seconds. | On → Off |
| Reset | Press and hold the button for more than 10 seconds. | Quickly Blinks |
| Check On/Off Status | Quickly press the power button. | Light On: Device is on |
| Light Off: Device is off |
Operation Guide
NFC Configuration
EM400-MUD can be configured via NFC.
- Download and install “Milesight ToolBox” App from Google Play or App Store.
- Enable NFC on the smartphone and open “Milesight ToolBox” App.

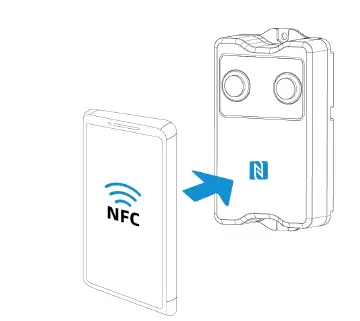

- Attach the smartphone with NFC area to the device to read the basic information.

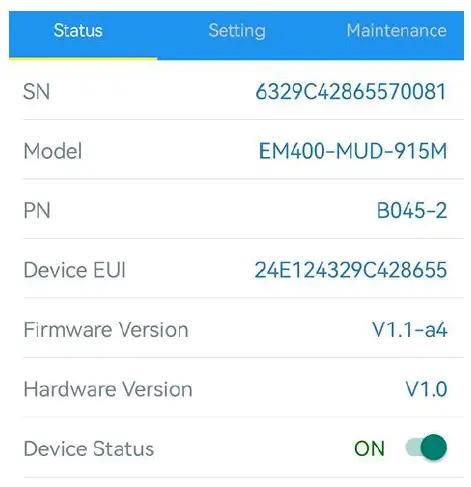

- Basic information and settings of devices will be shown on ToolBox if it’s recognized successfully. You can switch on/off, read and write the device by tapping the button on the Apps. In order to protect the security of devices, password validation is required when configuring via unused phone. Default password is 123456.
Note:
- Ensure the location of smartphone NFC area and it’s recommended to take off phone case.
- If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again.
- EM400-MUD can also be configured by dedicated NFC reader provided by Milesight IoT or you can configure it via TTL interface inside the device.
LoRaWAN Settings
LoRaWAN settings is used for configuring the transmission parameters in the LoRaWAN® network.
Basic LoRaWAN Settings:

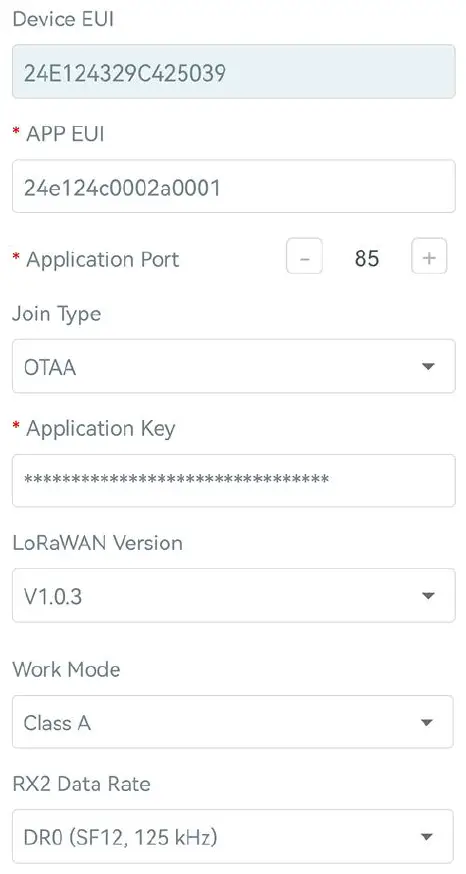

Go to Device > Setting > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default.
| Device EUI | Unique ID of the device which can also be found on the label. |
| App EUI | Default App EUI is 24E124C0002A0001. |
| Application Port | The port used for sending and receiving data, default port is 85. |
| Join Type | OTAA and ABP mode are available. |
| Application Key | Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823. |
| Device Address | DevAddr for ABP mode, default is the 5th to 12th digits of SN. |
| Network Session Key | Nwkskey for ABP mode, default is 5572404C696E6B4C6F52613230313823. |
| Application Session Key | Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823. |
| LoRaWAN Version | V1.0.2, V1.0.3 are available. |
| Work Mode | It’s fixed as Class A. |

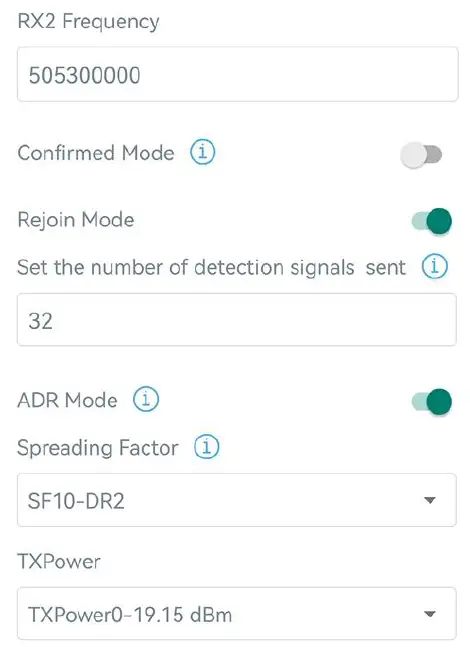

| RX2 Data Rate | RX2 data rate to receive downlinks. |
| RX2 Frequency | RX2 frequency to receive downlinks. Unit: Hz |
| Spread Factor | If ADR is disabled, the device will send data via this spread factor. |
| Confirmed Mode | If the device does not receive ACK packet from network server, it will resend data once. |
|
Rejoin Mode | Reporting interval ≤ 30 mins: the device will send a specific number of LinkCheckReq MAC packets to the network server every 30 mins to validate connectivity; if there is no response, the device will re-join the network. Reporting interval > 30 mins: the device will send a specific number of LinkCheckReq MAC packets to the network server every reporting interval to validate connectivity; if there is no response, the device will re-join the network. |
| Set the number of packets sent | When rejoin mode is enabled, set the number of LinkCheckReq packets sent. |
| ADR Mode | Allow the network server to adjust data rate of the device. |
| Tx Power | Transmit power of device. |
Note:
- Please contact sales for device EUI list if there are many units.
- Please contact sales if you need random App keys before purchase.
- Select OTAA mode if you use Milesight IoT cloud to manage devices.
- Only OTAA mode supports rejoin mode.
LoRaWAN Frequency Settings:

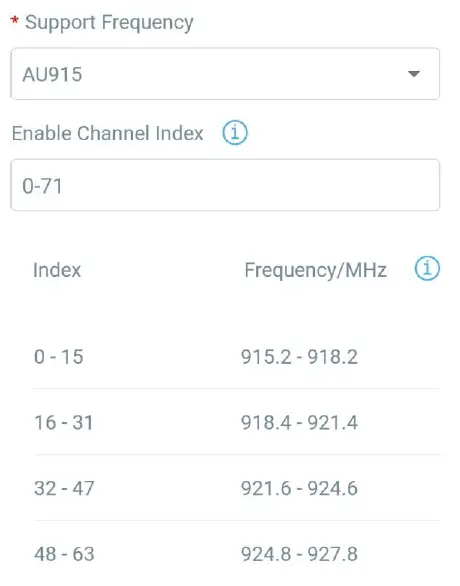

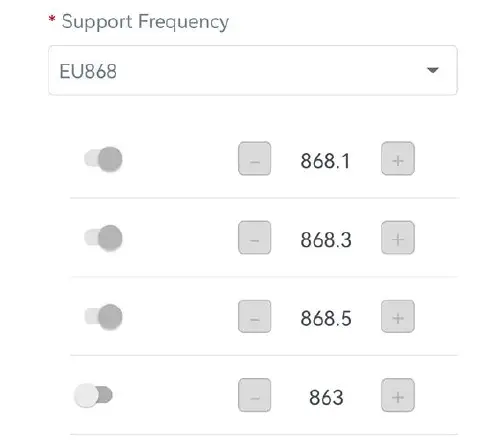

Go to Setting > LoRaWAN Settings of ToolBox App to select supported frequency and select channels to send uplinks. Make sure the channels match the LoRaWAN® gateway.
If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas.
Examples:
- 1, 40: Enabling Channel 1 and Channel 40
- 1-40: Enabling Channel 1 to Channel 40
- 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60
- All: Enabling all channels
- Null: Indicates that all channels are disabled
Basic Settings

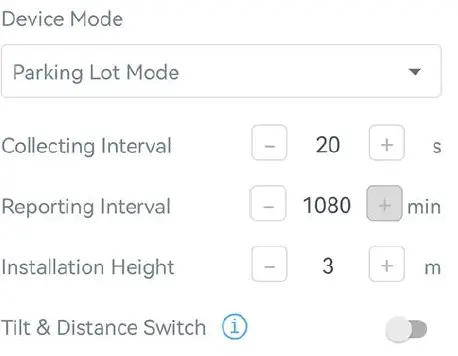

Go to Device > Setting > General Settings of ToolBox App to change the reporting interval, etc.
| Parameters | Description |
| Device Mode | Select from Standard Mode, Bin Mode or Parking Lot Mode. |
|
Reporting Interval | Reporting interval of transmitting data to a network server. Standard Mode: 10 minutes as default; Bin mode: 20 minutes as default; Parking Lot Mode: 1080 minutes as default. If the sensor detects the occupancy status change, it will report it immediately. |
| Collecting Interval | Collecting interval of measuring distance on Parking Lot Mode. Default: 20s; Range: 1~600s |
| Installation Height | Set the installation height between device and ground when in Parking Lot Mode. Default: 3m; Range: 0.030~4.500m Threshold Distance Value (Δ) is 1m as default, triggering logic is as below: Installation Height – Detected Distance < Δ, the sensor will reports occupied immediately. Installation Height – Distance Distance > Δ, the sensor will reports vacant immediately.
|
| Tilt & Distance Switch | When detecting that the offset angle is greater than 20 degrees, turn off the distance sensor. |
| Change Password | Change the password for ToolBox App or software to access this device. |
Advanced Settings
Calibration Settings
Go to Device > Setting > Calibration Settings to enable calibration. EM400-MUD supports two calibration types.

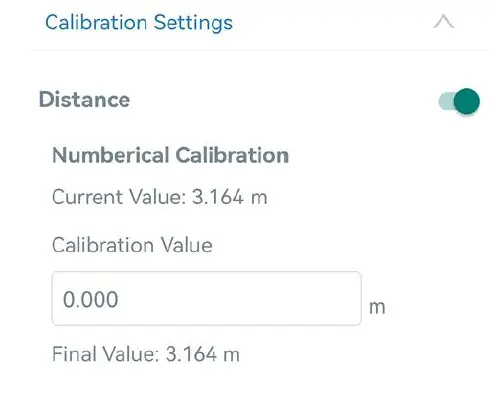

- Numerical Calibration: users can define calibration value to correct every distance.

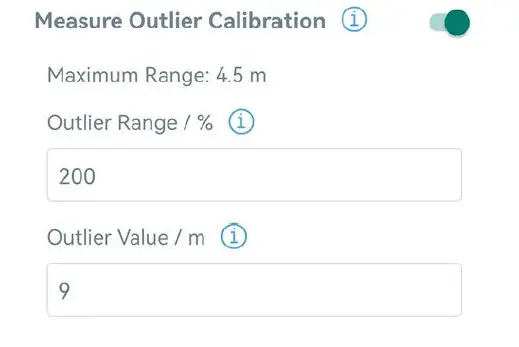

- Measure Outlier Calibration: users can define either outlier range or value When the device distance value exceeds the outlier range (or range) comparing to last value, the device will measure the distance again.
Threshold Settings

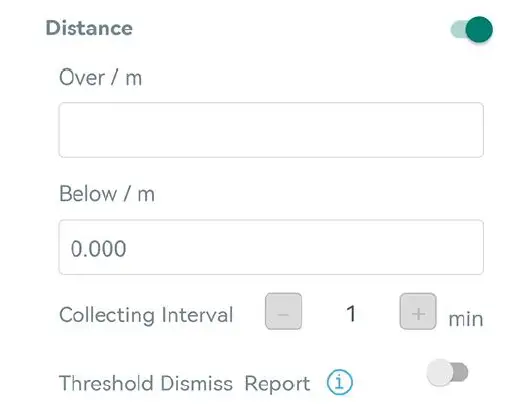

Go to Device > Setting > Threshold Settings to enable the threshold settings and input the distance threshold. EM400-MUD will detect whether the distance reaches the threshold according to collecting interval. If threshold is triggered, it uploads the current data once instantly.
Note: threshold setting is only for bin mode and standard mode.
| Parameters | Description |
| Collecting Interval | Collecting interval to detect distance, this should be smaller than or equal to reporting interval. |
| Threshold Dismiss Report | When the collected value changes from outside the threshold to within the threshold, a threshold release packet will be reported. |
Maintenance

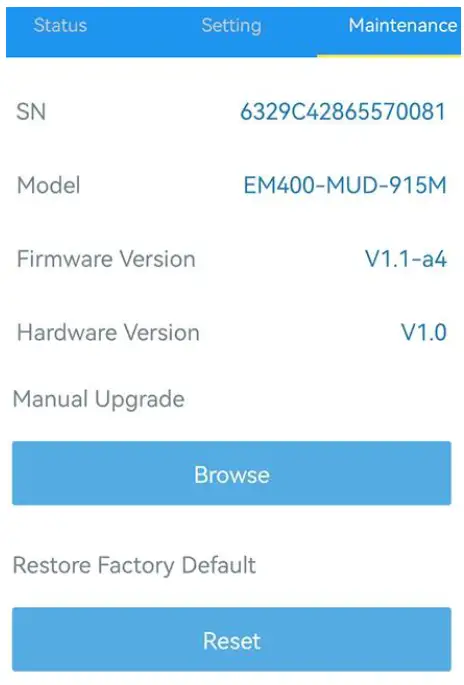

Upgrade
- Download firmware from Milesight website to your smartphone.

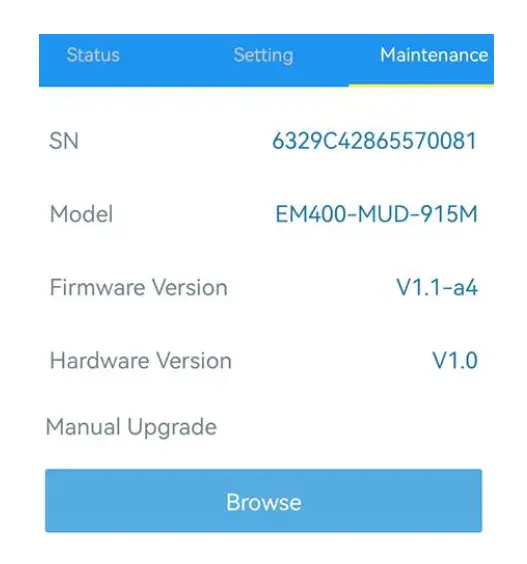

- Open Toolbox App, go to Device > Maintenance and click Browse to import firmware and upgrade the device.
Note:- Operation on ToolBox is not supported during a firmware upgrade.
- Only Android version ToolBox supports the upgrade feature.
Backup
EM400-MUD support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN® frequency band.

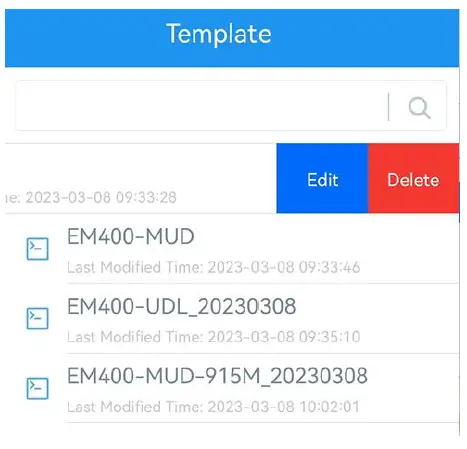

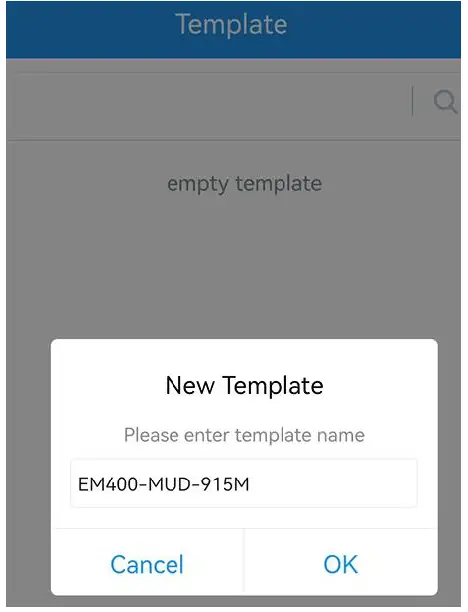

- Go to Template page on the App and save current settings as a template. You can also edit the template file.
- Select one template file which saved in the smartphone and click Write, then attach to another device to write configuration.
Note: Slide the template item left to edit or delete the template. Click the template to edit the configurations.
Reset to Factory Default
Please select one of the following methods to reset the device:
Via Hardware: Hold on the power button (internal) for more than 10s.
Via ToolBox App: Go to Device > Maintenance to click Reset, then attach the smartphone with NFC area to device to complete reset.
Installation

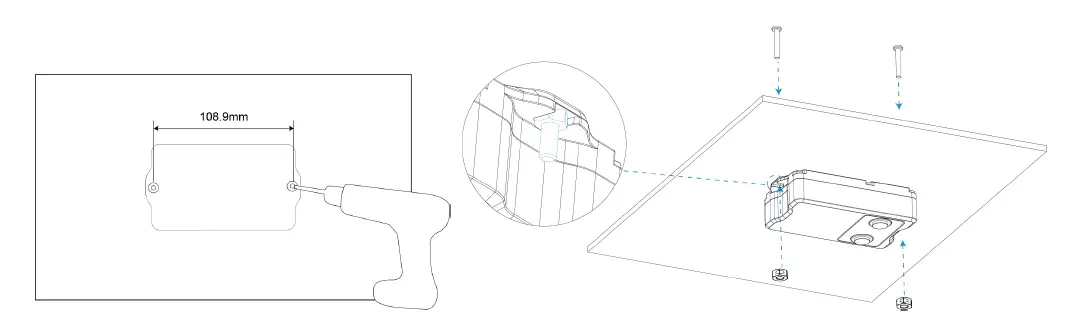

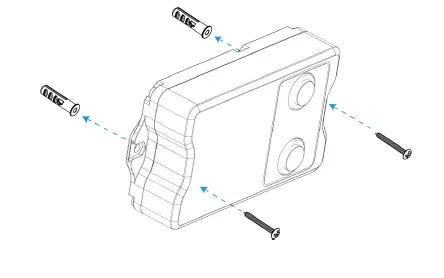

- Drill two holes on the container cover according to the location of device mounting holes.
- Put the device under container cover and align the holes in order to perfectly screw the bolts into the holes from the other side of the cover.
Besides, the device can also be fixed by two M4 mounting screws and wall plugs.
Installation location:
- In order to provide the best data transmission, please ensure the device is deployed within the signal range of the LoRaWAN® gateway and keep it away from metal objects and obstacles.
- The device must be placed in a horizontal position above the detected object so that it has a clear path to the object.

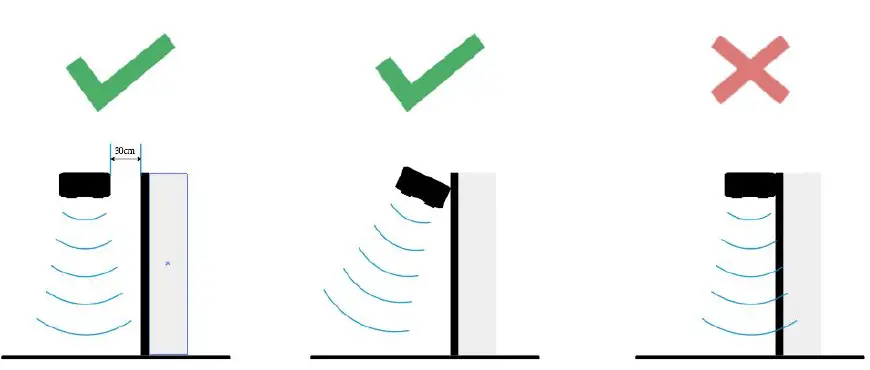

- The device should be installed at least 30cm away from the side-wall without obstructions blocking the ultrasonic signal. If the device needs to be installed on the side wall, please ensure the ultrasonic horn is away from the side wall.
- When EM400-MUD is in waste bin mode, place the device in the center of waste bin mode here are some recommended sizes of waste bins: when the height is 88cm, the minimum radius should be 24cm.
Device Payload
All data are based on following format (HEX):
| Channel1 | Type1 | Data1 | Channel2 | Type2 | Data2 | Channel 3 | … |
| 1 Byte | 1 Byte | N Bytes | 1 Byte | 1 Byte | M Bytes | 1 Byte | … |
For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders.
Basic Information
EM400-MUD reports basic information of sensor whenever it joins the network.
| Channel | Type | Description |
|
ff | 01(Protocol Version) | 01=>V1 |
| 09 (Hardware Version) | 01 40 => V1.4 | |
| 0a (Software Version) | 01 14 => V1.14 | |
| 0b (Power On) | Device is on | |
| 0f (Device Type) | 00: Class A, 01: Class B, 02: Class C | |
| 16 (Device SN) | 16 digits |
Example:
| ff0bff ff0101 ff166329c42503920003 ff090100 ff0a0101 ff0f00 | |||||
| Channel | Type | Value | Channel | Type | Value |
| ff | 0b (Power On) | ff (Reserved) | ff | 01 (Protocol Version) | 01 (V1) |
| Channel | Type | Value | Channel | Type | Value |
| ff | 16 | 6329c42503 | ff | 09 | 0100 |
| (Device SN) | 920003 | (Hardware version) | (V1.0) | ||
| Channel | Type | Value | Channel | Type | Value |
| ff | 0a (Software version) | 0101 (V1.1) | ff | 0f (Device Type) | 00 (Class A) |
Sensor Data
EM400-MUD reports sensor data according to different mode settings.
| Channel | Type | Description |
| 01 | 75(Battery Level) | UINT8, Unit: % |
| 03 | 67 (Temperature) | INT16, Unit: °C |
| 04 | 82 (Distance) | INT16, Unit: mm |
| 05 | 00 (Device Position) | 00: Normal (horizontal offset angle < 20°) 01: Tilt (horizontal offset angle ≥ 20°) |
Example:
| 017564 0367f800 04820101 050000 | |||||
| Channel | Type | Value | Channel | Type | Value |
| 01 | 75 (Battery) | 64 => 100% | 03 | 67 (Temperature) | f8 00 => 00 f8 = 248 * 0.1 =24.8 °C |
| Channel | Type | Value | Channel | Type | Value |
| 01 01 => | |||||
| 04 | 82 (Distance) | 01 01 =257mm | 05 | 00 (Device Position) | 00=Normal |
| =0.257m | |||||
Threshold Packet:
When collected distance exceeds threshold, EM400-MUD will report a distance alarm packet; besides, it will also report a alarm dismiss packet if distance returns back to normal value. When the abrupt change of temperature is greater than 5 °C, it will report a temperature alarm packet.
| Channel | Type | Description |
| 3 Bytes, | ||
| Distance (2 Bytes) + Alarm Status (1 Byte) | ||
| 84 | 82 (Distance ) | Distance: unit — mm Alarm Status: |
| 00 -Alarm dismiss | ||
| 01 -Alarm | ||
| 3 Bytes, | ||
| Temperature (2 Bytes) + Alarm Status (1 Byte) | ||
| 83 | 67 (Temperature) | Temperature: unit — °C Alarm Status: |
| 00 -Alarm dismiss | ||
| 01 -Alarm |
Example:
- Distance Threshold
8482330701 Channel Type Value 84 82 (Distance)
Distance: 33 07 =>07 33 = 1843mm = 1.843m Alarm Status: 01= Alarm
- Temperature Threshold
8367220101 Channel Type Value 83 67 (Temperature)
Temperature: 22 01 =>01 22 = 290 * 0.1 = 29°C Alarm Status: 01= Alarm
Downlink Commands
EM400-MUD supports downlink commands to configure the device. Application port is 85 by default.
| Channel | Type | Description |
| ff | 10 (Reboot) | ff (Reserved) |
| 03 (Set Reporting Interval) | 2 Bytes, unit: s | |
| 71 (Set Device Mode) | 00 = Standard Mode; 01 = Bin Mode; 02 = Parking Lot Mode | |
| 3e (Set Tilt & Distance Switch) | 00 = Disable; 01 = Enable | |
| 56 (Set Ultrasonic Distance Sensor) | 00 = Disable; 01 = Enable | |
| 06 (Set Threshold Alarm) | 9 Bytes, CTRL(1B)+Min(2B)+Max(2B)+00000000(4B)CTRL: Bit2~Bit0: 00- disable 001-below 010-above 011-within below or above Bit5~Bit3: 01- Standard Mode |
| 010-Bin Mode Bit6=0 Bit7: 0 – disable threshold dismiss report 1 – enable threshold dismiss report | ||
| 70 (Set Height Threshold in Parking Lot Mode) | 2 Bytes, unit: mm | |
| 77 (Set Installation Height) | 2 Bytes, unit: mm |
Example:
- Set reporting interval as 20 minutes.
ff03b004 Channel Type Value ff 03 (Set Reporting Interval) b0 04 => 04 b0 = 1200s = 20 minutes - Reboot the device.
ff10ff Channel Type Value ff 10 (Reboot) ff (Reserved) - Set the device as standard mode.
ff7100 Channel Type Value ff 71 (Set Device Mode) 00 = Standard Mode - Enable the “Tilt & Distance Switch” feature.
ff3e01 Channel Type Value ff 3e (Set Tilt & Distance Switch) 01 = Enable - When the distance is below 20cm or above 80cm, the sensor will send a threshold alarm.
ff3e 8c c800 2003 0000 0000 Channel Type Value ff
06 (Set Threshold Alarm)
CTRL: cc=10 001 100 100=below or above 001=standard mode 10=enable threshold dismiss report
Min: c8 00 => 00 c8 = 200 mm = 20 cm
Max: 2003 => 03 20 = 800 mm
= 80cm
- Set the height threshold in parking lot mode as 0.03m.
ff701e00 Channel Type Value ff 70 (Set Height Threshold in Parking Lot Mode)
1e 00 => 00 1e =30mm =0.03m - Set the installation height as 4.5m.
ff779411 Channel Type Value ff 77 (Set Installation Height) 94 11 => 11 94 =4500mm =4.5m
Support : IoT Support
GitHub - Milesight-IoT/SensorDecoders
