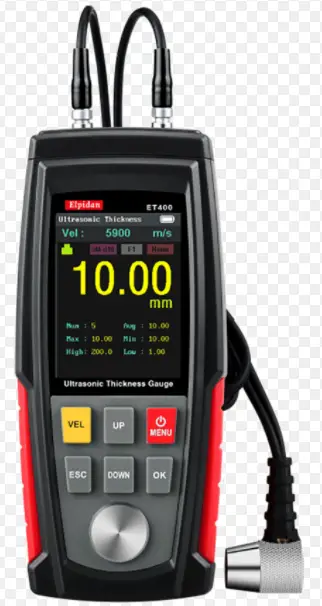

Elpidan Ultrasonic Thickness Gauge ET400 WT100A
Specification:
| Measuring range | 1.00 to 225.0mm (0.039 to 8.85 inches) |
| Data storage | 500 Data |
| Transducer (Probe) Type | 5MHz, 10 mm |
| Measurement error | ±(0. 5%H +0. 05) mm |
| Resolution | 0.01 mm |
| Lower limit of pipe measurement | Φ 20x3mm (steel) |
| Adjustable range of velocity | 1 000～9999m/s |
| Operation environment | Temperature:0~40℃(32~104℉) Humidity:20%~90%RH |
| Power | 3* 1.2V NiMH Rechargeable Batteries |
| Dimensions | 146 x 65 x 30 mm 5.75 x 2.56 x 1.18 inches |
| Weight | 130 gram with batteries |
Features:
- Measuring the thickness and the sound speed of various materials.
- High contrast 2.4″ color-screen HD display with backlit & 5 selectable color display
- Auto calibration
- Units: mm/inch
- Storage data (up to 500 data) and recall function
- Statistic view (Min/Max/Avg/High/Low)
- Automatic shutdown
- Built in metal calibration block
Package List:
- 1 x Main device
- 1 x Transducer (probe)
- 3 x Rechargeable batteries (1.2V per)
- 1 x USB cable
- 1 x Charger (5V, 1A)
- 1 x Hard Carrying case
- 1 x English User Manual
Important Note:
- Coupling agent is necessary for measuring. Please note that our thickness gauge don’t include the coupling agent
- This gauge cannot measure the thickness of cast iron, due to its big crystalloid composition.
- This Gauge cannot measure the thickness of coating on metal substrate. For this application you should buy “Coating thickness gauges”.
