Vectech Jp-920 Smart Ultrasonic Cleaner User Guide

JP-920

Smart Ultrasonic Cleaner

User Guide

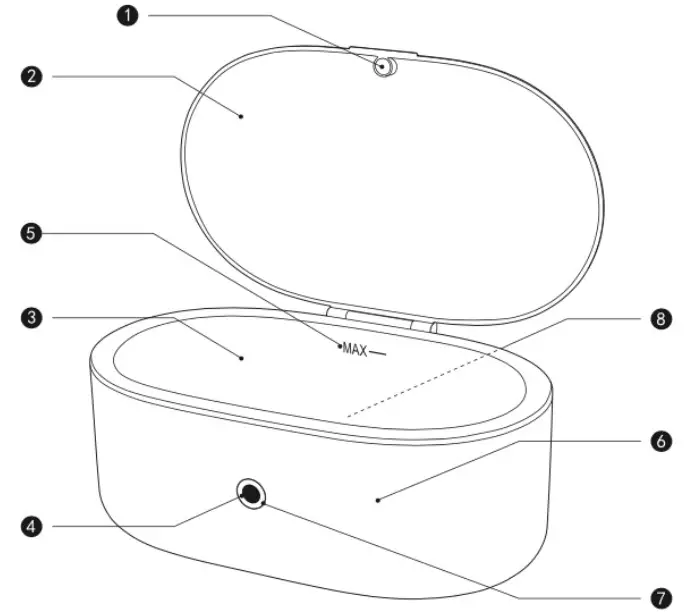

Please note:This picture is for reference only. Kindly refer to the actual product for exact representation.

1. Magnet
2. Lid
3. Stainless Steel Tank
4. Power Button
5. Max. Water Indication
6. Bottom Case
7. Indicator Light
8. Power Socket

Specifications (TABLE)

Ultrasonic Cleaning Principle

Ultrasound is a form of a sound wave with a frequency of about 20 kHz above the normal human hearing range. Our device, employing the energy of this wave. operates through its transmission of sound waves through the water, igniting the cleaning process. This action generates the production of minute bubbles known as cavitations. which form and collapse alternately. As a result small jets are transmitted through the fluid, and these subsequently work to wipe off the dirt from the desired object.

Our ultrasonic cleaner is capable of cleaning various objects (as stated within this manual), without any form of damage. The effect of added cleaning chemicals is improved by the action of our device. increasing the efficiency of performance!

A step-by-step outline

1. The action of ultrasonic waves generates tiny vacuum bubbles throughout the fluid.
2. These vacuum bubbles continuously bombard the surface of the desired object to strike off the dirt.
3. Finally, the dirt breaks off from the surface of the object. Now, your item is squeaky clean!

Operating Procedures

	Check Machine Once plugged in. check to ensure the machine is powered: the power indicator is lighted.
	Pour Water Into The Tank Running the machine without water WILL damage the device Open the lid and pour tap water into the tank. Materials to be cleaned should be submerged fully into the water (water level should not exceed the ‘Max’ mark).
	Start Cleaning Once plugged in, power on the machine via the ‘ON/OFF function on the device. This should cause the indicator light to flash green. Once cleaning is done after 3 minutes, the indicator light turns white. To pause the operation. carefully press on its power button. This will cause the white indicator light to come on.
	High-Temperature Protection During the cleaning process. to avoid damage from overheating or overload. the white indicator light flashes. When this happens, kindly turn off the device for a while to allow it to cool before restarting it.
	Maintenance Unplug the machine once the operation is done. then empty and dry the tank and hull with a clean. dry towel. Store in a cool. dry place, guaranteed water-free and other fluids-free.

Attention

	Do not add abrasives or corrosive chemicals to the cleaning tank.
	Keep the machine away from all forms of heat (direct or indirect). and store on a dry. flat surface.
	The water level in the tank must not exceed the ‘MAX” indication to avoid overflow.
	Do not leave the machine unattended. Do not touch an electric socket with wet hands to avoid the risk of electrocution
	In the event of a malfunction or accidental water submersion. kindly contact us for after-sales service or located the closest designated service point to you for repair. Do not disassemble the product without the aid of professionals.

Safety Precautions

To avoid fire, electric shock, or personal injury, please comply with the following requirements; other terms should be adhered to according to relevant state and local electrical codes.

1. Working environment: Standard working temperature range for this equipment is 0-509c
2. Cleaning liquid: The use of corrosive liquids as cleaning agents in stainless steel and ABS plastic is forbidden. The temperature of the cleaning fluid should not exceed 60Ec.
3. Operation run-period: The continuous working time of this equipment should not exceed two hours.
4. Storage: Before long-term storage, please ensure the machine is clean and fluid-free. Remember, the device should be assuredly void of liquid before it is stored.
5. This product should not be given to children as a toy. Children should also not be slowed to play with this product
