Avmatrix Ptz1271 Full Hd Ptz Camera User Manual

PTZ1271 Full Hd Ptz Camera
User Manual

PTZ1271 Full Hd Ptz Camera

USING THE UNIT SAFELY
Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.
Warning And Cautions
※ To avoid falling or damage, please do not place this unit on an unstable cart, stand, or table.
※ Operate unit only on the specified supply voltage.
※ Disconnect power cord by connector only. Do not pull on cable portion.
※ Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can cause fire or electrical shock hazards. Regularly check power cord for excessive wear or damage to avoid possible fire / electrical hazards.
※ Ensure unit is properly grounded at all times to prevent electrical shock hazard.
※ Do not operate unit in hazardous or potentially explosive atmospheres. Doing so could result in fire, explosion, or other dangerous results.
※ Do not use this unit in or near water.
※ Do not allow liquids, metal pieces, or other foreign materials to enter the unit.
※ Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you need to transport the unit, use the original packing materials or alternate adequate packing.
※ Do not remove covers, panels, casing, or access circuitry with power applied to the unit! Turn power off and disconnect power cord prior to removal. Internal servicing / adjustment of unit should only be performed by qualified personnel.
※ Turn off the unit if an abnormality or malfunction occurs. Disconnect everything before moving the unit.

PRODUCT OVERVIEW

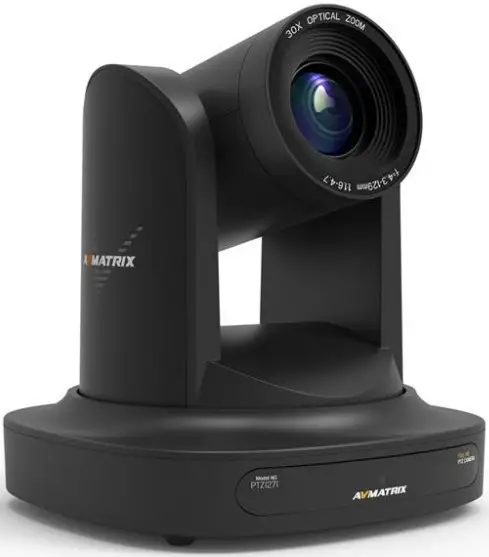

1.1 Product Introduction

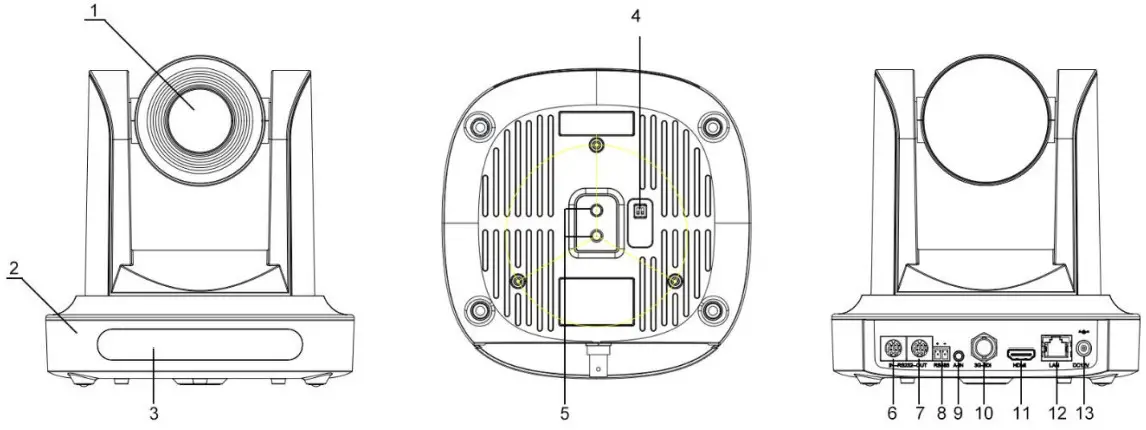

1.1.1 Interface Instruction

1.1.2 RS-232 Interface

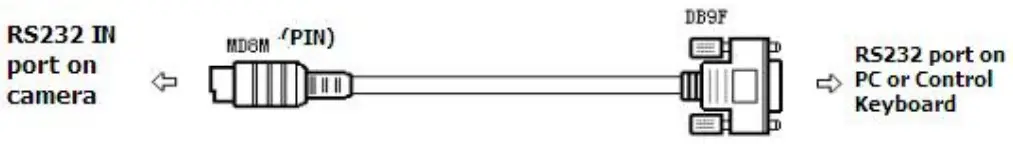

1. RS-232 Mini-DIN to RS232(DB9) cable
2. RS-232 Mini-DIN 8-pin port definition


   NO.	Port	Definition
   1	DTR	Data Terminal Ready
   2	DSR	Data Set Ready
   3	TXD	Transmit Data
   4	GND	System Ground
   5	RXD	Receive Data
   6	GND	System Ground
   7	IR OUT	IR Commander Signal
   8	NC	No Connection

3. RS232 (DB9) port definition


   NO.	Port	Definition
   1	DCD	Data Carrier Detect
   2	RXD	Receive Data
   3	TXD	Transmit Data
   4	DTR	Data Terminal Ready
   5	GND	System Ground
   6	DSR	Data Set Ready
   7	RTS	Request to Send
   8	CTS	Clear to Send
   9	RI	Ring Indicator

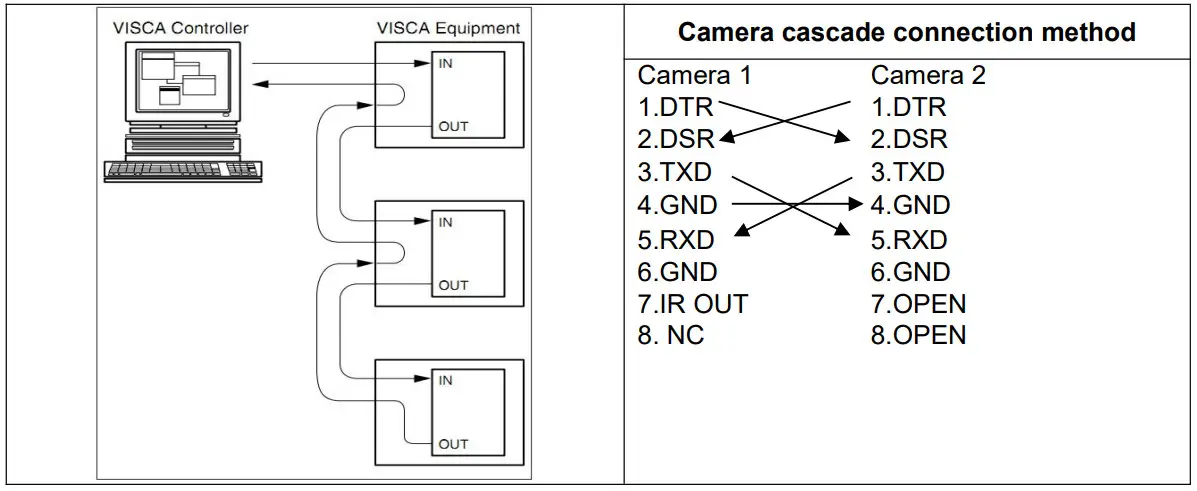

4. VISCA networking as shown below:

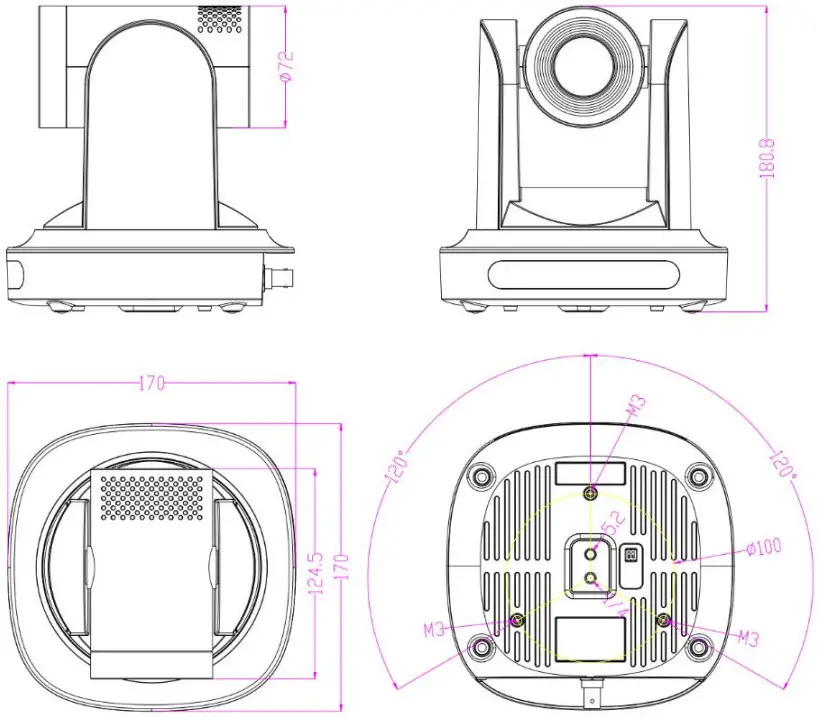

1.1.3 Dimension

1.2 Main Features
1.2.1 Camera Performance
This series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/ H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.

• Superb High-definition Image: It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60 fps.
• Various Optical Zoom Lens: It has 20X/ 30X optical zoom lens for options.
• Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
• Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.

Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

• Quiet PTZ: By adopting high accuracy step driving motor mechanism, it works extremely quiet and moves smoothly and very quickly to designated position.
• Multi-Format Video Outputs: support HDMI, 3G-SDI, LAN interfaces. The 3G-SDI is available for 100m transmission at 1080p60 format.
• Multiple Remote Controls: There is IR remoter and 2.4G wireless remote for options. The 2.4G wireless remote controller will not be affected by angle, distance or IR interference. Support transparent transmission function.
• Low-power Sleep Function: Support low-power sleep/wake up, the consumption is lower than 500mW under sleep mode
• Support Multiple Control Protocol: Support ONVIF, VISAC over IP, VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized. Support VISCA control protocol through IP port.
• RS-232 Cascade Function: PTZ camera support RS-232 cascade function which is convenient for installing.
• 255 Presets Positions: Up to 255 presets (10 presets by remoter).
• Wide Application: Tele-education, Lecture capture, Webcasting, Video conferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

1.2.2 Network Performance

1. Audio Input Interface: Support 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, G.711A audio coding.
2. Multiple Audio/Video Compression: Support H.264/ H.265 video compression; AAC,MP3 and G.711A audio compression; Support compression of resolution up to 1920×1080 with frame up to 60 fps and 2 channel 1920x1080p with 30 fps compression.
3. Multiple Network Protocol: Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS).

1.3 Technical Specification

APPLICATION INSTRUCTION

2.1 Power on Initial Configuration

1. Power on: Connect DC12V power supply adapter with power supply socket.
2. Initial configuration: Power on with power indicator light on and remote control receiver light blinking, camera head moves from bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical ), while the camera module stretches. When remote control receiver light stops blinking, the self-checking is finished.

Note: If you set preset 0, when Power on self-test is completed, the camera automatically moves to the preset 0 position.
2.2 Video Output
Connect to the video output cable: the user select the output mode according to the machine model.

1. Network output: connect this product and your computer through network cable, then open the browser, enter the camera IP address (factory default 192.168.5.163) in the address bar, then to the login page and input a user name and password (factory default are “admin”) ,Finally enter the preview page, and the image comes out.
   (Note: If you forget your user name, password, IP address, you can manually restore the default by the remote controller key combination * #)
2. 3G-SDI output or DVI (HDMI) output: Connect the monitor with the corresponding video output interface, then the monitor output image.

2.3 Remote Controller

1. Standby Key
   After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will self-test again and back to HOME position.
   Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s, it will automatically point to the specified preset position.
2. Camera Address Selection
   Select the camera address which wants to be controlled
3. Number Key
   Set or run 0-9 presets
4. *, # Key
   Key combination use

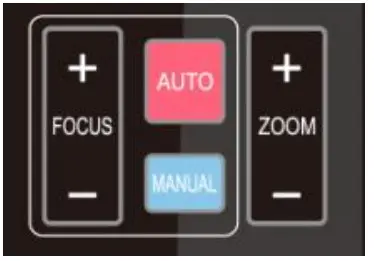

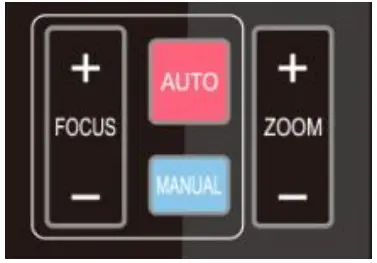

5. Focus Control Key
   Auto Focus: Enter into auto focus mode.
   Manual Focus: The camera focus mode is manual Switch the camera focus mode to manual focus by pressing [focus +] or [focus-] to adjust.
6. Zoom Control Key
   Zoom ＋:Lens near; Zoom －:Lens far
7. Set or Clear Preset key:
   Set Preset: Set preset key + 0-9 number key:
   Clear Preset key: Clear preset key + 0-9 number key

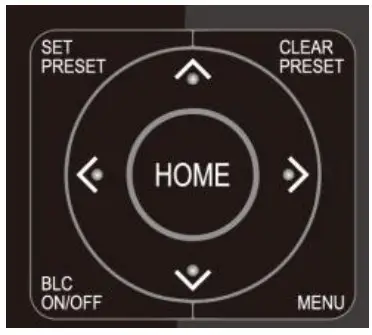

8. Pan/Tilt Control Key
   Press ▲ Key :Up; Press ▼ Key :Down;
   Press ◄ Key :Left; Press ► Key: Right
   “HOME” Key: Return to the middle position or enter into the next level menu
9. BLC Control Key
   Back Light ON / OFF: Turn on or off the back light
10. Menu Setting
    Open or close the OSD menu
    Enter / exit the OSD menu or return to the previous menu.

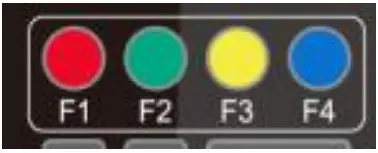

11. Camera IR Remote Control Address Setting
    【*】+ 【＃ 】+【F1 】:Camera Address No.1
    【*】+ 【＃ 】+【F2 】:Camera Address No. 2
    【*】+ 【＃ 】+【F3 】:Camera Address No. 3
    【*】+ 【＃ 】+【F4 】:Camera Address No. 4
12. Key Combination Functions

2.4 Applications
Finishing initialization, it can receive and execute the IR commands. Press the remote controller button, the indicator light is flashing; release the button, the indicator light stops flashing. Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller.
Key Instruction:

1. In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required.
2. When a key-combination is required, do it in sequence. For example,“ 【* 】+ 【# 】+ 【F1 】”means press“【* 】”first and then press“ 【#】” and last press“ 【F1 】”.

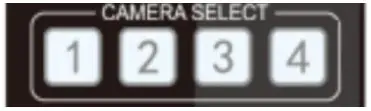

   1) Camera Selection
   Select the camera address to control.
   2) Pan/Tilt Control
   Up: press ▲
   Down: press ▼
   Left: press ◄
   Right: press ►
   Back to middle position: press“ 【HOME 】” Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until it runs to the endpoint; the pan/tilt running stops as soon as the key is released.
   3) Zoom Control
   ZOOM IN: press “ZOOM ▲“ key
   ZOOM OUT: press “ZOOM ▼” key
   Press and hold the key, the camera will keep zooming in or zooming out and stops as soon as the key is released.
   4) Focus Control
   Focus (near):Press “ 【focus+ 】” key (Valid only in manual focus mode)
   Focus (far): Press “ 【focus- 】”key (Valid only in manual focus mode)
   Auto Focus: Support
   Manual Focus: Support
   Press and hold the key, the action of focus will keep continue and stops as soon as the key is released.
   5) BLC Setting
   BLC ON / OFF: support
   6) Presets Setting, Running, Clearing

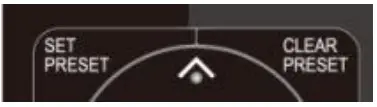

   1. Preset setting: to set a preset position, the users should press the “ 【SET PRESET 】” key first and then press the number key 0-9 to set a relative preset,
   Note: 10 preset positions in total are available by remote controller.
   2. Preset Running: Press a number key 0-9 directly to run a relative preset.
   Note: Action in vain if a relative preset position is not existed.
   3. Preset clearing : to clear a preset position, the user can press the “ 【CLEAR PRESET 】” key first and then press the number key 0-9 to clear the relative preset;
   Note : press the“ 【#】” key three times continually to cancel all the presets.
   7) Camera Remote Controller Address Setting
   【* 】+ 【＃ 】+ 【F1 】:Camera Address No.1
   【* 】+ 【＃ 】+ 【F2 】:Camera Address No. 2
   【* 】+ 【＃ 】+ 【F3 】:Camera Address No. 3
   【* 】+ 【＃ 】+ 【F4 】:Camera Address No. 4

2.5 MENU Settings

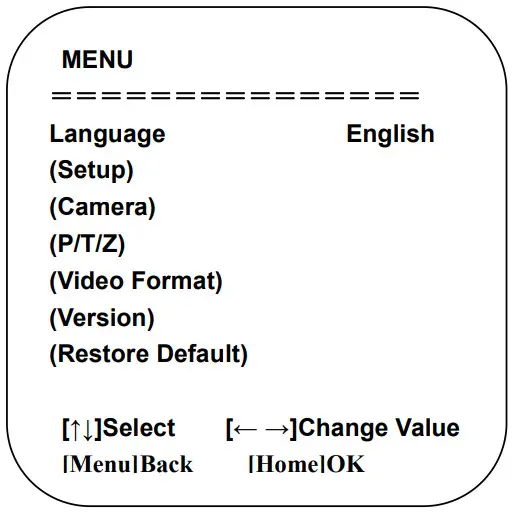

2.5.1 Main Menu
In normal working mode, press 【 MENU 】 key to display the menu, using scroll arrow to point at or highlight the selected items.

LANGUAGE: Language setting, Chinese / English
SETUP: System setting
CAMERA OPTION: Camera setting
PTZ OPTION: Pan tilt setting
VERSON: camera version setting
Restore Default: Reset setting
[↑↓] Select: for selecting menu
[← →] Change Value: for modify parameters
[MENU] Back: Press [MENU] to return
[Home] OK: Press [Home] to confirm
2.5.2 System Setting

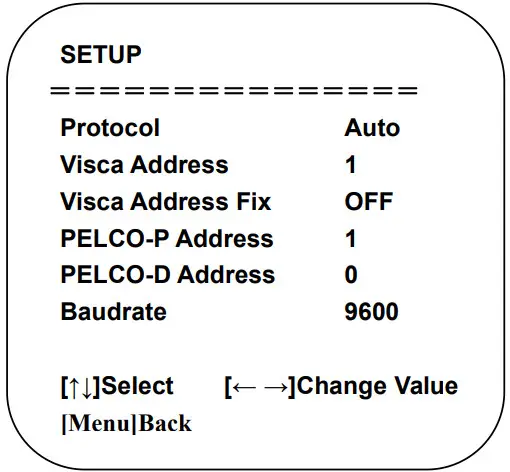

Move the pointer to the (Setup) in the Main Menu, click the 【HOME 】key and enter into the (System Setting) as shown below:

PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto
Visca ADDR:
VISCA=1~7
Pelco-P=1~255
Pelco-D=1~255
Baud rate: 2400/4800/9600/115200
Visca Address Fix: On/Off
2.5.3 Camera Setting

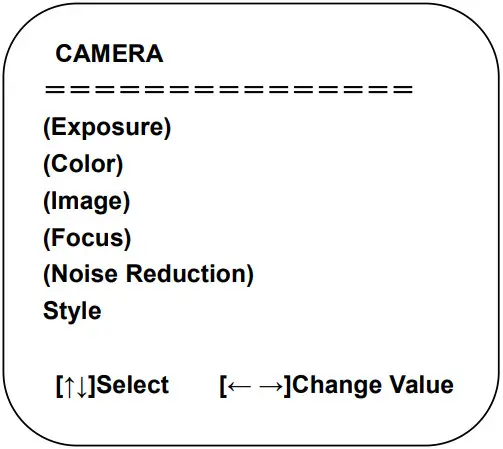

Move the pointer to the (CAMERA) in the Main Menu, click the 【HOME 】key and enter the (CAMERA) as follow:

EXPOSURE: Enter into Exposure setting
COLOR: Enter into color setting
Image: Enter into image setting
Focus: Enter into focus setting
Noise Reduction: Enter into noise reduction
Style: Default, Normal, Clarity, Bright, Soft

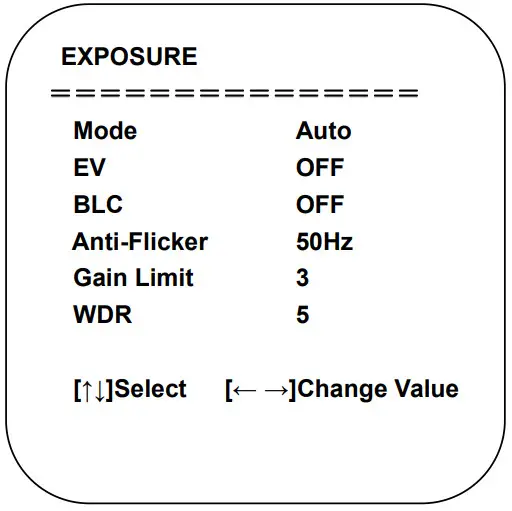

1. EXPOSURE SETTING
   Move the pointer to the (EXPOSURE) in the Main Menu, click the 【HOME 】and enter the (EXPOSURE SET) as follow:
   Mode: Auto, Manual, Shutter priority, Iris priority and Brightness priority.
   EV: On/Off (only available in auto mode)
   Compensation Level: -7~7 (only available in auto mode when EV is ON)
   BLC: ON/OFF for options (only available in auto mode)
   Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes)
   Gain Limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode)
   WDR: Off, 1~8
   Shutter Priority:
   1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/6000,1/1 0000(only available in Manual and Shutter priority mode)
   IRIS Priority: OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8(only available in Manual and Iris priority mode)
   Brightness: 0~23 (only available in Brightness priority mode)
2. COLOR SETTING
   Move the pointer to the (COLOR) in the Main Menu, click the 【HOME 】and enter the (COLOR SET) as follow:
   WB Mode: Auto, 3000K,3500K,4000K,4500K,5000K,5500K,6000K,65 00K,7000K, Manual, One Push
   RG Tuning: -10~10
   RG Tuning: -10~10
   Saturation: 60%,70%,80%,90%,100%,110%,120%,130%
   Hue: 0~14
   AWB Sensitivity: High/Middle/Low

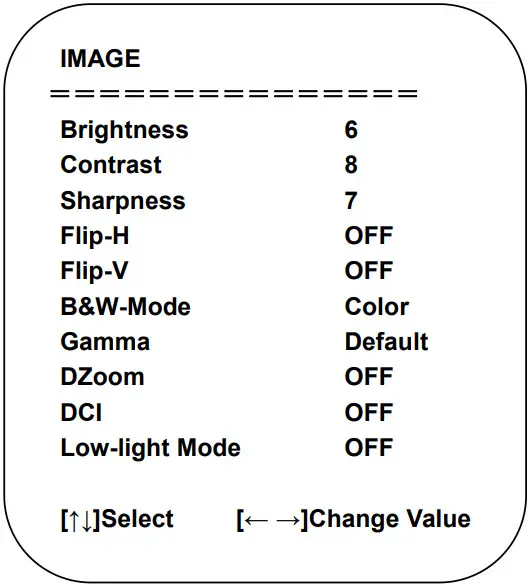

3. IMAGE
   Move the pointer to the (IMAGE) in the Menu, click the 【HOME 】and enter the (IMAGE) as follow:
   Brightness: 0~14
   Contrast: 0~14
   Sharpness: 0~15
   Flip-H: On/Off
   Flip-V: On/Off
   B&W Mode: color, black/white
   Gamma: Default, 0.47, 0.50, 0.52, 0.55
   DZoom: Digital zoom options: On/Off
   DCI: Off, 1 ～8
   Low-light Mode: On/Off
4. FOCUS
   Move the pointer to the (FOCUS) in the Menu, click the 【HOME 】and enter the (FOCUS) as follow:
   Focus Mode: Auto, manual
   AF-Zone: Up, middle, down
   AF-Sensitivity: High, middle, low
5. NOISE REDUCTION

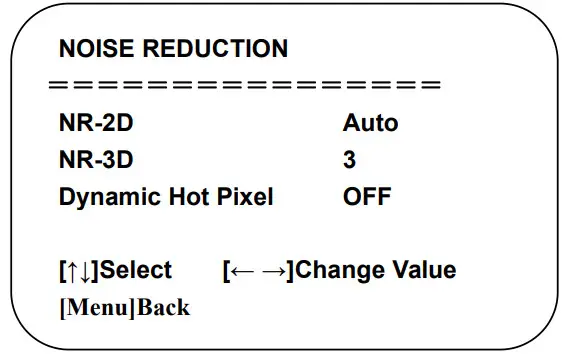

   Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【HOME 】and enter the (NOISE REDUCTION) as follow:
   2D Noise Reduction: Auto, close, 1~7
   3D Noise Reduction: OFF, 1~8
   Dynamic Hot Pixel: OFF, 1~5

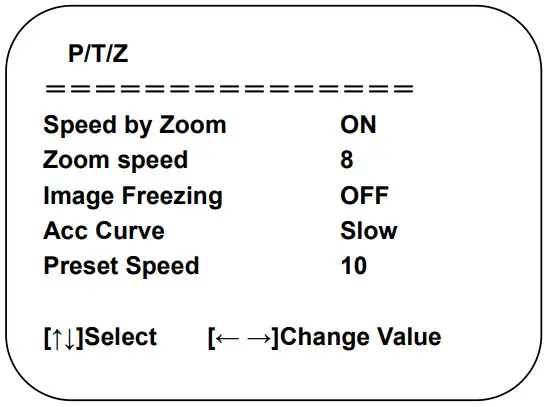

2.5.4 P/T/Z
Move the pointer to the (P/T/Z) in the Main Menu, click the 【HOME 】and enter the (P/T/Z) as follow:

Speed by Zoom: On/ Off When zoom in, the PT control speed by remoter will become slow),
Zoom Speed: Set the zoom speed for remote controller,1~8
Image Freezing: On/Off
Accelerating Curve: Fast/slow
Preset Speed: 1~10

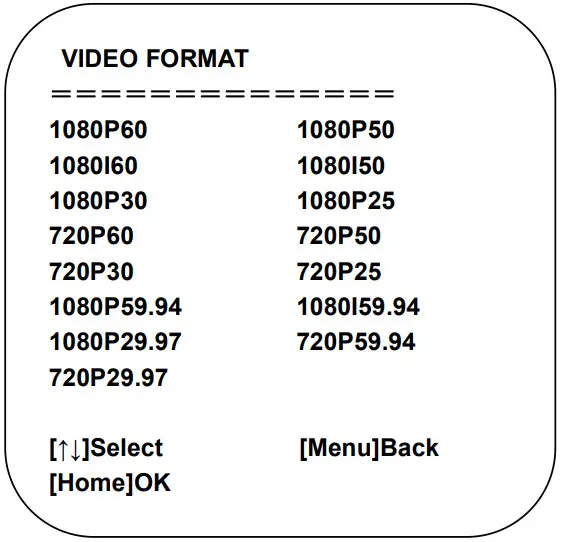

2.5.5 Video Format
Move the pointer to the (Video Format) in the Menu, click the 【HOME 】and enter the (Video Format) as follow. Exit menu after modifying parameter to save it after powered off

2.5.6 Version
Move the pointer to the (VERSION) in the Main Menu, click the 【HOME 】and enter the (VERSION) as follow:

MCU Version: Display MCU version information
Camera Version: Display camera version information
AF Version: Display the focus version information
2.5.7 Restore Default

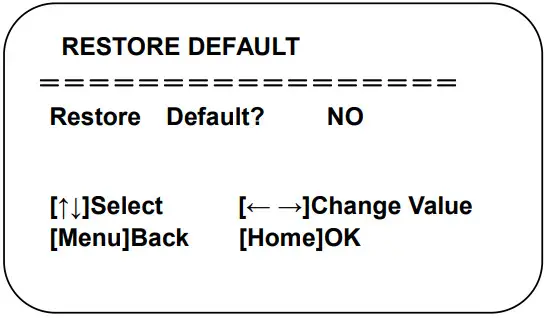

Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click the 【 HOME 】 and enter the (RESTORE DEFAULT) as follow:

Restore default: options: yes/no; after restoring default, the video format won’t be restored.
Note: If the address of former remoter is not 1 but another one from 2, 3, 4, the corresponding camera address will restore to 1 when all parameters or system parameters are restored. User should change the remoter address to be 1 (press No.1 according to the camera so to get normal operation )

NETWORK CONNECTION

3.1 Connecting Mode
Direct connection: Connect the camera and computer by network connecting cable.
Internet connection mode: Connect the camera to Internet by Router or Switch and user can log in the device by browser.
Note: Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by unstable signal transmission due to poor contact of cables.
The computer must have the network segment where the camera IP address belongs to. The device will not be accessible if without the segment. I.E. The camera default IP address is 192.168.5.163, then segment 5 must be added in the computer. Specific steps are as below:

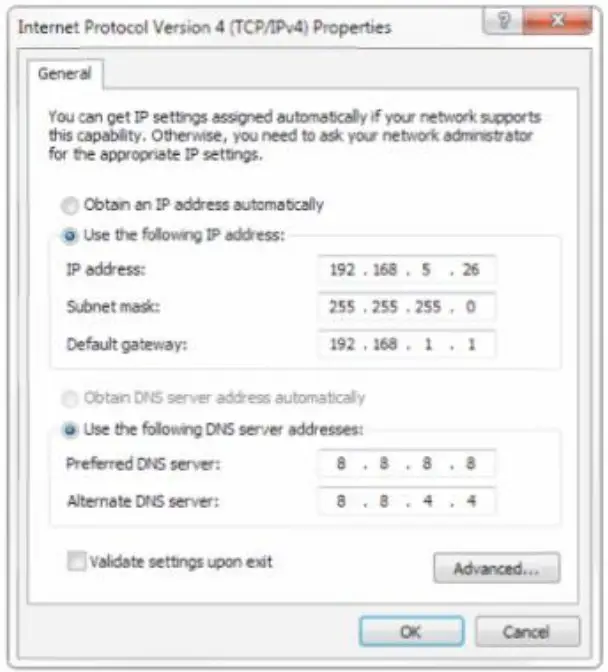

Firstly open the window of Local Area Connection Properties on computer, select the “Internet protocol version 4(TCP/IPv4)” as shown by picture on the left. Double click or click the property “Internet” protocol version 4 (TCP/IPv4)to enter into the Internet Protocol Version 4(TCP/IPv4) Properties window, select “Advanced” to enter into the Advanced TCP/IP Setting and add IP and subnet mask in the IP browser as picture shown below. Click the “Confirm” to finish the adding of IP segment. User can add the corresponding network segment according to the revised IP address of the camera.

Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding.

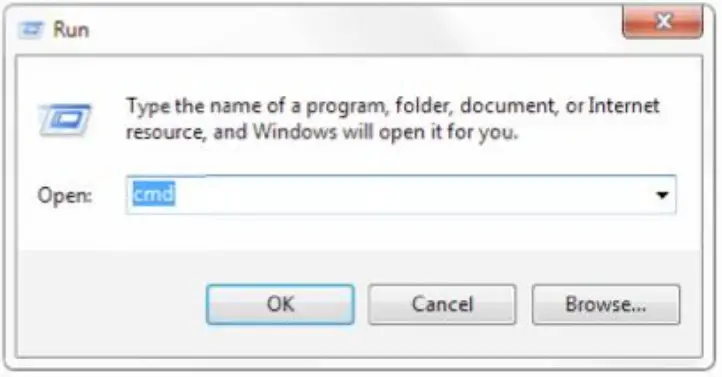

Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added.

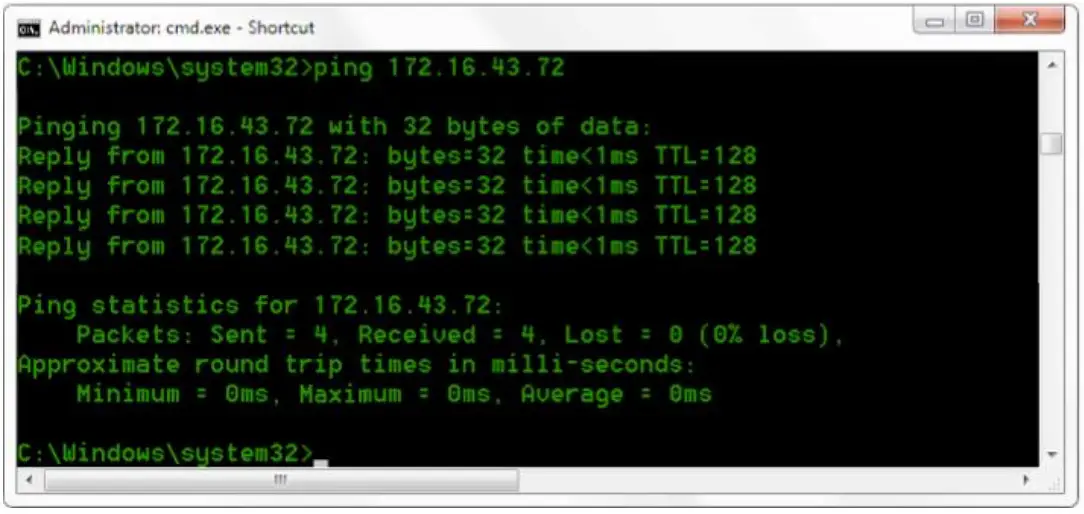

Click “OK” and open the DOS command window, input ping 192.168.5.26 and press Enter key, it will show message as below: which means network segment adding is succeed.

User can also to verify network connection as steps above mentioned after the finish of camera self-check.

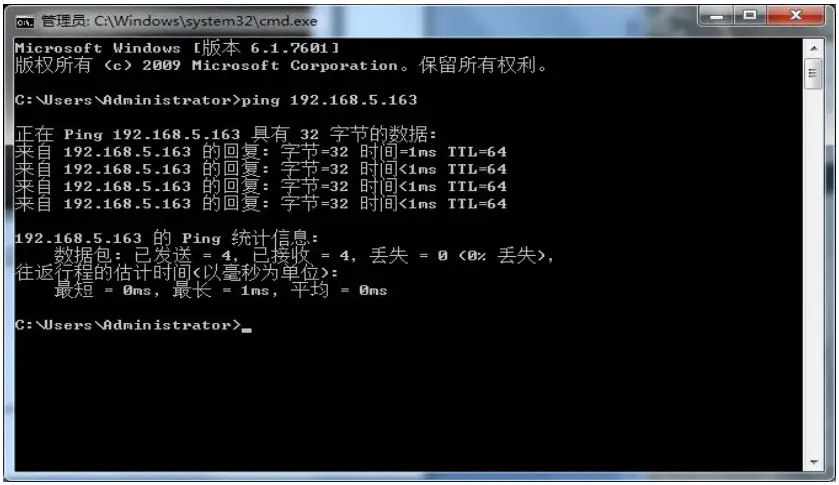

If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.

3.2 IE Log In
3.2.1 Web Client
Web Client Log In
Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, configuration and cancel in the Web Client; If login in as normal user(Default User name/Password:user1 or user2),users can only preview, playback and cancel, no option for configuration.
Note: Web access supported browsers: IE,360 browser and other conventional browser.
3.2.2 Preview
After successful login into the management interface, it enters the video preview interface. In the preview screen, users can control PTZ, zoom, focus, sound, focus, full screen and set the preset position, run, delete and other operations.

1. Login as administrator
   User name, password, the default admin
   PTZ control can be carried out, zoom, focus, sound, zoom, full screen and set the preset position, run, and delete; you can preview, playback, configuration, log off.
2. Login as normal user
   Default User name/password: user1 or user2
   PTZ control can be carried out, zoom, focus, sound, zoom, full screen and set the preset position, un, and delete; you can preview, playback and log off.
   NOTE: There is no configuration right for normal user login.

3.2.3 Configuration
Click Configuration to enter into the device parameters setting page
There are the following options: Audio configuration, video configuration, network configuration, system configuration, detailed description see the following table.

1) Audio configuration
Switch: Choose to enable the audio or not.
Compressing format: Set audio compressing format and the device will reboot automatically after change (default MP3, G.711A ,AAC optional)
Sampling frequency: Set sampling frequency and the device will reboot automatically after change (default 44100,16000,32000 and 48000 optional)
Sampling precision: Set sampling precision (default 16bits)
Compressing code rate: Set audio compressing code rate (default 64bits,32,48,96,128bits optional)
Note Click “SAVE”, it will remind” Enable has changed. Restart the device to take effect after the success of the save.”, then please reboot the camera to make new setting effect.
3.2.4 Video Configuration

1. Video encoding
   Code stream: Stream: Different video output mode setting, use different streams. (Main stream, secondary stream)
   Compression Format: Set the video compression format, save and reboot to take it effect (primary / secondary stream default: H.264,H.265 optional)
   Profile: Profile Mode Setting (Default HP,BP,MP Optional)
   Video Size: Set video image resolution, save and reboot to take it effect (main stream default 1920*1080, 1280*720, 640*480 optional; default secondary stream320*180, 320*240, 640*360, 640*480, 1280*720, 1920*1080 optional )
   Stream Rate control: Set rate control mode, save and reboot to take it effect (Primary / secondary stream default variable bit rate, fixed rate is for option).
   Image Quality: Set the image quality, image quality can be changed only when rate control is variable bit rate,(There are best, better, good, bad, worse, worst for options).
   Rate (Kb / s): Set the video bit rate (main stream default 4096Kb / s, 64-40960Kb/s optional; secondary stream default 2048Kb / s, 64-40960Kb/s optional).
   Frame rate (F / S): Set the video frame rate (primary / secondary stream default 25F / S, primary stream 5-60F/S optional, secondary stream 5-30F / S optional ).
   Key frame interval: Set the key frame interval (primary / secondary stream default 75F,primary / stream 1-300F optional. secondary stream 1-150F optional).
   Stream Name: When streaming via rtsp or rtmp, user can modify stream name. Main Stream(live/av0), sub stream(live/av1)
   Click the “Save” button to display the “saved successfully” message, then settings take effect.
2. Stream release
   Switch: To turn on/off the main / secondary stream.
   Protocol: primary / secondary stream applies RTMP protocol.
   Host Port: server port number (default 1935,0-65535 optional)
   Host Address: server IP addresses (default 192.168.5.11)
   Stream Name: choose a different stream name (live / av0,live / av1 optional).
   User: Set the user name.
   Password: Set the password.
   Click on the “Save” button to display the “Save successful” message, then settings take effect.
   Method of obtaining RTSP: rtsp://device IP address: 554/live/av0 (av0 main stream; av1 secondary stream)
3. RTP broadcasting
   Main/Sub Stream: On/off;
   Protocol: RTP or TS
   Addres: Default 224.1.2.3. It can be edited.
   Port: Main Stream Default Port: 4000,Sub Stream Default Port: 4002)
   Visit: Address comes up after setting. Eg; rtp://224.1.2.3:4000;udp://@224.1.2.3:4000;
4. Video parameters
   (a) Focus: Focus mode, focus range, focus sensitivity can be set.
   Focus Mode: set the focus mode (the default auto, manual, on push optional)
   Focus range: set the focus range (the default middle, the upper and lower optional)
   Focus Sensitivity: Set the focus sensitivity (default is low, high, medium optional)
   (b) Exposure: Exposure mode, exposure compensation, back light compensation, anti-flicker, gain limit, wide dynamic, shutter speed, aperture value and brightness can be set.
   Exposure Mode: Set the exposure mode (the default automatic, manual, shutter priority, aperture priority, Brightness priority optional
   Exposure compensation: Exposure compensation setting is active when it is auto status (default is off).
   Exposure compensation value: Set the exposure compensation value, valid when it is set for auto(default 0,-7 to 7 optional).
   BLC: Set back light compensation, valid when it is auto status (default is off).
   Anti-flicker: Set up anti-flicker mode, valid when status of automatic, aperture or brightness priority (default 50Hz,closed,60Hz optional).
   Gain limit: set the gain limits, auto, active when it is status of aperture or brightness priority(default 3, 0-15 optional).
   Dynamic range: set the dynamic range (default 5,0-8 optional).
   Shutter speed: active when it is status of manual or shutter-priority (default 1/100,1/25,1/30,1/50,1/60,1/90,1/100,1/120, 1/180,1/250,1/350,1/500,1/1000,1 /2000,1 / 3000, 1/4000,1 /60 00,1/10000 optional).
   Aperture value: Set the aperture value, active when it is status of manual or aperture-priority(default F1.8,closed, F11, F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2 .8,F2. 4,F2.0, F1.8 optional).
   Brightness: Set the brightness value, active when it is a state of brightness priority (default 7,0-23 optional).
   (c) Color: White balance, saturation, color, white balance, sensitivity, color temperature, gain red and blue gain can be set.
   White balance modes: Set the white balance mode (the default automatic, VAR, manual, One-push optional).Note: Click the “Correction” button when selected the One-push white balance mode.
   Saturation: Set the saturation (default 80%,60%,70%,80%,90%,100%,110%,120%,130%,optional).
   Auto white balance Sensitivity: Sensitivity Auto white balance settings (default is low, high, medium optional).
   Chroma: Set the chrome (default 7,0-14 optional).
   Color Temperature: set color temperature(Default setting: High, with low, middle for options)
   Red Gain: Set the red gain, effective when it is manual (default 140,0-255 optional).
   Blue Gain: Sets the Blue gain, effective when it is manual (default 88,0-255 optional).
   (d) Image: Brightness, contrast, sharpness, black and white mode, the gamma curve, Horizontal Flip and Vertical Flip can be set.
   Brightness: Set the brightness (default 6,0-14 optional).
   Contrast: set the contrast (default 8,0-14 optional).
   Sharpness: Set the sharpness value (default 7, 0-15 optional).
   Black and white mode: Set black and white mode (default color, black/white optional ).
   Gamma: Gamma value setting (default,0.45,0.50,0.55 ,0.63 optional).
   Flip Horizontal: Set Flip Horizontal (default Off, On optional).
   Flip Vertical: Set vertical flip (default Off, On optional).
   Low-Light Mode: Set Low-Light Mode (default Off, On optional).
   (e) Noise reduction: 2D noise reduction,3D noise reduction and dynamic dead pixel correction available.
   2D Noise Reduction: Set 2D noise reduction level (default 3,1-7 Auto and Off optional).
   3D Noise Reduction: Set 3D noise reduction level (default 5,1-8 and Off optional).
   Dynamic dead pixel correction: Set Dynamic dead pixel correction (default Off,1-8 optional).
   (f) Style ：Set style (Default, Meeting, Clarity, Bright, Soft optional).
   Note: Click “Refresh” to make revision of any video parameters of a, b, c, d, e effective .
5. Character-Overlapping
   Display date and time: Set whether to display the time and date (default display).
   Display Title: Set whether to display the title (default display).
   Font Color of Time: Set font color of time and date (default white, black, yellow, red, blue optional).
   Font Color of Title: Set font color of title (default white, black, yellow, red, blue optional).
   Moving characters: Set the display position of moving date, time and title ,click on the “up, down, left, right” buttons to move the corresponding character position.
   Title Content: Set title content (default CAMERA1).
   Time Content: Set time content (default 1970/01/10 05:36:00)
   Click on the “Save” button and display the “Save successful” message, then valid
6. Character size
   Main stream character size: Set the character size of the display, the device will restart automatically after changed and saved (default 48 ，28-200 optional)
   Secondary stream character size: Set the character size of the display, the device will restart automatically after changed and saved(default 48 ，28-200 optional)
   Click on the “Save” button to display “Parameter saved successfully” message, set to take effect
7. Video output
   Output Format: Set the video output format (default 1080P60,1080P50,1080P30,1080P25,1080I60,1080I50,720P60,720P50,720P30,720P25,1080P59.94,
   1080I59.94,1080P29.97,720P59.94,720P29.97 optional).
   Click on the “Save” button, it will be valid when display “Save successful”.

3.2.5 Network Configuration

1. Network port
   Data port: set the data port, the device will restart automatically after changed(default 3000,0-65535 optional).
   Web Port: Set Web port, the device will restart automatically after changed (default is 80,0-65535 is optional).
   Onvif Port: Set Onvif port, the device will restart automatically after changed(default 2000,0-65535 optional).
   Soap Port: Set Soap port (default 1936,0-65535 optional).
   RTMP Port: Set RTMP port (default 1935,0-65535 optional).
   RTSP Port: Set RTSP port, the device will restart automatically after changed (default 554,0-65535 optional).
   Visca Port: Set Visca port, the device will restart automatically after changed (default 3001,0-65535 optional).
   Click on the “Save” button, it will be valid when display “Save successful”.
   RTMP access: RTMP: / / equipment IP address: 1935 / live/av0 (av0 main stream; av1 second stream)
   RTMP Access: rtmp://equipment IP address: 1935 / live/av0 (av0 main stream; av1 second stream)
2. Ethernet parameters
   DHCP: Enable or disable obtain IP automatically can be set. Save changes and reboot the device to takes effect ( Default: OFF)
   IP Address: Set the IP address, save changes and reboot the device to takes effect (default 192.168.5.163).
   Note: This IP address is the same with the one used to login Web page.
   Subnet Mask: Set the subnet mask (default 255.255.255.0).
   Default Gateway: Set the default gateway (default 0.0.0.0).
   Physical Address: Set the physical address (the parameter is read-only but can not be modified).
   Click on the “Save” button, it will be valid when display “Save successful”. (Note: To prevent IP conflicts When modify ).
3. DNS parameters
   Preferred DNS server: set the preferred DNS server. (Default 0.0.0.0).
   Alternate DNS server: Alternate DNS server settings. (Default 0.0.0.0).
   Click on the “Save” button, it will be valid when display “Save successful”.
4. GB28181
   Switch: set whether open GB28181,can check
   Time Synchronization: whether synchronization time is set, you can check
   Stream Type: stream type setting (the default main stream, secondary stream optional)
   Sign effective time (in seconds): 3600 Range 5-65535
   Heartbeat time (seconds): 60 Range 1-65535
   Register ID: 34020000001320000001
   Register User name: IPC
   Register Password: 12345678
   Equipment ownership: Users can add their own
   Administrative regions: Users can add their own
   Alarm Zone: Users can add their own
   Equipment installation address: Users can add their own
   Local SIP Port: 5060 Range 0-65535
   GB28181 Server Address: IP address of the computer
   Server SIP Port: 5060 Range 0-65535
   Server ID: 34020000002000000001
   Click on the “Save” button, it will be valid when display “Save successful”.

3.2.6 System Configuration

1. Device properties
   Device Name: Set the device name (the default Camera1,user can add their own).
   Device ID: Set the device ID (default 1,Read-Only).
   System Language: Set the system language (default Simplified Chinese, English optional).Need to re-login after modify and save the setting.
   Click on the “Save” button, it will be valid when display “Save successful”.
2. System time
   Date Format: Set the date format (YYYY-MM-DD default That year – month – day, MM-DD-YYYY namely
   Month – Day – Year, DD-MM-YYYY date – month – year Optional).
   Date separator: set the date separator (default ‘/’,’.’,’-‘ Optional).
   Time Zone: Set the time zone (default East eight districts, other time zones optional).
   Time Type: Set the time types (default 24 hours, optional 12 hours).
   Time setting: Set time mode (to choose the computer time synchronization, NTP server time synchronization, or set manually).
   Computer Time: Set the computer synchronization valid.
   Update interval: Set the NTP server automatic updated time interval. Valid after setting NTP server synchronization (default one day, 2-10 days Optional).
   NTP server address or domain name: Set NTP server address or domain name (default pool.ntp.org).
   Valid after setting NTP server synchronization.
   NTP Server Port: Sets the NTP server port (default 123).Valid after setting NTP server synchronization.
   Set the time manually, Effective when set manually.
   Click on the “Save” button, it will be valid when display “Save successful”.
3. User management
   Select users: Set the user type (the default administrator, Common User 1,Common User 2 optional)
   User name: set the user name (Select User Administrator default admin; select a common user1 default user1; to select a common user 2 default user2; user can modify their own)
   Password: Set a password(Select User Administrator default admin; select a common user1 default user1; to select a common user 2 default user2; user can modify their own).
   Password confirmation: Confirm the input passwords are the same or not.
   Click on the “Save” button to display the “Save successfully” message, then the set is to take effect.
   Note: Please note the case-sensitivity of the user name and password.
   If login page by a common user’s name and password ,one does not have configuration privileges but can only operate to preview, playback, logoff.
4. Version upgrade
   MCU version V3.2.5 2022-7-11
   Camera version V1.0.7 2022-11-10
   Focus version V4.0.6 2021-12-16
   Users only read the version information above which is consistent with the menu version but can not modify. Different types of the machine has different information.
   Update file:
   Click “Browse …” installation, to select the upgrade file in the pop-up window.
   Click on the “Upgrade” button, the upgrade dialog will appear. the device will reboot automatically after update successfully. (Note: make sure the power and network is keeping connected during the process. or the upgrade will fail)
   Note: After the version upgrade is complete, you need to restore factory defaults; a, through web to restore the factory default configuration; b, through the recovery menu; c, remote control shortcut * # 6; Choose one of the above three ways. If chose a, the IP accounts, passwords also need to be restored to the default.
5. Restore factory setting
   Click on pop-up “Restore Factory Defaults” button and choose “yes” or “no”, then the device will restart automatically and restore factory setting .
6. Reboot
   Click on the pop-up “Reboot” button and choose “yes” or “no”, then the device will restart automatically

3.2.7 Logout
Point “Logout” pop-up “Confirmation” dialog; select “Yes” or “No”, choose “Yes” to exit the current page and return to the user login interface again.
3.2.8 Wireless Network
If the user’s equipment has a wireless network module, Web page “Network Configuration” has “Wireless Network” configuration page ,the specific configuration is as follows:

1. Network settings
   Wireless network configuration:
   Network interface enable: can check, to set the following items after checked.
   DHCP: can check, if check, it can obtain IP automatically.
   IP address: set wireless WIFI IP(default 192.168.1.250 ,if checked DHCP,IP could assigned automatically)
   Note: wireless IP address can not be in the same segment with wired IP address.
   Subnet Mask: Set the wireless IP subnet mask (default255.255.255.0)
   Default Gateway: Set the wireless IP default gateway (default 192.168.1.1)
   SSID: The user can modify their own (the default test)
   Encryption: can check, the password can be set after checked.
   Password: can set password, password can be changed if only checked encryption.
   Click on the “Save” button to display “Parameter saved successfully” message, set to take effect
   Note: SSID and password should be filled in correctly, otherwise, if restarted after the powered off, the wireless WiFi connection is not successful.
2. WiFi hot link
   Click on the “search” button to search the WIFI hotspot.
   Double-click the dialog box after searched user WIFI hotspot, and then input password to connect WIFI. It connected successfully after shown “successful connect” window.
3. Wireless WiFi login page
   If you do not check the above configuration DHCP (automatically obtain IP), then open the browser, enter the wireless network IP address in the address bar (default  192.168.1.250),press Enter to log construction; If you checked DHCP, then you obtain IP automatically, just login specific router or switch user interface settings to view the allocation of IP address.

SERIAL COMMUNICATION CONTROL

Under common working condition, the camera could be controlled through RS232/RS485 interface(VISCA),RS232C serial parameter are as follows:
Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None.
After power on, the camera first go left, then back to the middle position. Self-test is finished after the zoom moved to the farthest and then back to the nearest position. If the camera saved 0 preset before, it will be back to that position after initialization. At this point, the user can control the camera by the serial commands.
4.1 VISCA Protocol List
4.1.1 Camera Return Command

z = camera address + 8

4.1.2 Camera Control Command

Note: [X] in the above table indicates the camera address to be operated, 【y 】= 【x + 8 】.
4.2 Pelco-D Protocol Command List

4.3 Pelco-P Protocol Command List

MAINTENANCE AND TROUBLESHOOTING

5.1 Camera Maintenance

1. If camera is not used for long time, please turn off power adapter switch and AC plug.
2. Use soft cloth or tissue to clean the camera cover.
3. Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.

5.2 Troubleshooting

1. No video output
   A) Check whether the camera power supply is connected, the voltage is normal, the power indicator is lit.
   B) Whether the machine could do self-inspection after restarted.
   C) Check whether the bottom of the DIP switch is the normal operating mode
   D) Check whether the video output cable or video display is normal
2. No image sometimes
   Check whether the video output cable or video display is normal
3. Image dithering when zoom-in or zoom-out
   (A) Check whether the camera installation position is solid
   (B) Whether there is shaking machine or objects around the camera
4. Remote controller can not work
   (A) Remote control address is set to 1 (if the machine is set back to the factory defaults, remote control addresses need to be back to 1 too)
   (B) Check whether the battery is installed on the remote controller or low .
   (C) Check the camera working mode is the normal operating mode
   (D) Check the menu whether is closed, camera control through remote controller is only available after exiting the menu. If video output from LAN, menu will not be displayed, menu will automatically exists 30s later, then it can be controlled by remote controller.
5. Serial port can not work
   (A) Check whether the camera serial device protocol, baud rate, address is consistent
   (B) Check whether the control cable is connected properly
   (C) Check whether the camera working mode is the normal operating mode
6. Web pages can not log in
   (A) Check whether the camera is showing normally.
   (B) Check whether the network cable is connected properly(Ethernet port yellow light flashes to indicate normal network cable connection)
   (C) Check whether your computer is added the segment and the segment is consistent with the IP address of the camera
   (D) Click “Start” and select “Run” and then type “cmd” in the computer; Click “OK” then turn on a DOS command window to enter ping 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal

Copyright Notice:
All the contents of this manual and the copyright ownership belong to the company. Without the approval of the Company, no one can imitate, copy, reproduce or translate arbitrarily. This manual does not have any form of warranty, express or other imply. Specifications and information of this manual mentioned is just for informational purposes, and the content will be updated at any time without notice.
Copyright can not be reproduced.

References

• pool.ntp.org
