TE-FDRH Manual

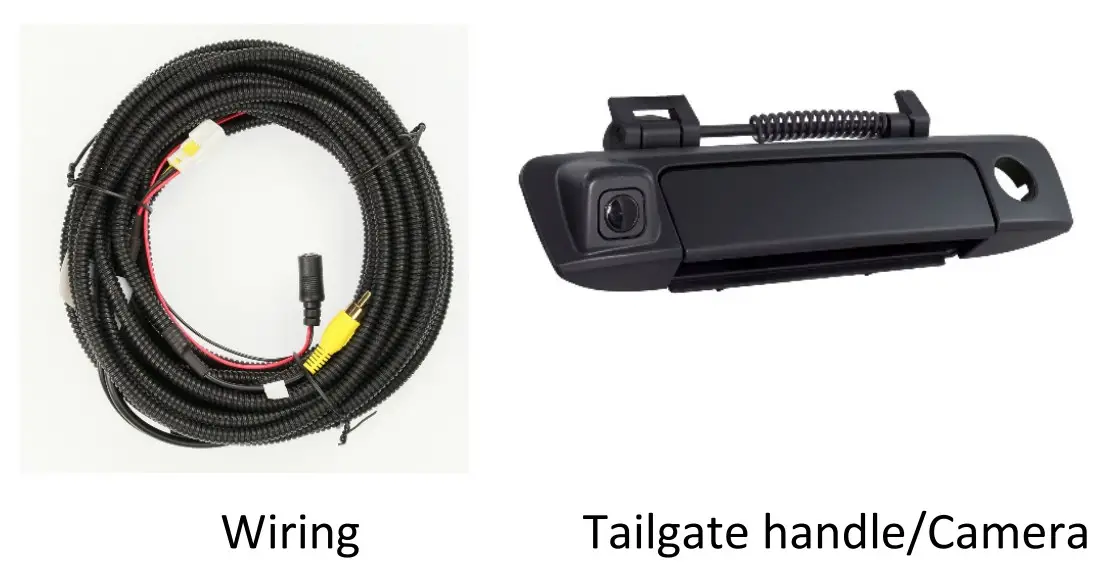

Box Contents
Applications
2012-up* Ford Ranger, Mazda BT50
*See iBEAMUSA.com for a full list of applications and year ranges
Installation
- Connect the RED wire to a 12V reverse trigger.
- Connect the BLACK wire to the chassis ground.
- Cut the WHITE loop to cancel the parking guidelines

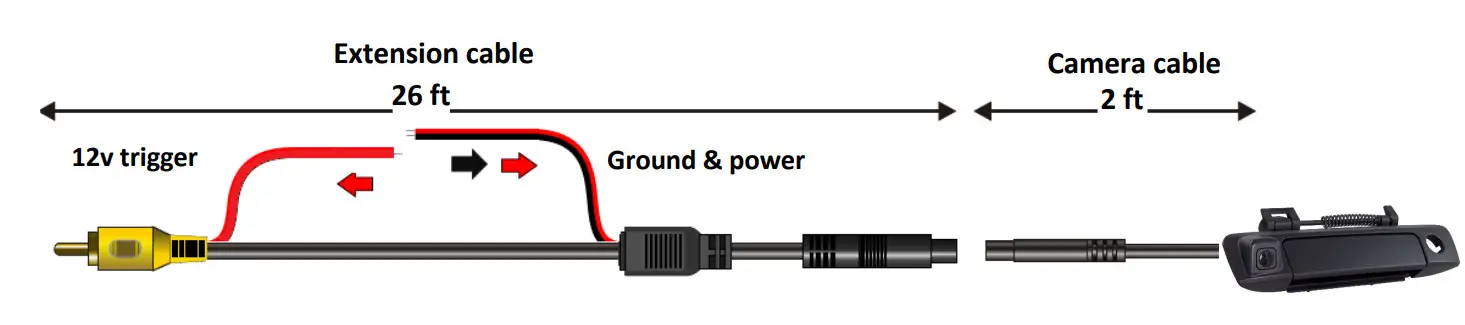

Wiring diagram
Specifications
| Sensor | CMOS ¼ sensor |
| Resolution | 400 TV Lines |
| Field of View | Diagonal 168°, Horizontal 136°, Vertical 100° |
| Illumination | 0.1 Lux |
| IP Rating | IP69 |
| Parking Lines | Defeatable |
| Extension Cable | 26’ |
| TV System | NTSC |
| Working Temp. | -20°C ~ 70°C |
| Warranty | 3 Years |
IMPORTANT
If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
 | KNOWLEDGE IS POWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. |
 | Metra recommends MECP certified technicians |
800.221.0932
iBeamUSA.com
460 Walker Street, Holly Hill, FL 32117
REV. 07/17/2018
