iBEAM TE-FDHDH Tailgate Handle Camera for Ford Installation Guide
iBeamUSA.com
MetraDealer.com
[email protected]
TECH SUPPORT
800-2538324

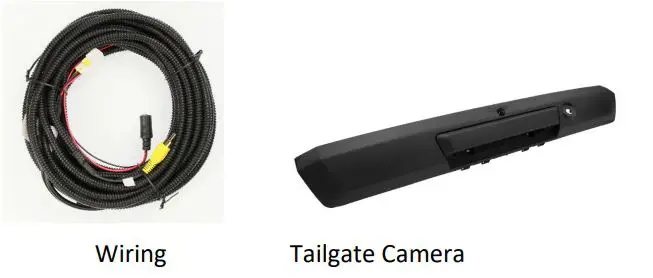

Box Contents
Applications
2017-up* Ford F-250/F-350/F-450
Installation
- Connect the RED wire to a 12V reverse trigger.
- Connect the BLACK wire to a chassis ground.
- Cut the WHITE loop to cancel the parking guide lines.

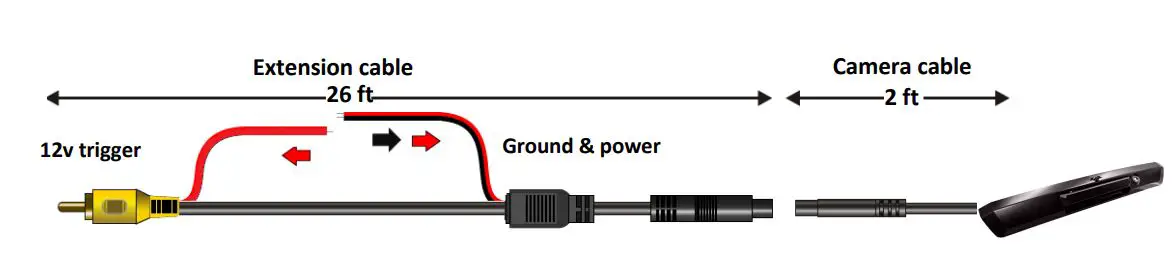

Wiring diagram
Specifications
IMPORTANT
If you are having difficulties with the installation of this product, please call out Tech Support line at 1-
800-253-TECH. Before doing so, looks over the instructions a second time, and make sure the
installation was performed exactly as the instructions are stated. Please have the vehicle apart and
ready to perform troubleshooting steps before calling.
Enhance your installation and fabrication skill by enrolling in the most recognized and respected mobile electronics school in our idustry. Log anto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Metra recommends MECP certified technicians.
800.221.0932
iBeamUSA.com
460 Walker Street, Holly Hill, FL 32117
REV. 10/25/2018
