User Guide
S2080-0010 Sachtler Adapter
Pedestal Adaptor Cl, Clll aktiv Head 75 mm / 100 mm
S2080-0010 Adaptor Ped CI / CIII aktiv 75 mm
S2080-0011 Adaptor Ped CI / CIII aktiv 100 mm
Caution! Please refer to your fluid head and pedestal user guides for full safety instructions.
WARNING! Where this symbol appears, a potential pinch point exists, where injury to fingers or hands is possible, exercise caution.

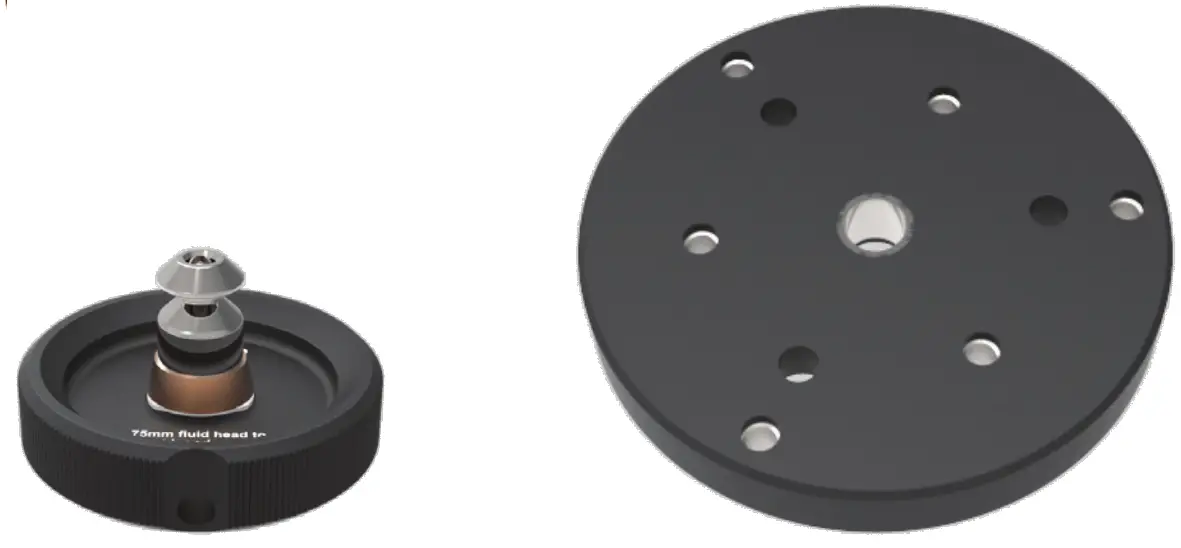

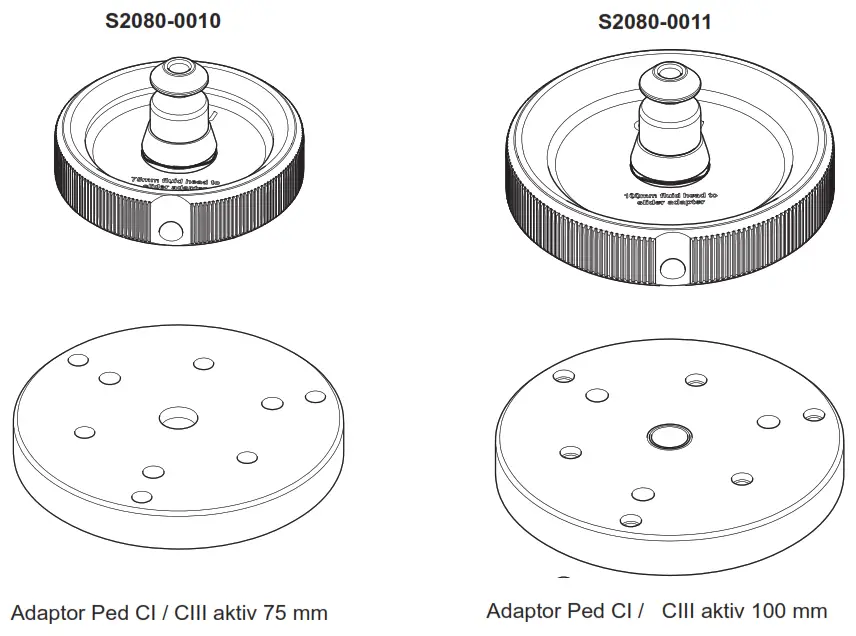

Box Contents
Attach aktiv 75 mm / 100 mm to Clll Pedestal
Part No. S2080-0010 (75 mm) S2080-0011 (100 mm)

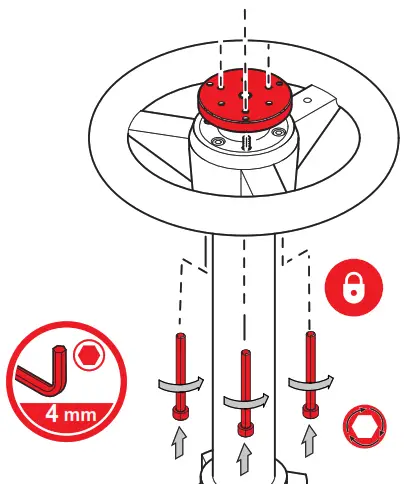

- Fix the adaptor & head to the Clll using the 3 x screws (D091205501 M5*50) supplied with the Clll pedestal. Check the adaptor is firmly attached to the pedestal.

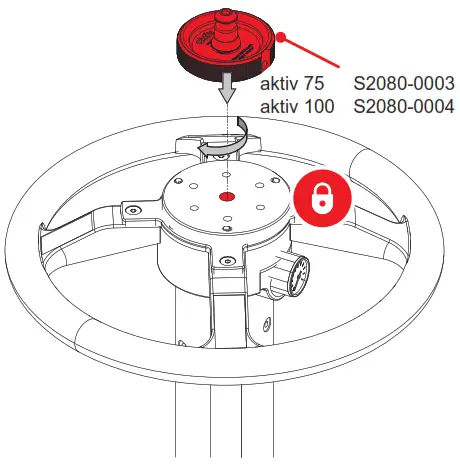

- Firmly screw the slider adaptor to the centre hole of the pedestal.

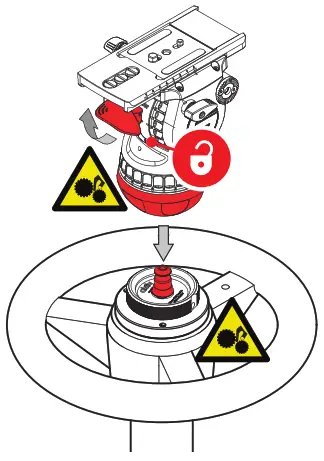

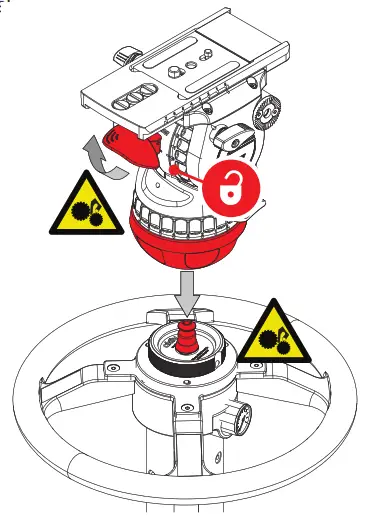

- Lift the SpeedLevel Lever as shown all the way to the top. Lower the head onto the bowl connector and release the SpeedLevel lever.

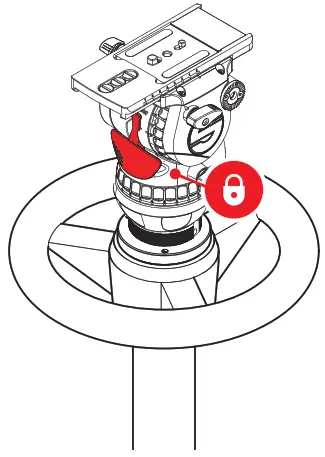

Check the head is firmly attached to the pedestal.
- CAUTION! Push the SpeedLevel Lever fully closed against the head body before use.
Attach aktiv 75 mm / 100 mm to Cl Pedestal

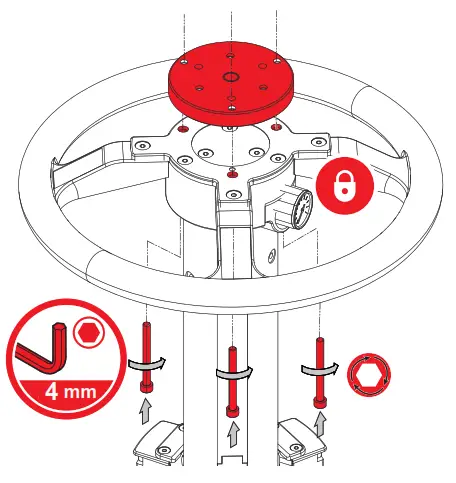

- Fix the adaptor & head to the Cl using the 3 x screws (D091205351 M5*35) supplied with the Cl Pedestal. Check the adaptor is firmly attached to the Pedestal.

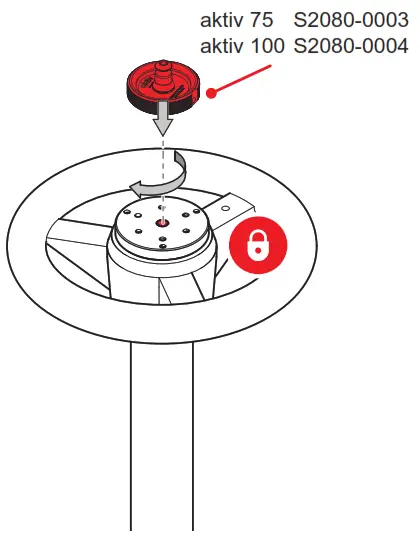

- Firmly screw the slider adaptor to the centre hole of the pedestal.
- Lift the SpeedLevel Lever as shown all the way to the top. Lower the head onto the bowl connector and release the SpeedLevel lever.
CAUTION! Push the SpeedLevel Lever fully closed against the head body before use.
CAUTION! Check the head is firmly attached to the pedestal.
