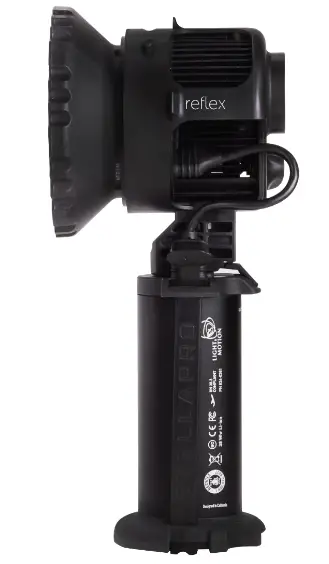

reflex Stellapro LED-Flash Head
BATTERY HANDLE

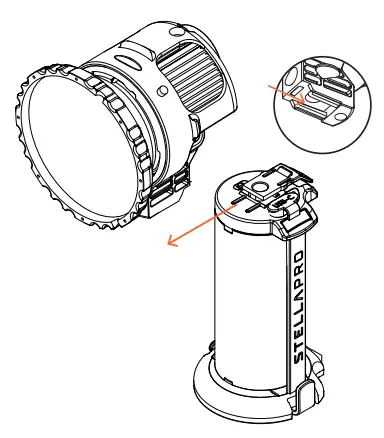

MOUNTING BATTERY TO REFLEX

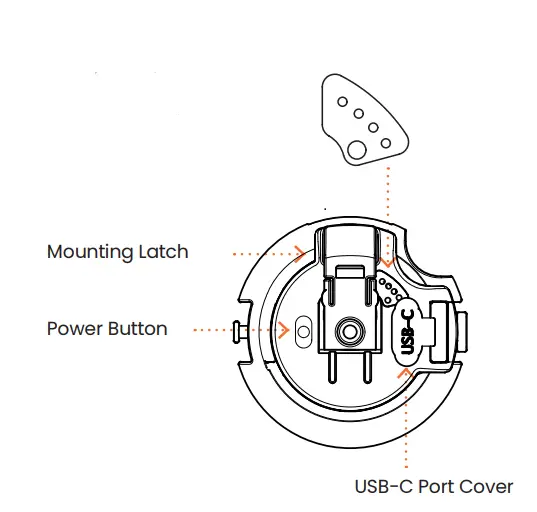

OPERATION
- 4 LEDS to indicate charge (25, 50, 75, 100)
- Bi-Color LED to indicate state
- Charging (Green)
- Discharging (Red)
Battery Runtime on Continious:
- High (30 minutes)
- Low: (600 minutes)
Charge (2hrs)
15,000 full power burst per charge.
Fully charge battery use
Battery generates high temperature heat while on continuous. Practice caution when handling after extended use.
Battery Discharge Warning:
Make sure to charge the battery every 6 months or the battery will become deeply discharged and may not operate at optimum condition.
DOWNLOAD STELLAPRO IMAGING CONTROL APP (iOS)
Registering your device
Register your device using the StellaPro app to get access to the latest firmware updates.
Firmware update
As we make improvments and add new capabilities make sure to check for the latest firmware to ensure the Reflex is operating to it’s full capabilies. Download the latest update to your device directly from your phone.
