Swit Bl-200/bl-300 Bowens Cob Led Light User Manual

BL-200/BL-300 Bowens COB LED Light Ver:A
USER MANUAL
SWIT Electronics Co.,Ltd.

Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.

Specification

Warning

1. Do not pull out the power cable when the light is power on. Cut off the power when not using, switch off the light before pull out or plug in;
2. Do not disassemble the light or touch the internal of the light with metal object to avoid damage;
3. Do not use the light in raining or snowing days or store in wet environment.

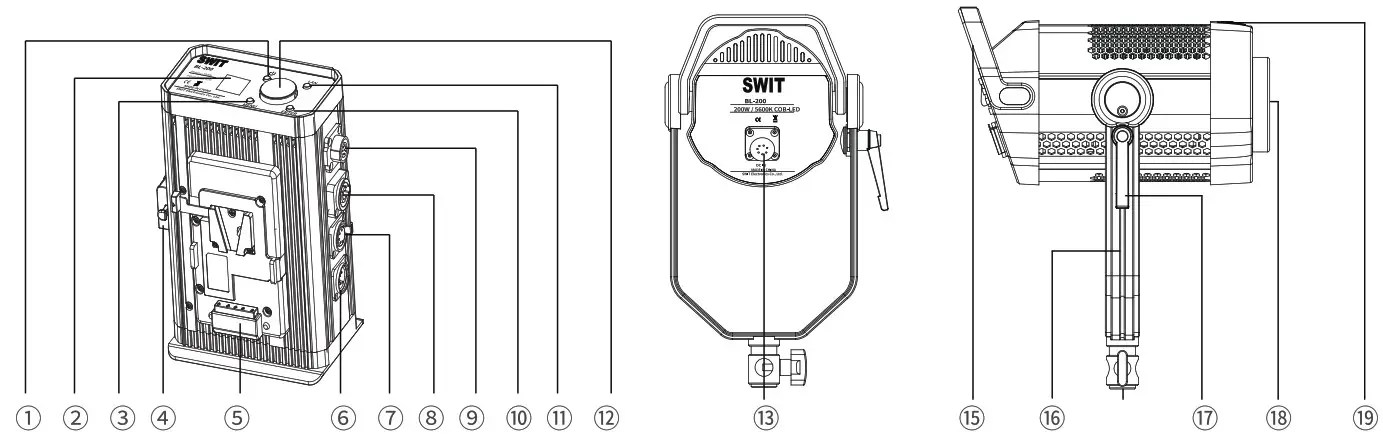

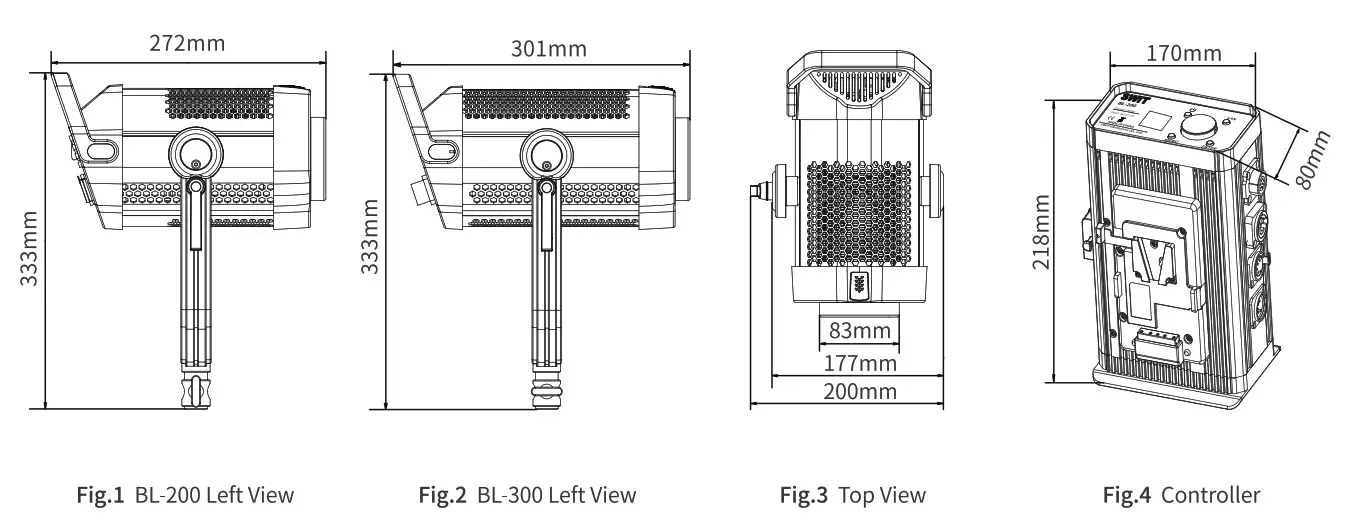

Appearance

Control Interface & Menu

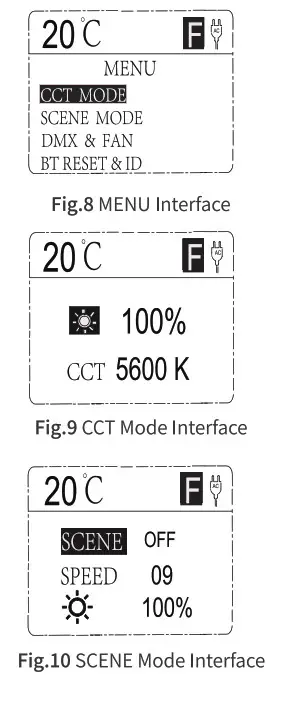

1. MENU INTERFACE Switch on the light(Fig.5 C)),screen will show the interface before last time switch off, press”ENTER”button (Fig.5 ())to return to menu interface(Fig.8).
2. CCT MODE PressuMENUnbutton(Fig.5 ®)to return to menu interface(See Fig.8),press “ENTER”button(Fig.S C))to enter into CCT mode(See Fig.9), press “ENTER” button(Fig.5 (Aagain to choose intensity,rotate the adjusting knob(Fig.5 ©)to adjust the intensity of the light in according to use requirement.


   No.	Parameter	Adjusting Range
   1	Intensity	000%-100%

3. SCENE MODE Press”MENU”button(Fig.S ®)to return back to menu interface(See Fig.8), rotate the adjusting knob(Fig.5 to “SCENE”, press”ENTER”button (Fig.5 (C)to enter into scene mode(See Fig.10):
   ► Rotate the adjusting knob(Fig.5 @):change the parameter or change the value;
   ► “ENTER”button(Fig.5 (A:choose the parameter or back to previous step.

   No.	Parameter	Adjusting Range
   1	SCENE	OFF,01-09
   2	SPEED	00-10
   3	Intensity	000-100

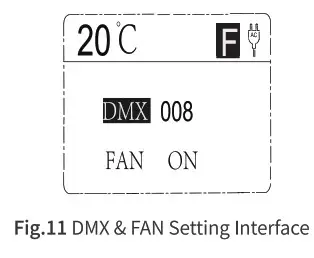

4. DMX & FAN SETTING Press”MENU”button(Fig.5 (Ato return back to menu interface(See Fig.8),rotate the adjusting knob(Fig.5 to “DMX & FAN Setting”, press”ENTER “button(Fig.S CAto enter into DMX & FAN setting mode(See Fig.11):
   ► Rotate the adjusting knob(Fig.5 ®):change the parameter or change the value;
5. ► “ENTER”button(Fig.5 ®):choose the parameter or back to previous step.


   No.	Parameter	Adjusting knob
   1	DMX	000-512
   2	FAN	ON/OFF

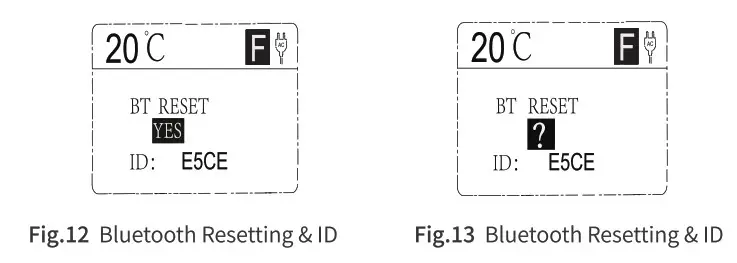

   5. Bluetooth Resetting & ID
   Press”MENU”button(Fig.5 @)to return back to menu interface(See Fig.8),rotate the adjusting knob (Fig,5 @)to” Bluetooth reset & ID”, press” ENTER” button(Fig.5 @)to enter into Bluetooth reset & ID interface(See Fig.12),rotate the adjusting knob(Fig.5 @)to set”?”to” Yes” then finished the reset.
   6. Language
   Press”LANGUAGE”button(Fig.5 @®)to change the language between Chinese and English.
   7. Parameter Adjusting Speed
   This product is equipped with fast and slow adjustment modes for parameters. Press the adjustment knob (Figure 5) to complete the switch.
   The upper right corner of the screen shows:
   > “F” represent fast adjusting mode;
   » “S”represent slow adjusting mode.

DMX Mode

Press” MENU”button(Fig.3 @)to change the working mode to DMX mode, connect all the light through DMX cable and connect with DMX signal output device, set the DMX address(See 4 DMX & FAN SETTING).
This product occupy one DMX channel to adjust the intensity, intensity adjusting range: 000%-100%.

APP Usage

1. APP Name and download
   1) APP Name: SWIT BL(Android)/ DeSal Lite+(IOS)
   2) Download:
   » Android: Scan QR to Install(Fig.14);
   » IOS: Apple Store search”DeSal Litet”to Install.
2. APP Using Attention
   » Please reset the Bluetooth of light if APP can not recognize the light;
   > APP can only control to turn off the brightness of the light, and the power switch of the lamp is controlled in the body.

https://www.swit.cc/uploads/APK/SWIT_BL.apk

Packing List

Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: [email protected]
