Uline H-5942, H-5943, H-5944, H-5945 Dog Waste System Installation Guide

H-5942, H-5943 H-5944, H-5945

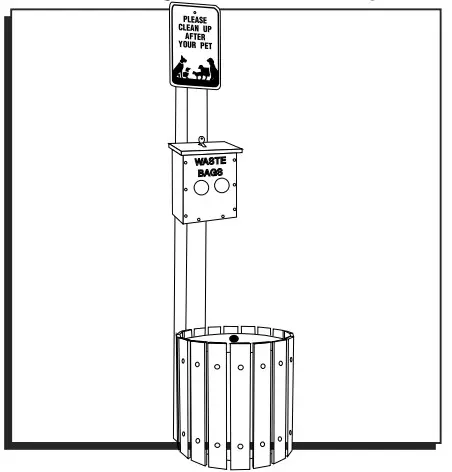

DOG WASTE SYSTEM
1-800-295-5510
uline.com

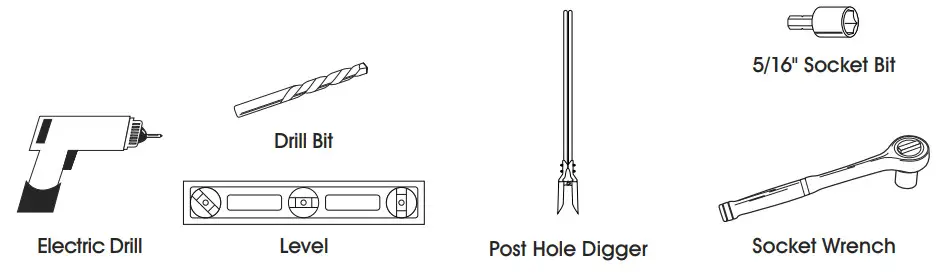

RECOMMENDED TOOLS

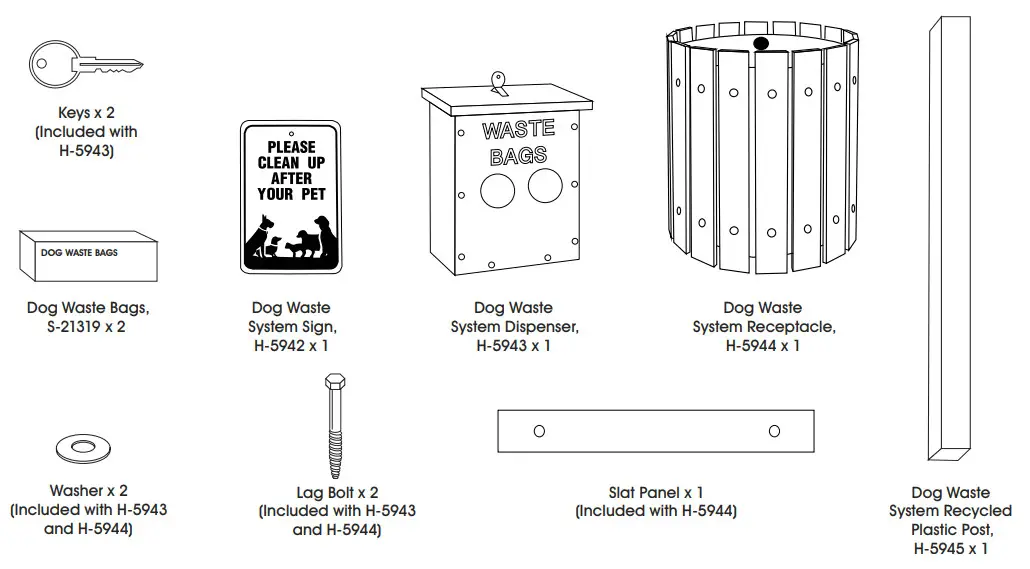

PARTS

ASSEMBLY

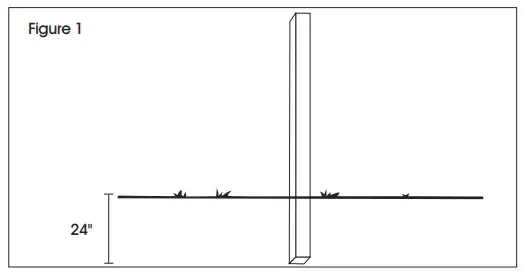

1. Bury H-5945 post 24″ into the ground at the desired location. (See Figure 1)

ASSEMBLY CONTINUED

1. Pre-drill holes to fasten receptacle to post. Use holes on the slat panel provided with a receptacle to determine to space.

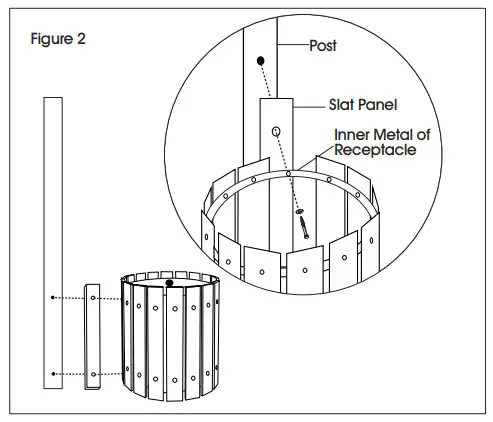

2. Mount waste receptacle and slat panel to the lower section of the post with included lag bolts and washers, using the pre-drilled holes. (See Figure 2)

3. Pre-drill holes for bag dispenser in the desired location, towards the upper section of the post.

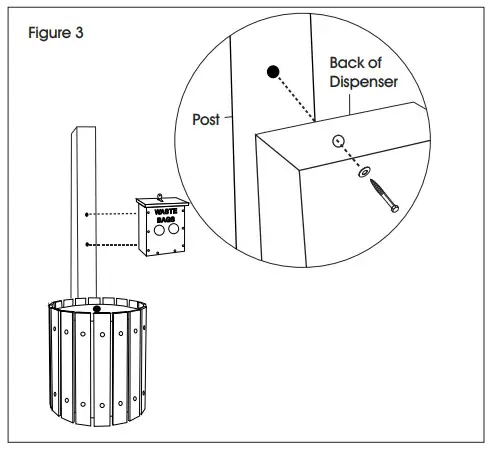

4. Using a socket wrench, mount bag dispenser through the top opening to post with included lag bolts and washers. (See Figure 3)

5. Unlock the dispenser top and fill with two rolls of Uline Dog Waste Bags (S-21319). Lock dispenser top.

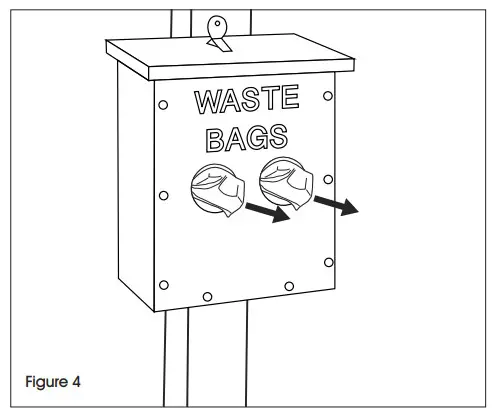

6. Reach through the two-hole openings and find the edges of the bags. Pull until bags exit dispenser. (See Figure 4)

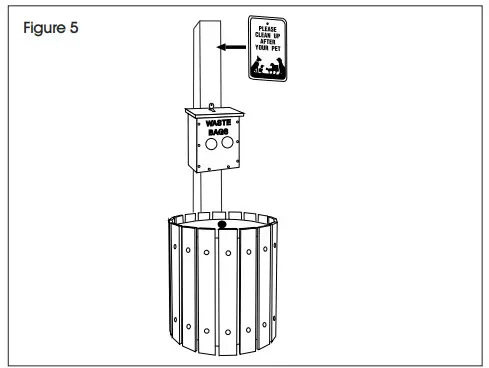

7. Mount optional sign to the top of the post using preferred method. Hardware not included. (See Figure 5)


1-800-295-5510
uline.com

0621 IH-5942
