Integration
Performance
Installation Guide
BMW
IP-BMW42
IP-BMW4C
IP-BMWSUB82

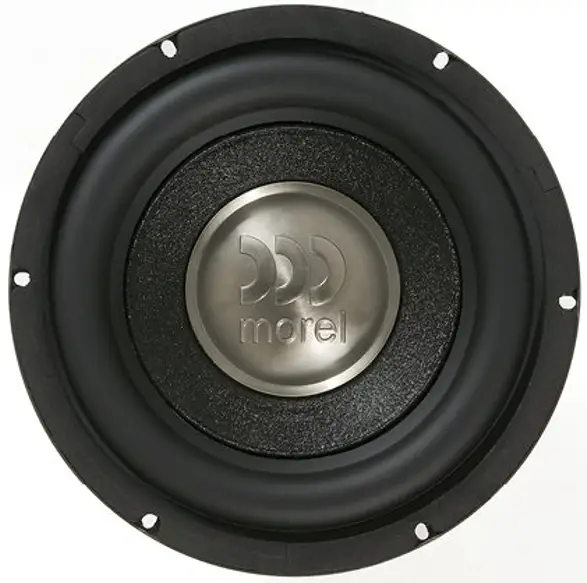

IP-BMWSUB82 Subwoofers
Dear Customer,
Thank you for choosing Morel for your car audio speaker solution.
Morel prides itself on engineering and producing the best high-fidelity speaker systems.
We hope you enjoy your Integration Performance speakers for years to come.
If you have any questions, please contact your Morel dealer or Morel support at:
www.morelhifi.com
Components

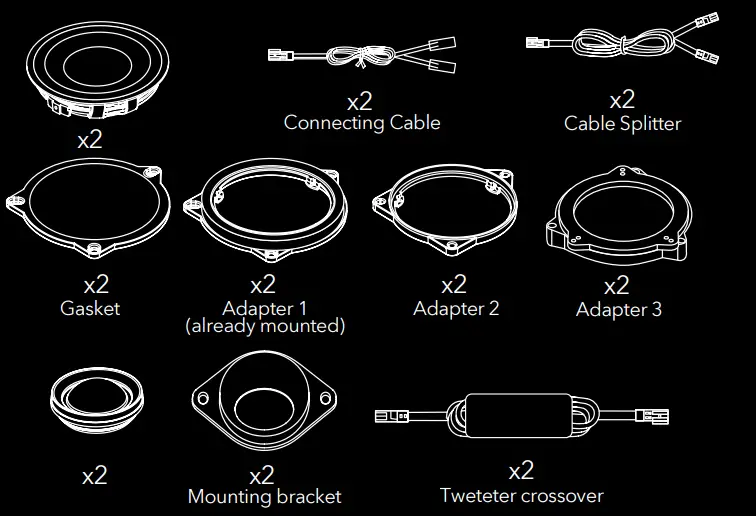

Component System

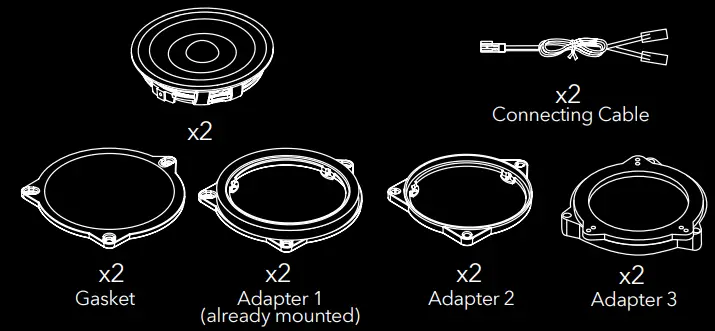

Coax System

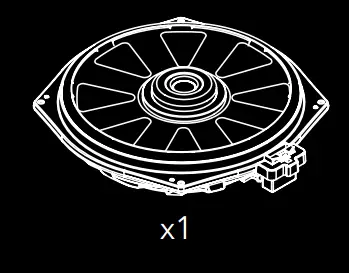

Subwoofer

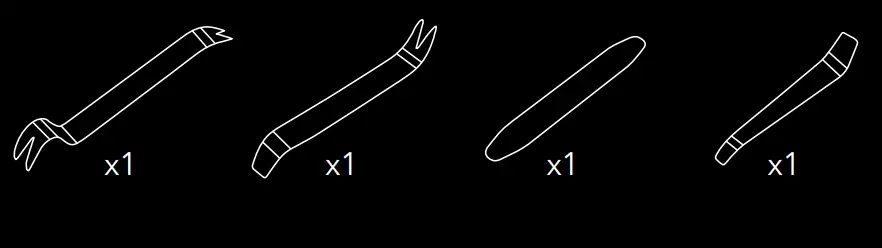

Installation tools

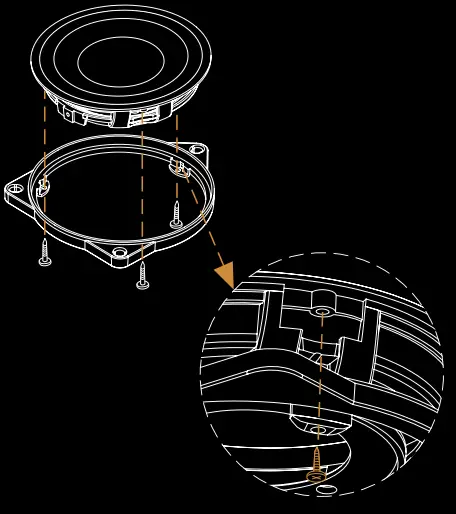

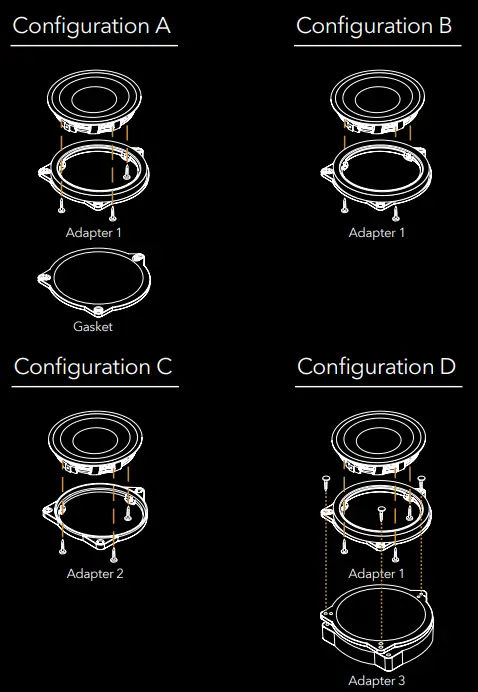

Component Woofer and Coax Adapter Assembly
Assembly Overview
Speaker Connection
IP-BMW42 Component System
2 WAY System – Car integration set up wiring
Woofer and Tweeter Installation
4″ Woofer – Trim Installation

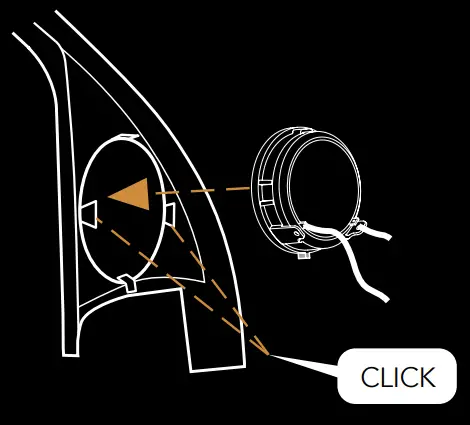

Tweeter – Front Installation

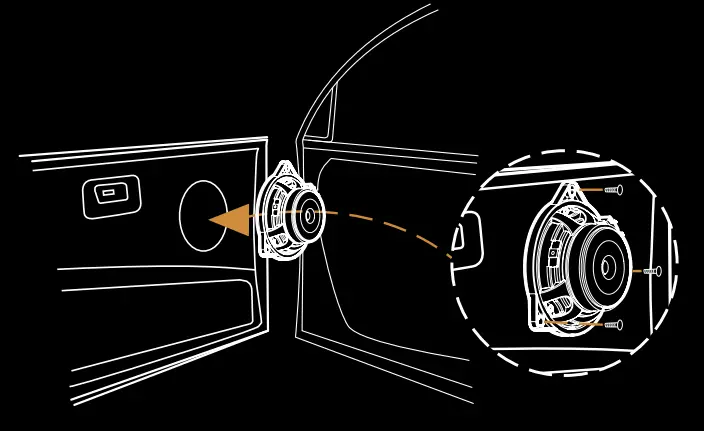

4″ Woofer – Door Installation
Tweeter – Rear Deck Installation
Subwoofer

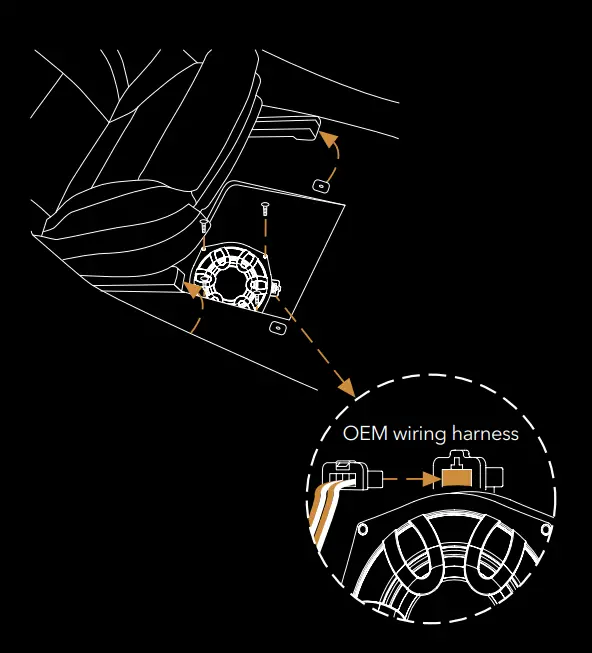

Subwoofer – Under Seat Installation
Specifications
| WOOFERS | IP-BMW42 | IP-BMW4C | IP-BMWSUB82 | TWEETERS | IP-BMW42 | ||
| Nominal Impedance (ohm) | 4 | 4 | 2 | Nominal Impedance (ohm) | 4 | ||
| Power Handling Wrms | 50 | 40 | 180 | Power Handling Wrms | 90 | ||
| Max. Trans. Pwr Handling Wrms | 120 | 120 | 500 | Max. Trans. Pwr Handling Wrms (10ms) | 180 | ||
| Sensitivity (2.83 V/1M) dB | 86 | 86 | 84 | Sensitivity (2.83 V/1M) dB | 90.5dB | ||
| Frequency response Hz | 80-20000 | 80-5000 | 20-1000 | Frequency Response Hz | 1800-20000 | ||
| Resonant Freq. Fs Hz | 110 | 110 | 30 | FS Hz | 1000 | ||
| Voice Coil Diameter mm (inch) | 25 (1) | 25 (1) | 54 (2.1) | Voice Coil Diameter mm (inch) | 25 (1) | ||
| DC Resistance (ohm) | 3.65 | 3.65 | 2.2 | Voice Coil Wire | Copper | ||
| Magnet System | Hybrid Neodymium + Ferrite | Hybrid Neodymium + Ferrite | Neodymium | Magnet System | Neodymium | ||
| Mounting Depth mm (inch) | 20 (0.8) | ||||||
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) | ||||||
| B-Flux Density (T) | 0.94 | 0.66 | 0.75 | ||||
| BL Product/BXL | 3 | 3.15 | 5.4 | CROSSOVERS IP-BMW42 Tweeter | |||
| Suspension Compliance CMS – mm/N | 0.37 | 0.37 | 0.46 | ||||
| Electrical Q Factor QES | 1.47 | 1.32 | 0.83 | ||||
| QTS | 0.9 | 0.9 | 0.57 | ||||
| QMS | 3.27 | 3.4 | 1.84 | ||||
| Mech. Resistance RMS- N . S / M | 1.11 | 1.06 | 6.1 | ||||
| Moving Mass MMS – gr/ounce | 4.92(0.17) | 4.84(0.17) | 60 (2.11) | ||||
| Equiv. Can Air Load VAS – L (cu.ft3) | 1.47(0.05) | 1.19 (0.04) | 42 (1.48) | ||||
| Effective Piston Area SD sq.cm (sq.inch) | 53(20.8) | 48 (18.9) | 254(100) | ||||
| Cone Material | pp | pp | paper composite | ||||
| Unit Diameter mm(inch) | 96.7 (3.8) | 96.7 (3.8) | 8” BMW FIT | ||||
| Mounting Depth mm (inch) | 36.7 (14.4) | 36.7 (14.4) | 43.5 (17.1) | ||||
| Mounting Cutout | 92 (3.6) | 92 (3.6) | 192 (7.55) | ||||
| Net Wight Kg (lb) | 0.35 (0.77) | 0.37 (0.81) | 1.12 (247) | ||||
* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice
