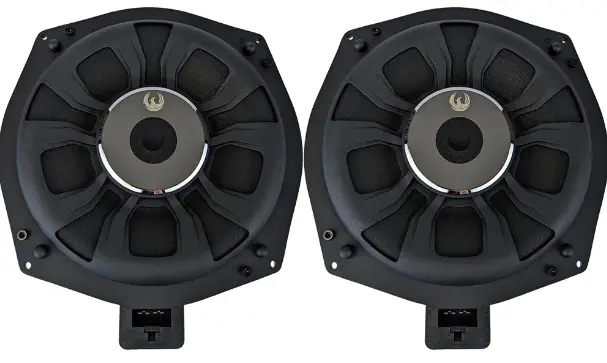

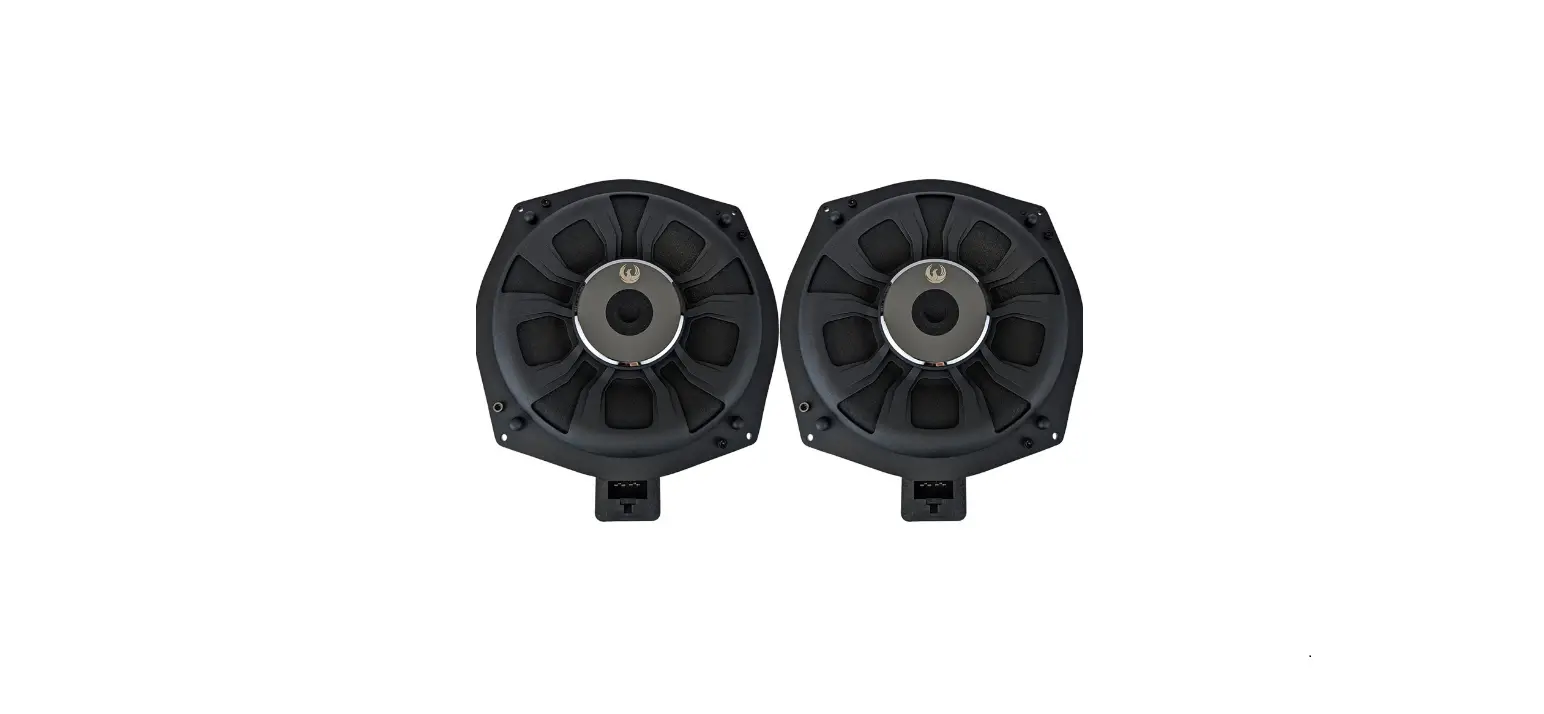

PHOENIX GOLD ZDSB200S 8 Inch 150W Subwoofer Kit For BMW
Product Information
Product Name: ZDSB200S
Compatible Vehicle: BMW 3-Series 2018 (F30) Basic Sound System

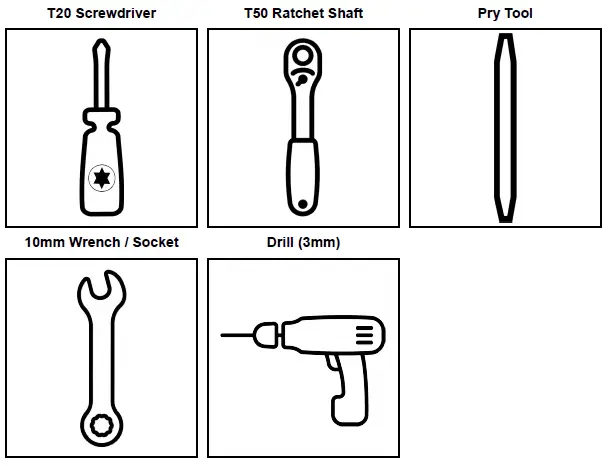

Installation Tools Required:
- T20 Screwdriver
- T50 Ratchet Shaft
- Pry Tool
- 10mm Wrench / Socket
- Drill (3mm)
Product Usage Instructions
ZDSB200S Installation 1
Tools required: T50 Ratchet Shaft

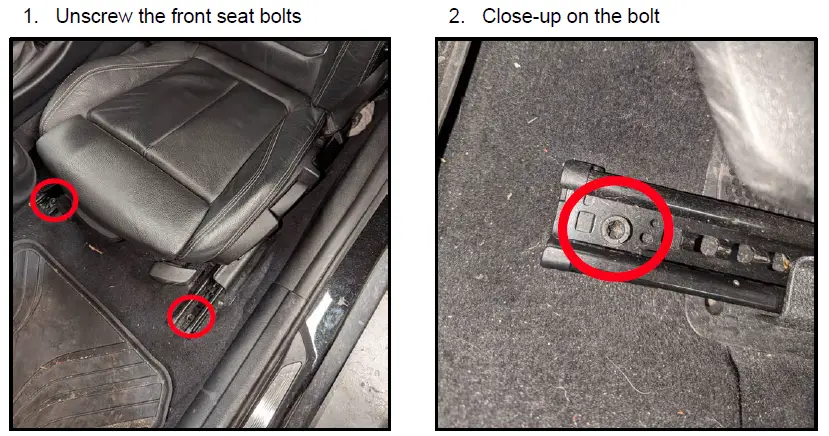

- Unscrew the front seat bolts.
- Close-up on the bolt.

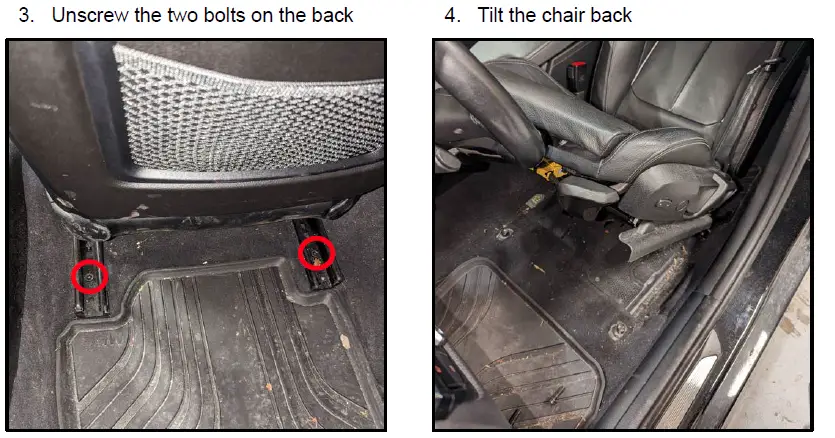

- Unscrew the two bolts on the back.
- Tilt the chair back.
ZDSB200S Installation 2
Tools required: T20 Screwdriver
- Unscrew the woofer grill.
- OEM Woofer.

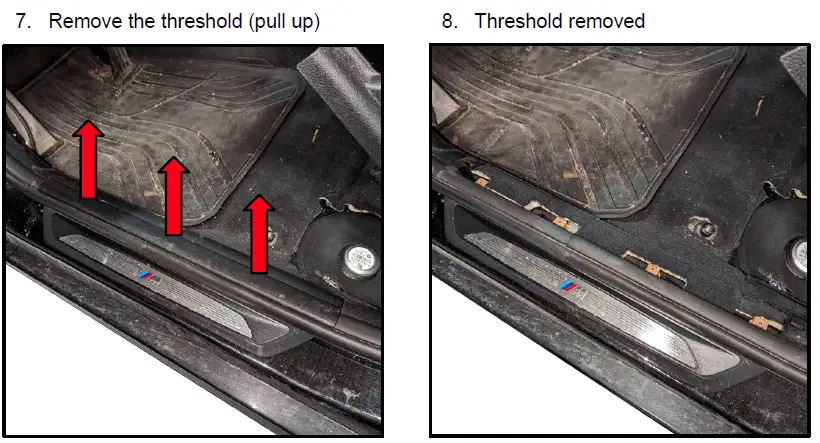

- Remove the threshold (pull up).
- Threshold removed.
ZDSB200S Installation 3
Tools required: 10mm Wrench / Socket

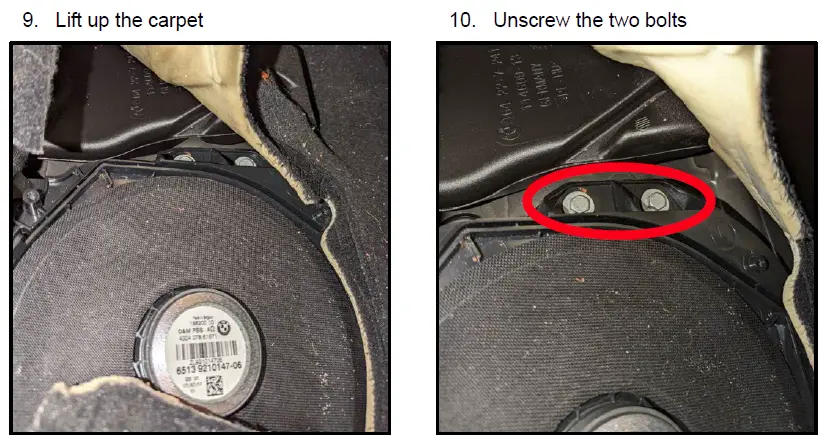

- Lift up the carpet.
- Unscrew the two bolts.

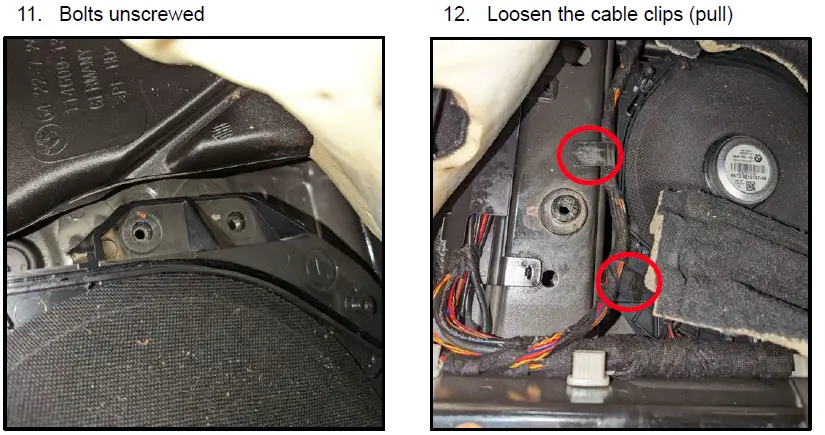

- Bolts unscrewed.
- Loosen the cable clips (pull).
ZDSB200S Installation 4
Tools required: Pry Tool

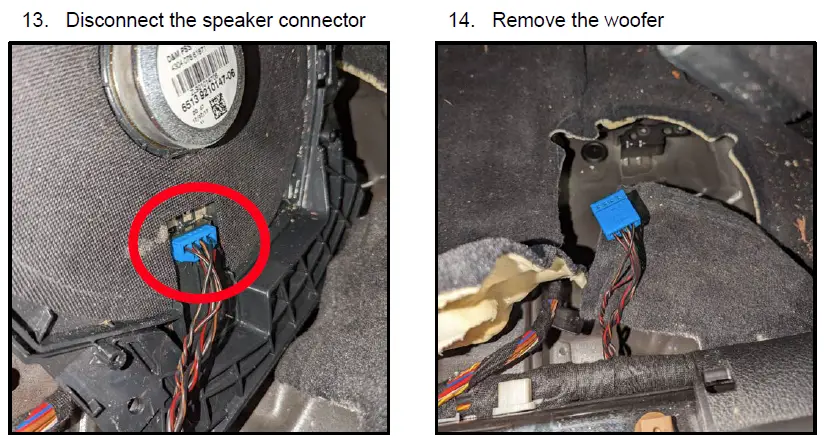

- Disconnect the speaker connector.
- Remove the woofer.
- Remove the woofer from the plastic.
- Use A LOT of force to remove it.
ZDSB200S Installation 5
Tools required: Drill (3mm), PH2 Screwdriver

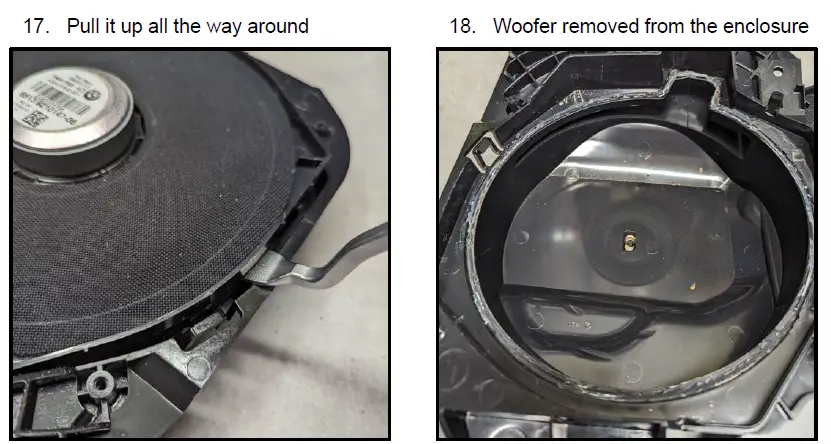

- Pull it up all the way around.
- Woofer removed from the enclosure.

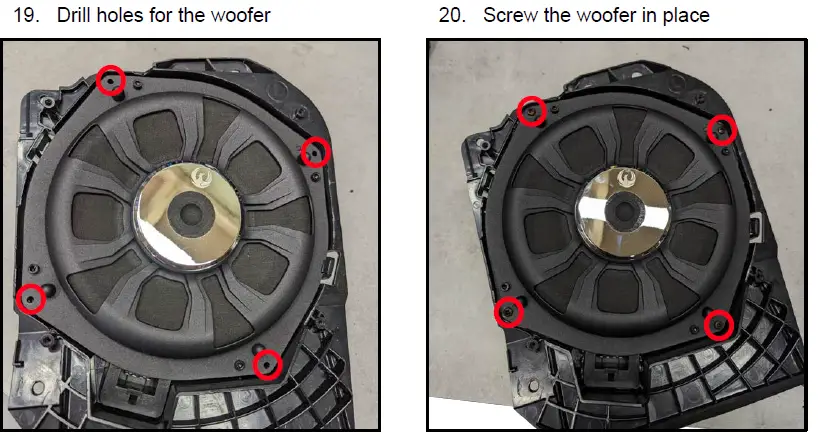

- Drill holes for the woofer.
- Screw the woofer in place.
ZDSB200S Installation 6

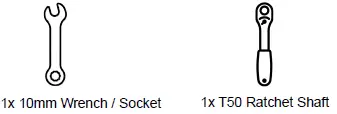

Tools required: 10mm Wrench / Socket, T50 Ratchet Shaft

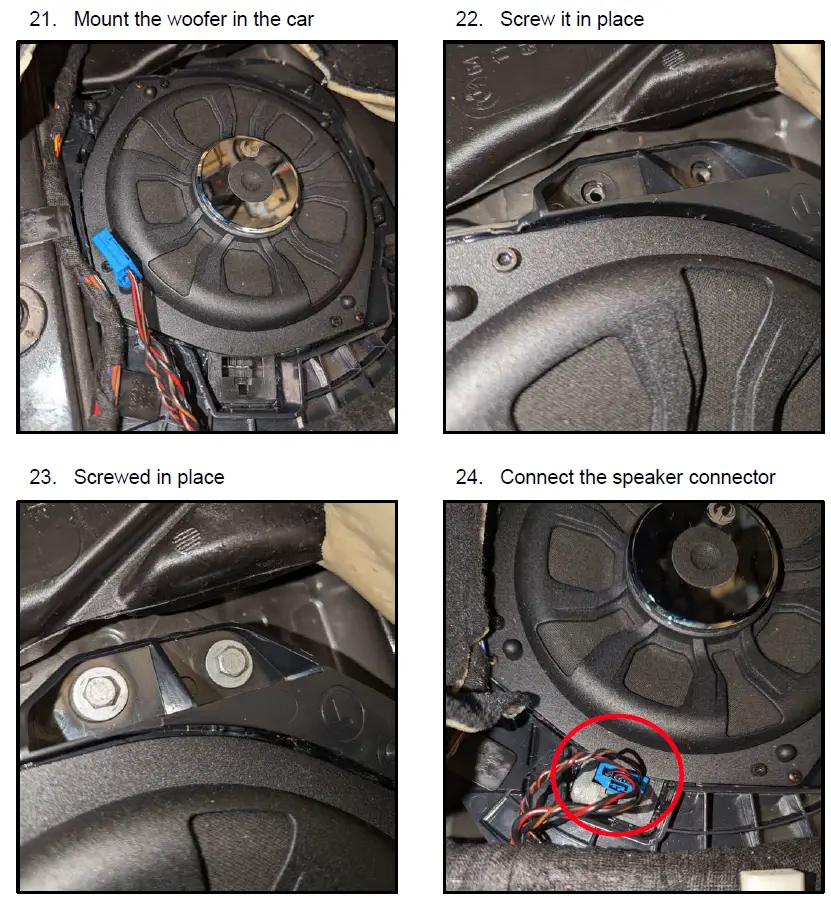

- Mount the woofer in the car.
- Screw it in place.
- Screwed in place.
- Connect the speaker connector.
ZDSB200S Installation 7
Tools required: T50 Ratchet Shaft, T20 Screwdriver

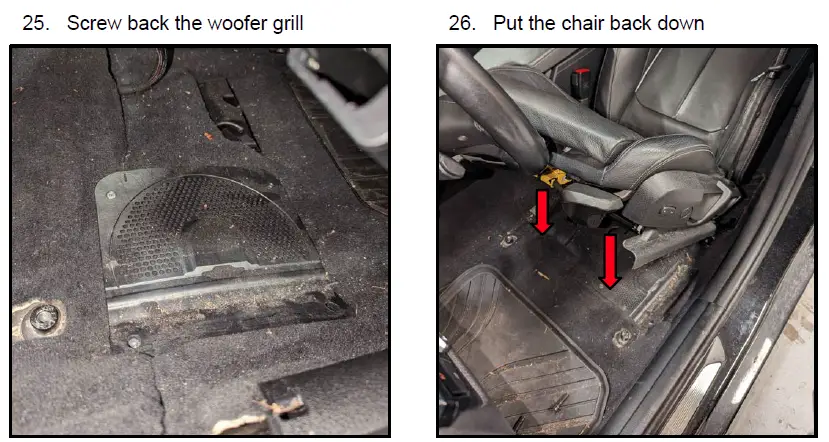

- Screw back the woofer grill.
- Put the chair back down.

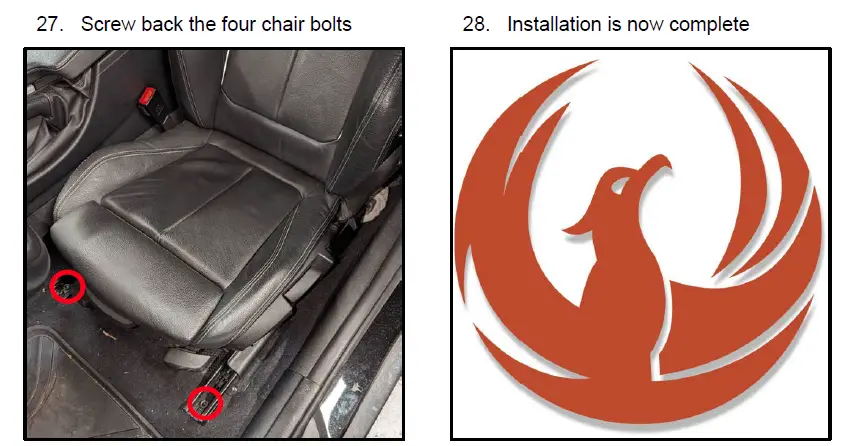

- Screw back the four chair bolts.
- Installation is now complete.
On Behalf of the Phoenix Gold team, Thank you for choosing us! Your installation is complete and we hope that your new upgraded system will bring you joy and happiness for many years to come when listening to your favorite music. As always, our goal is bringing you The Gold Standard in Sound.
Website: www.phoenixgold-eu.com
Installation Tools Required
Vehicle used for installation:
BMW 3-Series 2018 (F30)
Basic Sound System
*Some differences may occur between different car and year models.
Installation
Tools required:
- Unscrew the front seat bolts
- Close-up on the bolt
- Unscrew the two bolts on the back
- Tilt the chair back
Tools required:
- Unscrew the woofer grill
- OEM Woofer
- Remove the threshold (pull up)
- Threshold removed
Tools required:
- Lift up the carpet
- Unscrew the two bolts
- Bolts unscrewed
- Loosen the cable clips (pull)
Tools required:
- Disconnect the speaker connector
- Remove the woofer
- Remove the woofer from the plastic
- Use A LOT of force to remove it
Tools required:
- Pull it up all the way around
- Woofer removed from the enclosure
- Drill holes for the woofer
- Screw the woofer in place
Tools required:
- Mount the woofer in the car
- Screw it in place
- Screwed in place
- Connect the speaker connector
Tools required:
- Screw back the woofer grill
- Put the chair back down
- Screw back the four chair bolts
- Installation is now complete
On Behalf of the Phoenix Gold team,
Thank you for choosing us!
Your installation is complete and we hope that your new upgraded system will bring you joy and happiness for many years to come when listening to your favorite music. As always, our goal is bringing you The Gold Standard in Sound.
