BMW
IP-BMW42, IP-BMW42-CTR,
IP-BMW4C,IP-BMW4C-CTR
IP-BMW-SUB82
Integration Performance
Installation Guide
IP-BMW42 Integration Performance Speaker
Dear Customer,
Thank you for choosing Morel for your car audio speaker solution.
Morel prides itself on engineering and producing the best high-fidelity speaker systems.
We hope you enjoy your Integration Performance speakers for years to come.
If you have any questions, please contact your Morel dealer or Morel support at: www.morelhifi.com
Components
Component System
Coax System
Subwoofer

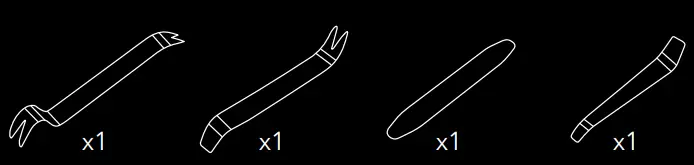

Installation tools

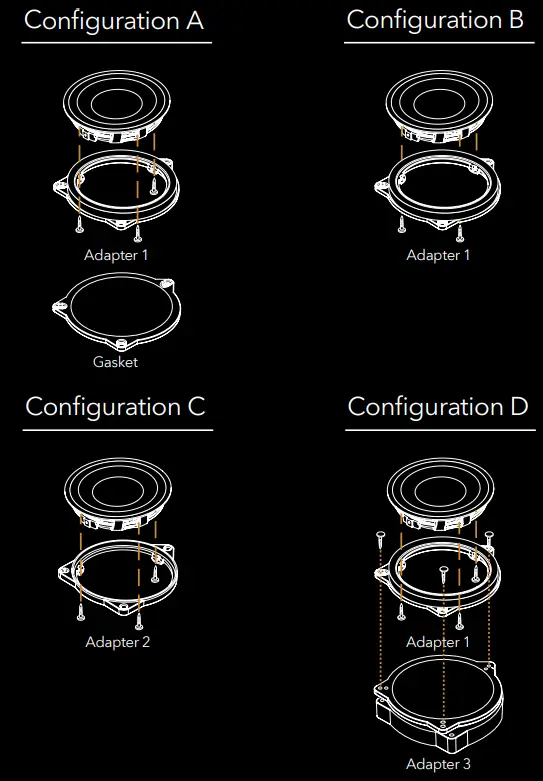

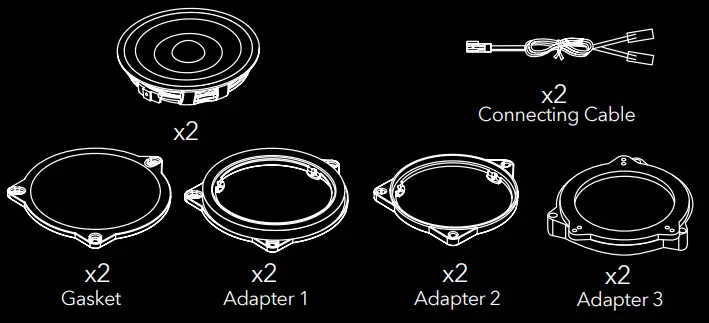

Component Woofer and Coax Adapter Assembly

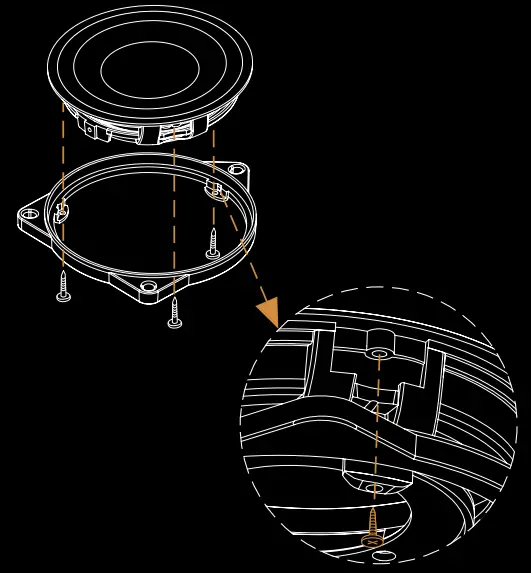

Assembly Overview
Scan for vehicle-specific compatibility information

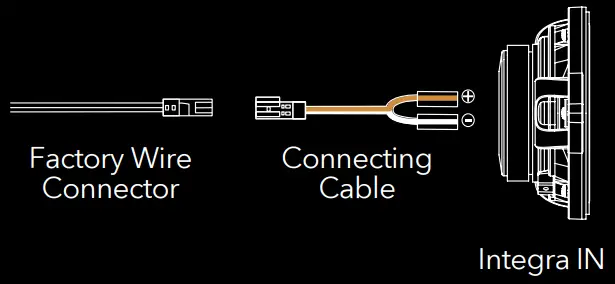

Speaker Connection

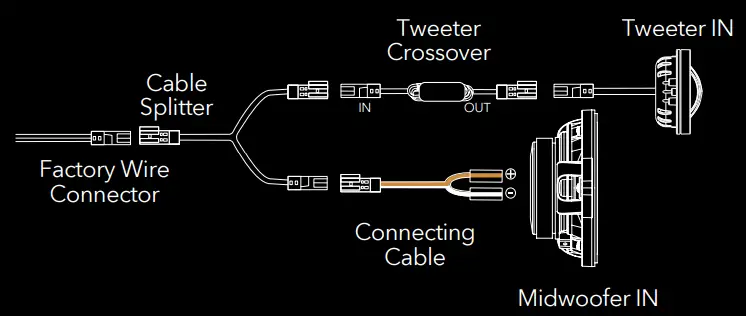

IP-BMW42 Component System
2 WAY System – Car integration set up wiring
Woofer and Tweeter Installation

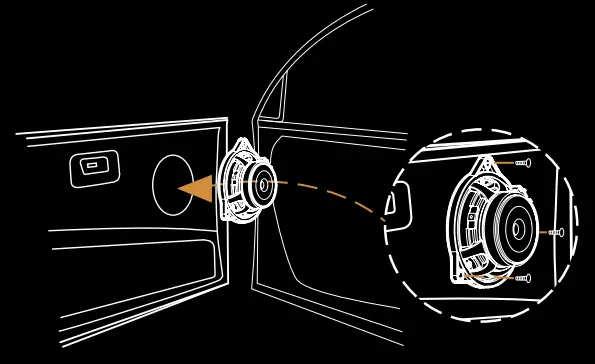

4″ Trim Installation

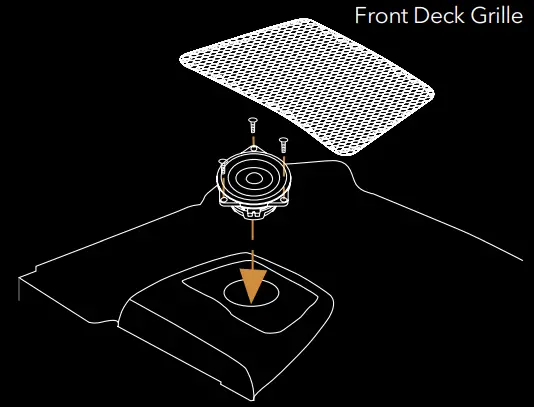

4″ Center Deck Installation

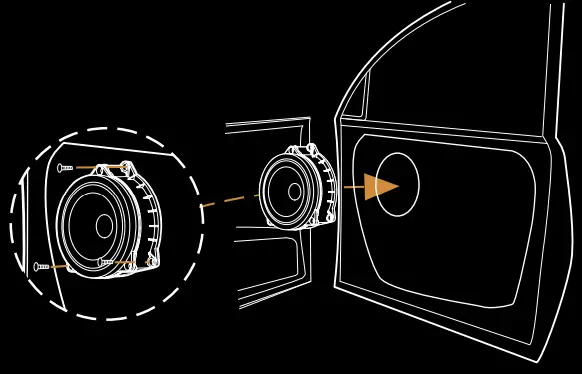

4″ Door Installation

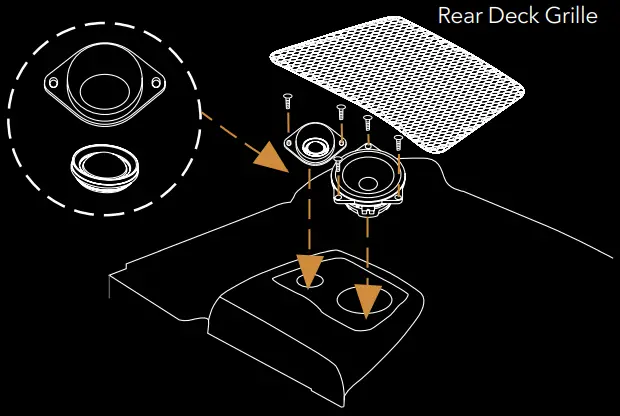

Tweeter Center / Rear Deck Installation

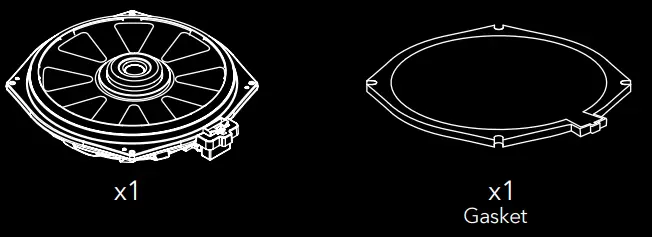

Woofer, Tweeter and Subwoofer Installation

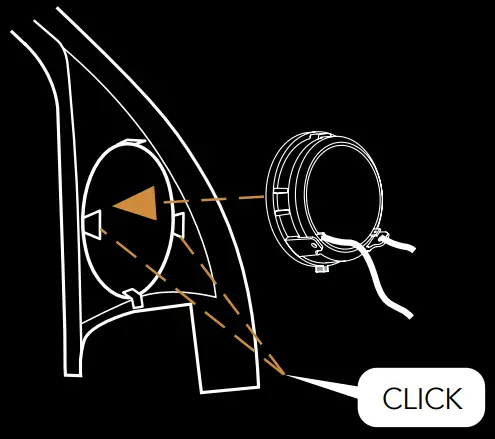

Tweeter – Front Installation

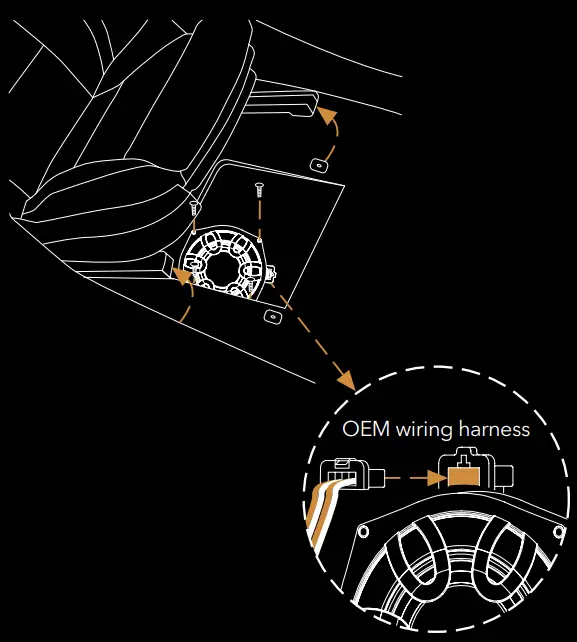

Subwoofer – Under Seat Installation
Specifications
| WOOFERS | IP-BMW42 | IP-BMW4C | IP-BMWSUB82 |
| Nominal Impedance (ohm) | 4 | 4 | 2 |
| Power Handling Wrms | 50 | 40 | 180 |
| Max. Trans. Pwr Handling Wrms | 120 | 120 | 500 |
| Sensitivity (2.83 V/1M) dB | 89 | 89 | 84 |
| Frequency response Hz | 80-20000 | 80-5000 | 20-1000 |
| Resonant Freq. Fs Hz | 110 | 110 | 30 |
| Voice Coil Diameter mm (inch) | 25 (1) | 25 (1) | 54 (2.1) |
| DC Resistance (ohm) | 3.65 | 3.65 | 2.2 |
| Magnet System | Hybrid Neodymium + Ferrite | Hybrid Neodymium + Ferrite | Neodymium |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) | ||
| B-Flux Density (T) | 0.94 | 0.66 | 0.75 |
| BL Product/BXL | 3 | 3.15 | 5.4 |
| Suspension Compliance CMS – mm/N | 0.37 | 0.37 | 0.46 |
| Electrical Q Factor QES | 1.47 | 1.32 | 0.83 |
| QTS | 0.9 | 0.9 | 0.57 |
| QMS | 3.27 | 3.4 | 1.84 |
| Mech. Resistance RMS- N. S / M | 1.11 | 1.06 | 6.1 |
| Moving Mass MMS – gr/ounce | 4.92(0.17) | 4.84(0.17) | 60 (2.11) |
| Equiv. Can Air Load VAS – L (cu.ft3) | 1.47(0.05) | 1.19 (0.04) | 42 (1.48) |
| Effective Piston Area SD sq.cm (sq.inch) | 53(20.8) | 48 (18.9) | 254(100) |
| Cone Material | pp | pp | paper composite |
| Unit Diameter mm(inch) | 96.7 (3.8) | 96.7 (3.8) | 8” BMW FIT |
| Mounting Depth mm (inch) | 36.7 (14.4) | 36.7 (14.4) | 43.5 (17.1) |
| Mounting Cutout | 92 (3.6) | 92 (3.6) | 192 (7.55) |
| Net Weight Kg (lb) | 0.35 (0.77) | 0.37 (0.81) | 1.12 (247) |

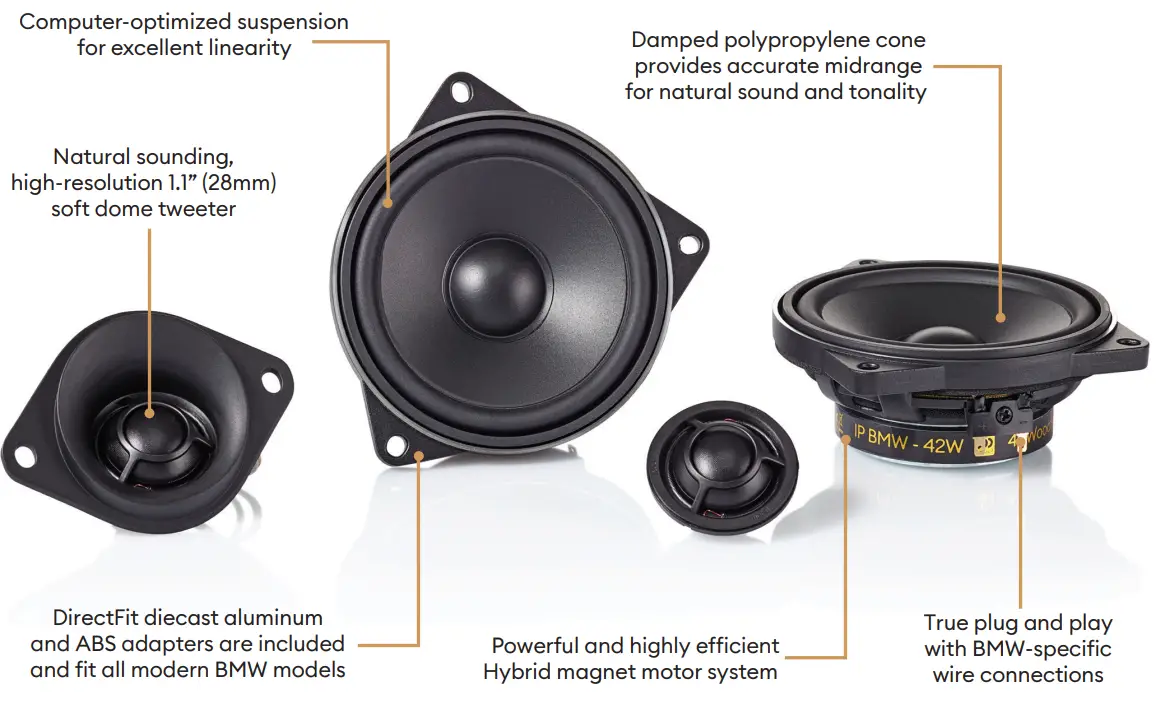

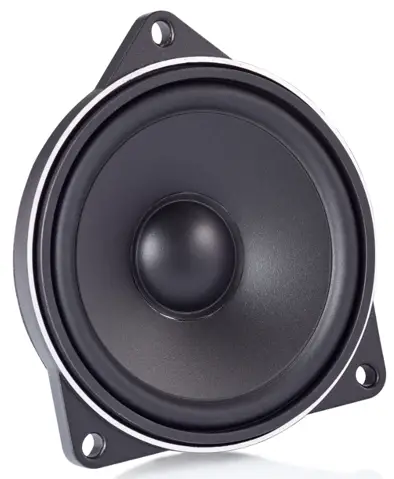

The 2-way IP-BMW42 component system was designed for music lovers wanting to upgrade their original BMW speaker system with a dynamic, Hi-Fidelity sound. Featuring DirectFit, the unique 4-inch (100mm) chassis design with supplied mounting brackets, easy snap-in 28mm tweeters, and factory wire connections allow the IP-BMW42 to fit modern BMW models without the need for modification.
What truly sets apart the IP-BMW42 is the handcrafted MT100 tweeter based on Morel’s legendary design. A powerful neodymium magnet motor and 1.1” (28mm) silk dome give it exceptional resolution and a broad soundstage, setting a new benchmark in plug-and-play systems.
Key advantages
- Quick & Easy installation
- No need for any modification
- Optimized for BMW to deliver HiFi quality sound
- All mounting hardware is included for ALL BMW models
- Installation tools included
- Plug and Play wire connection
Specifications
| Configuration | 2-way |
| Woofer Size | 4″ (100mm) |
| Tweeter | 1.1″ (28mm) |
| Nominal Impedance (ohm) | 4 |
| Nom. Power Handling (Wrms) | 50 |
| Max Power Handling (W) | 120 |
| Sensitivity (2.83 V/1M) dB | 89 |
| Frequency Response (Hz) | 80-22,000 |
