Integration Performance
Installation Guide
BMW
IP-BMW42, IP-BMW42-CTR, IP-BMW4C,IP-BMW4C-CTR
IP-BMW-SUB82

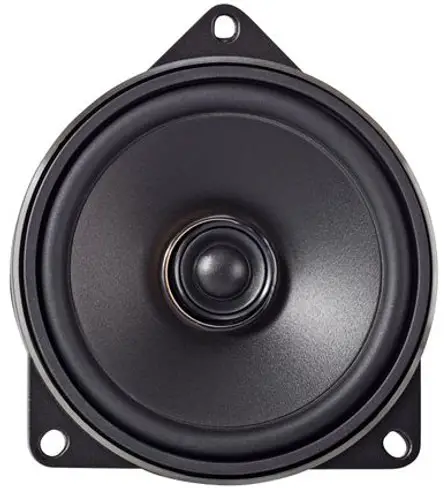

IP-BMW42 Integration Performance Series 4 2 Way Car Speakers
Dear Customer,
Thank you for choosing Morel for your car audio speaker solution.
Morel prides itself on engineering and producing the best high-fidelity speaker systems.
We hope you enjoy your Integration Performance speakers for years to come.
If you have any questions, please contact your Morel dealer or Morel support at: www.morelhifi.com

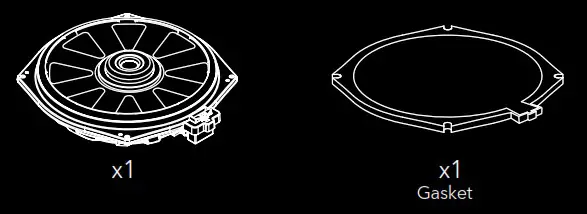

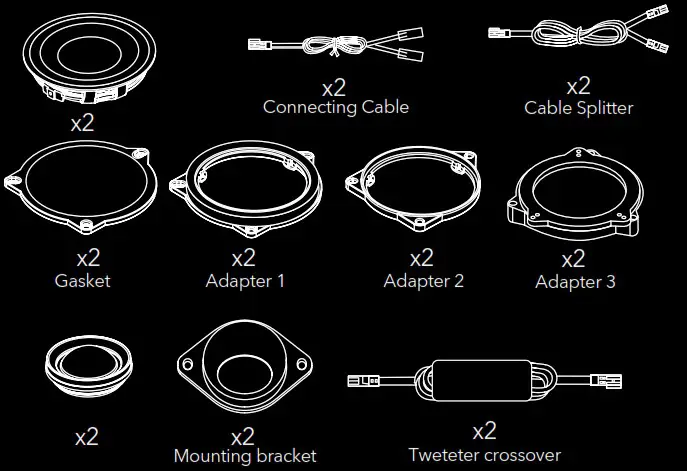

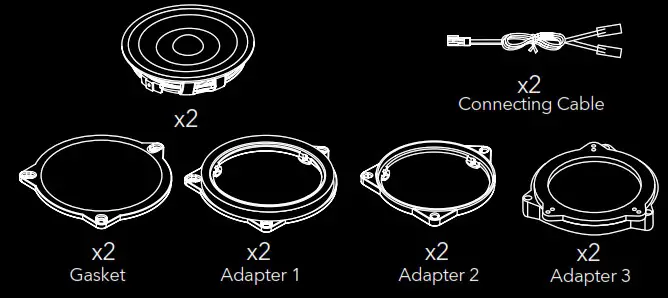

Components
Component System
Coax System
Subwoofer

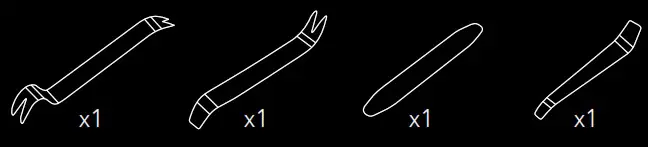

Installation tools

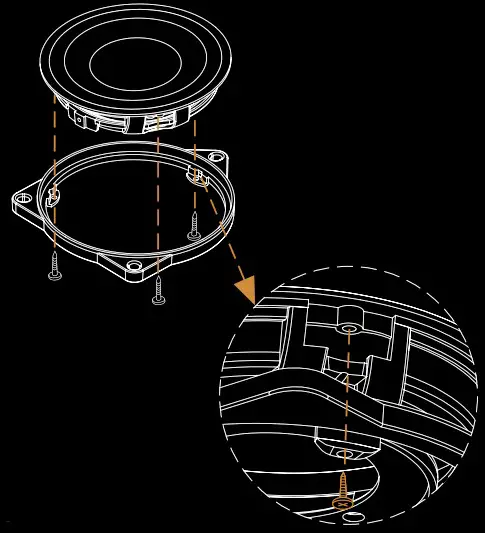

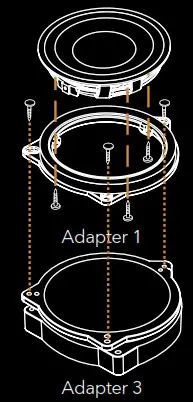

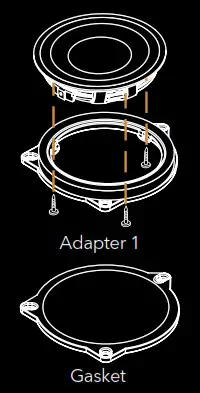

Component Woofer and Coax Adapter Assembly
Assembly Overview
| Configuration A | Configuration B |
 |  |
| Configuration C | Configuration D |
 |  |
Scan for vehicle-specific compatibility information

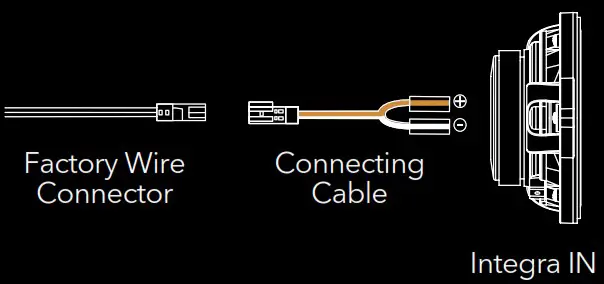

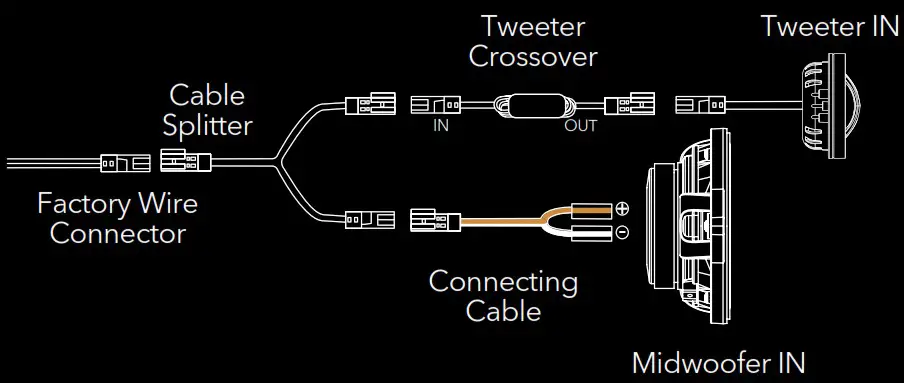

Speaker Connection
IP-BMW42 Component System
2 WAY System – Car integration set up wiring
Woofer and Tweeter Installation

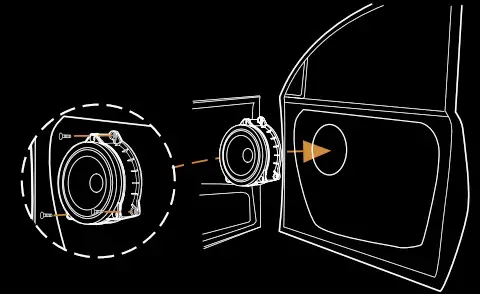

| 4″ Trim Installation | 4″ Door Installation |
 |  |

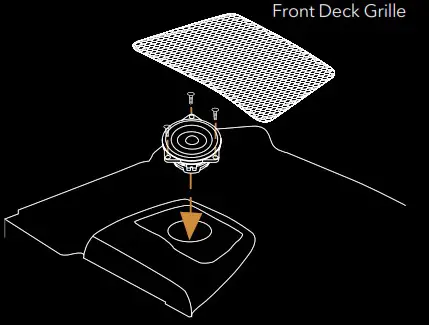

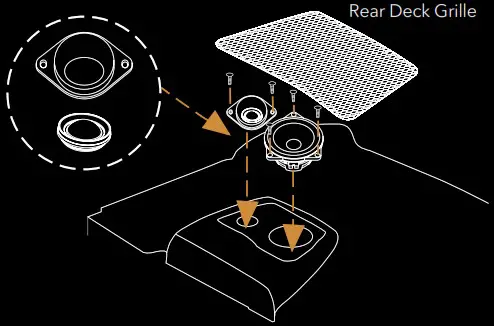

| 4″ Center Deck Installation | Tweeter Center / Rear Deck Installation |
 |  |
Woofer, Tweeter and Subwoofer Installation

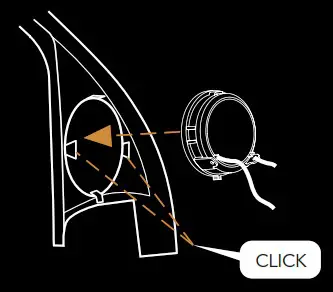

Tweeter – Front Installation

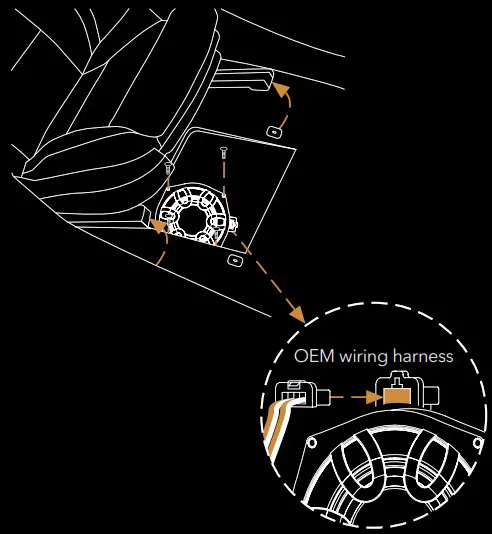

Subwoofer – Under Seat Installation
Specifications
| WOOFERS | IP-BMW42 | IP-BMW4C | IP-BMWSUB82 |
| Nominal Impedance (ohm) | 4 | 4 | 2 |
| Power Handling Wrms | 50 | 40 | 180 |
| Max. Trans. Pwr Handling Wrms | 120 | 120 | 500 |
| Sensitivity (2.83 V/1M) dB | 89 | 89 | 84 |
| Frequency response Hz | 80-20000 | 80-5000 | 20-1000 |
| Resonant Freq. Fs Hz | 110 | 110 | 30 |
| Voice Coil Diameter mm (inch) | 25 (1) | 25 (1) | 54 (2.1) |
| DC Resistance (ohm) | 3.65 | 3.65 | 2.2 |
| Magnet System | Hybrid Neodymium + Ferrite | Hybrid Neodymium + Ferrite | Neodymium |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) | ||
| B-Flux Density (T) | 0.94 | 0.66 | 0.75 |
| BL Product/BXL | 3 | 3.15 | 5.4 |
| Suspension Compliance CMS – mm/N | 0.37 | 0.37 | 0.46 |
| Electrical Q Factor QES | 1.47 | 1.32 | 0.83 |
| QTS | 0.9 | 0.9 | 0.57 |
| QMS | 3.27 | 3.4 | 1.84 |
| Mech. Resistance RMS- N.S / M | 1.11 | 1.06 | 6.1 |
| Moving Mass MMS – gr/ounce | 4.92(0.17) | 4.84(0.17) | 60 (2.11) |
| Equiv. Can Air Load VAS – L (cu.ft 3) | 1.47(0.05) | 1.19 (0.04) | 42 (1.48) |
| Effective Piston Area SD sq.cm (sq.inch) | 53(20.8) | 48 (18.9) | 254(100) |
| Cone Material | pp | pp | paper composite |
| Unit Diameter mm(inch) | 96.7 (3.8) | 96.7 (3.8) | 8” BMW FIT |
| Mounting Depth mm (inch) | 36.7 (14.4) | 36.7 (14.4) | 43.5 (17.1) |
| Mounting Cutout | 92 (3.6) | 92 (3.6) | 192 (7.55) |
| Net Weight Kg (lb) | 0.35 (0.77) | 0.37 (0.81) | 1.12 (247) |
* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice
| TWEETERS | IP-BMW42 | IP-BMW4C |
| Nominal Impedance (ohm) | 4 | 4 |
| Power Handling Wrms | 90 | 60 |
| Max. Trans. Pwr Handling Wrms (10ms) | 180 | 120 |
| Sensitivity (2.83 V/1M) dB | 90.5dB | 86dB |
| Frequency Response Hz | 1800-22000 | 2200-20000 |
| Resonant Freq. Fs Hz | 1000 | 1400 |
| Voice Coil Diameter mm (inch) | 28 (1.1) | 19 (1) |
| Voice Coil Wire | Copper | Copper |
| Magnet System | Neodymium | Neodymium |
| Mounting Depth mm (inch) | 20 (0.8) |
| CROSSOVERS | IP-BMW42 Tweeter |
| Crossover Point | 2700Hz/12dB |
| Morel, Ness Ziona, 70400 Israel. Tel: +972-8-9301161 Fax: +972-8-9301312 E-mail: [email protected] | Morel America, Chandler, AZ, USA Toll free number: 1-877-667-3511 Fax: 1-718-721-1560 E-mail: [email protected] |

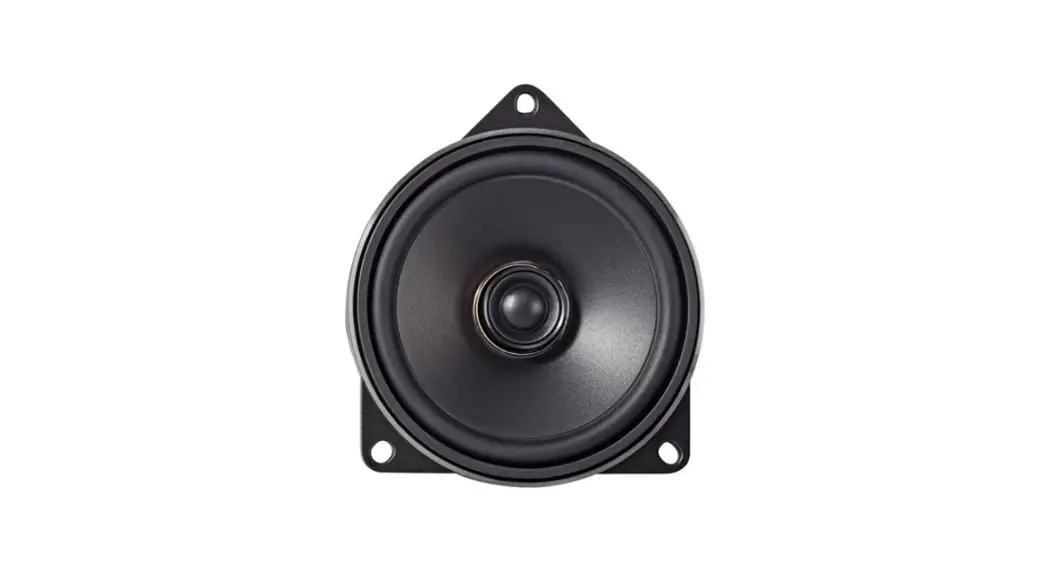

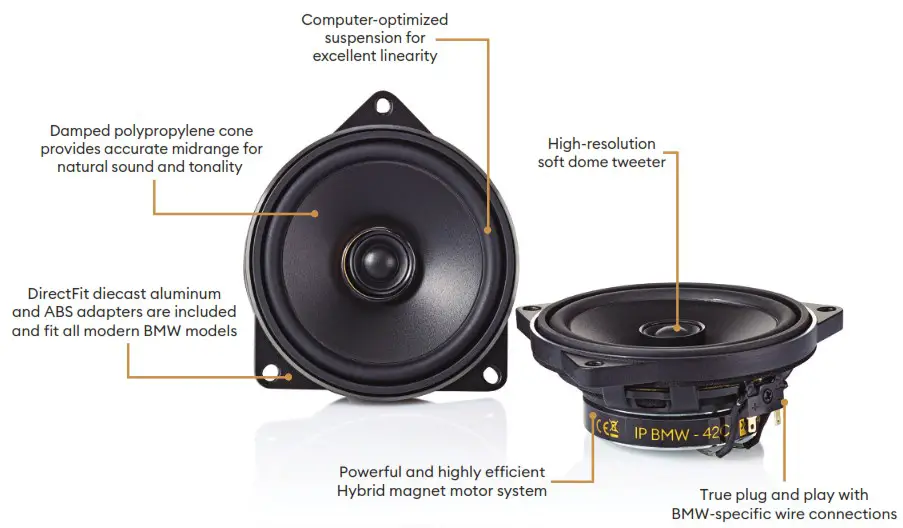

INTEGRATION PERFORMANCE IP-BMW 4C
The IP-BMW4C coaxial system was designed for music lovers wanting to upgrade their original BMW speaker system with a dynamic, Hi-Fidelity sound. Featuring DirectFit, the unique 4-inch (100mm) chassis design with supplied mounting brackets and factory wire connections allow the IP-BMW4C to fit modern BMW models without the need for modification.
The coaxial design of the IP-BMW4C is a fantastic solution where no tweeter allocations are provided. Morel’s advanced technologies guarantee this kit produces exceptional clarity and detail that integrates seamlessly in the car sound system.
Key advantages
- DirectFit design for easy installation
- No need for any modification
- Optimized for BMW to deliver ultimate HiFi quality sound
- Plugn and Play wire connection
- All mounting hardware is included for ALL BMW models
- Installation tools included
Specifications
| Configuration | 2-Way Coaxial |
| Woofer Size | 4″ (100mm) |
| Tweeter | 0.8″ (20.3mm) |
| Nominal Impedance (ohm) | 4 |
| Nom. Power Handling (Wrms) | 40 |
| Max Power Handling (W) | 120 |
| Sensitivity (2.83 V/1M) dB | 89 |
| Frequency Response (Hz) | 80-22,000 |
unleash the music
www.morelhifi.com
