Morel Maximo Ultra 603 6.5″3 MKII Car Audio Component Speaker System

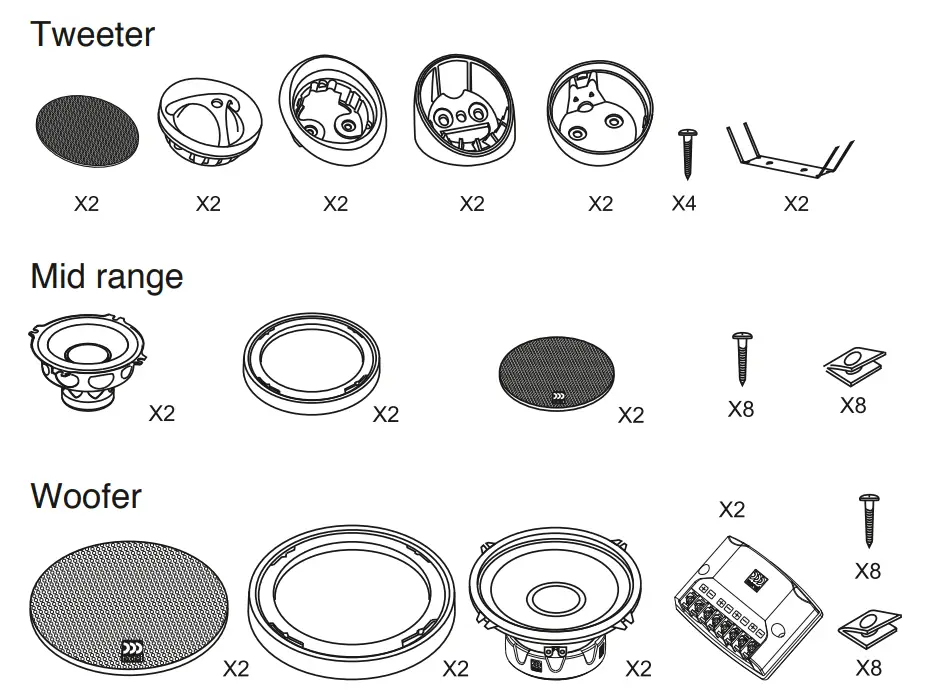

content

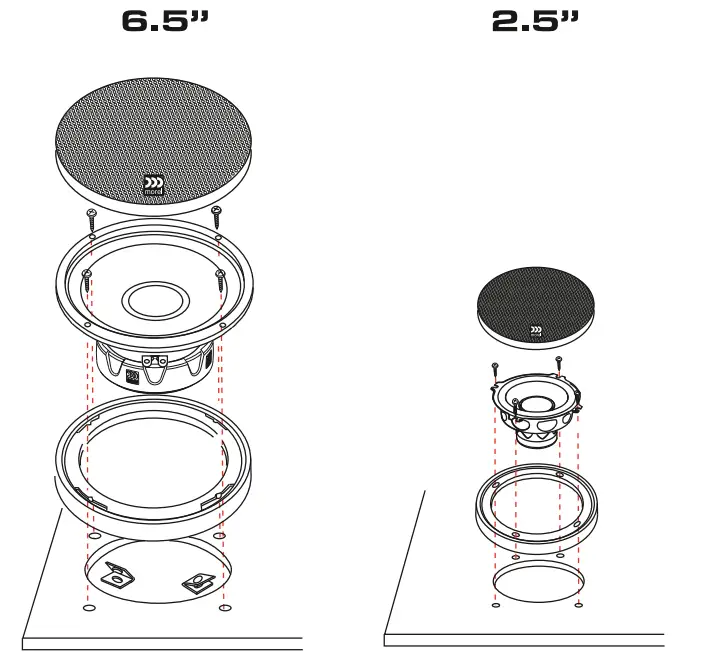

Woofer and Mid mounting

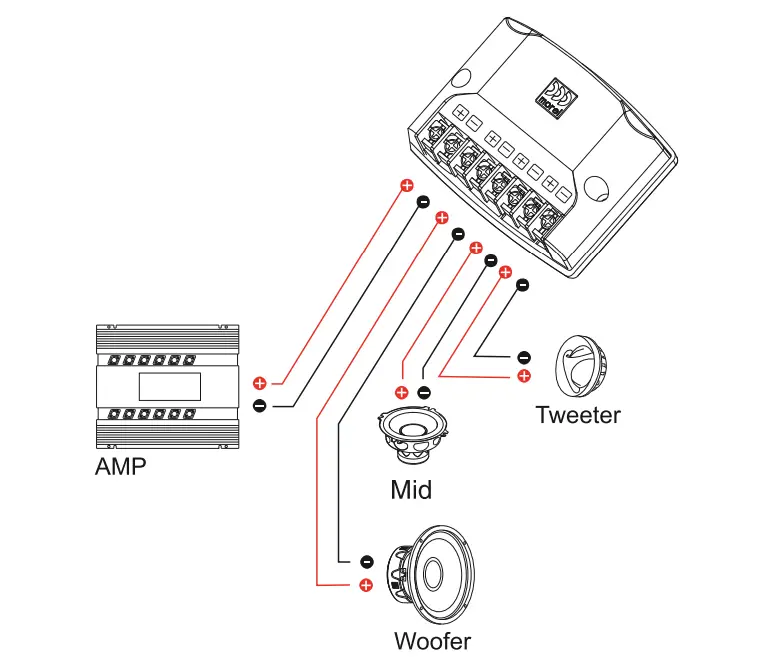

Crossover Connection

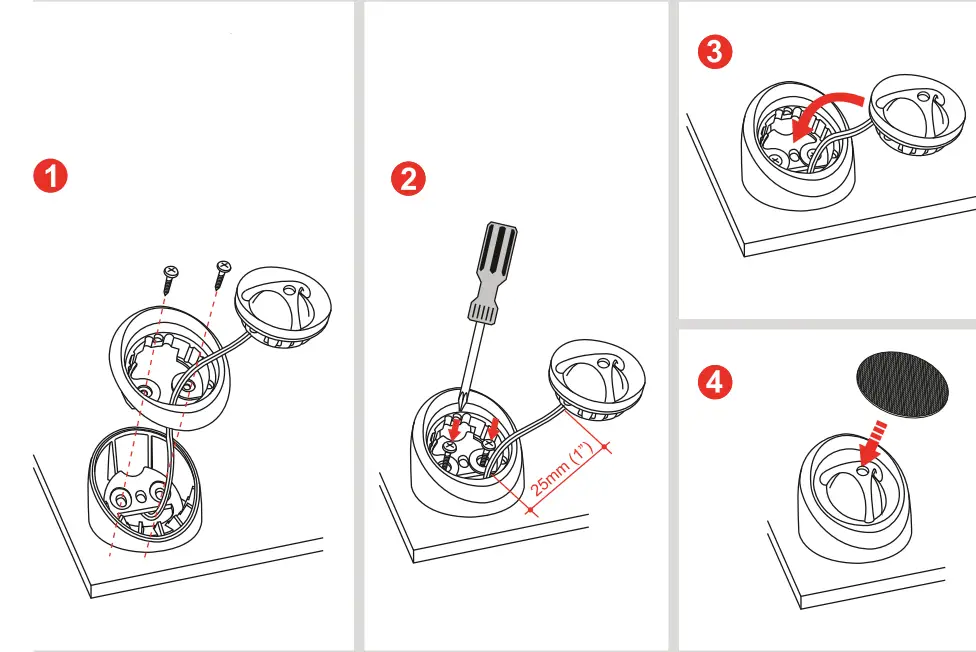

Surface mounting

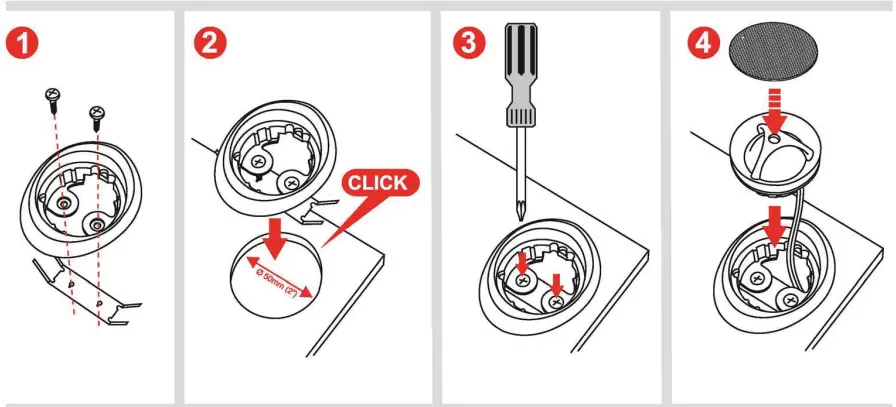

Flush mounting for 50 mm (1.96″) cutout

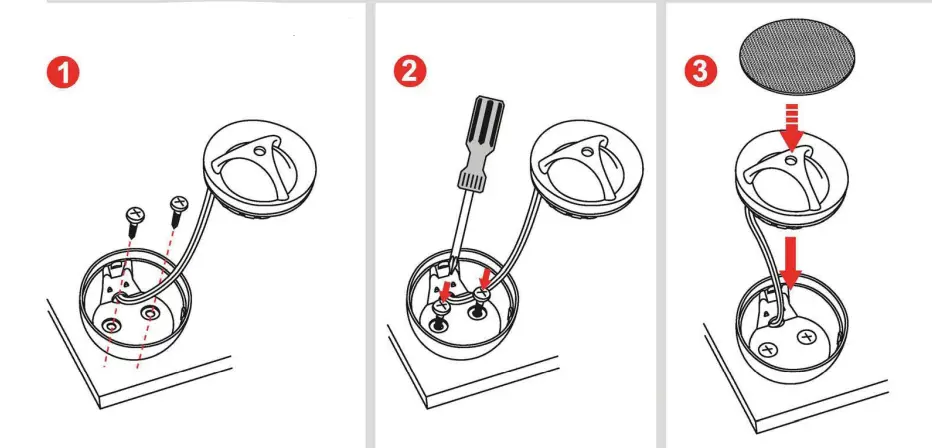

Surface mounting option 2
Specifications
- Nominal Impedance/4 ohm
- Power Handling/100W
- Max. Transient Power Handling/180W
- Sensitivity (2.83V/1M)/90.5dB
- Frequency Response/50-20,000 Hz
- Voice Coil Diameter
- Woofer:/25mm(1″)
- Tweeter:/25mm(1″) Mld: 20mm(0.8″)
- Voice Coil Wire/Copper
- Magnet System
- Woofer:/High grade ferrite magnet
- Tweeter:/Neodymium
- Mounting Depth/63mm (2.5″)
