User Manual
502 2-Way Speakers

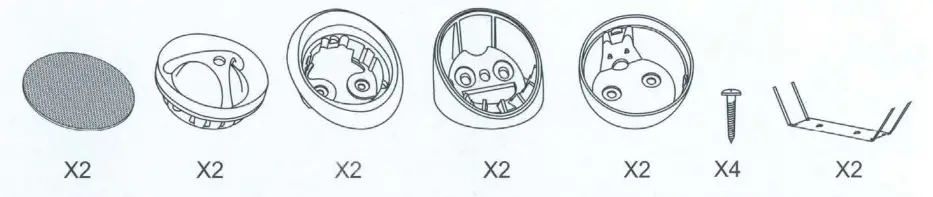

Content – Tweeter

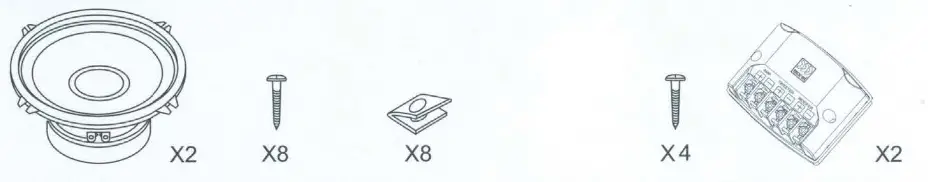

Content – Woofer

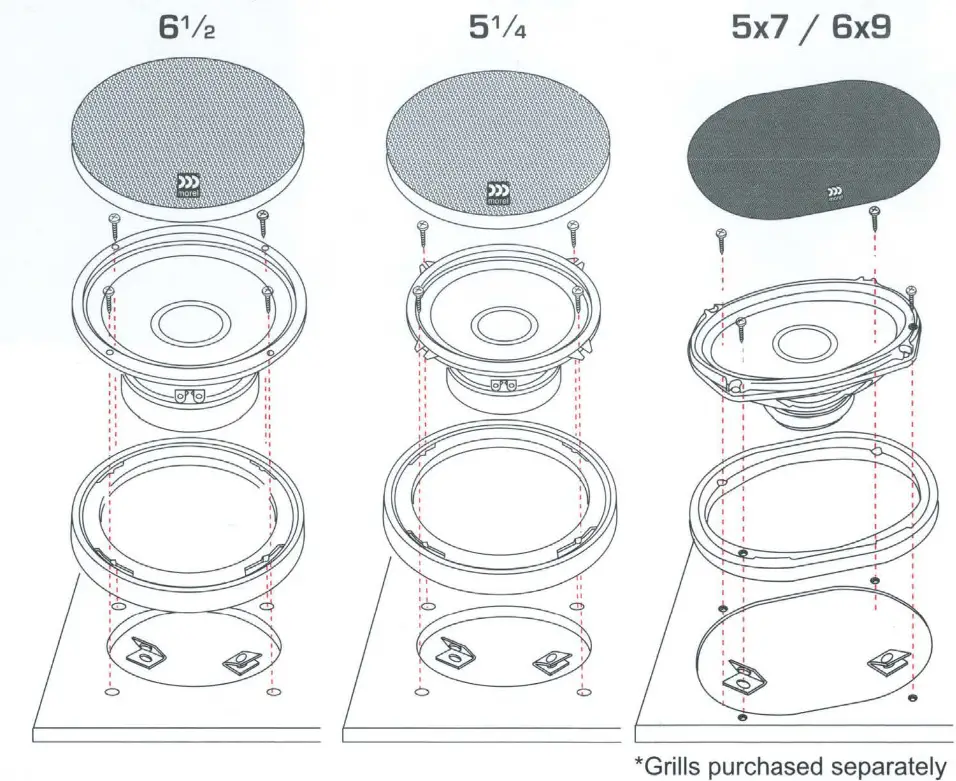

Woofer mounting

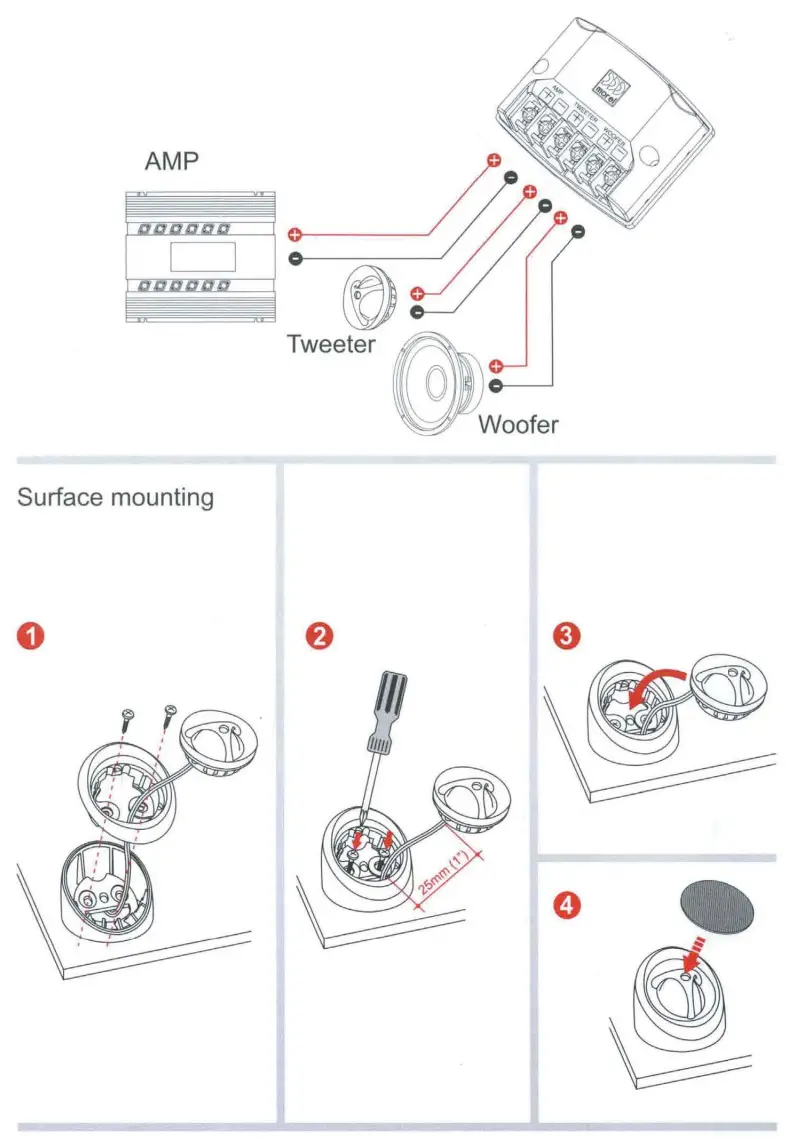

Crossover Connection
Flush mounting for 50 mm (1.96″) cutout
Specifications
| Two-way system | Tempo502 | Tempo 602 | Tempo 572 | Tempo 692 |
| Nominal Impedance | 4 ohm | 4 ohm | 4 ohm | 4 ohm |
| Power Handling | 110W | 130W | 120W | 150W |
| Max. Transient Power Handling | 250W | 250W | 250W | 260W |
| Sensitivity (2.83V/1M) | 89db | 90db | 90db | 91db |
| Frequency Response | 65-22000 | 55-22000Hz | 60-22000Hz | 50-22000Hz |
| Voice Coil Diameter Woofer: Tweeter: | 38 mm (1.50″) 28 mm (1.125″) | 38 mm (1.501 28 mm (1.125″) | 38 mm (1.50″) 28 mm (1.125″) | 38 mm (1.501 28 mm (1.125″) |
| Voice Coil Wire Woofer: Tweeter: | Copper Copper | Copper Copper | Copper Copper | Copper Copper |
| Magnet System Woofer: Tweeter: | high-grade ferrite Neodymium | high-grade ferrite Neodymium | high-grade ferrite Neodymium | high-grade ferrite Neodymium |
| Mounting Depth Woofer: Tweeter: | 57 mm (2.25″) 20 mm (0.80) | 64 mm (2.52″) 20 mm (0.80) | 62 mm (2.45″) 20 mm (0.80) | 85 mm [3.35″) 20 mm (0.80) |
