Kef E305 Home Theatre Speaker System Instruction Manual

E305 Home Theatre Speaker System
Instruction Manual

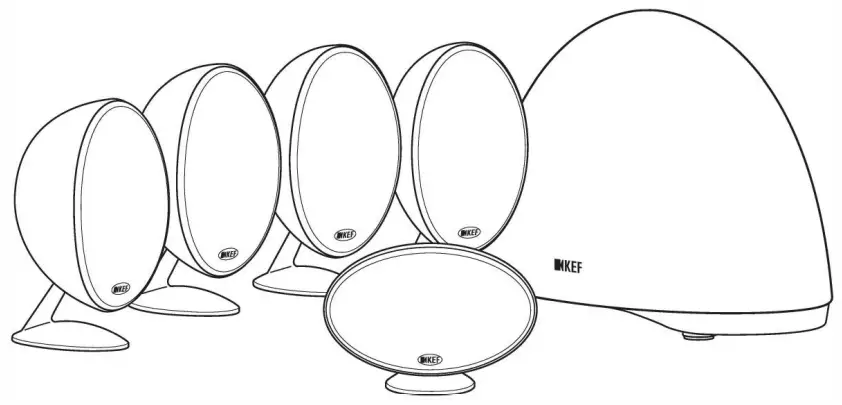

E305 Home Theatre Speaker System

Introduction

Thank you for in-chasing the E Series. We are confident that it will provide reliability. high-performance sand for many years to come Please read this manual fully before you attempt any connections to the E Series

Safety Instructions

• Follow the marital carefully for the best results from your speakers
• Read and let” warranty card
• Clean with a dry lit free cloth
• Do not use spint-based cleaners
• Avoid damp
• Avoid temperature extremes
• Avoid direct sunlight
• SAFETY NOTICE trailing cables are dangerous, secure all cables

WARNING: TO REDUCE THE RiSK OF FIRE OR ELECTRICAL SHOCK DO NOT E)(POSE THIS APPLIANCE TO MIN OR MOISTURE
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

• A combined mains power input lead and country-specific mains plug is provided.
• Check before connecting to your local mains supply that the local supply voltage is the same as that marked on the rear panel. If it is not, check with your supplier before proceeding.

Expansion of Graphical Symbob
The lettering flash with an arrowhead symbol. within an equilateral angle. is intended to alert the user to the presence of uninsulated -dangerous voltage within the products endwise that may be of a sufficient magnitude to constitute a risk of electrical shock to persons.
The exclamation mark within an equilateral (Atingle is intended to alert the user to the presence of important operating and maintenance (servicing) instructors n the literature accompanying the appliance
WARNING: Due to the man’s switch being located on the rear panels the appliance nut be located ki an open area without anything obstructing access to the main switch.  Correct Disposal of This Product The eroding indicates that the product should not be disposed of with otter household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled wane disposal recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased They can take this product for environment* safe recycling
Please take heed of the following before using the KEF E305. Note also that the word “appliance” shall refer to the KEF E305 or any part of it.

1. Read Instructions — All the Safety and Operating Instructions should be read before operating the appliance.
2. Retain Instructions — The Safety and Operating Instructions should be retained for future reference
3.  Heed Warnings — All warnings on the appliance and in the Operating Instructions should be adhered to.
4. Follow Instructions — All Operating and Use Instructions should be followed. Only use attachments/ accessories specified by the manufacturer.
5. Important — Do not defeat the safety purpose of the polarized or grounding-type plug. The third prong is provided (for your safety. If the provided plug does not fit into your outlet. consult an electrician for replacement of the obsolete outlet Refer all servicing to qualified service personnel. Servicing is required for any damaged parts such as the power supply cord or plug.
6. Water and Moisture — The appliance should not be used in or near water, for example, near a bathtub, washbowl, kitchen sink or laundry tub. in a wet basement, near a swimming pool, and the like. The appliance shall not be exposed to dripping or splashing. Care should be taken so that objects containing liquids are not placed upon or spilled into the enclosure through openings and that no objects filled with liquids, such as a vase, shall be placed on the appliance.
7. Ventilation — The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed. sofa, or similar surfaces that may block any ventilation openings.
8. Heat — The appliance should be situated away from heat sources such as radiators, heat registers. stoves or other appliances (including amplifiers) that produce heat
9. Power Sources — The appliance should be connected to a power supply only of the type described in the Operating Instructions or as marked on the appliance and it shall remain readily operable. The mains plug is used as the disconnect device. To be completely disconnected from the power input the mains plug of the appliance must be disconnected from the mains completely. The building installation shall be regarded as providing protection in accordance with the rating of the wall socket outlet
10.  Power Cord Protection — Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles and the point where they exit from the appliance. The mains plug should not be obstructed or should be easily accessed during intended use.
11. Attachments and Accessories — Use only attachments/accessories specified by the manufacturer-.
12. Handling — The appliance should be transported with the cart, stand tripod bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used pay caution when moving the cart/ appliance combination to avoid injury from tip-over.
13. Non-use Periods — Unplug the appliance during lightning storms or when unused for long periods of time.
14. Damage Requiring Serve — The appliance should be serviced by qualified service personnel when a) The power supply cord or the plug has been damaged, or b) Objects have fallen or liquid has been spilled into the appliance: or c) The appliance has been exposed to rain; or d) The appliance does not appear to operate normally or exhibits a marked change in performance or e) The appliance has been dropped or the enclosure is damaged.
15. Servicing — The user shall not attempt to service the appliance beyond that described in the Operating Instructions. All other servicing should be referred to qualified service personnel.

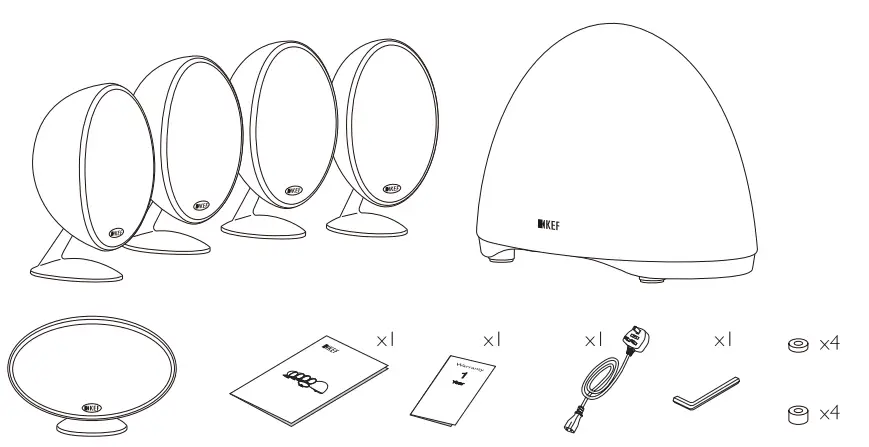

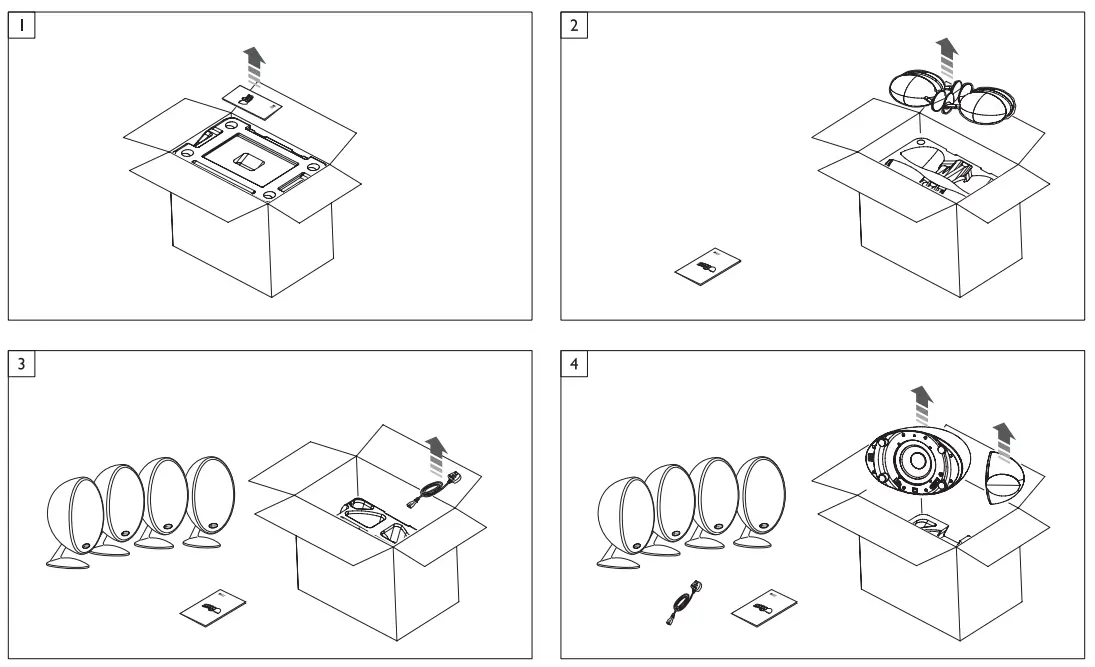

Inside the BoxUnpacking

Controls and Connectors

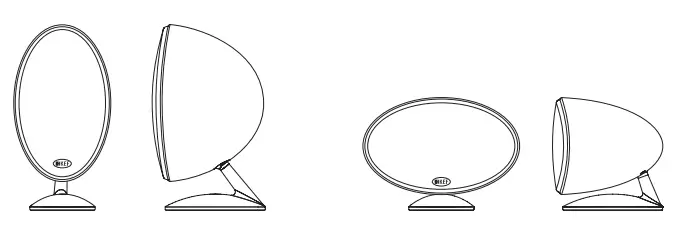

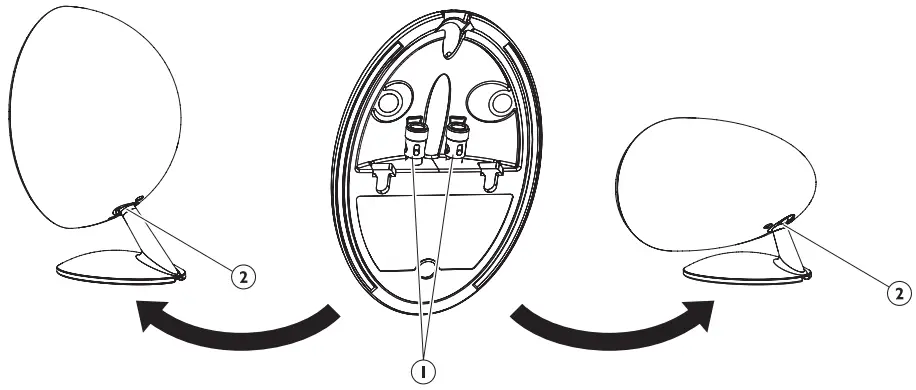

Satellite speaker / Centre speaker

1. Speaker cable terminal
2. Ball joint

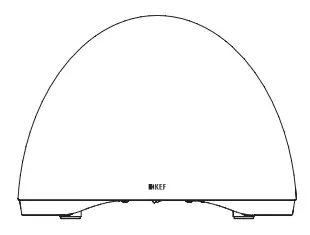

Subwoofer

1. Line-in input socket
2. Phase control
3.  Bass boost
4. Auto/ Manual switch
5.  LED indicator
6.  Power switch
7.  AC power

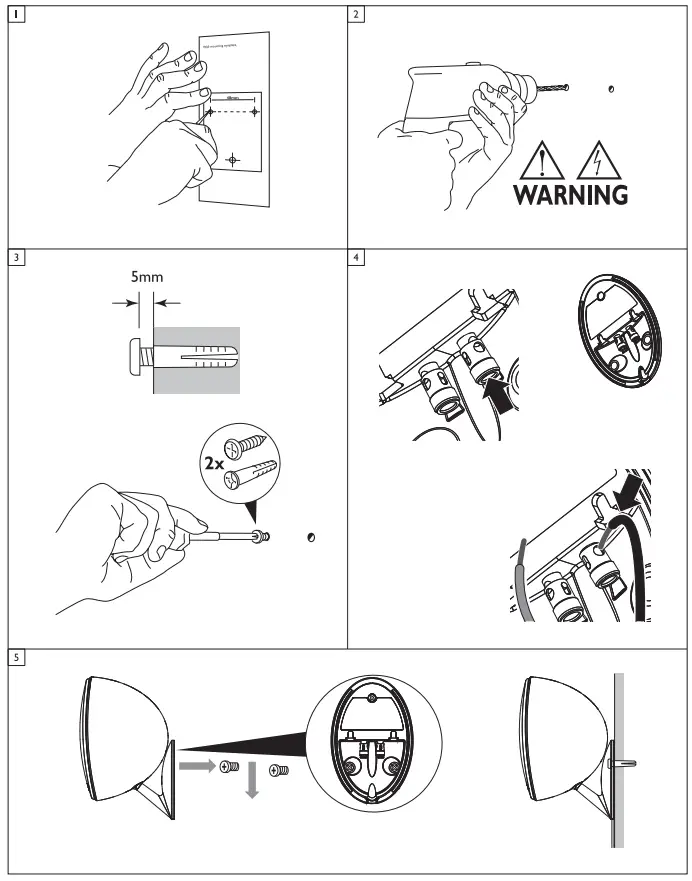

Wall Mounting

Warning

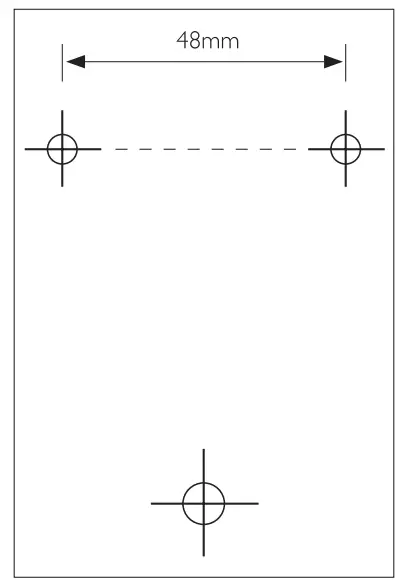

Warning – No attempt should be made to install these loudspeakers unless you are sure that you will not be cutting through electric cables, water or gas pipes, or supporting joists. Wall mounting Template

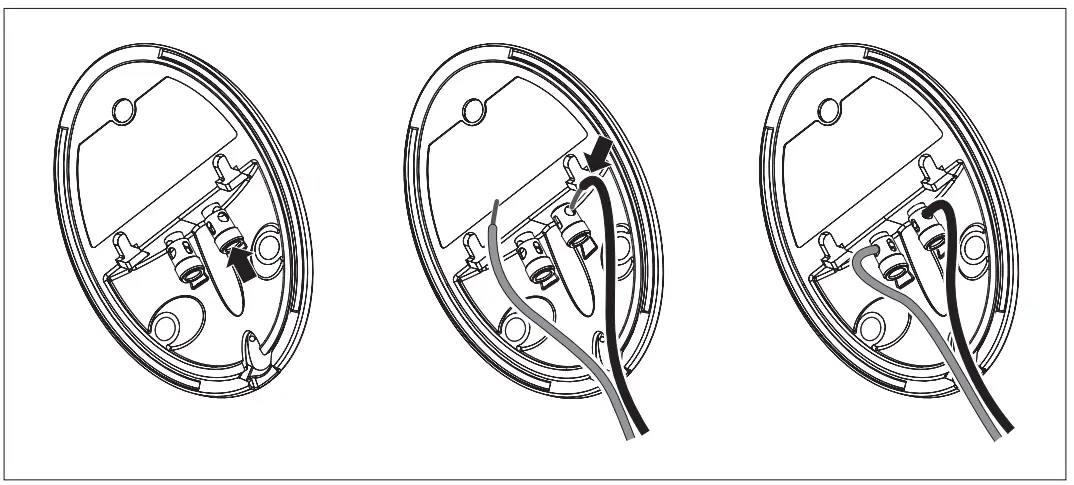

Cable Installation

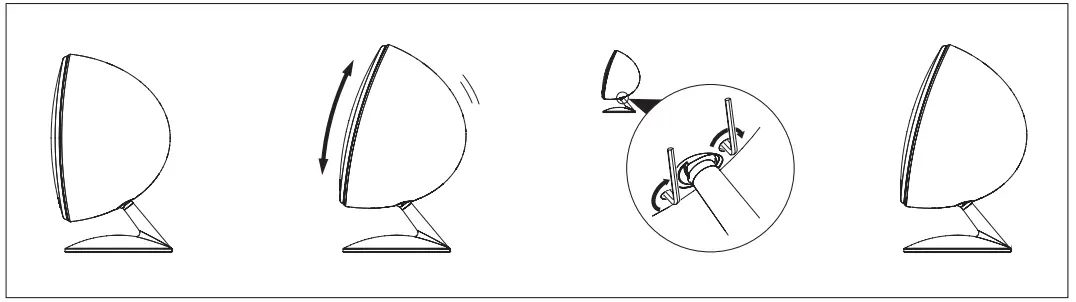

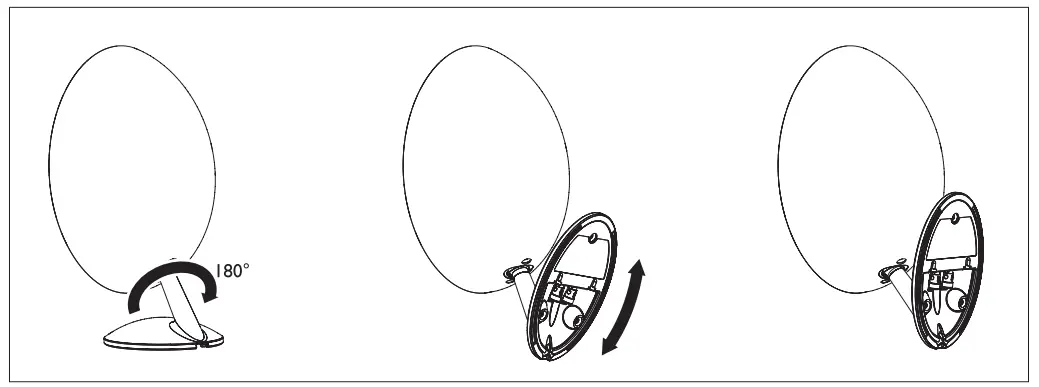

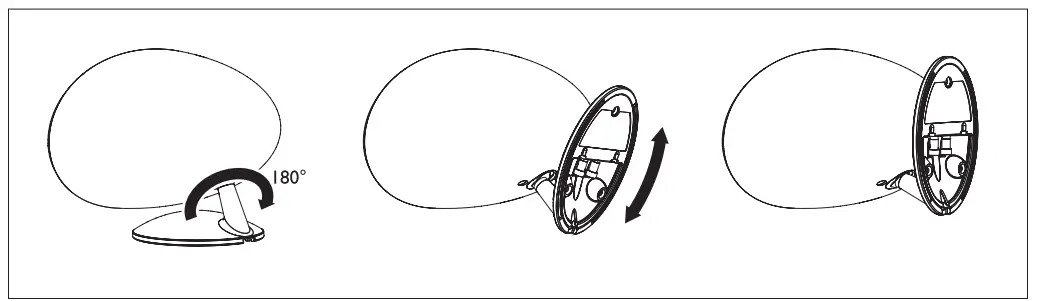

Ball Joint

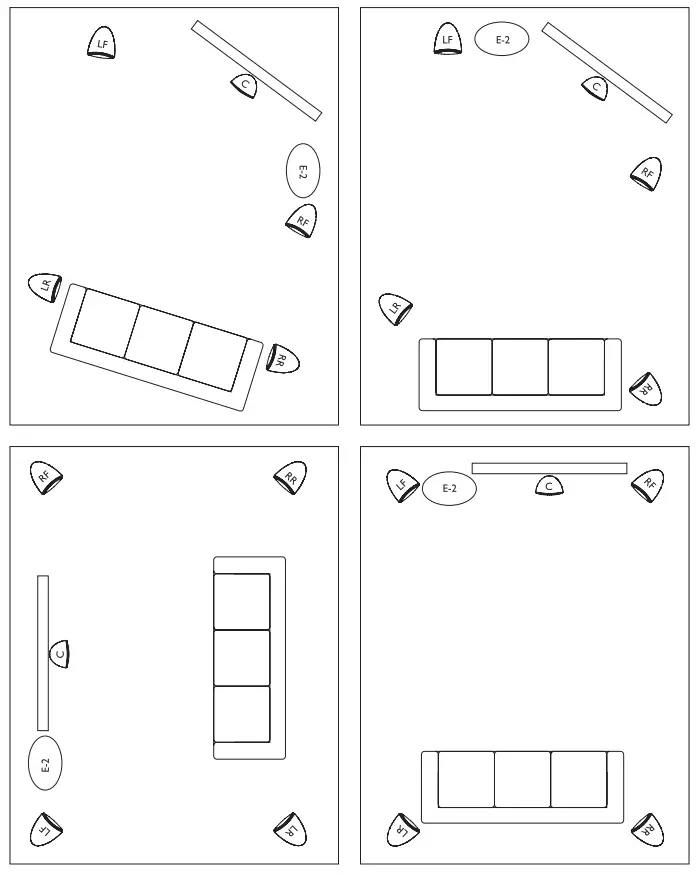

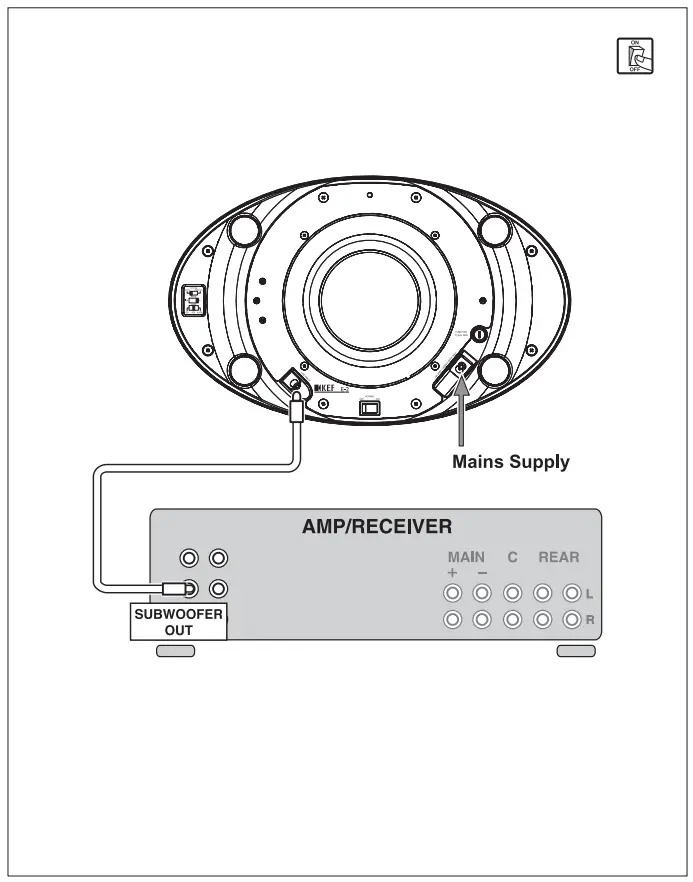

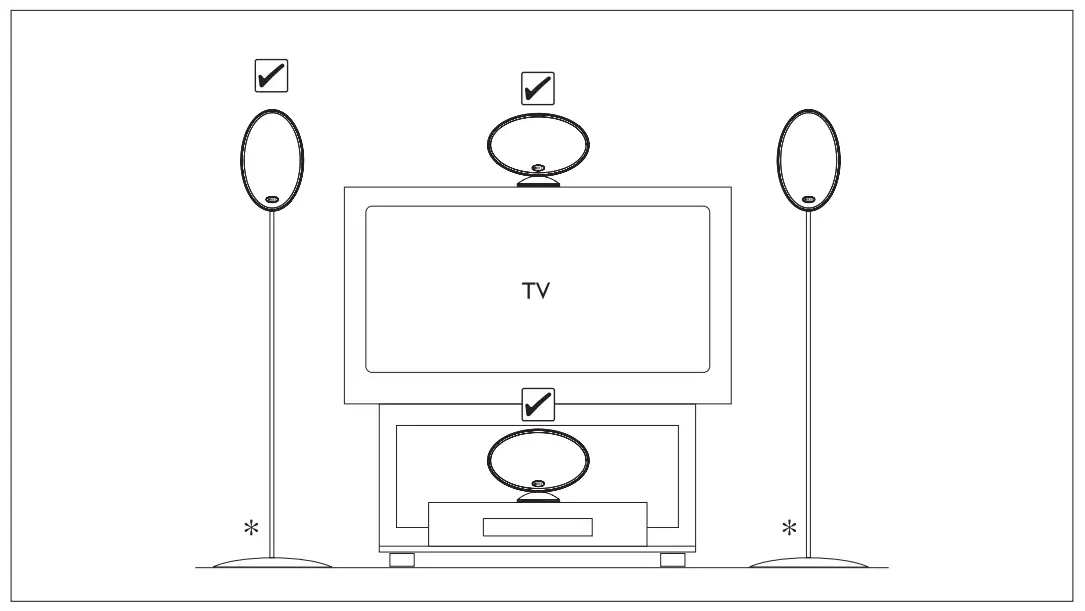

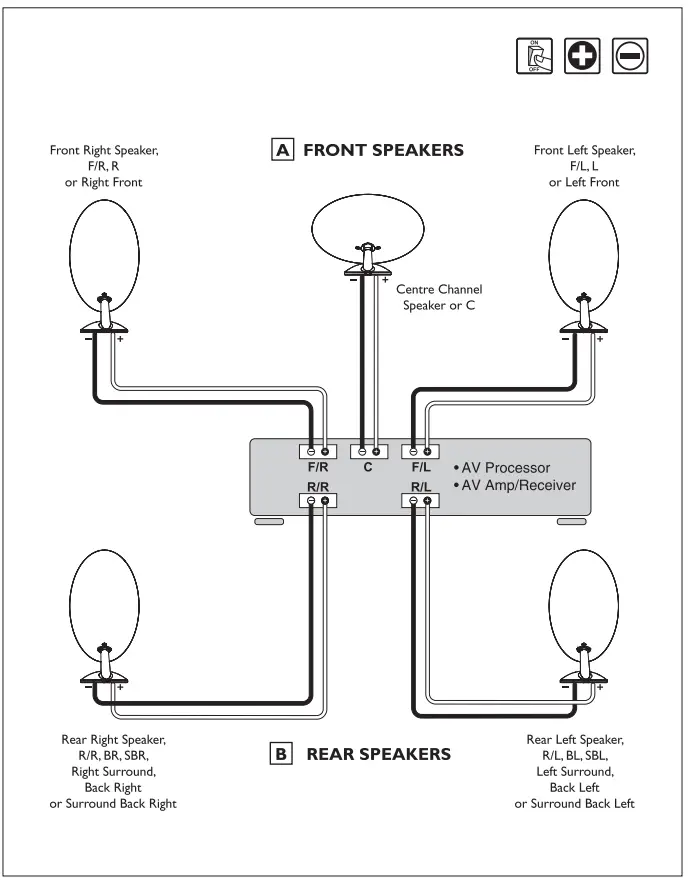

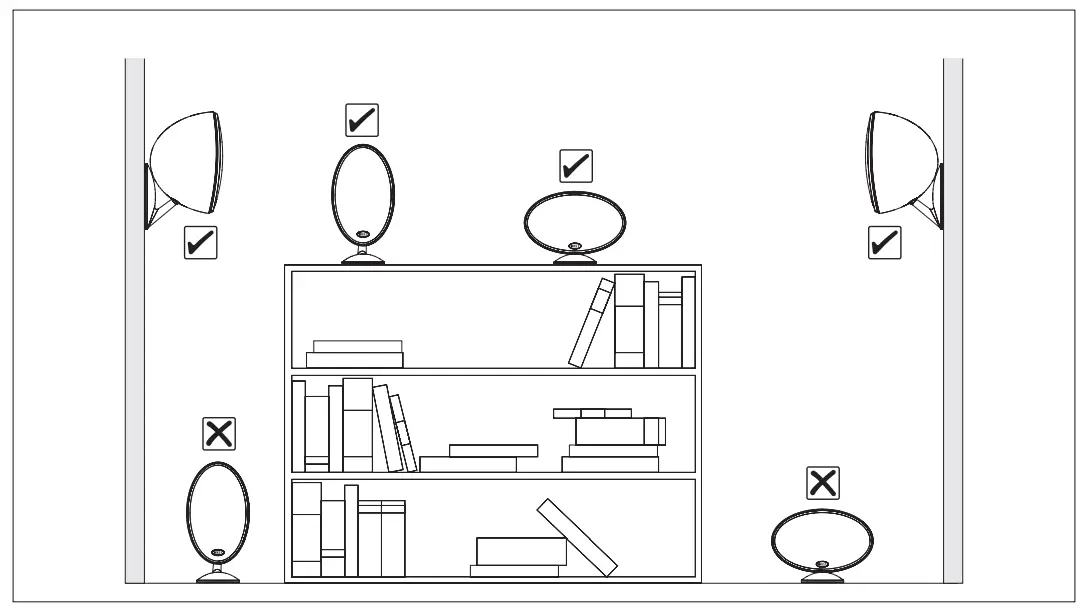

PositioningNot includedConnections

Su subwoofer Settings

Auto/ Manual switch
In Auto mode, the unit will remain on standby until a signal is sensed.
In Manual mode, the unit will remain on even when no signal is present.
Phase Control
The phase control will normally be set at 0° but more output level can sometimes be achieved in the 180° position, particularly when the subwoofer is far away from the satellite speakers

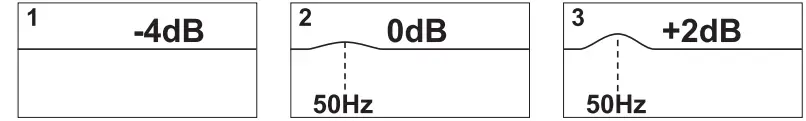

Bass Boost
The bass boost control is intended to adjust the response of the subwoofer to compensate for room conditions and user preferences. Boost is switchable between -4dB(CUT), OdB(FLAT), +2dB(BOOST) at around 50Hz.

LED Indicator

Power ON
Power OFF

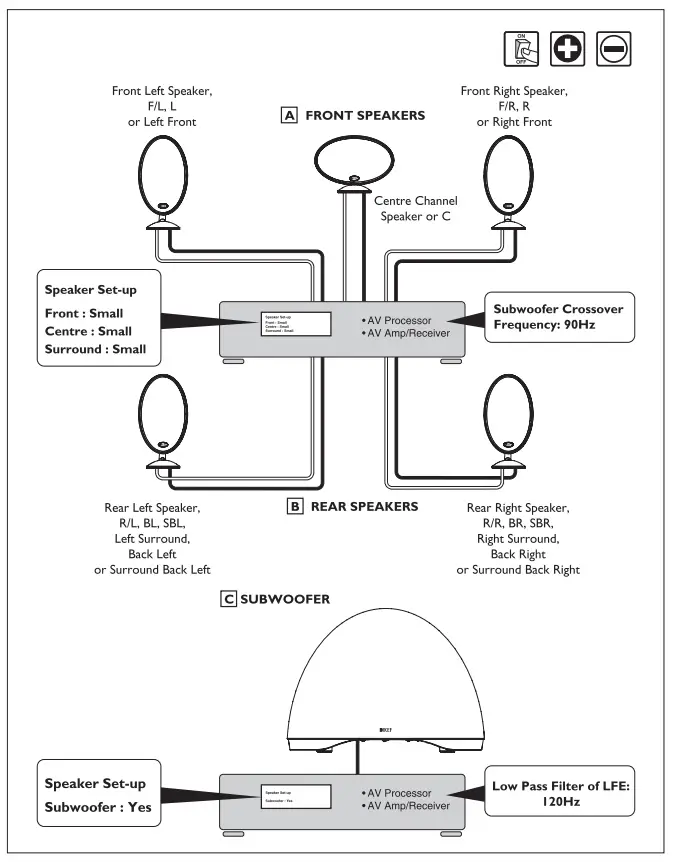

Calibration

Specification

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

www.Kef.com

USA
GP Acoustics (US) Inc.
10 Timber Lane, Marlboro. New Jersey 07746 U.S.A.
Tel: + I (732) 683 2356
Fax: + I (732) 683 2358
Email: [email protected]
KEF and Uni-Q are registered trademarks. Uni-Q and other KEF technologies are protected by worldwide patents. All text and image copyrights are reserved. KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Issue 1:02.2013
P/N: 4301-5425+0
