KLICK& SHOW K-FX Wireless Conferencing System
User Guidehelp.klickandshow.com

Contents hide

5 Screen sharing with transmitter

6 Screen sharing via a software client

7 How to use the conference camera and audio?

8 Documents / Resources

8.1 References

9 Related Posts

Intended use

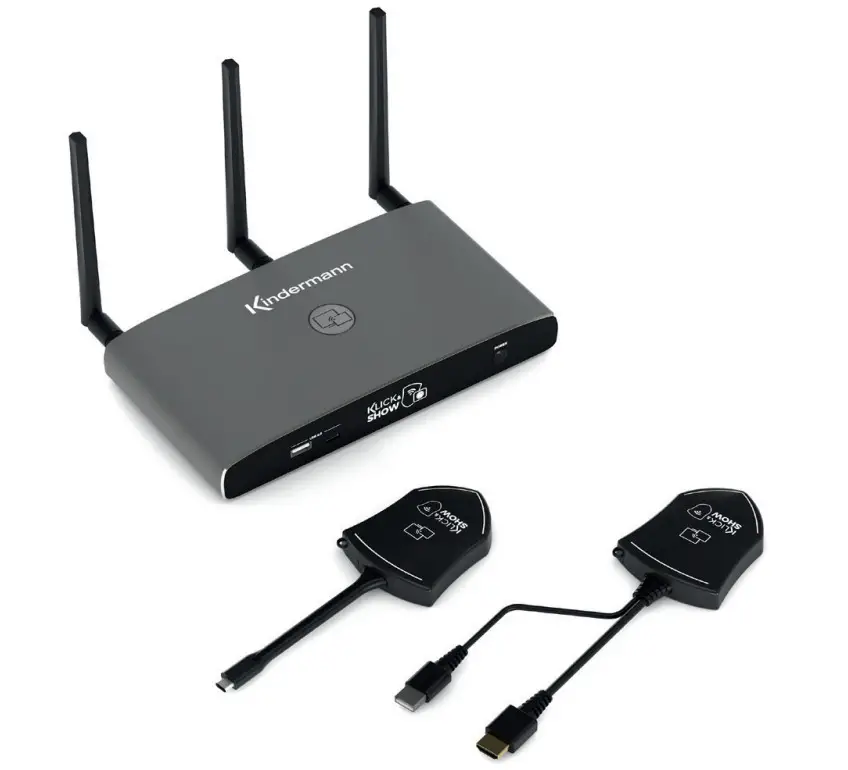

KLICK&SHOW is a wireless presentation system for processing audio-visual content from different devices.

Safety instructions

Please read the instructions carefully and store them
The Kindermann KLICK&SHOW base unit can only be operated with a safe low voltage via the associated power supply unit
The device must only be stored and used in a dry, closed environment without mechanical stress
Install the unit in a place with adequate ventilation
Do not use any liquids or thinners for cleaning (remove the power supply beforehand!)
Remove the power supply for long periods of non-use
The use of unsuitable accessories may result in damage or malfunction
Please observe the safety instructions for the devices to be connected

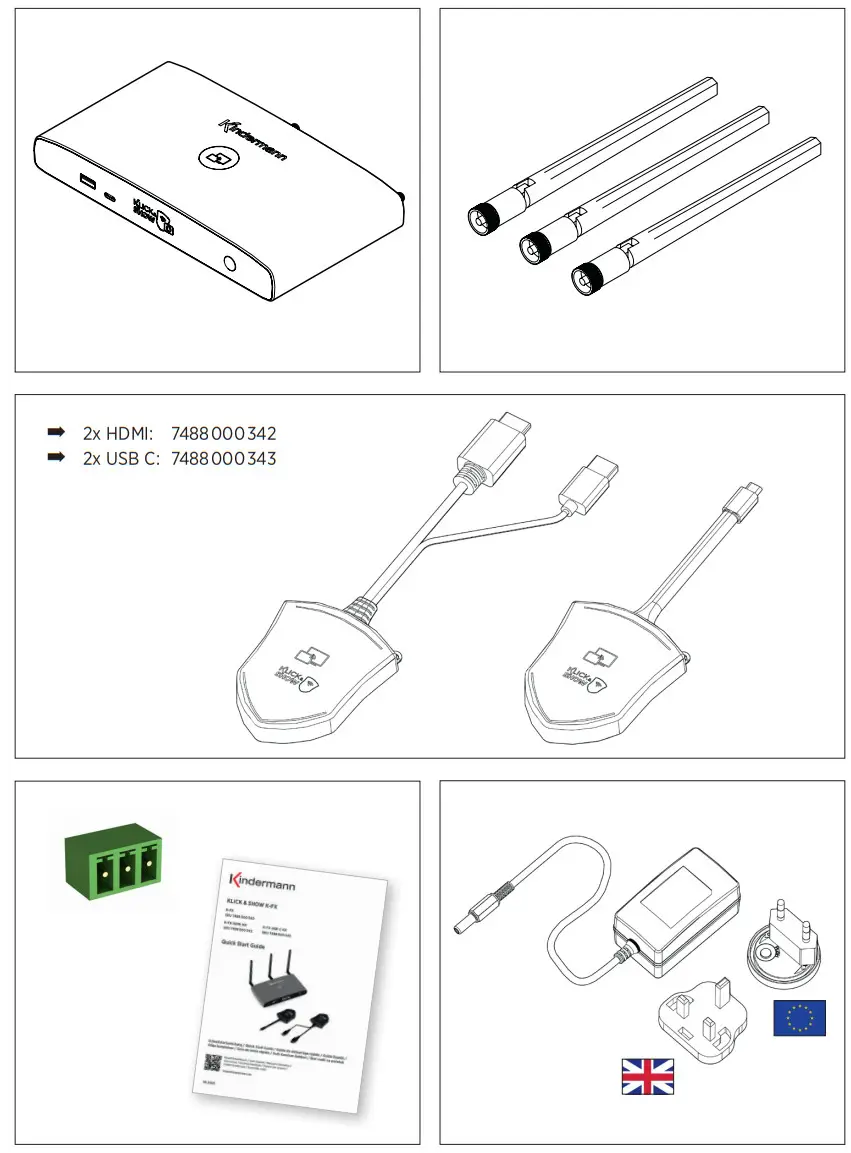

Scope of delivery

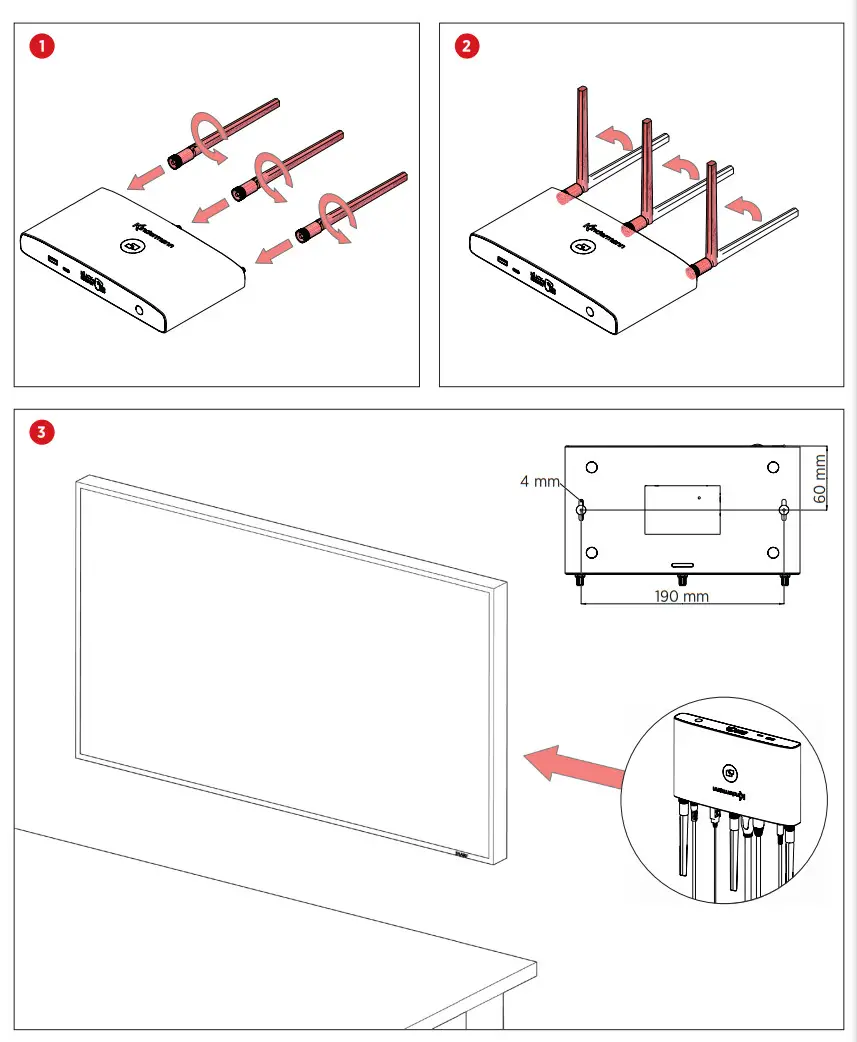

Assembly

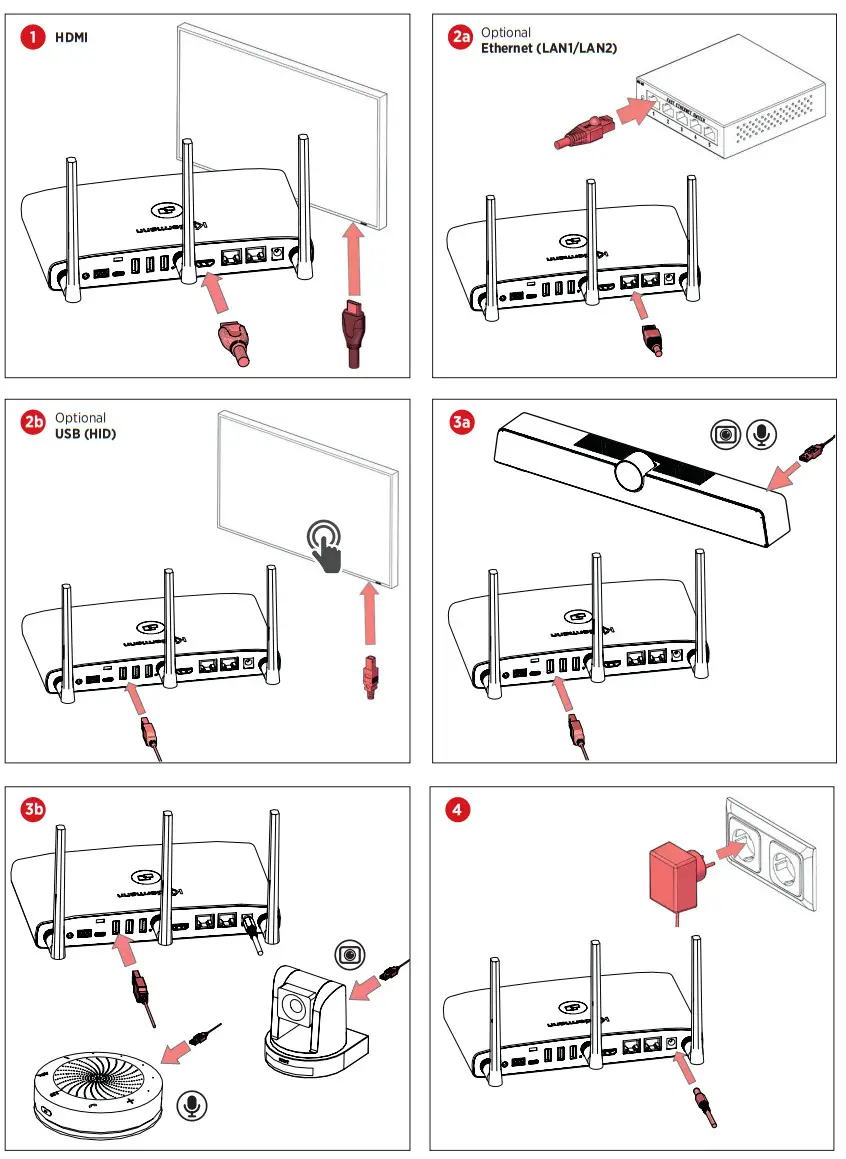

Start-up

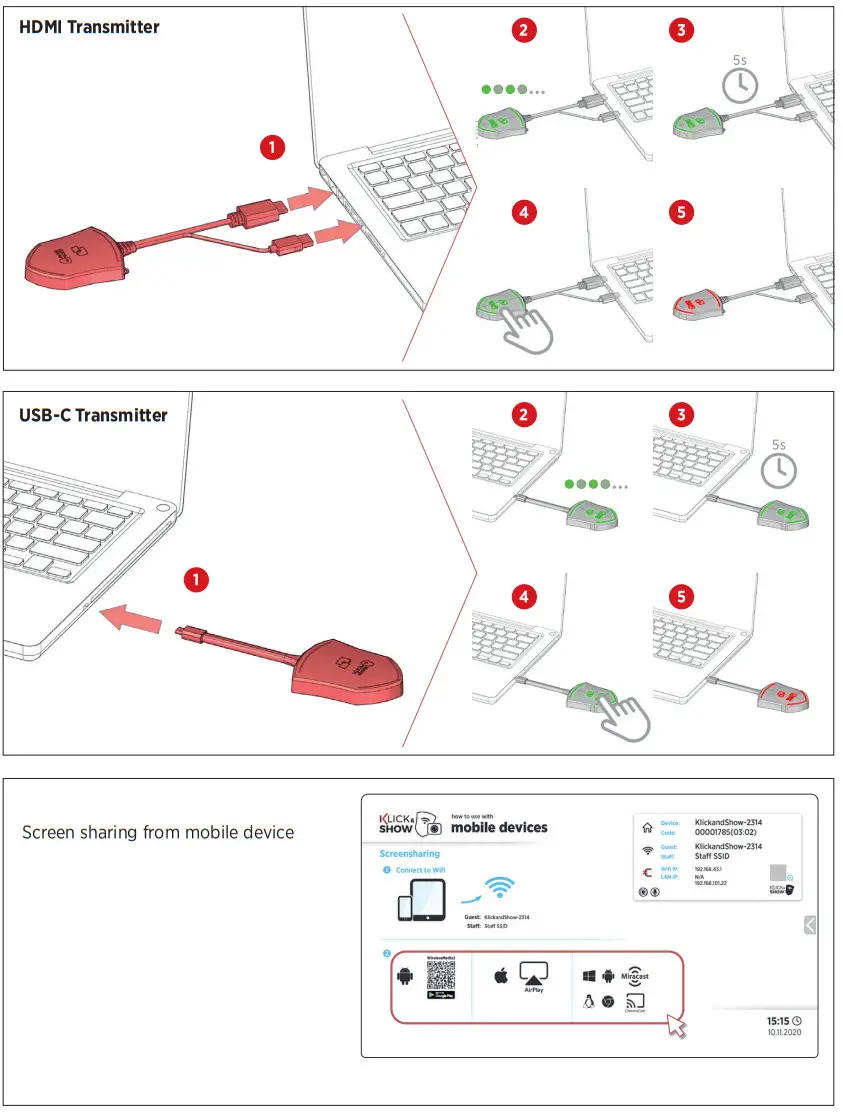

Screen sharing with transmitter

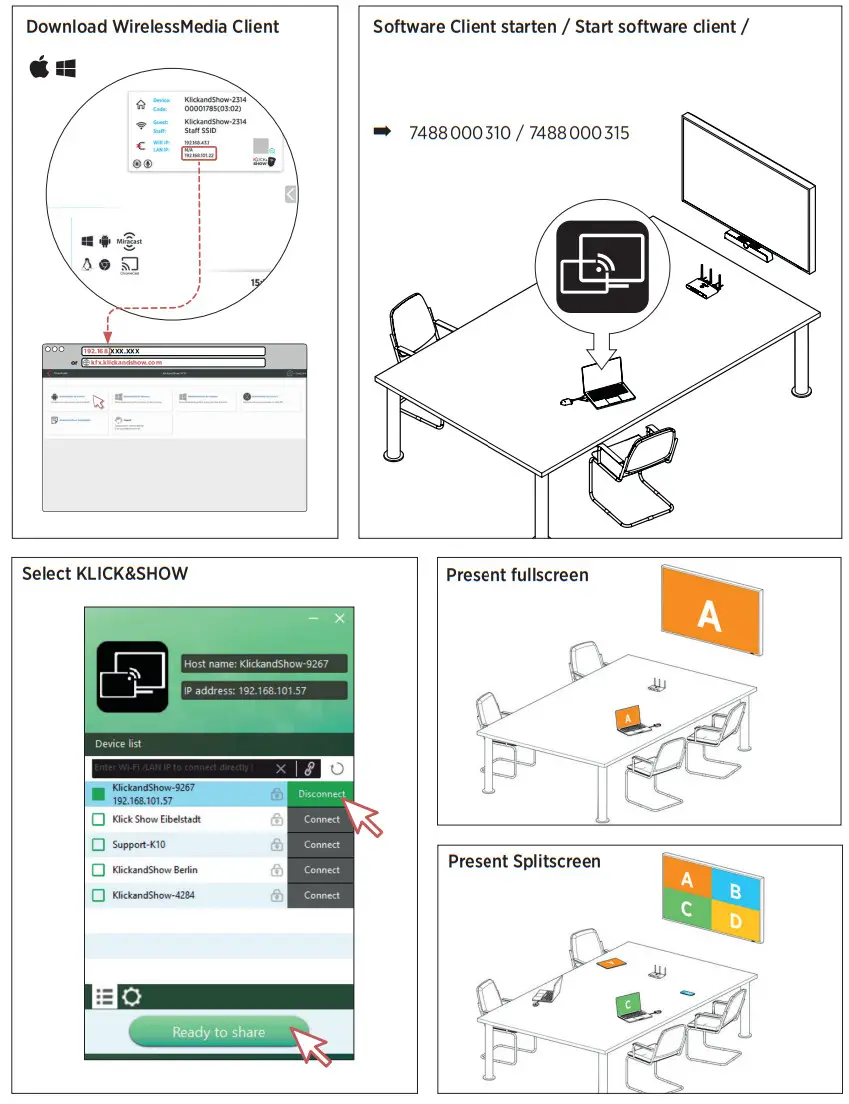

Screen sharing via a software client

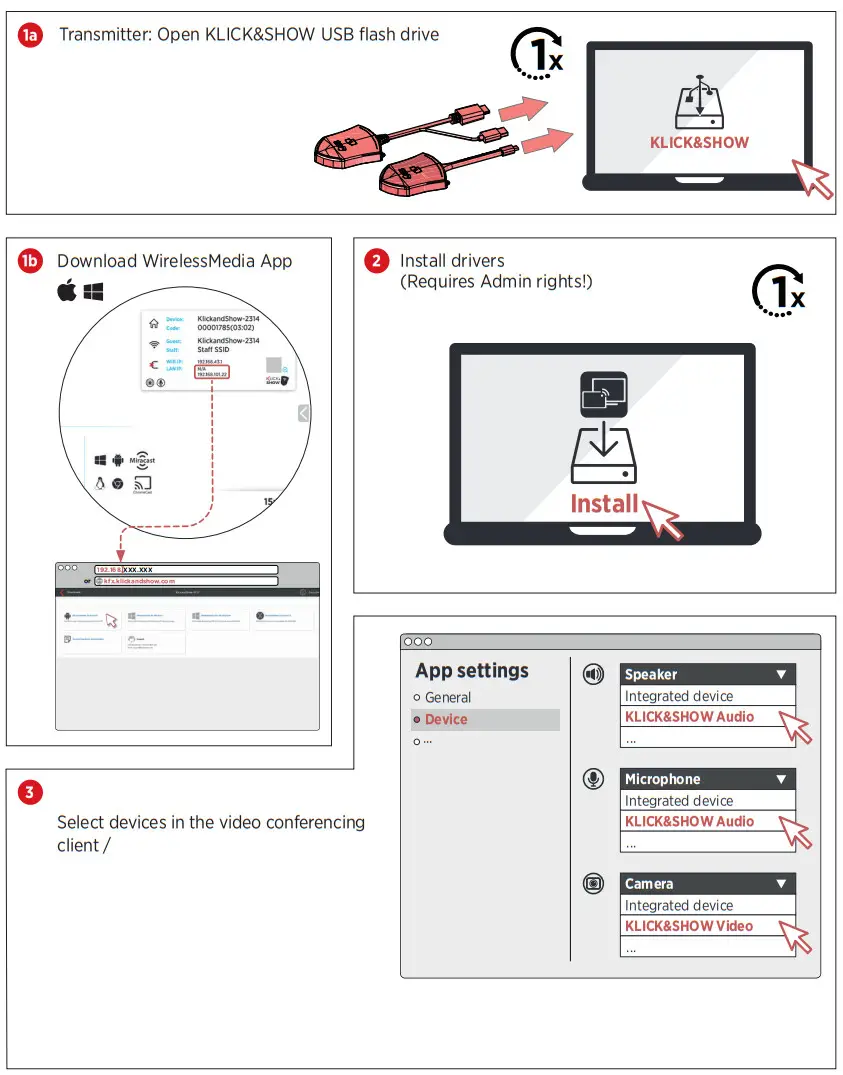

How to use the conference camera and audio?

Declaration of conformity CE
Hereby, Kindermann GmbH declares that the radio equipment type KLICK&SHOW is in compliance with Directive 2014/53/
EU. The full text of the EU declaration of conformity is available at the following internet address:

Declaration of conformity

Hersteller
Manufacturer/Authorized representative:

Kindermann GmbH
Mainparkring 3
D-97246 Eibelstadt

Hereby declares that the product:

Klick & Show K-FX
Klick & Show K-FX HDMI Kit
Klick & Show K-FX USB C Kit

with the model number(s):

7488000340/42/43

in its design and type of construction in the version marketed by us complies with the basic safety and health requirements of the relevant directives, among others
In the event of a modification of the product not agreed with us, this declaration loses its validity.
The product is in compliance with the following directives/regulations:

LVD 2014/35/EU, EMC-Directive 2004/108/EC and RoHs 2011/65/EU, RED 2014/53/EU and additional standards

Applied (mainly harmonized) standards and additional standards are in particular:

Safety:
Gesundheit:
EMC:

EN 62368-1: 2014+A11: 2017
EN IEC 62311: 2020
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-17 V3.2.4 (2020-09)
ETSI EN 301 489-3 V2.1.1 (2019-03)
EN 55032: 2015+A11: 2020; EN 55035: 2017+A11: 2020
EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A1:2019

RED:

ETSI EN 300 328 V2.2.2 (2019-07)
ETSI EN 301 893 V2.1.1 (2017-05)
ETSI EN 300 440 V2.2.1 (2018-07)

RoHS 2.0:

EN 50581:2012

Eibelstadt, 24.11.2021

https://shop.kindermann.de/erp/webshop/navigationPath/7488000340.html

Frequency band
When channels 36-48 are used with the 5 GHz band, this product is restricted only for indoor usage.
Frequency band: 2.4 GHz: Channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 / 5 GHz: Channels 36, 40, 44, 48
Bandwidth: 20 MHz
Transmission power: max. 13 dBm (20 mW), controlled dynamically
