Kindermann Klick And Show K-42u Kit User Guide (+ PDF)

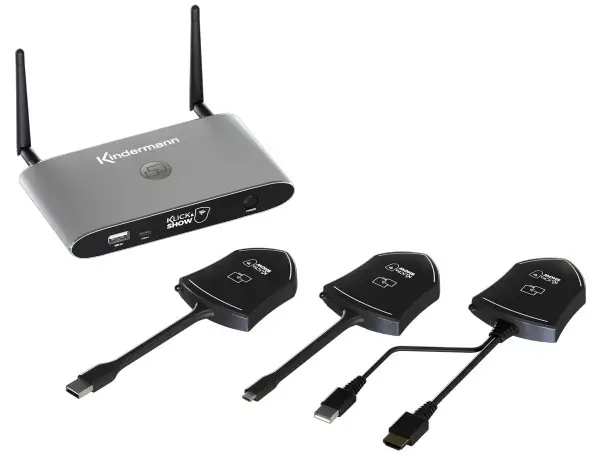

KLICK and SHOW K-42U Kit
User Guide

KLICK & SHOW
K-42U Kit
SKU 7488000310
K-42H Kit
SKU 7488000330
K-42UC Kit
SKU 7488000312
K-40 Base
SKU 7488000315

help.klickandshow.com

Intended use
KLICK & SHOW is a wireless presentation system for processing audio-visual content from different devices.

Contents hide

1 Safety instructions

7 Documents / Resources

7.1 References

8 Related Posts

Safety instructions

Please read the instructions carefully and store them
The Kindermann KLICK & SHOW base unit can only be operated with a safe low voltage via the associated power supply unit
The device must only be stored and used in a dry, closed environment without mechanical stress
Install the unit in a place with adequate ventilation
Do not use any liquids or thinners for cleaning (remove the power supply beforehand!)
Remove the power supply for long periods of non-use
The use of unsuitable accessories may result in damage or malfunction
Please observe the safety instructions of the devices to be connected

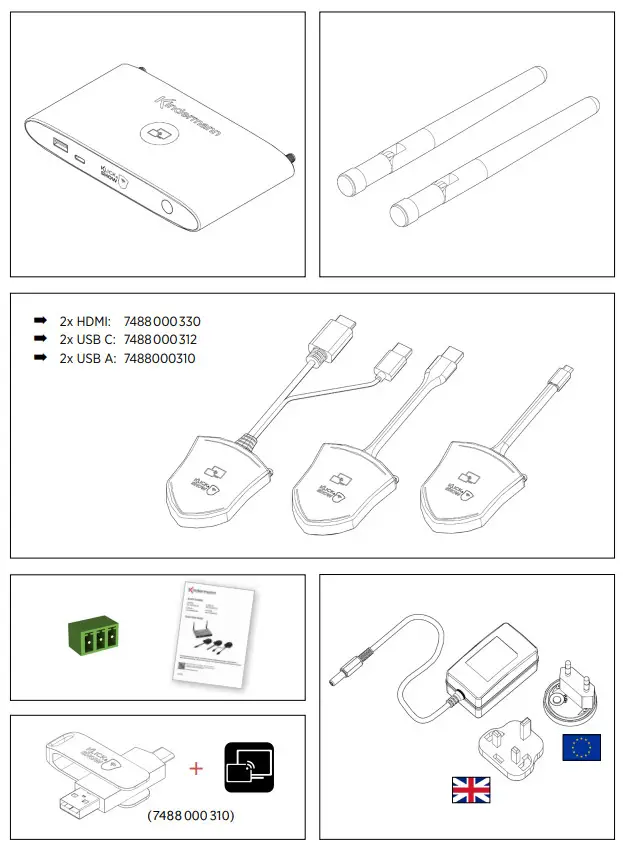

Package contents

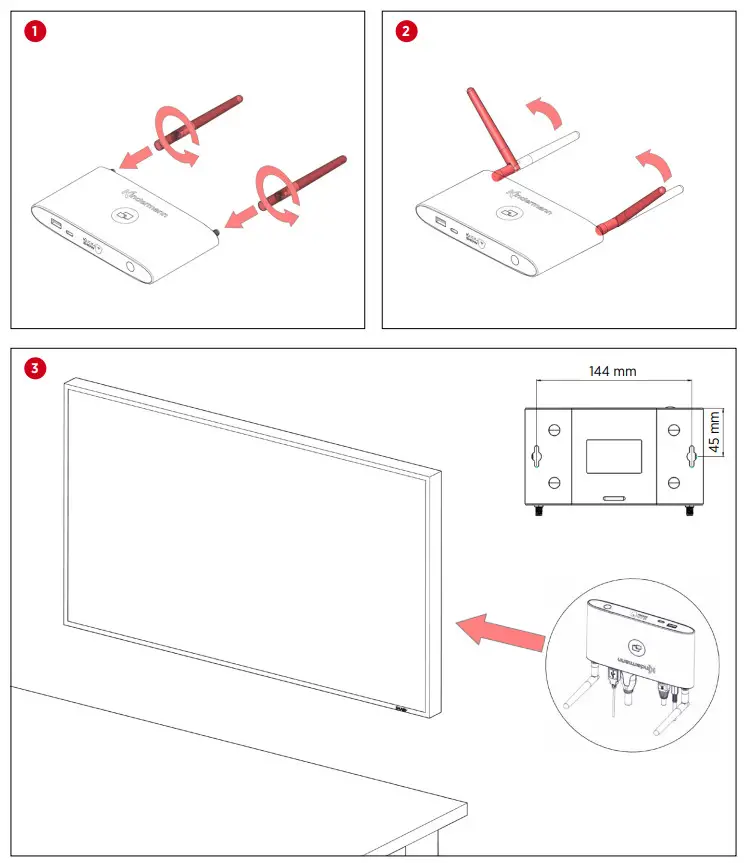

Assembly

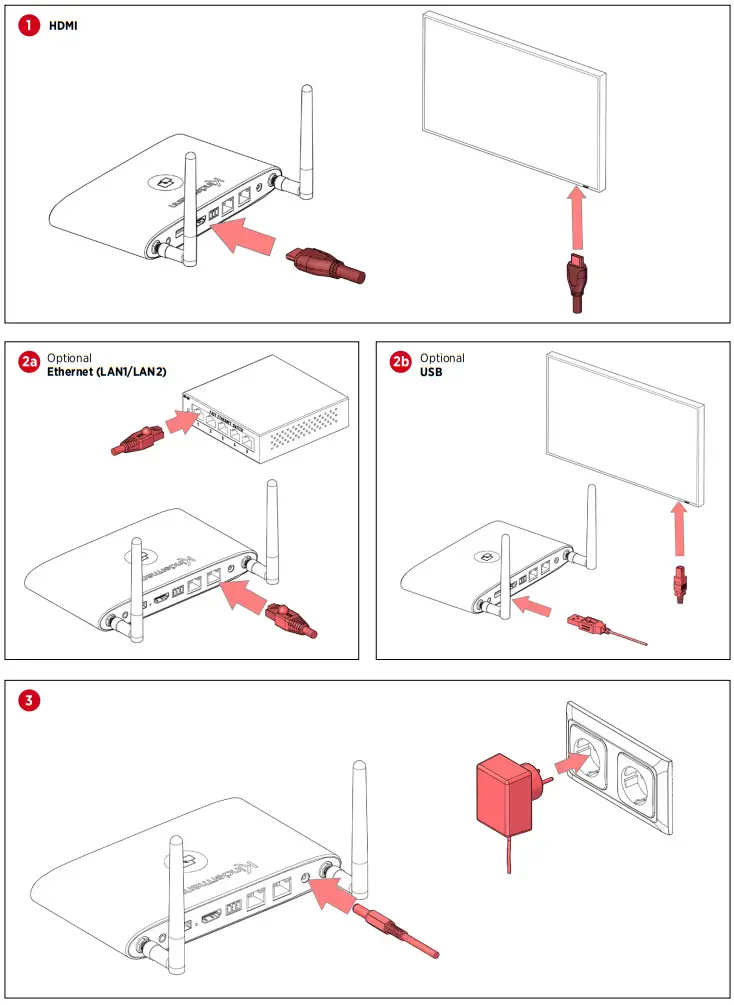

Commissioning

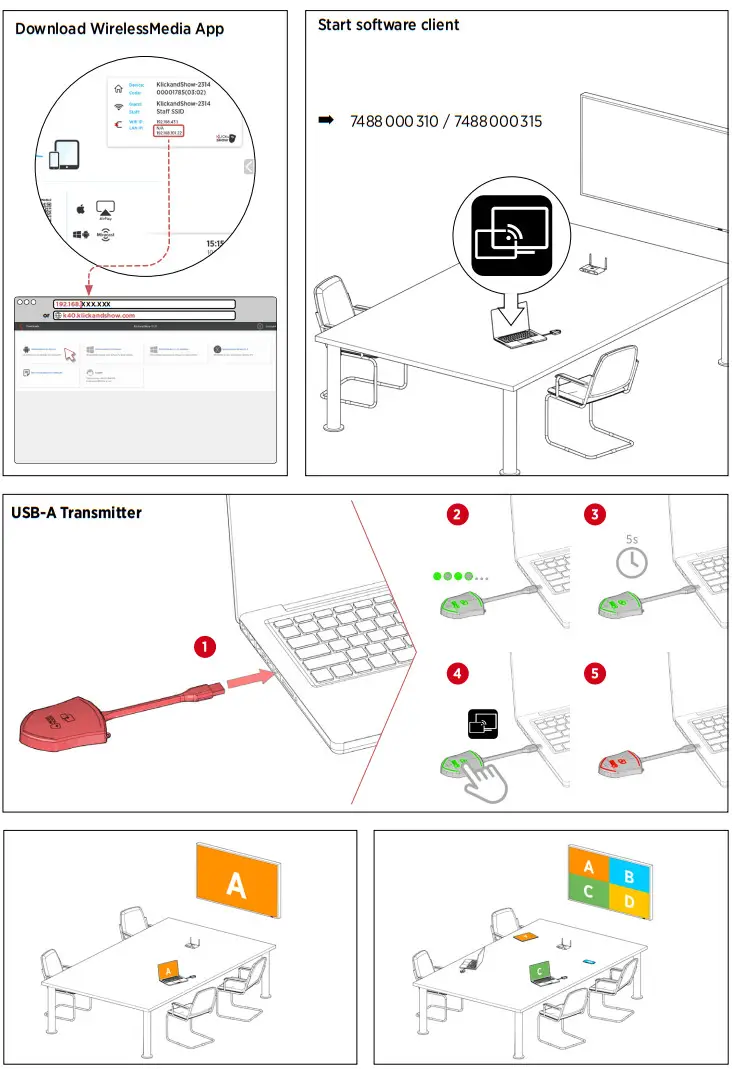

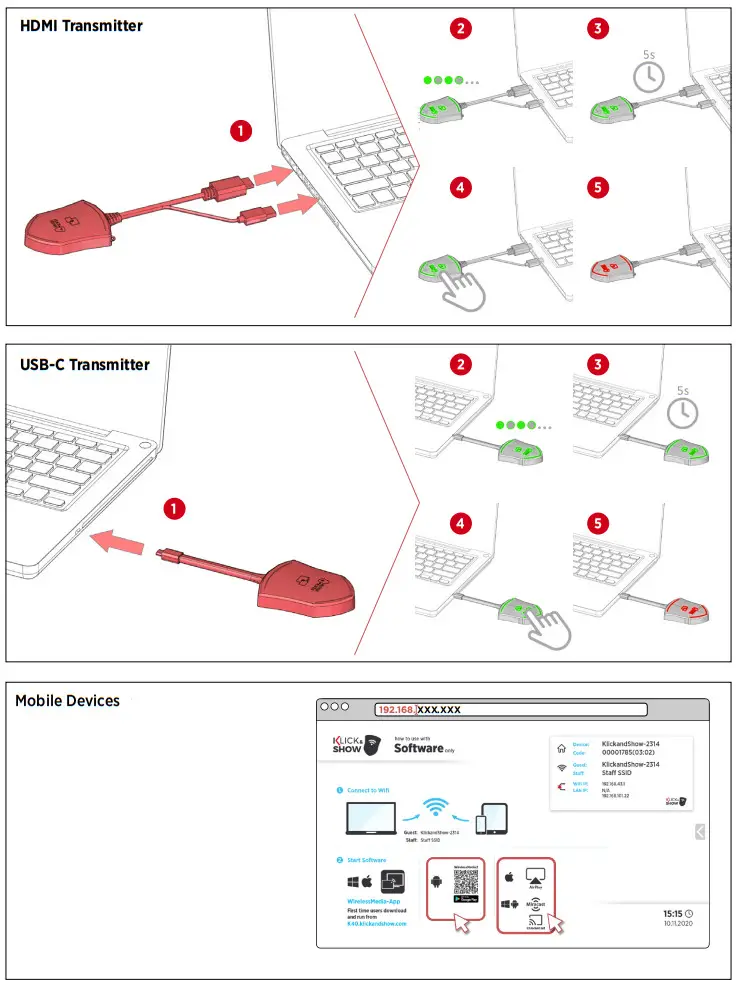

Present

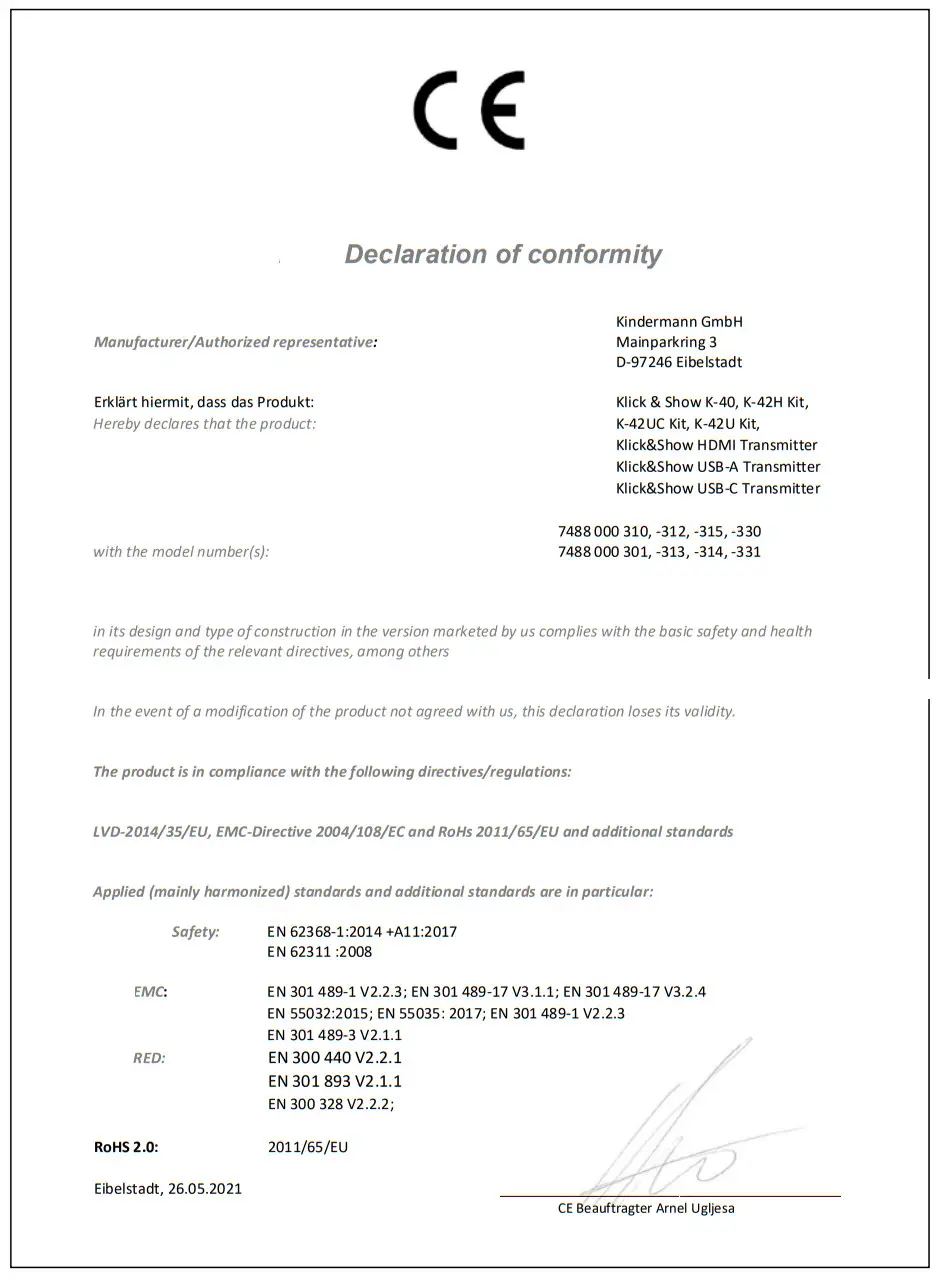

Declaration of conformity CE
Hereby, Kindermann GmbH declares that the radio equipment type KLICK & SHOW is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://shop.kindermann.de/erp/webshop/navigationPath/7488000310.html

Frequency band
When channels 36-48 are used with the 5 GHz band, this product is restricted only for indoor usage.
Frequency band: 2.4 GHz: Channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 / 5 GHz: Channels 36, 40, 44, 48
Bandwidth: 20 MHz
Transmission power: max. 13 dBm (20 mW), controlled dynamically
