Omni TED Trailing edge dimmer
User Manual
PRODUCT OVERVIEW
Omni TED is a BLE5.2 controllable, trailing edge dimmer. It operates on 90-277VAC input voltage range and can work with single LED loads of up to 250W and has output o connect a switch. It also comes with an optional push button switch input to control the dimming and ON/OFF of the connected load.
The device is a part of the Lumos Controls ecosystem, including controllers, sensors, switches, modules, drivers, gateways, and analytical dashboards. It can be easily commissioned, configured and controlled from any mobile device and can be connected to Lumos Controls cloud for data analytics and configuration management. The ecosystem is listed by the Design Lights Consortium (DLC), qualifying it for energy conservation incentive programs and rebates by utility companies.
SPECIFICATIONS
Electrical
| Specifications | Value | Remarks |
| Input voltage | 90-277VAC | Rated input voltage |
| Supply frequency | 50-60Hz | |
| Inrush current protection | 75A | |
| Surge transient protection | 4kV | L-N, Bi wave |
| Dimming operation mode | Trailing edge | |
| Max output power | None | 250W @277VAC; 125W @90VAC |
| Min power requirement | 250W | Active power |
FEATURES
- BLE5.2 based non-flooding intelligent communication
- 1 channel output, up to 250W
- Supports resistive and capacitive loads
- Optional push button switch input to control the dimming and ON/OFF of the connected load
- Compact form factor for easy installation
- Zero downtime Over-The-Air (OTA) firmware updates
Bluetooth
| Specifications | Value | Remarks |
| Frequency range | 2402-2480MHz | |
| Rx sensitivity | 95dBm | |
| Connection distance (device to device by mesh) | 45m(147.6ft) | In an open office environment (Line of Sight) |
Environmental
| Specifications | Value |
| Operating temperature | -20 to 50°C (-4 to 122°F) |
| Storage temperature | -40 to 80 ºC (-40 to 176°F) |
| Relative humidity | 85% |
Mechanical
| Specifications | Value | Remarks |
| Dimension | 45.1 x 35.1 x 20.2mm (1.7 x 1.4 x 0.8in) | L x W x H |
| Weight | 120g(4.23oz) | |
| Case material | ABS Plastic | |
| Flammability rating | UL 94 V-0 |

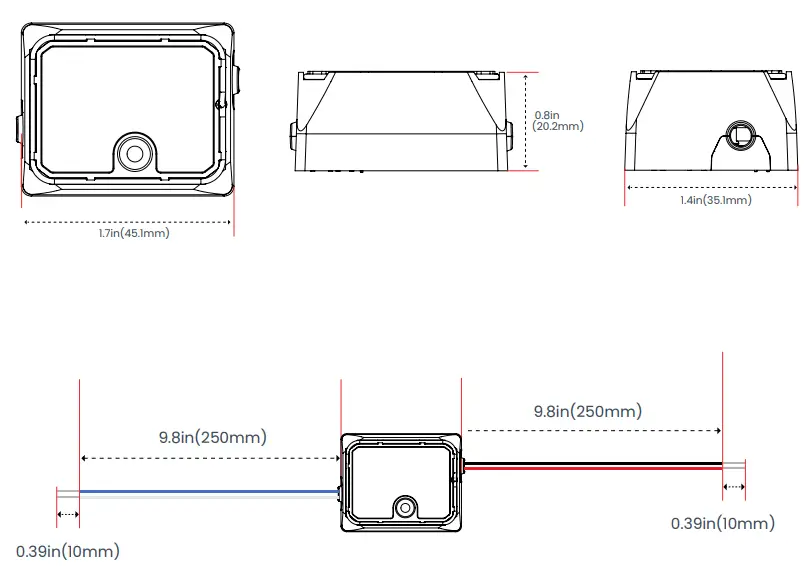

PRODUCT DIMENSIONS
Omni TED top view: 45.1 x 35.1 x 20.2mm (1.7 x 1.4 x 0.8 in) (L x W x H)
Case material: V0 flammability rated ABS plastic

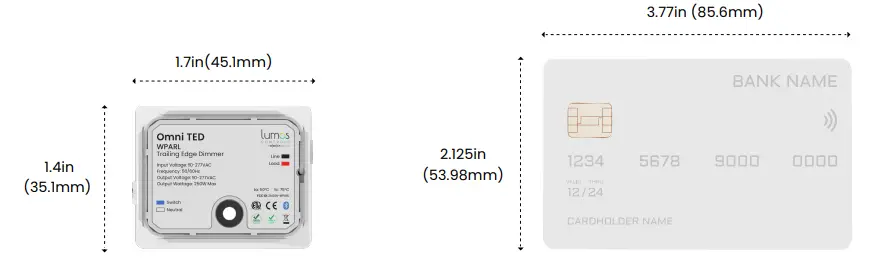

Size comparison with a standard credit card

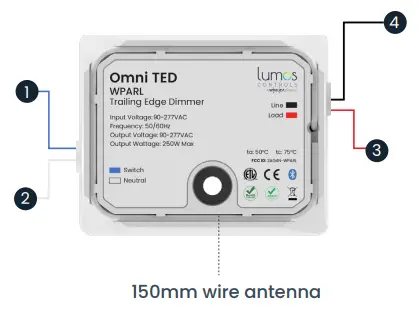

WIRE DESCRIPTION
| Pin | Name | Color | Gauge | Rating | Description |
| 1 | Switch | Blue | 18AWG (0.75mm 2 ) | 600V | To connect switch control |
| 2 | Neutral | White | 18AWG (0.75mm | 600V | Common neutral |
| 3 | Load | Red | 18AWG (0.75mm 2 ) | 600V | For load |
| 4 | Line | Black | 18AWG (0.75mm 2 ) | 600V | 90-277VAC |

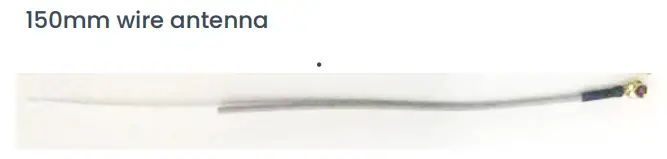

ANTENNA INFORMATION
Antenna Properties
| Frequency range | 2.4GHz-2.5GHz |
| Impedance | 50Ω Nominal |
| VSWR | 1.92:1 Max |
| Return loss | -10dB Max |
| Gain(peak) | 1.97dBi |
| Cable loss | 0.3dBi Max |
| Polarization | Linear |
WIRING

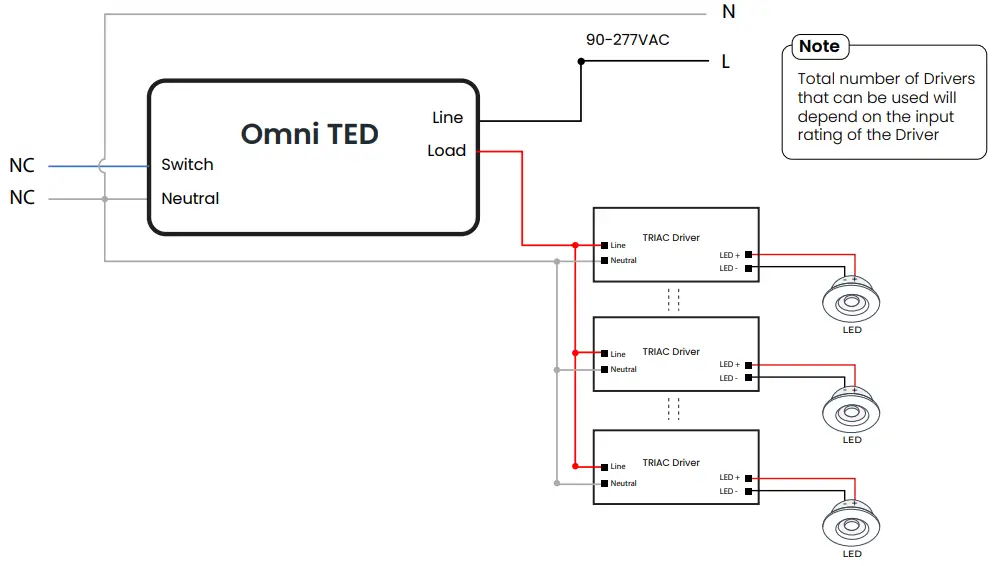

- Controlling Omni Ted using Lumos Controls app

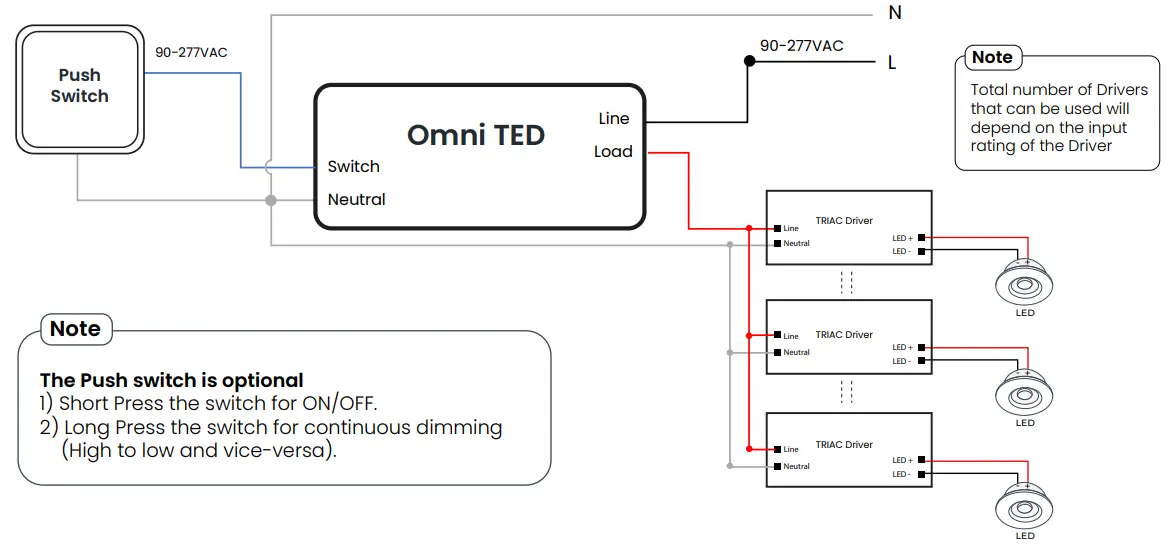

- Configuring Omni TED with Push switch(Optional)

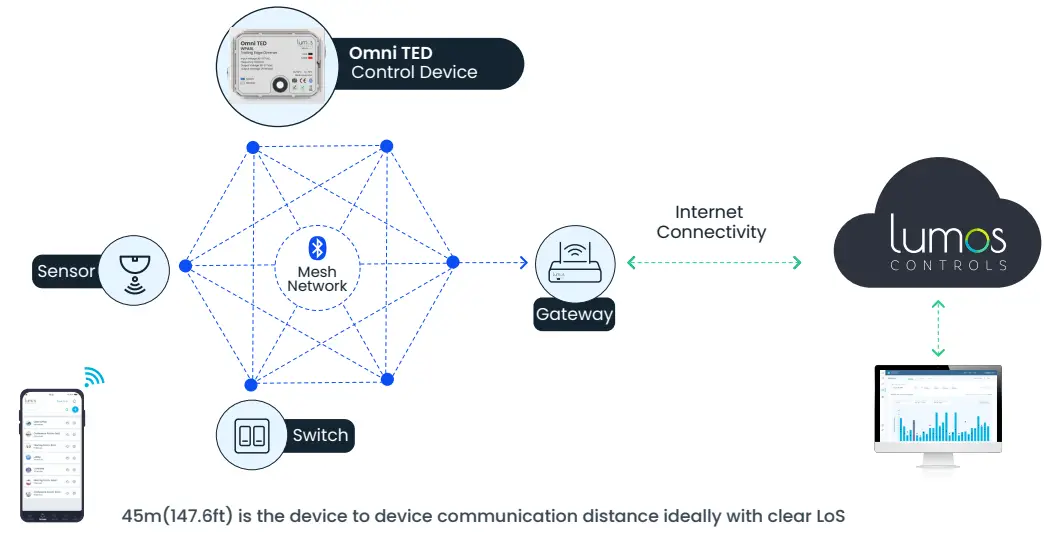

SMART ECOSYSTEM
| Certifications (in progress) | Details |
| CE | Article 3, RED 2014/53/EU EMC test standards Safety test standard Radio test standard Health test standard |
| RoHS 2.0 | RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU |
| REACH | Regulation (EC) No 1907/2006 of REACH |
| WEEE | Under the WEEE Directive: 2012/19/EU |
| Bluetooth | Declaration ID: D059551 |
| cETLus | Standard: UL 60730-1 |
| FCC | ID: 2AG4N-WPARL |
APPLICATION
ITEMS INCLUDED IN THE PACKAGE BOX
- Omni TED
- User manual
- Screw
- Wallplug
- Wirenut
ORDERING INFORMATION
| WPARL | Product Name | Product Description | Communication | Communication | Load Rating |
| Product Code | Omni TED | Trailing edge dimmer | BLE5.2 | BLE5.2 | Up to 250W |
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WiSilica Inc. is under license. Other trademarks and trade names are those of their respective owners.
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to rovide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not ccur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
FCC ID: 2AG4N-WPARL
