agratlink Tractor 3-Point Hitch

Background

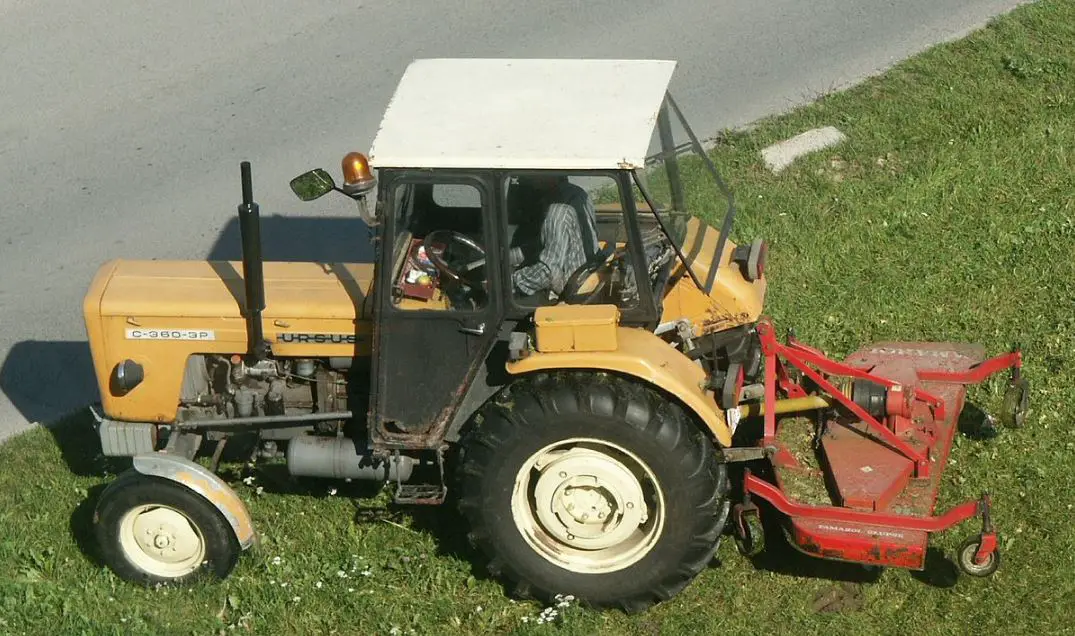

Most tractors are equiped with a three point hitch for attaching implements to the tractor. It lets the operator raise implements when transporting them and provides height and tilt adjustments during use.

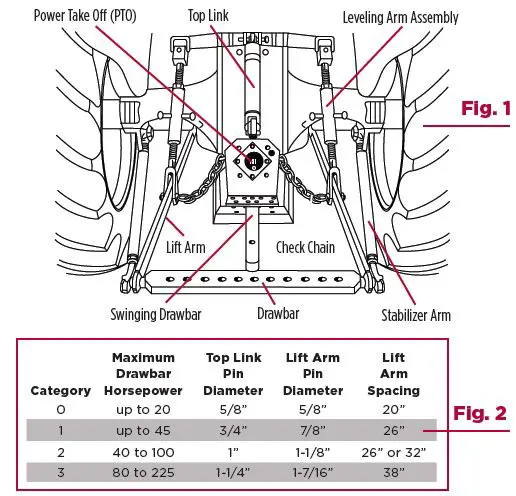

The three point hitch gets its name from the tractor’s three hook up points: two lower lift arms and one top link. (see fig. 1) Special pins are used to fasten the implement at these three points. They are called top link pins at the top link connection and lift arm pins at the lift arm connections.
The diameters of the connection pins and corre-sponding ball sockets of the tractor’s hitch points have been standardized by the American Society
of Agricultural Engineers (ASAE) by horsepower category. (see fig. 2)

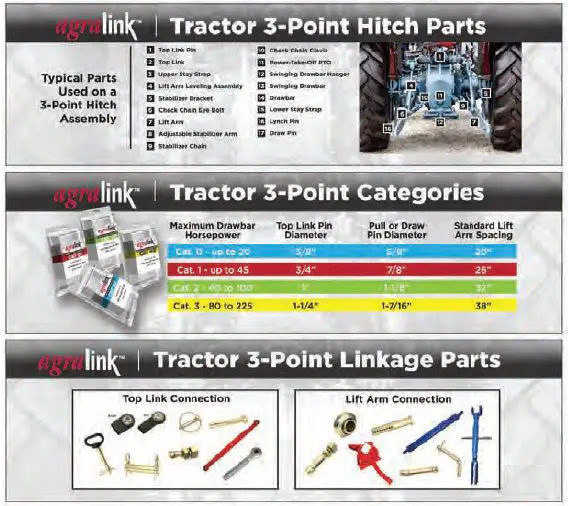

Hitching Up Different Categories

Sometimes a tractor must be hitched to a different category implement. For example, a new category 2 tractor may be used to mow with an older category 1 rotary cutter. A category 1 top link pin should be used with a category 1 to 2 bushing to fit the tractor’s category 2 top link ball socket. Agralink™ offers special lift arm pins withadifferent diameter on each end. In this case, the category 1 pin could be replaced with a special lift arm pin, that has a 7/8” diameter threadedend to fit the category 1, 7/8” hole in the implement bracket and a category 2, 1-1/8” diameter unthreaded end to fit the tractor’s category 2 lift arm ball socket. Agralink makes special pins and bushings in many varieties.

Lift Arm Connections

One end of each lift arm is secured to the tractor axle housing by a special OEM (original equipment manufacturer) mounting pin. The other end of the lift arm is connected to a lift arm pin, that has been fastened to the lower bracket of the implement’s ‘A’ frame. Category 0, 1 and lighter category 2 implements use threaded lift arm pins that are bolted to the implement bracket. (see fig. 4) Heavier category 2 and most category 3 implements use special clevis pins, that are mounted through two brackets on the implement, thereby supporting both ends of the pin, similar to the top link connection. (see fig.3)
Most lift arm pins (other than clevis pin types) are threaded on the end that bolts to the implement bracket. The unthreaded end with the cross hole accommodates teh ball socket of the lift arm. The lift arm is secured on the pin with a linch pins or large hair pin clip.
(see fig. 4)

Lift arms and lift arm pins vary in length, but their respective ball socket holes and pin diameters are standized by horsepower category.
(see fig. 2)

Red Head Forged Hitch Pins

No.	Dia. (in.)	(in.)	(lbs.)
71500	1/2	3-5/8	0.6
71501	5/8	4	0.8
71502	5/8	5-1/2	1.2
71503	3/4	4	1.1
71504	3/4	6-1/2	1.6
71506	7/8	6-1/2	1.9
71508	1	7-1/2	2.7
71510	1-1/8	8-1/2	3.8
71512	1-1/4	8-1/2	4.7
71514	1-1/2	8-1/2	5.5
71515	1-3/4	8-1/2	7.0
71516	2	8-1/2	8.5
71517	1-1/4	12	8.5
71518	1-1/2	13	9.0

Our best hitch pin
Our best selling pin
Made of tensile steel
DOUBLE HEAT TREATED
One-piece forged pin
Red vinyl coated handle
Black powder coated pin finish
Includes zinc plated clip
1-3/4” & 2” – Grade 8 alloy steel

Cold Forged & Machined Hitch Pins

Cold Forged		Usable
Part No.	Dia.	Length	Wgt. Ea.
W/Clip	(in.)	(in.)	(lbs.)
75180	3/8	3-1/2	0.3
75190	1/2	4-1/4	0.4
75200	5/8	4-1/4	0.6
74880	5/8	6-1/4	0.8
75210	3/4	4-1/4	0.9
74890	3/4	6-1/4	1.1
–	7/8	4-1/4	1.2
77880	7/8	6-1/4	1.5
–	1	4-1/4	1.5
77890	1	6-1/4	1.9
77900	1-1/8	6-1/4	2.4
78000	1-1/4	6-1/4	2.9
–	1-1/4	7-1/2	2.9

High carbon steel
Spring wire handle
Includes clip or linch pin and chain
Zinc plated

Premium Hitch Pins

Part	Dia.	Usable Length	Wgt. Ea.
No.	(in.)	(in.)	(lbs.)
71600	1/2	4	0.4
71601	5/8	4	0.6
71602	5/8	6	0.8
71603	3/4	4-1/4	0.9
71604	3/4	6-1/4	1.1
71605	7/8	4-1/4	1.2
71606	7/8	6-1/2	1.6
71607	1	6-3/4	2.0
71608	1-1/8	7	2.6
71609	1-1/4	7	3.1

One-piece forged pin
High carbon steel
Heat treated to grade 5
Spring wire swivel handle
Clip included
Zinc plated
For the toughest applications
Meets or exceeds OEM specs

Economy (Clevis) Hitch Pins

Our lowest priced pin
Medium carbon steel pin
Zinc plated
3/4” and 1” can be used as top link pins with extra large head for worn holes

Drop Forged Hitch Pins

No.	Dia. (in.)	(in.)	(lbs.)
71415	7/16	3-1/2	0.3
71420	1/2	3-1/2	0.4
71425	5/8	3-3/4	0.6
71430	3/4	4	0.9
71435	7/8	4-1/4	1.2
71440	1	4-3/4	1.6
71445	5/8	6	0.8
71450	3/4	6-1/4	1.1
71455	7/8	6-1/2	1.5
71460	1	6-3/4	2.1
71465	1-1/8	7	2.7
71470	1-1/4	7	3.4

Drop forged pin
High tensile steel
Heat treated
Pin painted bright red
Zinc plated, spring wire handle
Includes zinc plated clip

Bent Hitch Pins

Part	Dia.	Usable Length	Wgt. Ea.
No.	(in.)	(in.)	(lbs.)
71410	1/2	3	0.3
71411	5/8	3	0.5
71412	3/4	3-1/2	0.8

Fits lawn tractors and snow plows
High carbon steel pin
Zinc plated
Includes zinc plated clip

Handle-Lok Hitch Pins

Part	Dia.	Usable Length	Wgt. Ea.
No.	(in.)	(in.)	(lbs.)
75195	1/2	4-1/4	0.5
75205	5/8	4-1/4	0.7
75215	3/4	4-1/4	1.0
74895	3/4	6-1/4	1.2
77885	7/8	6-1/4	1.5
77895	1	6-1/4	1.9

Spring steel wire holds pin in place
High carbon steel pin
Zinc plated

Handle-Lok Hitch Pins – Small

Spring steel wire holds pin in place
Grooved pin to secure wire
High carbon steel pin
Zinc plated

Farm Straight Clevises

No.	(in.)	(in.)	(in.)	(lbs.)	(lbs.)
78158	1/2	5/8 x 3-1/4	7/8	6,000	1.4	• Black powder coated finish
78134 78178	5/8 3/4	3/4 x 3-3/4 7/8 x 3-1/4	1-5/16 1-5/16	12,000 16,000	2.3 3.0	• Zinc plated pin and clip
78187	3/4	7/8 x 4-1/4	1-5/16	16,000	3.6	• Forged for better consistency
78190	7/8	15/16 x 4-5/8	1-7/16	20,000	4.2	in strength, quality and
78195	1	5/8 x 3-1/4	2-1/8	25,000	6.0	conformity

Farm Twisted Clevises

Part No.	Pin Dia. (in.)	Body Size (in.)	Opening (in.)	Max WLL* (lbs.)	Wgt. Ea. (lbs.)
78258	1/2	5/8 x 3	7/8	6,000	1.4
78234	5/8	3/4 x 3-1/2	1-5/16	12,000	2.3
78278	3/4	7/8 x 3	1-5/16	16,000	3.0
78287	3/4	7/8 x 3-7/8	1-5/16	16,000	3.6
78290	7/8	15/16 x 4-1/4	1-7/16	20,000	4.2
78295	1	1 x 5	2-1/8	25,000	6.0

Black powder coated finish
Zinc plated pin and clip
Forged for better consistency in strength, quality and conformity

Farm Screw Pin Clevises

Part	Body Size	Max WLL*	Wgt. Ea.	Pkg.	Pkg.	Pcs/	Pkg. Wgt.
No.	(in.)	(lbs.)	(lbs.)	No.	Type	Pkg.	(lbs.)
78646	1/4 x 1-1/8	1,000	0.12	98646	C	2	0.2
78647	5/16 x 1-1/4	2,000	0.2	98647	C	2	0.4
78648	3/8 x 1-7/16	3,000	0.3	98648	C	1	0.4
78649	7/16 x 1-11/16	4,000	0.5	98649	C	1	0.8
78650	1/2 x 15/16	6,500	0.75	98650	C	1	0.9
78651	5/8 x 2-1/2	9,000	1.3	98651	C	1	1.4
78652	3/4 x 3	13,000	2.2	98652	C	1	2.4
78653	7/8 x 3-1/4	15,000	3.5
78654	1 x 3-3/4	17,000	5.0

Black powder coated finish
Zinc plated pin and clip
Forged for better consistency in strength, quality and conformity

Farm Utility Clevises

*Part Body Size Max WLL Opening Wgt. Ea. No. (in.) (lbs.) (in.) (lbs.)**					Pkg. Pkg. Pkg. Pcs/ Wgt. No. Type Pkg. (lbs.)
78546	1/4 x 7/8	1,000	15/32	0.1	98546	C	2	0.2
78547	5/16 x 1	1,500	17/32	0.2	98547	C	2	0.4
78548	3/8 x 1-1/4	2,000	21/32	0.3	98548	C	1	0.6
78549	7/16 x 1-1/2	3,000	23/32	0.4	98549	C	1	0.7
78550	1/2 x 1-11/16 6,000		13/16	0.6	98550	C	1	0.7
78551	5/8 x 2	9,000	1-1/16	1.2	98551	C	1	1.3

Black powder coated finish
Zinc plated pin and clip
Forged for better consistency in strength, quality and conformity

General Purpose Clevis

Part	Body Size	Opening	Max WLL*	Wgt. Ea.
No.	(in.)	(in.)	(lbs.)	(lbs.)
78465	3/4 x 6-3/16	2-1/2	10,000	3.3	• Black powder coated finish
					• Zinc plated pin and clip • Forged for better consistency

Farm Double Clevises

*Part Chain Size Max WLL Wgt. Ea. No. (in.) (lbs.) (lbs.)**			Pkg. Pkg. Pkg. Pcs/ Wgt. No. Type Pkg. (lbs.)
78605 1/4 or 5/16	4,700	0.4	98605	C	1	0.4
78606 3/8	6,600	0.5	98606	C	1	0.6
78608 7/16 or 1/2	11,300	1.0	98608	C	1	1.0

One-piece forged steel
HEAT TREATED
Use with high test chain
Black powder coated finish

T-Handle Clevis Pins

Part	Pin Dia.	Usable Length	Wgt. Ea.
No.	(in.)	(in.)	(lbs.)
78812	1/2	2-1/2	0.4
78813	5/8	3-1/8	0.5
78814	3/4	3-1/4	0.7
78815	7/8	3-3/4	1.2
78816	1	4-1/4	1.5

High carbon steel
Drop forged
HEAT TREATED
Zinc plated
Includes clip

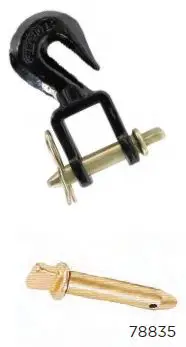

Tractor Drawbar Hook

Fits all tractor drawbars with 3/4” holes, up to and including 1-1/4” thick. Use with chain sizes 5/16” to 1/2”, including high-test chain. Working Load Limit – 9,000 lbs.

Part No. 78834
Hot forged, high carbon steel
HEAT TREATED
Includes 3/4” pin
Hook – black powder coated
Replacement pin and clip –Part No. 78835

One-Piece Drawbars

No.	CAT	(in.)	Holes	(in.)	(in.)	(in.)	(in.)	(lbs.)
70418	0	20	7	5/8	5/8	5/8	2	6.8
70419	1	20	7	3/4	7/8	1	2-1/2	13.5
70411	1	26	11	3/4	7/8	1	2-1/2	16.5
70421	2	26	11	3/4	1-1/8	1-1/4	3	27.0
70432	2	32	13	3/4	1-1/8	1-1/4	3	33.0
70441	3	38	5	1-1/2	1-1/2	1-3/4	3-1/2	61.0

One-piece 3-point hitch cross drawbars
Black powder coated finish

Swinging Drawbar

Fits: Ford 2N, 8N, 9N, NAA; 630, 631, 640, 641, 650, 651, 660, 661: Ferguson T020, TP030: Massey-Ferguson 35 and 50

Part No. 70412
30” (762mm) overall length
3/4” (19mm) first hitch pin hole 5/8” (16mm) second pin hole
Weight: 15.9 lbs.
Black powder coated finish

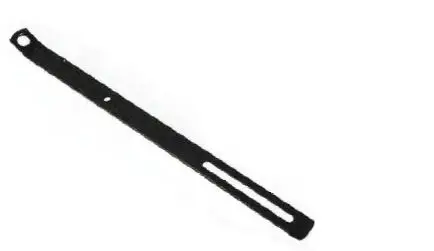

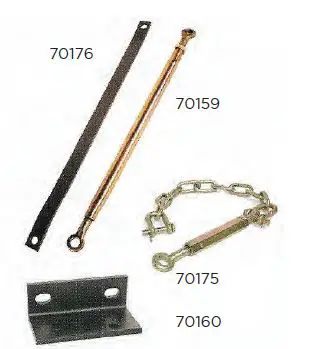

Stabilizer Arms & Kits

70159	70176	1	Flat Bar	3/8 x 1-3/4	7/8	31-9/16	6.0	Kit No. 70611
	70177	1	Flat Bar	3/8 x 1-3/4	7/8	33-1/8	6.4	Fits: All Ferguson, MF 35 and 50,
70178 1 Flat Bar 3/8 x 1-3/4 7/8 31-1/8 & 33-3/4 7.0 Ford 2N, 8N, 9N, 600 and 800

70159	1	Adjustable	7/8 Thread	7/8	27-1/2 & 35	6.5
70160	1	Bracket	Fits Kits	RH/LH	5/8	3.7
70175	–	Chain	–	–	–	5.0

70175 Universal stabilizer chain for most CAT 1 applications

Stay Straps

Ratchet Jack & Hydraulic Cylinder Pins

Part	Body Size	Opening	Max WLL*	Wgt. Ea.
No.	(in.)	(in.)	(lbs.)	(lbs.)
71542	3/4 x 6-3/16	2-1/2	10,000	3.3

Usable Wgt. Part Pin Dia. Length Overall Each No. Description (in.) (in.) (in.) (lbs.)						Pkg. Pkg. Pkg. Pcs/ Wgt. No. Type Pkg. (lbs.)
71544	w/2 Clips	1	2-3/4	3-1/2	0.7	91544	C	2	1.5
71545	w/2 Clips	1	3-1/4	3-7/8	0.8	91545	C	2	1.7
71546	w/2 Clips	1	3-3/8	4	.14	–	–	–	–
70017	Clip Only	–	–	–	.002	90017	C	4	.01

Includes 2 pins & handle
Black powder coated finish

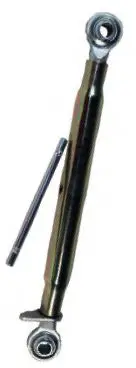

Forged Top Links

Part	Thread Body Pin Holes Dia. Length					Hole Center Adjustment	Wgt. Ea.
No.	CAT	Type*	Dia. (in.)	(in.)	(in.)	(in.)	(lbs.)
70330	1	Std.	1/2	1	11-1/4	16 to 23	6.7

								• Zinc plated ends
70331	1	Std.	3/4	1-1/8	16	20-1/2 to 29	8.4
70332	1	Std.	3/4	1-1/8	16	20-1/2 to 29	7.6
70335	1	Std.	3/4	1-1/8	20	24-1/2 to 32	9.1
70338	1 & 2	Std.	3/4 & 1	1-1/8	16	20-3/4 to 31	9.4
70339	1 & 2	Std.	3/4 & 1	1-1/8	20	24-3/4 to 35	10.1
70480	1	Std.	3/4	1-1/8	13	17-1/2 to 26-1/2	7.7
70486	2	Std.	1	1-1/8	13	18 to 27-3/4	9.1
70336	2	Std.	1	1-1/8	16	21 to 33	10.4
70340	2	Std.	1	1-1/8	16	21 to 33	9.8
70337	2	Std.	1	1-1/8	20	25 to 36-1/2	11.1
73470	0	Std.	5/8	3/4	7-1/2	10-3/4 to 16-3/8	2.9
73473	2	H.D.	1	1-1/4	15	20-1/2 to 31-1/2	14.9
73474	2	H.D.	1	1-1/4	19	24-1/2 to 35-1/2	15.9
73477	3	H.D.	1-1/4	1-3/8	19	25-1/2 to 36-1/2	23.0
70333	1 & 2	Std.	–	–	–	Adjusting Rod	0.5
70348	1 & 2	Std.	–	1-1/8	–	Locking Collar	0.2

Superlinks/O.E.M. Links

Part	Pin Holes	Thread Dia.	Body Length	Hole Center Adjustment	Wgt. Ea.
No.	CAT Dia. (in.)	(in.)	(in.)	(in.)	(lbs.)
73475	2 1	1-1/4	11-1/4	20-9/16 to 30-3/4	6.7
73476	3 1-1/4	1-3/8	16	25-13/16 to 35-3/16	8.4
73478*	1 25/32-1	1-1/8	16	21-5/8 to 30	7.6
73479*	2 1	1-1/8	20	21-5/8 to 31	9.1
73480**	2 1	1-1/4	16	22 to 29-3/4	9.4
73481***	2 3/4-HQ-2	1-1/4	20	22-3/4 to 30	10.1
73482**	2 7/8-1	1-1/4	13	22 to 29-3/4	13.70
73483***	2 7/8-HQ-2	1-1/4	13	22-3/4 to 30	16.75

Forged Top Link Replacement Ends

Part		Pin Holes	Thread Dia.	Wgt. Ea.
No.	Thread CAT	Dia. (in.)	(in.)	(lbs.)
70342	LH 1	3/4	1-1/8	2.4
70343	RH 1	3/4	1-1/8	2.4
70346	LH 2	1	1-1/8	3.0
70347	RH 2	1	1-1/8	3.0
73246	LH 2 HD	1	1-1/4	5.5
73244	RH 2 HD	1	1-1/4	5.5
74951	LH 3 HD	1-1/4	1-3/8	5.9
74950	RH 3 HD	1-1/4	1-3/8	5.9

Zinc plated

Lift Arm

Part		Pin Holes	Ball Centers	Wgt. Ea.
No.	CAT	Dia. (in.)	(in.)	(lbs.)
70500	1	7/8	31-3/4	10.8

Fits: All Ferguson, Massey 35 and 50, Ford 2N, 8N, 9N, NAA Deere 1010
Fits up to 50 h.p.
Fits right or left hand
Forged ball sockets
Black powder coated finish
Heavy duty

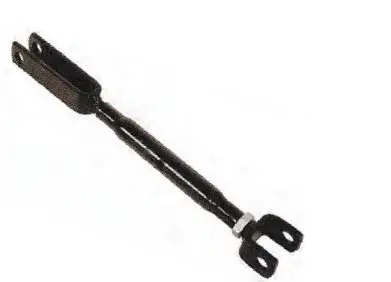

Lift Arm Leveling Assembly

Part		Thread	Overall	Wgt. Ea.
No.	CAT	(in.)	(in.)	(lbs.)
70152	1	7/8 NF	19-1/4	6.6

Fits old Ford & Ferguson
Replaces Ford NCA 577A
Black powder coated finish

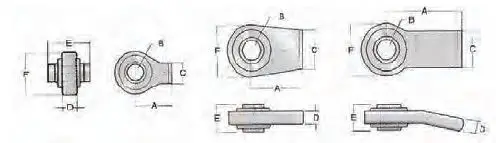

Forged Weld-On Ball Sockets

Part No.

Type

CAT

(in.)

Pkg. Wgt.

(lbs.)

Pkg. No.

Pkg. Type

Pcs/ Pkg.

Pkg. Wgt.

(lbs.)

70310

Top Link

2-3/8

1-1/8

1/2

2-5/8

1.4

90311

1.5

71338

Lift Arm-Straight

2-3/4

7/8

2-3/8

5/8

1-3/8

2-5/8

1.7

91338

1.8

71342

Lift Arm-Straight

3-1/8

1-1/8

2-3/4

3/4

1-3/4

3-1/8

2.8

91342

2.9

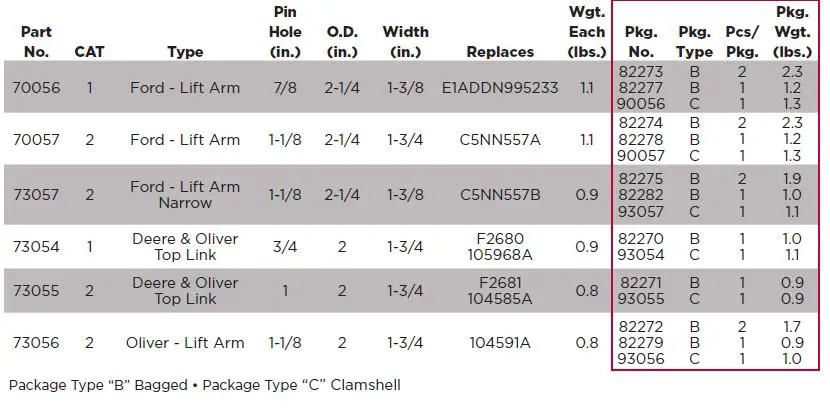

Replacement Balls

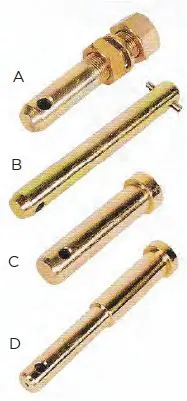

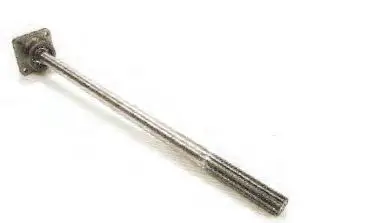

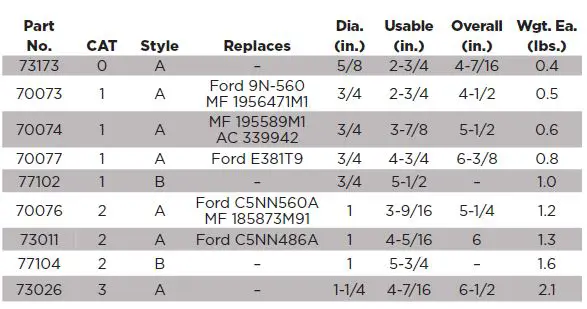

Lift Arm Pins

Part			Pin Dia.	Thread Dia. Overall	Wgt. Ea.
No.	CAT Type	Style	Usable (in.)	(in.) (in.)	(lbs.)
73137	0 Adjustable	A	Adjustable 5/8	5/8 4	0.4
73031	1 Clevis	C	4-1/4 7/8	1-1/4 5-1/4	2.7
73134	1 & 2 Clevis	C	8 7/8	– –	2.8
70211	1 Adjustable	A	Adjustable 7/8	7/8 5-5/16	1.1
70200	1 Forged	A	1-3/4 7/8	7/8 5-1/2	1.1
73000	1 Adjustable-XL	A	Adjustable 7/8	7/8 6-1/4	1.3
73004	1 Forged-XL	A	2-1/4 7/8	7/8 6-1/2	1.3
73001	1 to 2 Adjustable	A	Adjustable 1-1/8	7/8 5-3/16	1.4
70202	1 to 2 Forged	A	1-3/4 1-1/8	7/8 5-1/4	1.5
73178	1 to 2 Forged-XL	A	2-1/4 1-1/8	7/8 6-5/16	1.6
73022	2 to 1 Forged	A	1-3/4 7/8	1-1/8 5-3/4	1.8
70213	1 & 2 Forged	A	2-1/16 7/8 & 1-1/8	1 8	1.9
73002	2 Adjustable	A	Adjustable 1-1/8	1-1/8 6-1/4	2.3
73006	2 Forged	A	1-3/4 1-1/8	1-1/8 6-1/4	2.3
73005	2 to 3 Forged	A	1-7/8 1-7/16	1-1/8 5-7/8	3.0
73007	2 Forged	A	2 1-7/16	1-3/8 5-7/8	3.5
73133	2 Clevis	C	5 1-1/8	– –	1.8
73032	2 Clevis	B	4-7/16 1-1/8	– 6-1/2	1.8
73132	2 Clevis	B	7-5/8 1-1/8	– 9-1/4	2.9
73033	3 Clevis	C	4-11/16 1-7/16	– 6-1/2	2.9
73039	2 & 3 Clevis	D	4 & 4-1/2 1-1/8 & 1-7/16	– 9-1/4	3.4

High carbon steel pin
Zinc plated

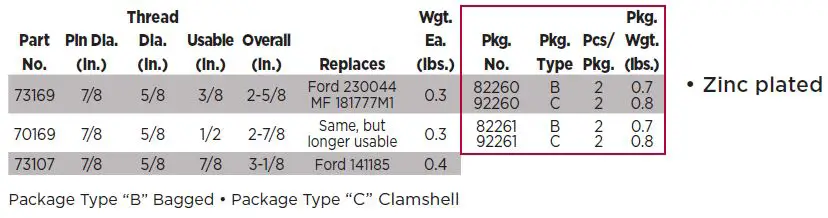

Top Link Pins

Carbon steel pin
Zinc plated
Forged ball sockets
Type B features extra large head for worn or oversized hole

Universal (Adjustable) Clevis Pins

Multiple holes
Adjustable length
Cut off excess length
Zinc plated

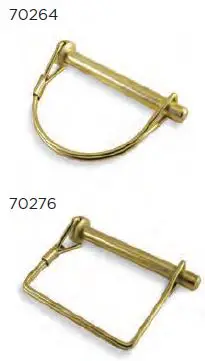

Linch Pins

Pin Wgt. Bulk Dia. Pcs./ Each No. (in.) Type CAT Ctn. (lbs.) 73548 3/16 Std. 0 100 .02 72646 3/16 w/Chain 0 100 .07 72709 5/16 Std. 1 & 2 100 1.0 72647 5/16 w/Chain 1 & 2 100 6.0 72704 1/4 Std. 1 & 2 100 .07 72648 1/4 w/Chain 1 & 2 100 .12						Pkg. Pkg. Pkg. Pcs/ Wgt. No. Type Pkg. (lbs.) 82204 B 2 .05 82211 B 25 .62 92204 C 4 .10 – – – – 82205 B 2 .20 82212 B 10 1.0 92205 C 4 .40 – – – – 82201 B 2 .15 82207 B 5 .37 82213 B 10 .75 92207 C 4 .30 92213 B 10 .75 – – – – 82200 B 2 .20 82206 B 5 .53
72703	7/16	Std.	1 & 2	100	.10	82214	B	25	2.6
						82219	B	10	1.1
						92206	C	4	.43
72650 7/16 w/Chain 1 & 2 100 .15						82203 B 2 .30 92203 C 2 .33 82215 B 2 .25
72698	7/16	Long	1, 2, 3	100	.12	82216	B	10	1.2
						92215	C	4	.50
						82202	B	2	.26
73027 7/16 Black HD 1, 2, 3 100 .12						82217 B 10 1.3 92202 C 4 .50 93027 C 2 .26

Carbon steel forged pins
Spring steel snap rings
Zinc plated
No. 73027 Ring powder coated

Top Link & Lift Arm Bushings

Zinc plated

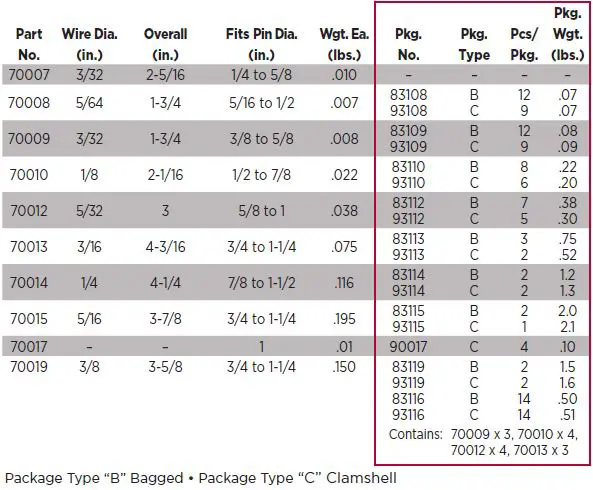

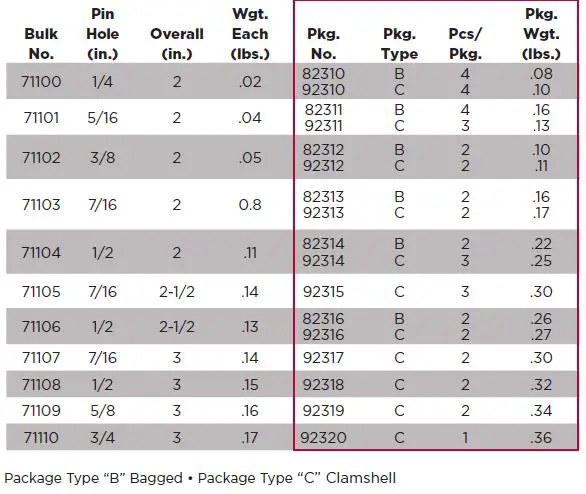

Hair Pin Clips

Spring steel wire
Zinc plated

Twist Clips

Part	Wire Dia.	Overall	Fits Pin Dia.	Wgt. Ea.	Pkg.	Pkg.	Pkg. Pcs/ Wgt.
No.	(in.)	(in.)	(in.)	(lbs.)	No.	Type	Pkg. (lbs.)
70020	1/8	2-1/16	1/2 to 7/8	.022	93120	C	6 .030
70021	5/32	3	5/8 to 1	.038	93121	C	5 .045
70022	3/16	4-3/16	3/4 to 1-1/4	.075	93122	C	2 .085

Spring steel wire
Zinc plated

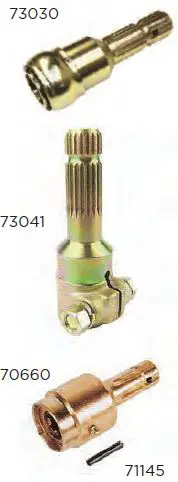

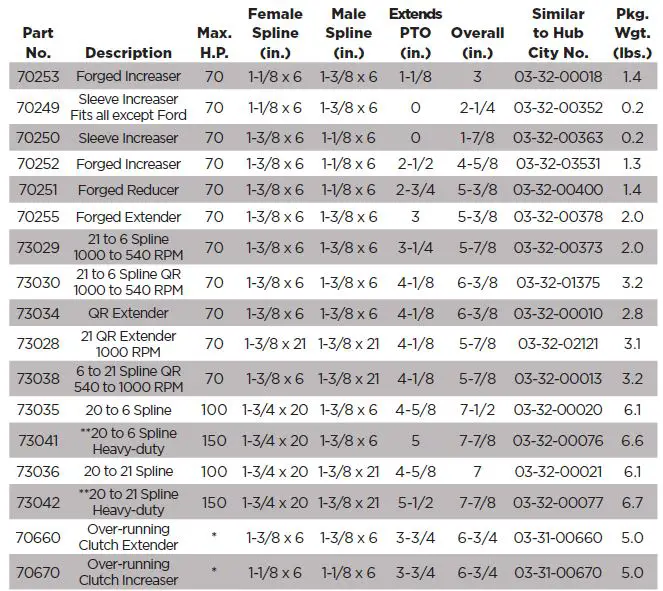

PTO Adapters

* Over-running clutches provide a safe means to protect operators and expensive machinery from situations when the inertia of a PTO driven implementexceeds and over-runs the tractor PTO speed. In such a case, the over-running coipler will free-wheel smoothly and safely. Over-running clutches will normally withstand applications requiring up to 65h.p. at 540 rpm and 100 h.p. at 1000 rpm. Extreme shock loads or drive line angularity will reduce this capability

Used to increase or reduce the diameter, or extend the length of the tractor’s power take-off shaft to fit an implement’s PTO shaft
Zinc plated finish
**Newer, Heavy-duty, 20-spline models have been redesigned to be be stronger, smaller and lighter to reduce rotating mass at higher RPM’s

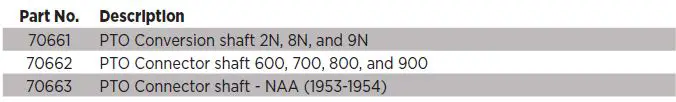

PTO Shafts

1-3/8” Modern shaft size
Eliminates need for PTO adapter
Replaces damaged or older shafts that may lack replacement seals
Includes seal, ball bearing, and bearing retainer

PTO Accessories

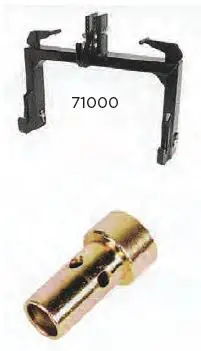

Quick Hitches

Part No.	CAT	Description	Max. Recommended Horsepower	Wgt. (lbs.)
71000	1	CAT 1	50	76
71001	2	CAT 2, Heavy-duty	150	160

Allows easy attachment and release of 3-point implements
Operator can engage and secure from seat
Heavy-duty steel construction

Quick Hitch Adapter Bushings

	I.D.	O.D.	Wgt. Ea.	Pkg.	Pkg. Pcs/	Pkg. Wgt.
Bulk CAT	(in.)	(in.)	(lbs.)	No.	Type Pkg.	(lbs.)
73015 2 to 3	1-1/8	1-7/16	1.1	93014	C 2	2.2
73016 1 to 3	7/8	1-7/16	1.4	93016	C 2	2.2
71148 Roll Pin	–	–	.01

Fits most category 3 quick hitches
Converts category 2 lift pins to category 3
Two required per unit
Use 7/16” x 1-3/8” roll pin to secure
Clampak includes 2 roll pins
Zinc plated

Wheelspinners

Part No.	Description	Wgt. Ea. (lbs.)
70949	Red Vinyl Wheel Spinner	.03

Premium ball bearing suspension
Bright zinc plated base and hardware

Stroke Controls

Part No.	Fits Shaft Sizes (in.)	Segment (in.)	Wgt. (lbs.)
70098	1-3/8 & 1-1/2	3/4, 1, 1-1/4, & 1-1/2	1.5
70099	1-1/8 & 1-1/4	3/4, 1, 1-1/4, & 1-1/2	1.5
79697	1-3/4, 1-7/8, & 2	1, 1-1/4, 2, & 4	3.9
79899	1-1/8, 1-1/4, 1-3/8, & 1-1/2	3/4, 1, 1-1/4, & 1-1/2	1.8

Roller Chain

Part	Chain	Unit	Pitch	Part Chain	Unit	Pitch
No.	No.	(ft.)	(in.)	No. No.	(ft.)	(in.)
76351	35	10	3/8	76603 60-H	10	3/4
76355	35	50	3/8	76801 80	10	1
76352	35-2	10	3/8	76805 80	50	1
76411	41	10	1/2	76802 80-2	10	1
76415	41	50	1/2	76803 80-H	10	1
76401	40	10	1/2	76100 100	10	1-1/4
76405	40	50	1/2	76120 120	10	1-1/2
76501	50	10	5/8	76241 A2040	10	1
76505	50	50	5/8	76245 A2040	50	1
76502	50-2	10	5/8	76251 A2050	10	1-1/4
76601	60	10	3/4	76255 A2050	50	1-1/4
76605	60	50	3/4	76261 A2060	10	1-1/2
76602	60-2	10	3/4	76551 CA550	10	1-41/64

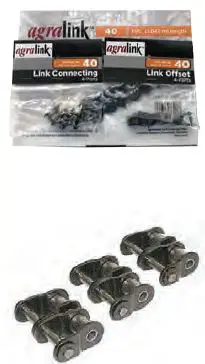

Connecting/Offset Links

Pkg.	Chain	Bagged	Pitch	Pkg. Chain	Bagged	Pitch
No.	No.	Qty.	(in.)	No. No.	Qty.	(in.)
56351	35	4	3/8	66351 35	4	3/8
56352	35-2	4	3/8	66352 35-2	4	3/8
56411	41	4	1/2	66411 41	4	1/2
56401	40	4	1/2	66401 40	4	1/2
56501	50	4	5/8	66501 50	4	5/8
56502	50-2	4	5/8	66502 50-2	4	5/8
56601	60	3	3/4	66601 60	3	3/4
56602	60-2	3	3/4	66602 60-2	3	3/4
56603	60-H	3	3/4	66603 60-H	3	3/4
56801	80	2	1	66801 80	2	1
56802	80-2	2	1	66802 80-2	2	1
56803	80-H	2	1	66803 80-H	2	1
56100	100	2	1-1/4	66100 100	2	1-1/4
56120	120	2	1-1/2	66120 120	2	1-1/2
52040	A2040	4	1	62040 A2040	4	1
52050	A2050	3	1-1/4	62050 A2050	3	1-1/4
52060	A2060	3	1-1/4	62060 A2060	3	1-1/2

Packaged in carded bags

Roller Chain Breakers

Part No.	Item	Fits
75050*	Breaker	#25 to #60 Chain
75051*	Breaker	#60 to #100 Chain
75053	Replacement tip assembly	75050 Breaker
75054	Replacement tip assembly	75051 Breaker

Black oxide & zinc plated
Tips made from tool steel
Packaged in resealable clamshell

Roller Chain Puller

Part No. Package

95052 Clamshell
75052 Bulk
Fits #35 to #60 chain
Black oxide & zinc plated
Tips made from tool steel

Rain Caps

		Min. Exhaust	Max. Exhaust
Part No.	Size (in.)	O.D. (in.)	O.D. (in.)
71032	1-1/4	1-1/4	1-7/16
71033	1-1/2	1-1/2	1-11/16
71034	1-3/4	1-3/4	1-15/16
71035	2	2	2-3/16
71036	2-1/4	2-1/4	2-7/16
71037	2-1/2	2-1/2	2-11/16
71038	2-3/4	2-3/4	2-15/16
71039	3	3	3-3/16
71040	3-1/4	3-1/4	3-7/16
71041	3-1/2	3-1/2	3-11/16
71042	3-3/4	3-3/4	3-15/16
71043	4	4	4-3/16
71044	5	5	5-3/16

Automatic exhaust pipe protection
Keeps out moisture when engine is off
Protective grey powder coating
Each cap permanently marked with size
Complete range of sizes

Set Collars

Part No.	Bore Size (in.)	Outside Dia. (in.)	Width (in.)	Pkg. No.	Pkg. Type	Pcs/ Pkg.	Pkg. Wgt. (lbs.)
70360	3/8	3/4	3/8	82360	B	2	0.6
70361	1/2	1	1/2	82361	B	2	1.2
70362	5/8	1-1/8	9/16	82362	B	2	1.9
70363	3/4	1-3/8	5/8	82363	B	2	2.9
70364	7/8	1-1/2	5/8	82364	B	2	0.8
70365	1	1-5/8	5/8	82365	B	2	1.3
70366	1-1/8	1-3/4	5/8	82366	B	1	1.9
70367	1-1/4	2	11/16	82367	B	1	5.7
70368	1-3/8	2-1/8	3/4	82368	B	1	6.7

Machine sized for exact fit
Allen head set screw

Post Drivers

		Length	O.D.	I.D.	Wgt.
Part No.	Description	(in.)	(in.)	(in.)	(lbs.)
75520	Post Driver	29-1/2	2-3/8	2-1/16	12.0
75521	Post Driver – Heavy-duty	23-3/8	3	2-3/4	16.0

Helps drive steel posts into the ground
Easy grip handles

Merchandising Program

Category-coded clamshell packaging

Agralink™ offers a simple to understand merchandising program that benefits your customers, yoursales efforts and your brand. At the end of the day, next generation point of sale systems should allow you to increase the category product turns as it also becomes a more efficient marketing tool for you. This well implemented POS system from Agralink will result in reduced marketing expenditures and increase sales volume.

Point-of-Sale product identification hangtags

The use of effective signage on this display attracts attention, engages your consumer, and offers distinct advantages over the standard 3-point tractor linkage product displays. It engages the customer by presenting the product at eye level and in multiple compartments. And finally, our point of sale display set will act like an extra sales person in your store. It offers a distinct advantage or value proposition by including both copy and visuals explaining what the product is and where it’s used.

Point-of-Sale informative headers
