ITC TL5000 Redwood Table Leg Instructions

INSTALLATION INSTRUCTIONS

PARTS/TOOLS NEEDED:

• Table Base

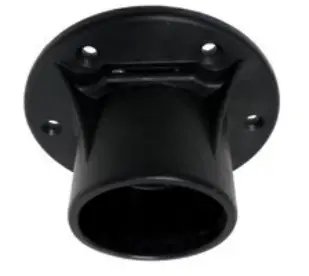

• Floor Base

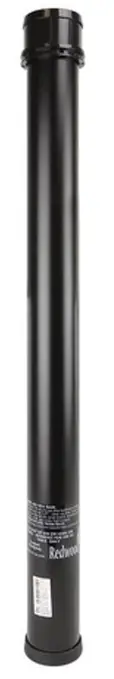

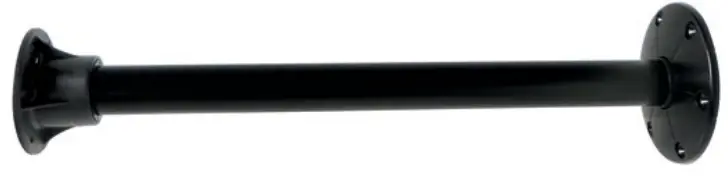

• Table Leg

• #10 Phillips Oval Head Screws (not provided)

• Power Drill (Not Provided)


INSTALLATION CONSIDERATIONS

• To avoid a hazard to children, account for all parts and destroy all packing materials.
• Do not sit on or lean on table, intended for use as a table only.

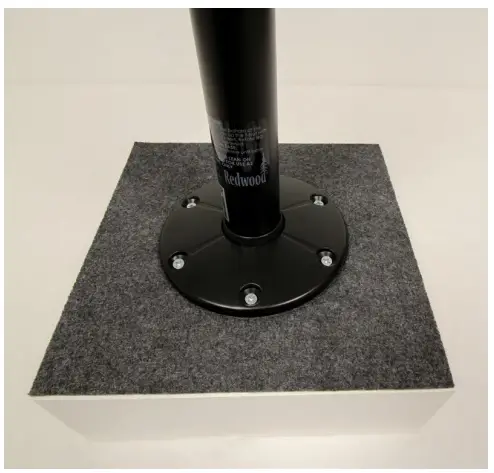

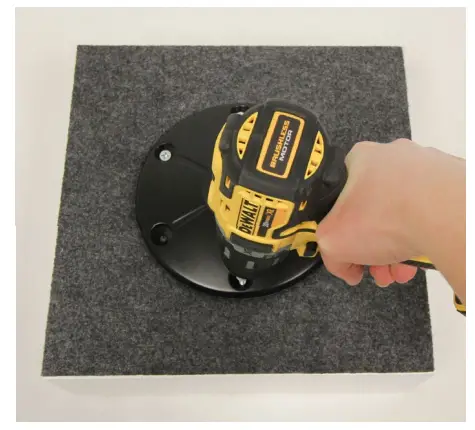

1. Mount the floor base into solid floor structure (wood, fiberglass, etc.) using #10 phillips oval head screws.

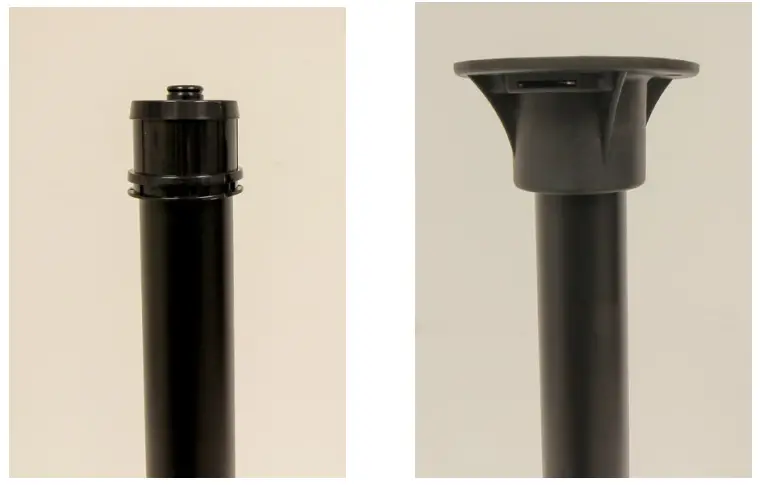

2. Mount the table base onto table top (customer provided) using #10 phillips oval head screws. Make sure the weight of the table top is evenly supported over the table leg. The top of the table leg has a positive lock so the table will click in place.

3. To secure, slot the T piece into the base and rotate clockwise. Make sure the T-bolt is extended all the way down. To loosen, turn the leg counter-clockwise.


3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com

For warranty information please visit www.itc-us.com/warranty-return-policy
